Intake Manifold: Removal

Release fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open fuel flap lid, and remove fuel filler cap.
Disconnect battery ground cable.

Fig 1: Disconnecting Battery Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove air intake duct and air cleaner case. Refer to REMOVAL , Air Intake Duct and REMOVAL , Air Cleaner Case.
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

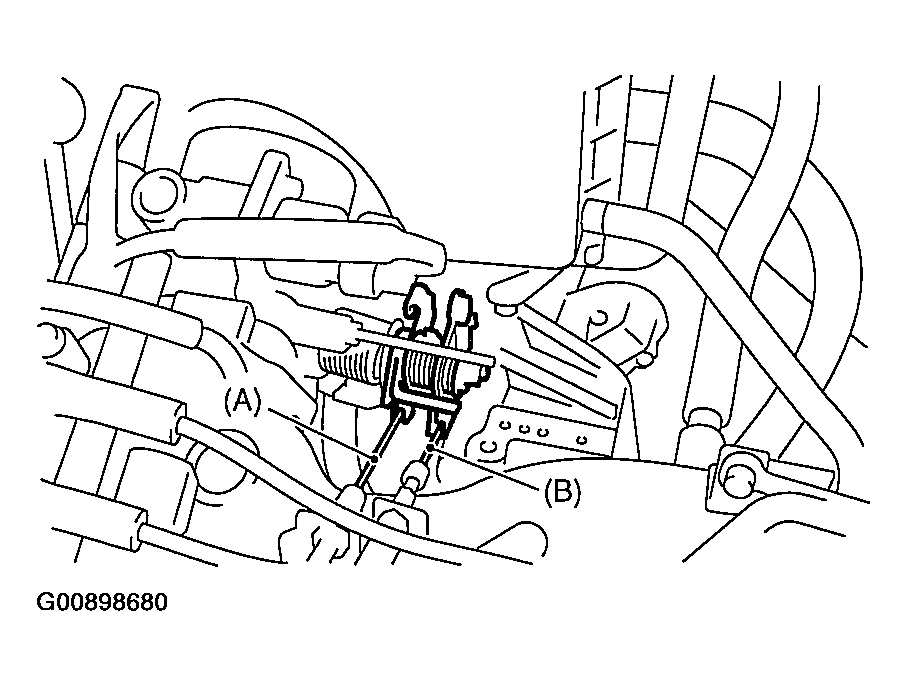

Fig 2: Disconnecting Accelerator Cable & Cruise Control Cable
Courtesy of SUBARU OF AMERICA, INC.
Remove power steering pump and tank from brackets.
1. Remove resonator chamber. Refer to REMOVAL , Resonator Chamber.
2. Remove front V-belt. Refer to REMOVAL , V-belt.

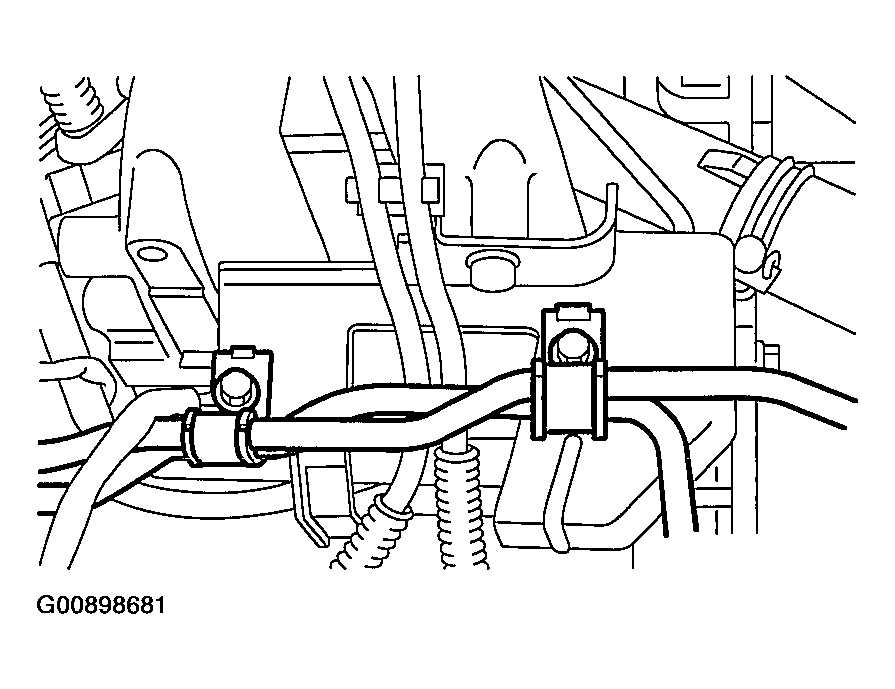

3. Remove bolts which hold power steering pipes onto intake manifold protector.
  NOTE: Do not disconnect power steering hose.

  Fig 3: Removing Power Steering Pipe Bolts
  Courtesy of SUBARU OF AMERICA, INC.

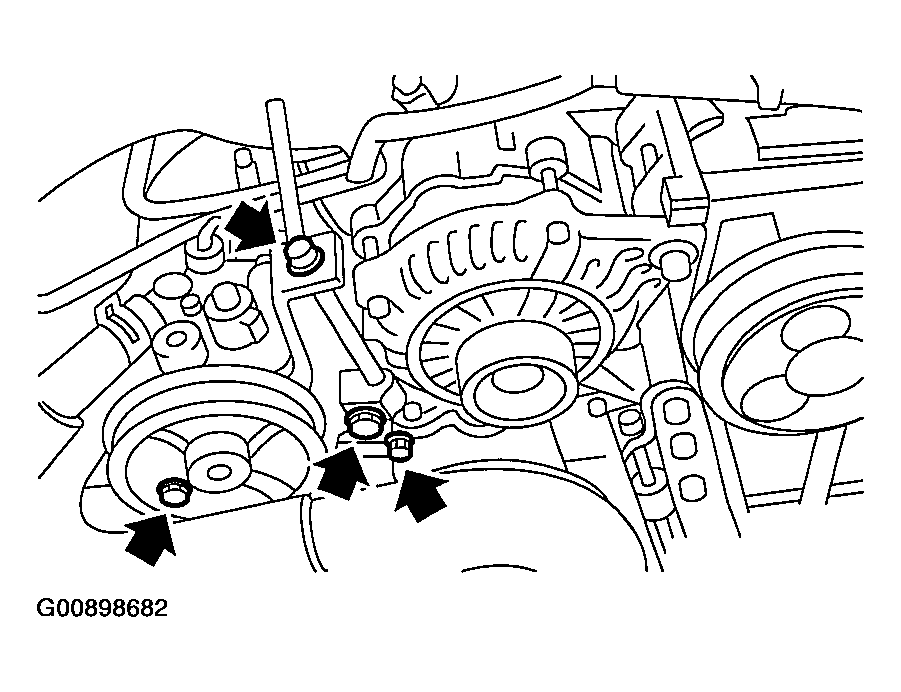

4. Remove bolts which install power steering pump bracket.

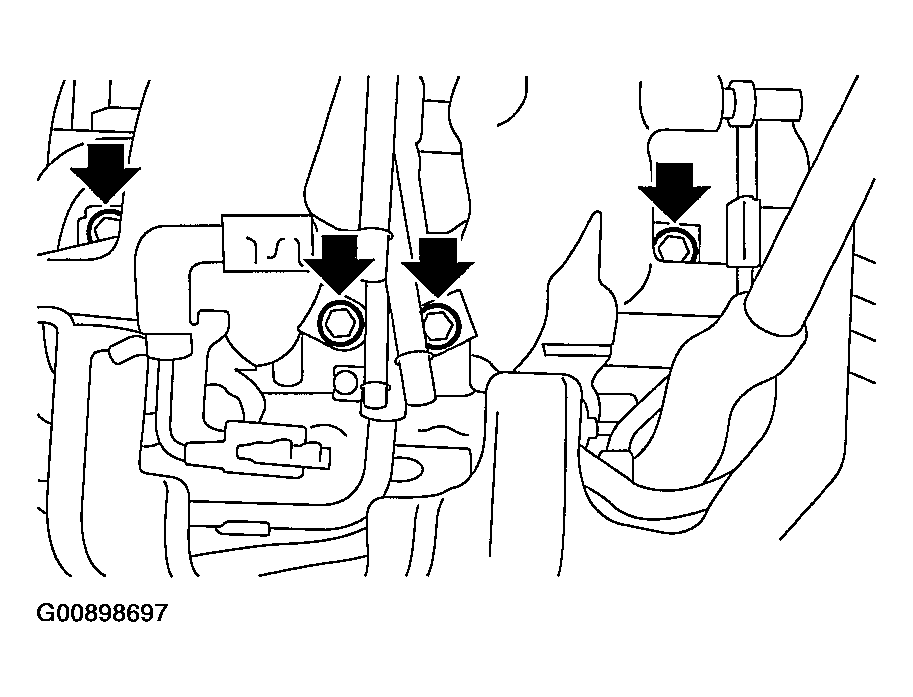

  Fig 4: Removing Power Steering Pump Bracket Bolts
  Courtesy of SUBARU OF AMERICA, INC.

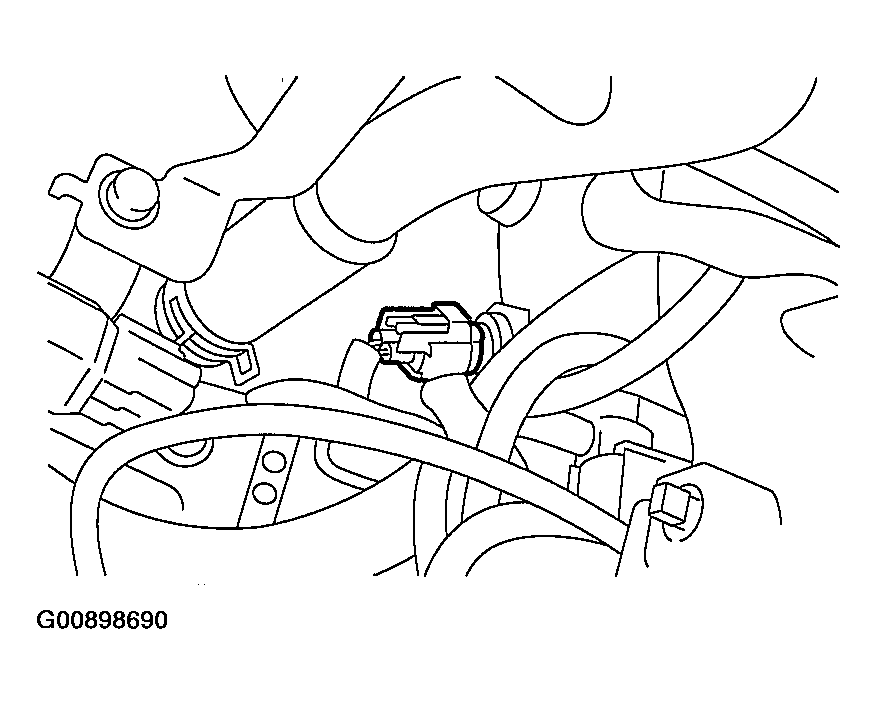

5. Disconnect connector from power steering pump switch.

  Fig 5: Disconnecting Connector From Power Steering Pump Switch
  Courtesy of SUBARU OF AMERICA, INC.

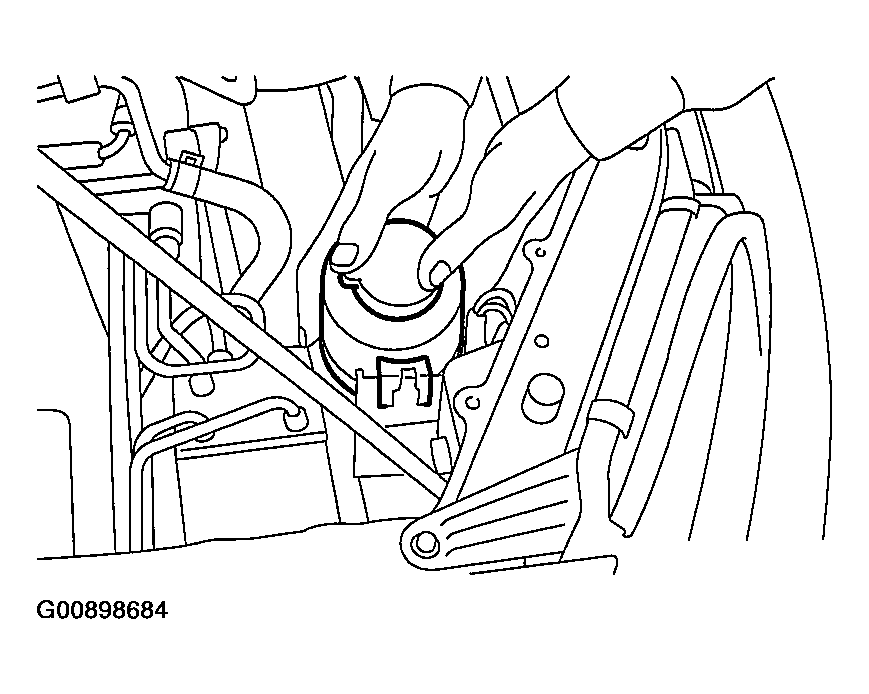

6. Remove power steering tank from the bracket by pulling it upwards.

  Fig 6: Removing Power Steering Tank From Bracket
  Courtesy of SUBARU OF AMERICA, INC.
7. Place power steering pump and tank on the right side wheel apron.

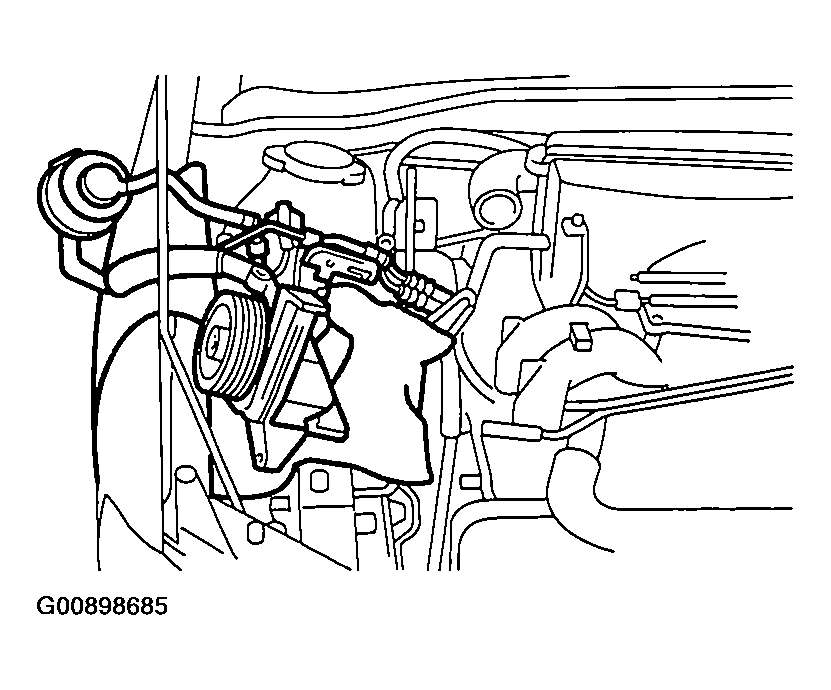

  Fig 7: Positioning Power Steering Pump & Tank On Right Side Wheel Apron
  Courtesy of SUBARU OF AMERICA, INC.
Disconnect spark plug cords from spark plugs.
Disconnect PCV hose from intake manifold.

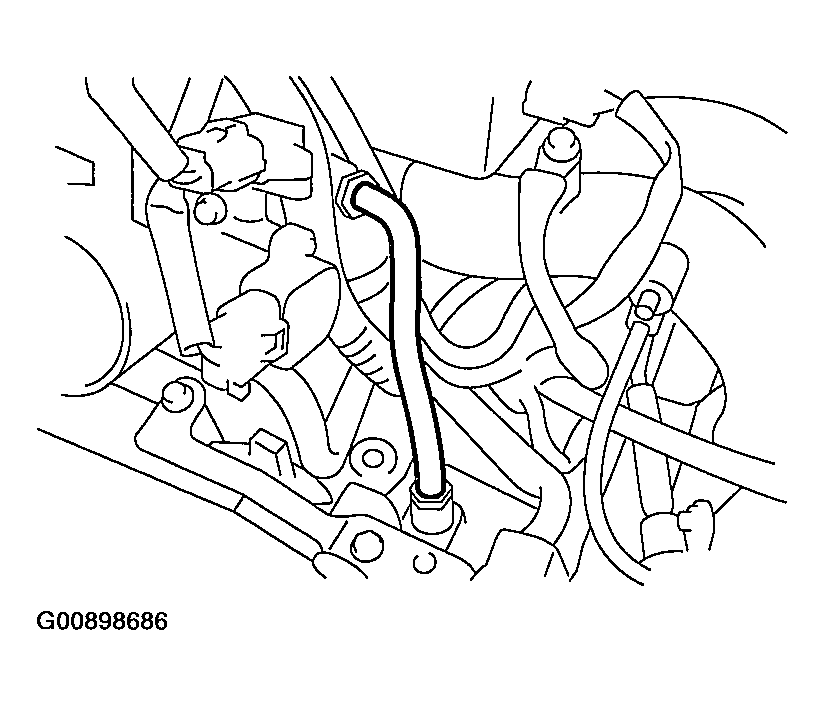

Fig 8: Disconnecting PCV Hose From Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
Disconnect engine coolant hose (A) from throttle body.

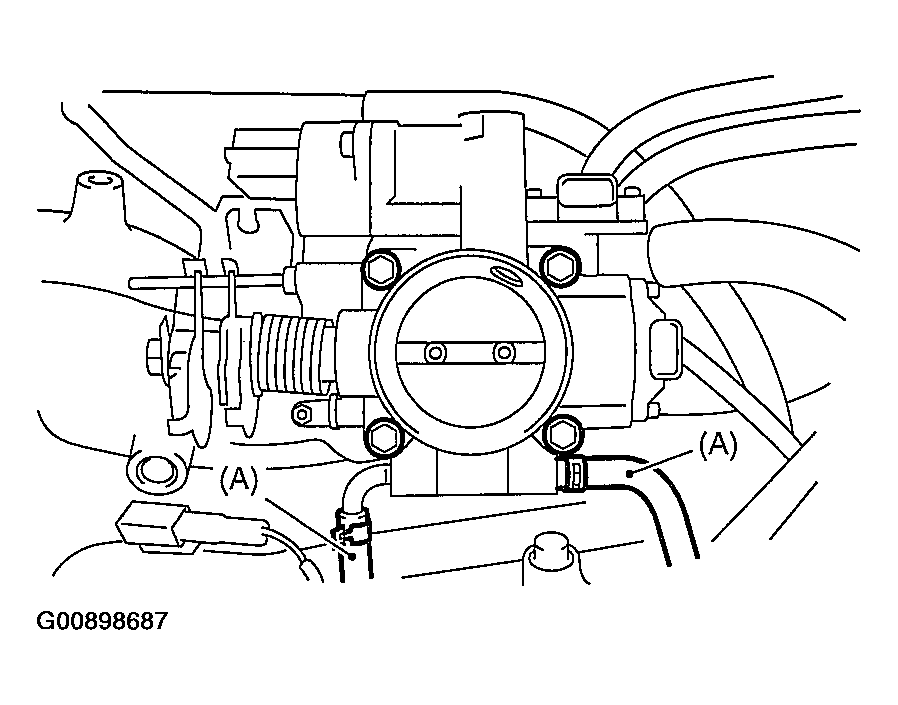

Fig 9: Disconnecting Engine Coolant Hose From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
Disconnect brake booster hose.

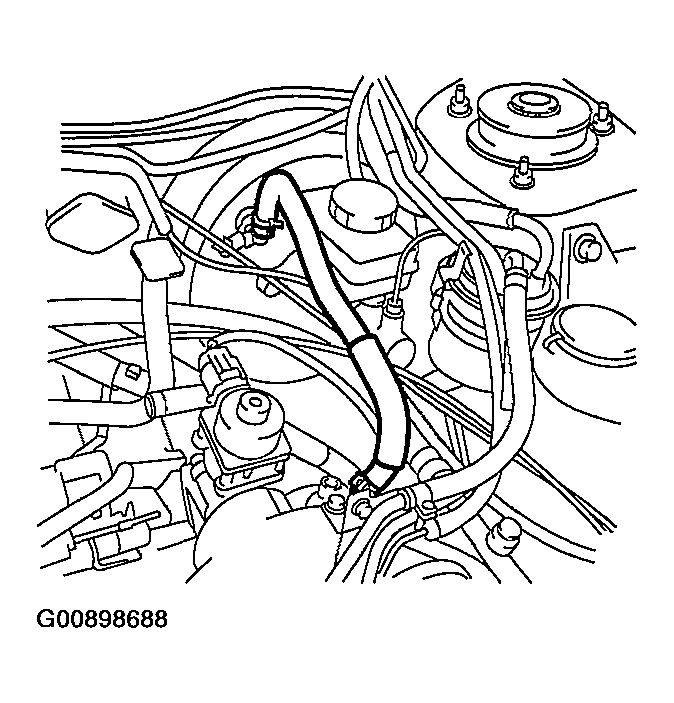

Fig 10: Disconnecting Brake Booster Hose
Courtesy of SUBARU OF AMERICA, INC.

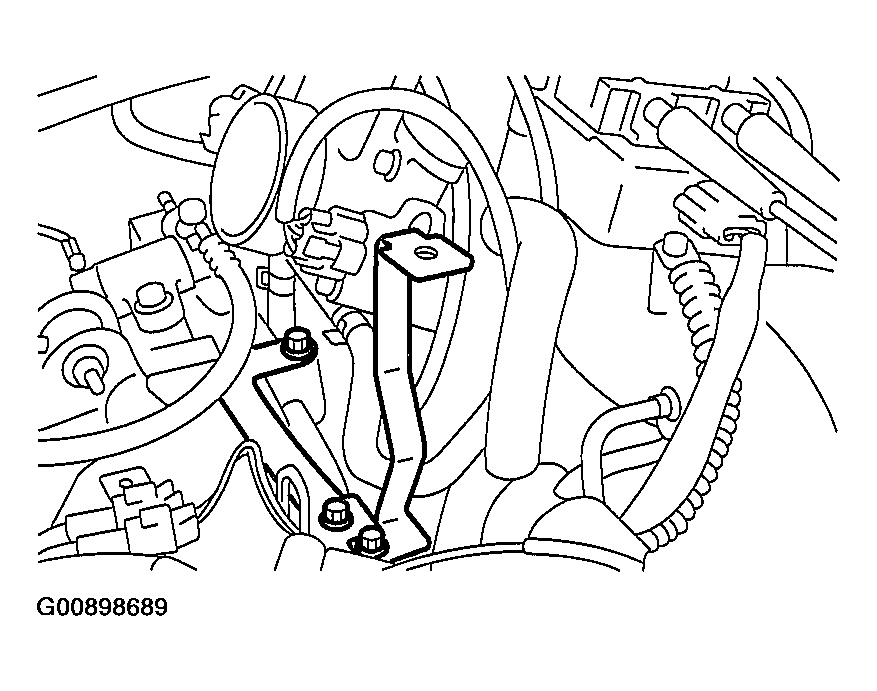

Remove air cleaner case stay RH and engine harness bracket, and disconnect engine harness connectors from bulkhead harness connectors.

Fig 11: Removing Air Cleaner Case Stay RH & Engine Harness Bracket
Courtesy of SUBARU OF AMERICA, INC.

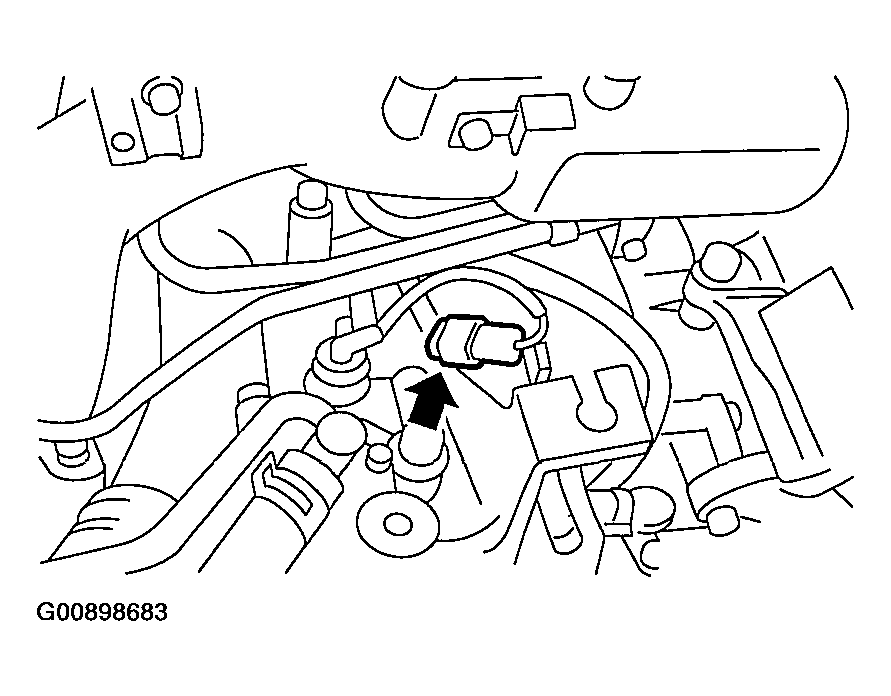

Disconnect connectors from engine coolant temperature sensor.

Fig 12: Disconnecting Connectors From Engine Coolant Temperature Sensor
Courtesy of SUBARU OF AMERICA, INC.

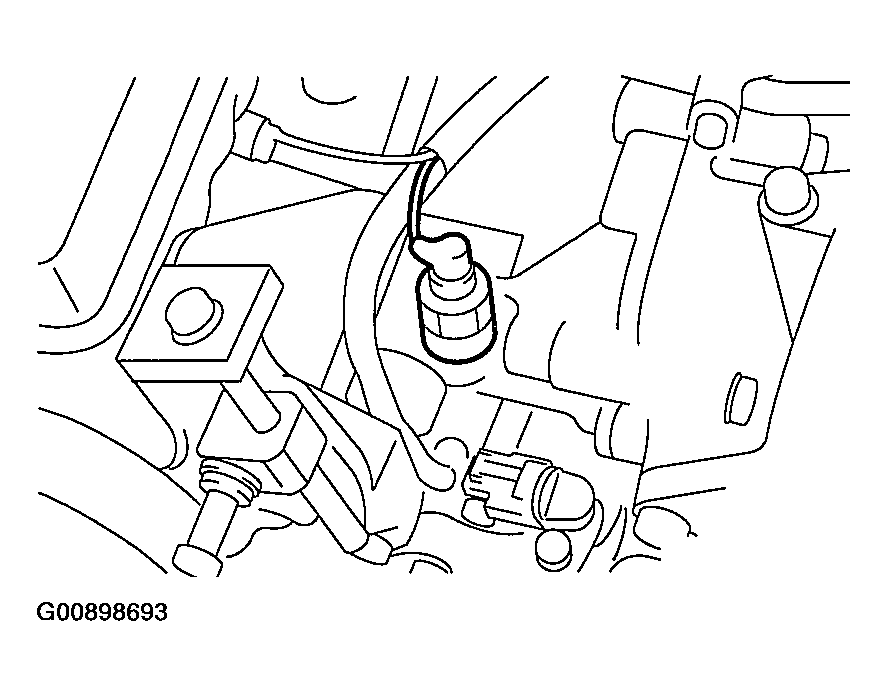

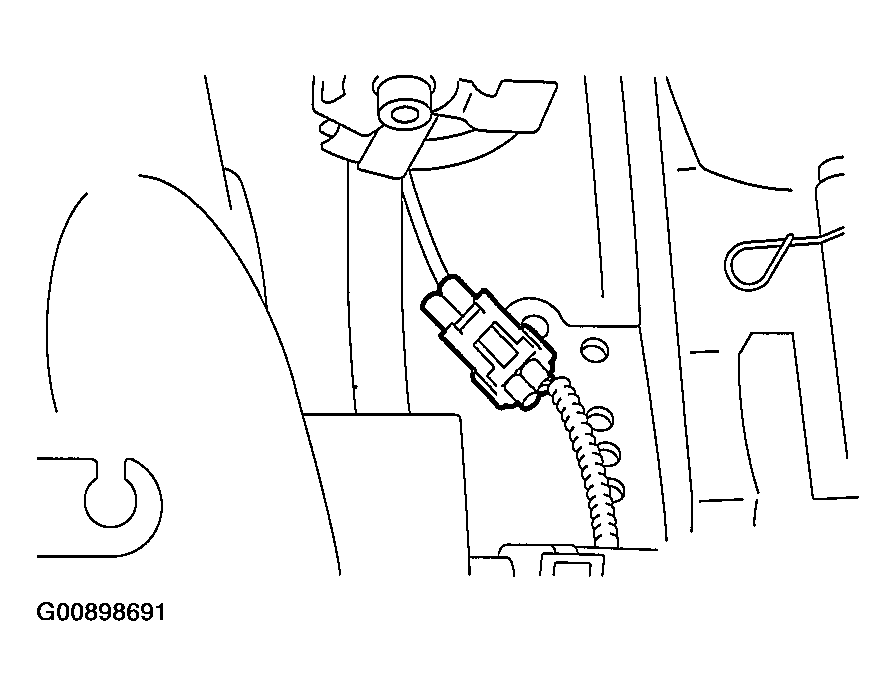

Disconnect knock sensor connector.

Fig 13: Disconnecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from crankshaft position sensor.

Fig 14: Disconnecting Connector From Crankshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.

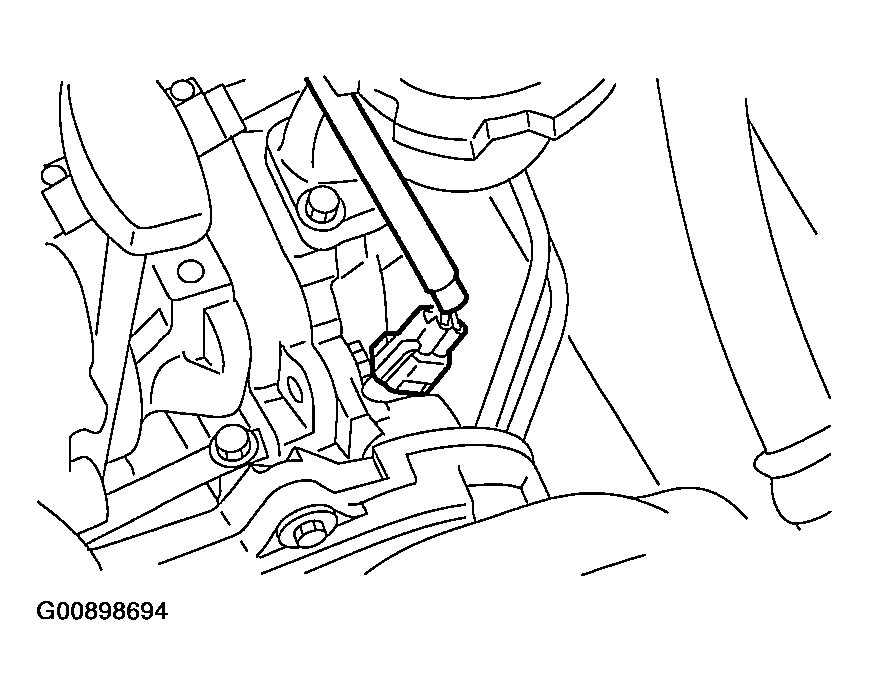

Disconnect connector from oil pressure switch.

Fig 15: Disconnecting Connector From Oil Pressure Switch
Courtesy of SUBARU OF AMERICA, INC.

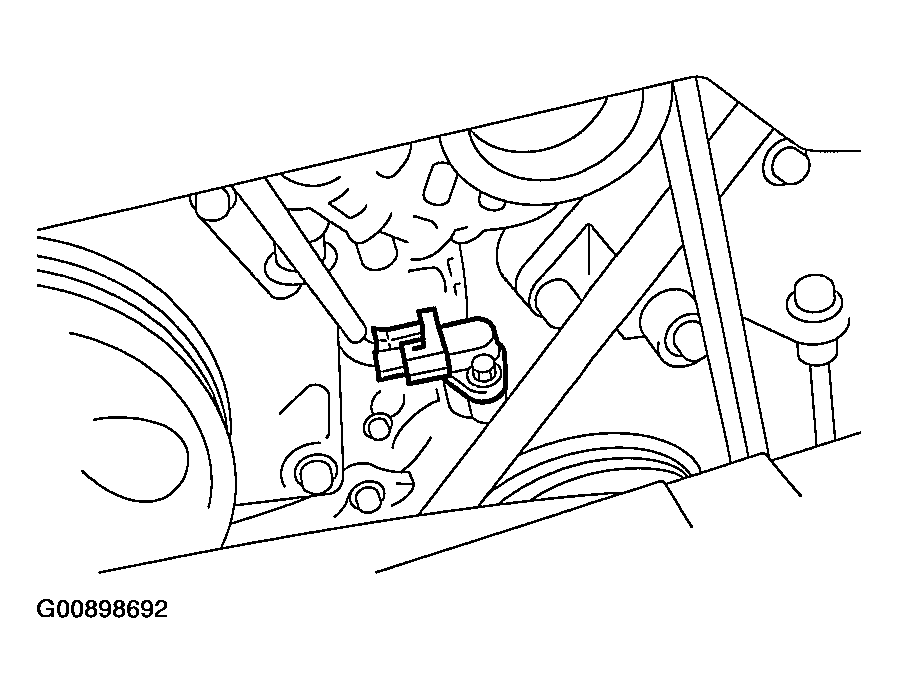

Disconnect connector from camshaft position sensor.

Fig 16: Disconnecting Connector From Camshaft Position Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove EGR pipe from intake manifold and cylinder head.

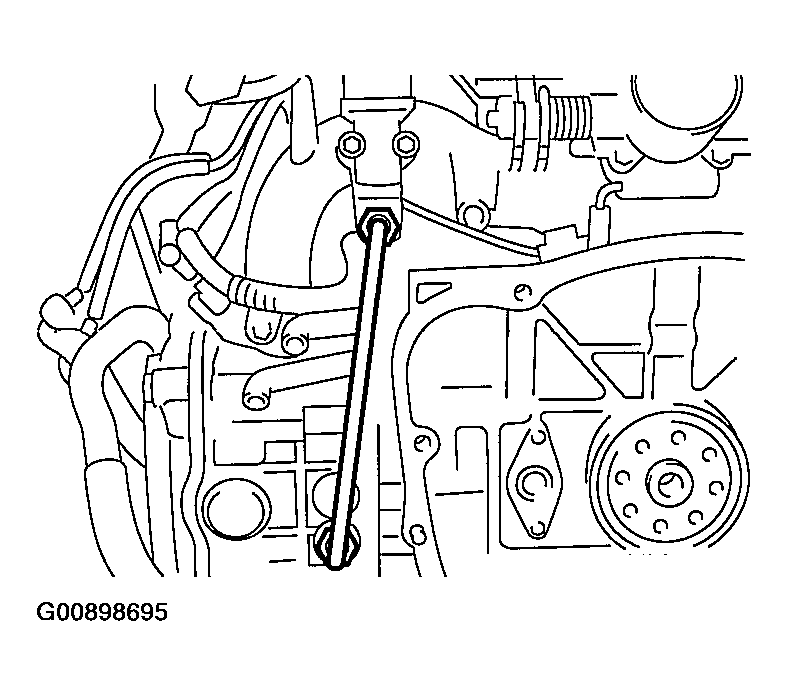

Fig 17: Removing EGR Pipe From Intake Manifold & Cylinder Head
Courtesy of SUBARU OF AMERICA, INC.
Using ST, disconnect fuel hoses from fuel pipes. Refer to REMOVAL , Fuel Delivery, Return and Evaporation Lines.
WARNING:
- Do not spill fuel.
- Catch fuel from hoses in a container or cloth.
ST 42099AE000: CONNECTOR REMOVER

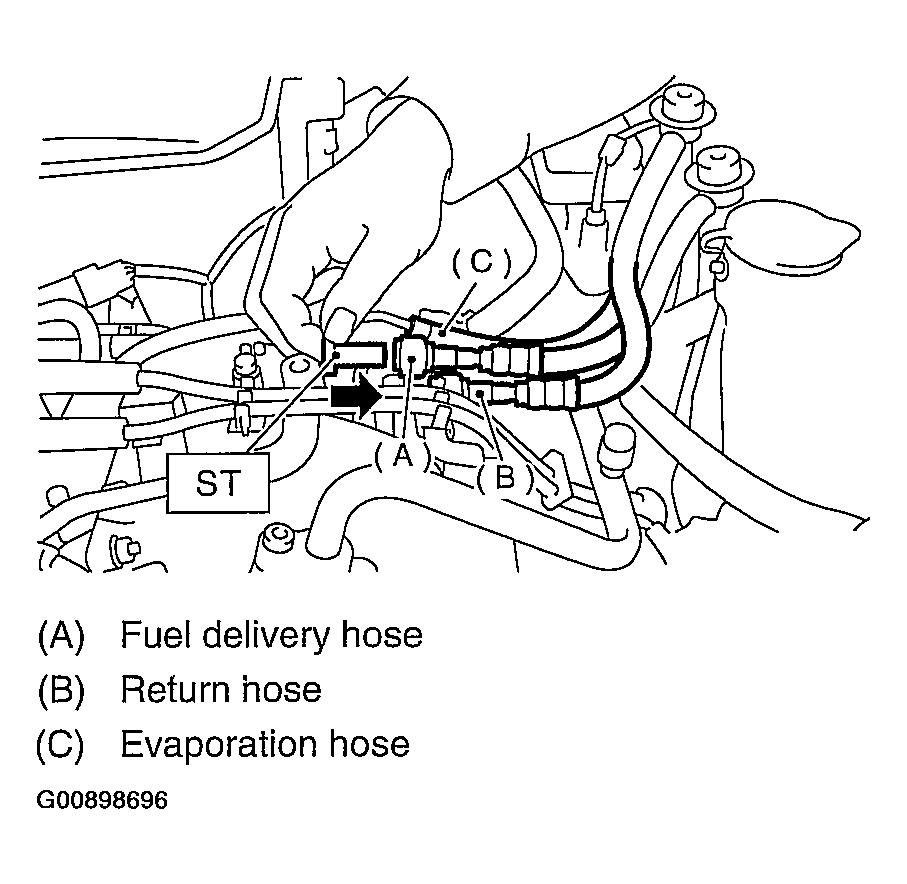

Fig 18: Disconnecting Fuel Hoses From Fuel Pipes
Courtesy of SUBARU OF AMERICA, INC.
Remove bolts which hold intake manifold onto cylinder heads, and remove intake manifold.

Fig 19: Removing Intake Manifold
Courtesy of SUBARU OF AMERICA, INC.
