Main Relay: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove lower inner trim of passenger side. Refer to REMOVAL , Lower Inner Trim.
Disconnect connectors from main relay.
Remove bolt which holds main relay bracket on body.

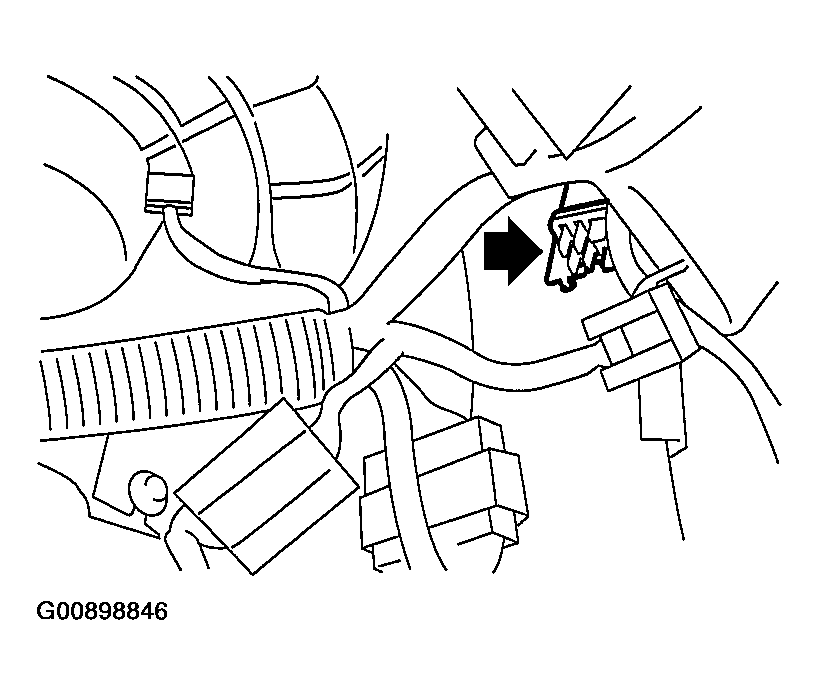

Fig 2: Disconnecting Connectors From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
