Pressure Sensor: Removal

Disconnect ground cable from battery.

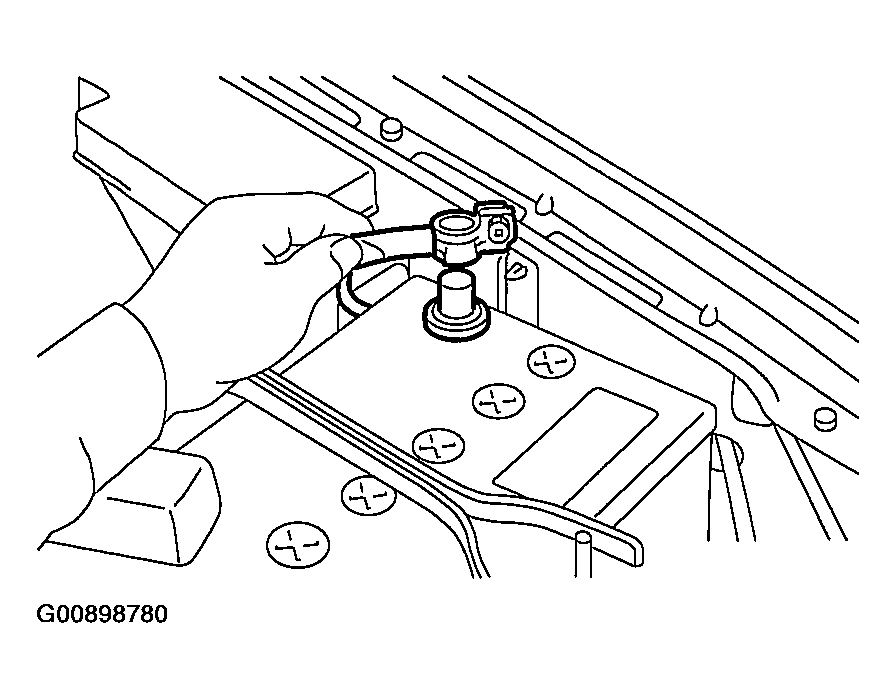

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connector from pressure sensor.

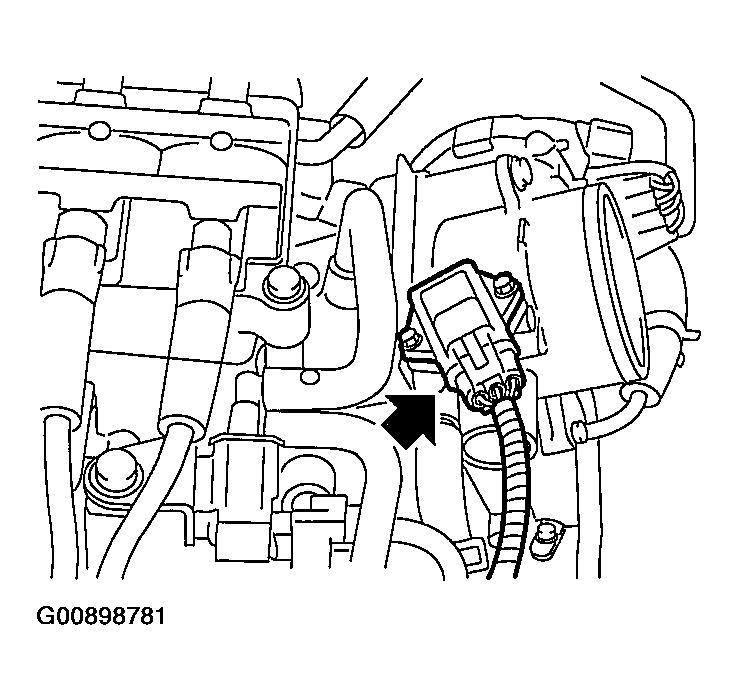

Fig 2: Disconnecting Connector From Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove pressure sensor from throttle body.

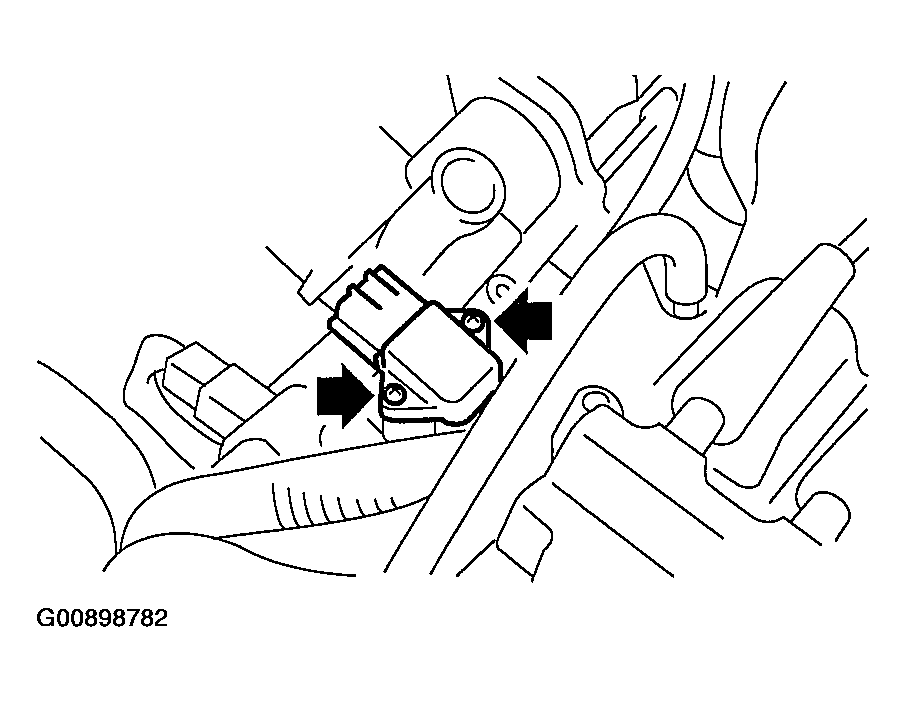

Fig 3: Removing Pressure Sensor From Throttle Body
Courtesy of SUBARU OF AMERICA, INC.
