Ignition (H4SO): General Description: Component

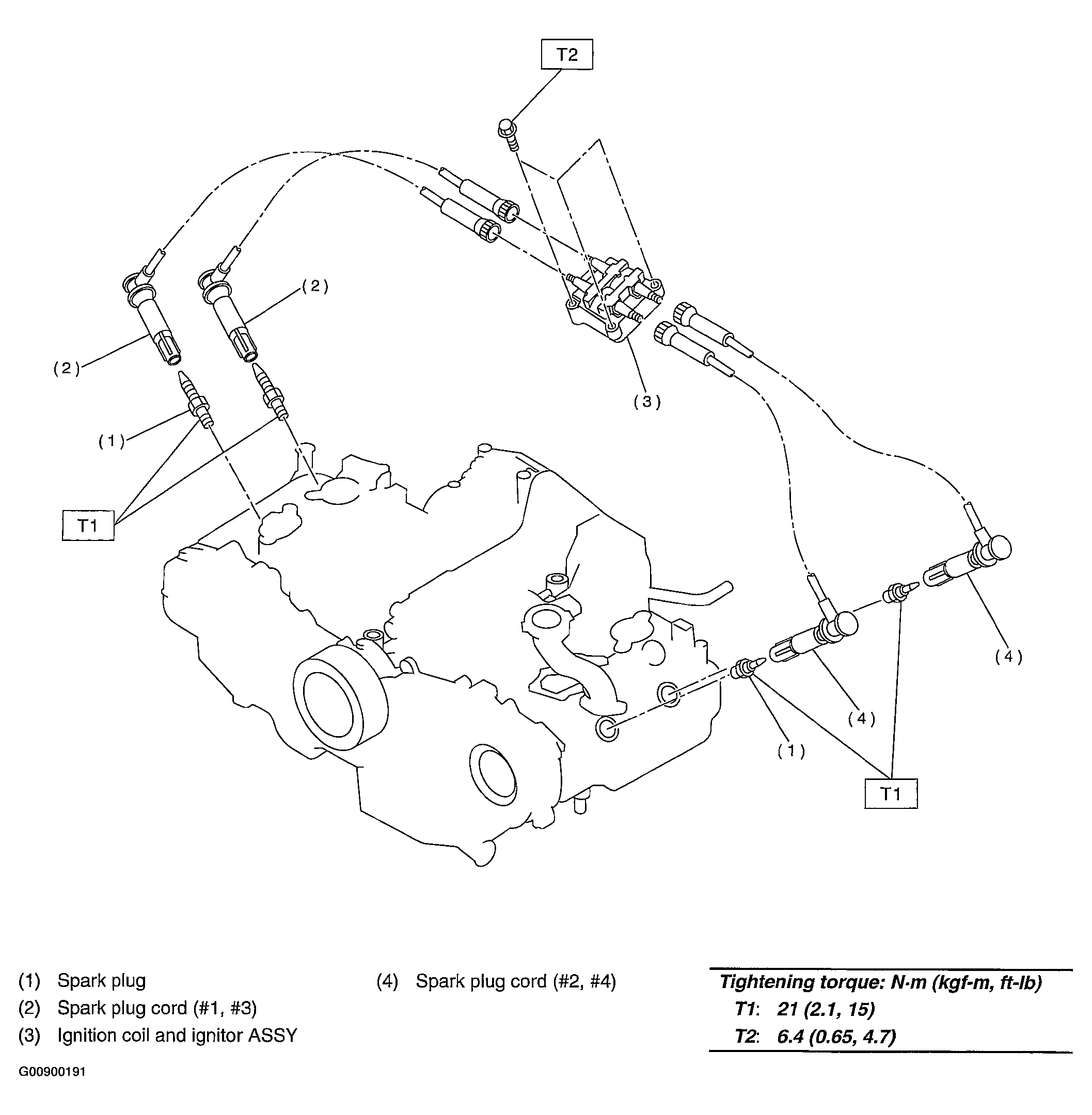

Fig 1: Ignition Replacement Components With Torque Specifications
G00900191Courtesy of SUBARU OF AMERICA, INC.
