Ignition (H4SO): General Description: Specifications

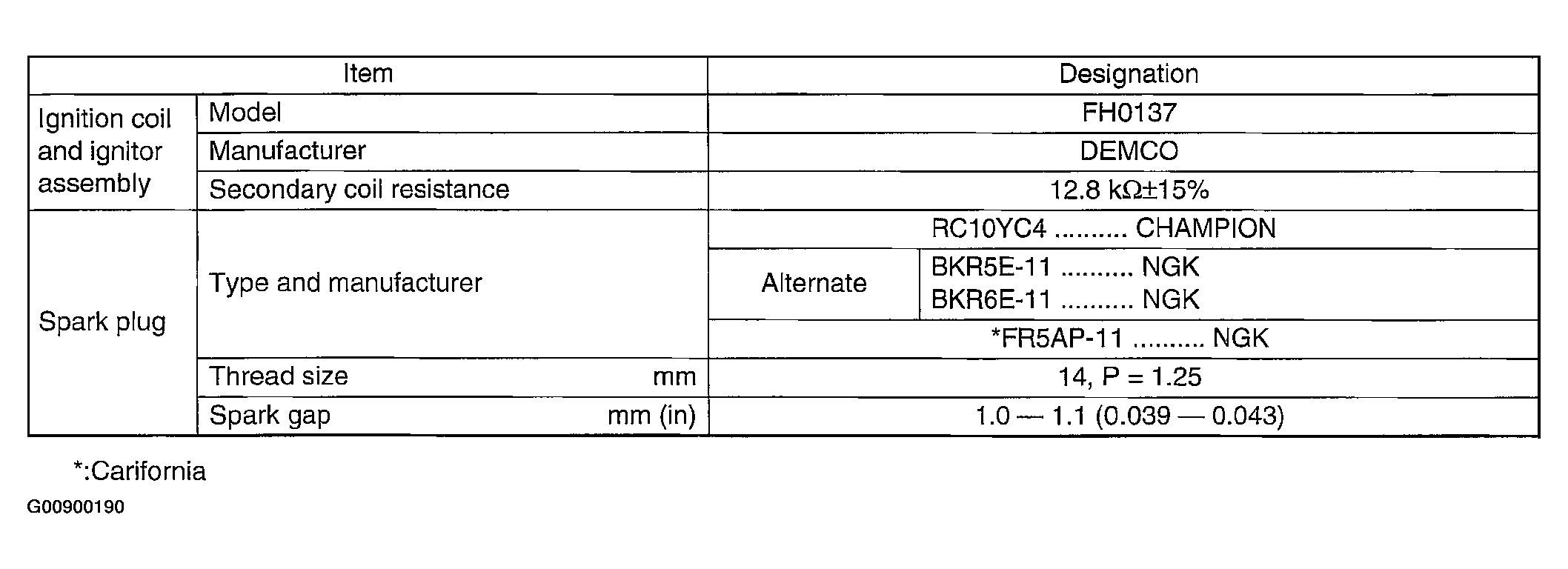

Fig 1: Specification Table

G00900190

Courtesy of SUBARU OF AMERICA, INC.
