RH Side

  1. Disconnect ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00900193Courtesy of SUBARU OF AMERICA, INC.
  2. Remove air cleaner case. Refer to REMOVAL , Air Cleaner Case.
  3. Remove spark plug cords by pulling boot, not cord itself.

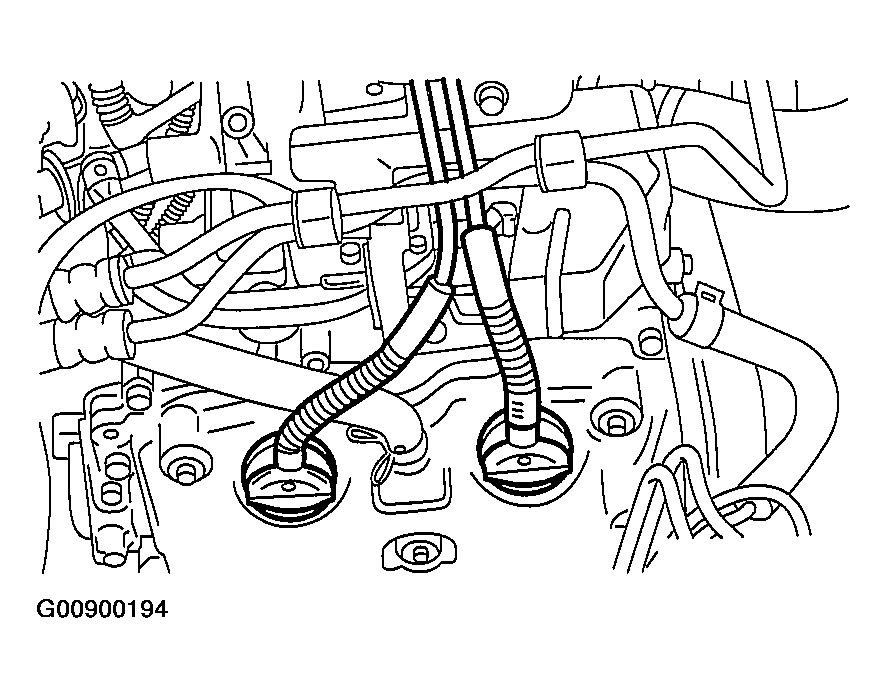

    Fig 2: Removing Spark Plug Cords By Pulling Boot
    G00900194Courtesy of SUBARU OF AMERICA, INC.
  4. Remove spark plugs with the spark plug socket.

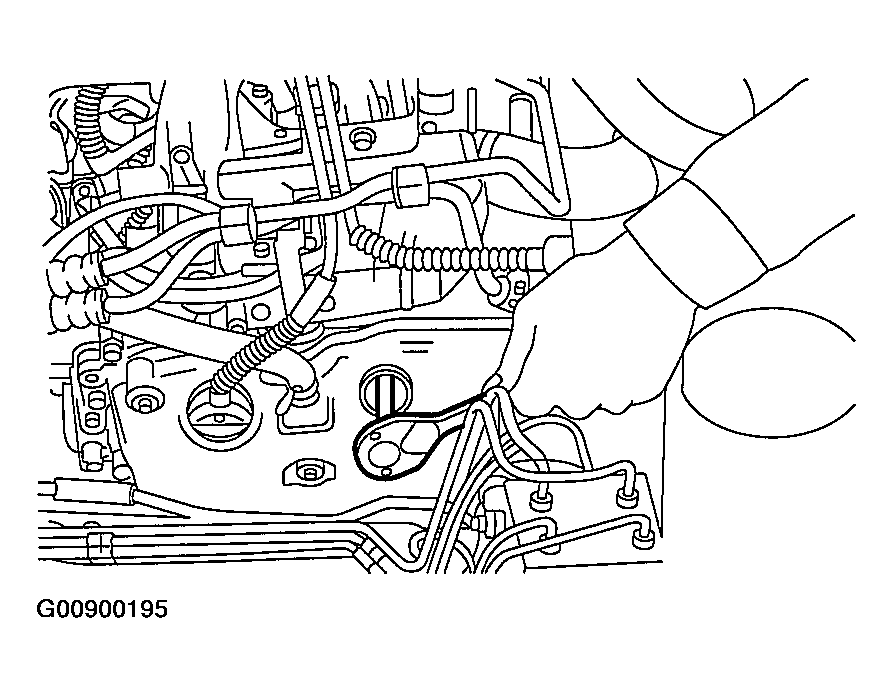

    Fig 3: Removing Spark Plugs With Spark Plug Socket
    G00900195Courtesy of SUBARU OF AMERICA, INC.
