AT Main Case: Removal

Remove the transmission assembly from the vehicle. Refer to REMOVAL .
Extract the torque converter clutch assembly.
Refer to REMOVAL .
Remove the input shaft.

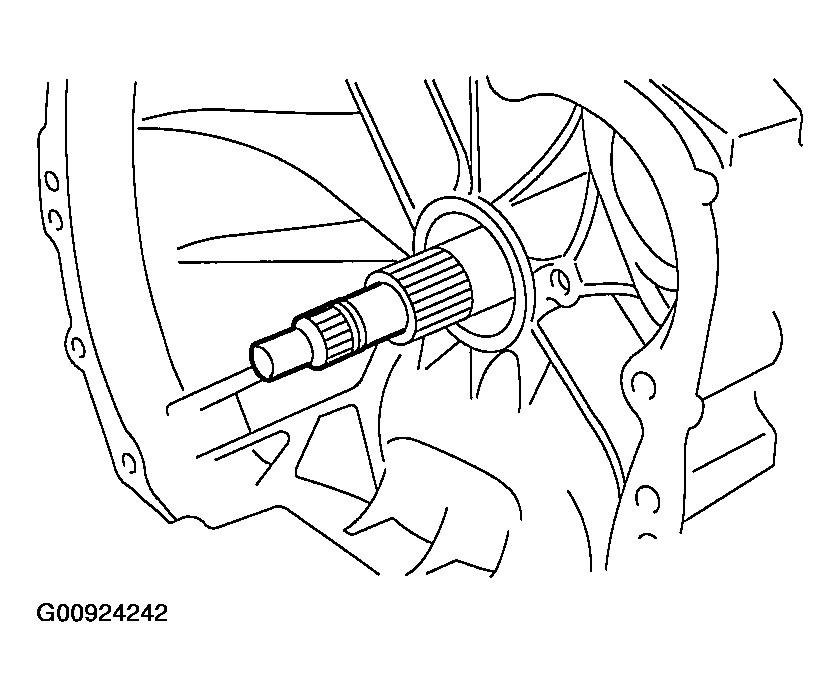

Fig 1: Removing Input Shaft
Courtesy of SUBARU OF AMERICA, INC.

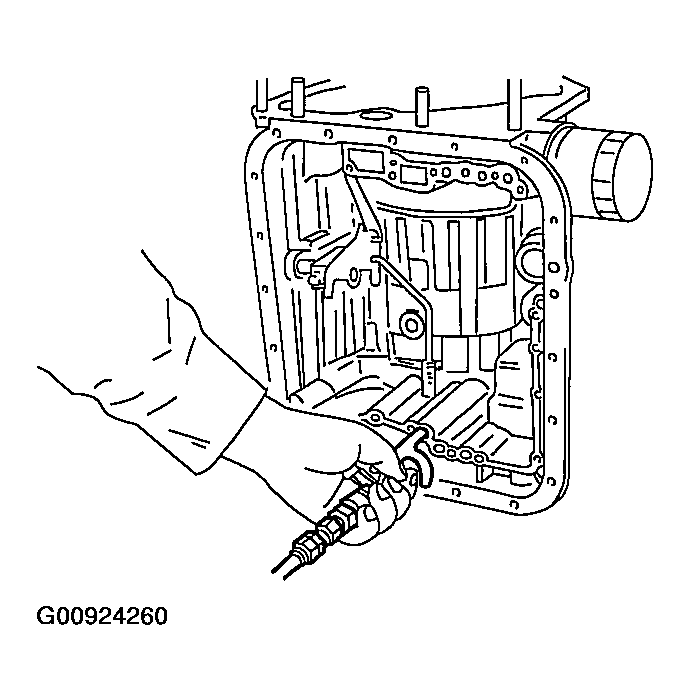

Lift-up the lever behind the transmission harness connector and disconnect it from stay.
Disconnect the inhibitor switch connector from stay.
Disconnect the air breather hose.
Remove the oil charger pipe. Refer to REMOVAL .
Remove the oil cooler inlet and outlet pipes.
Refer to REMOVAL .
Separate the torque converter clutch case and transmission case. Refer to REMOVAL .
Remove the oil pump housing.
Refer to OIL PUMP HOUSING .

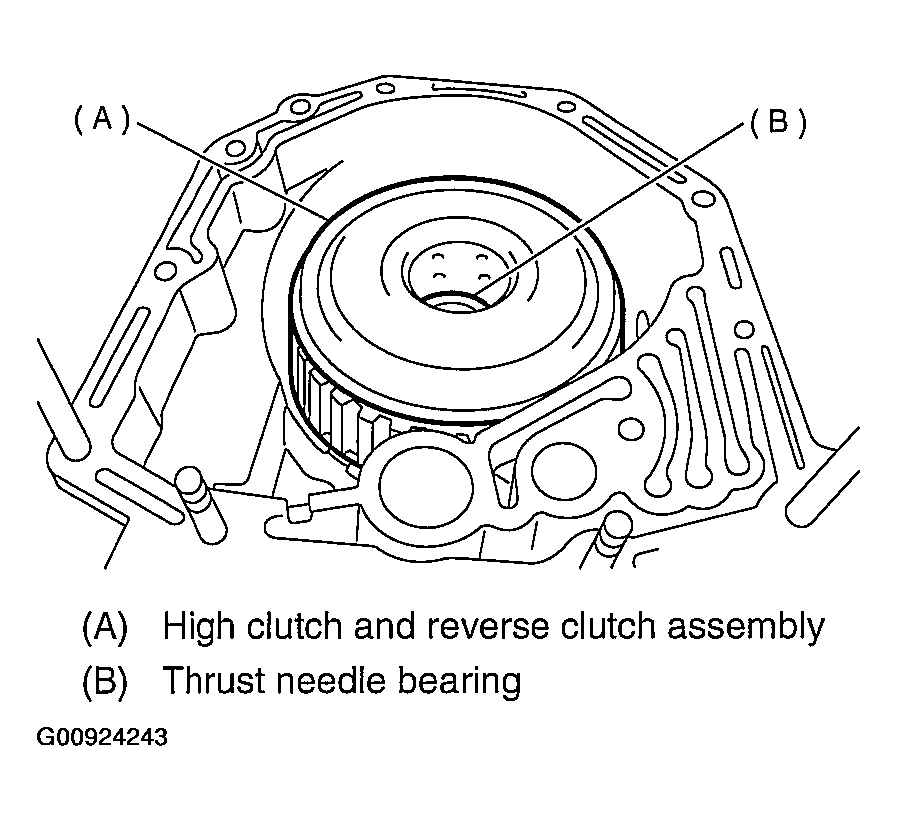

Take out the high clutch, thrust needle bearing and reverse clutch assembly.

Fig 2: Removing High Clutch, Thrust Needle Bearing & Reverse Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.

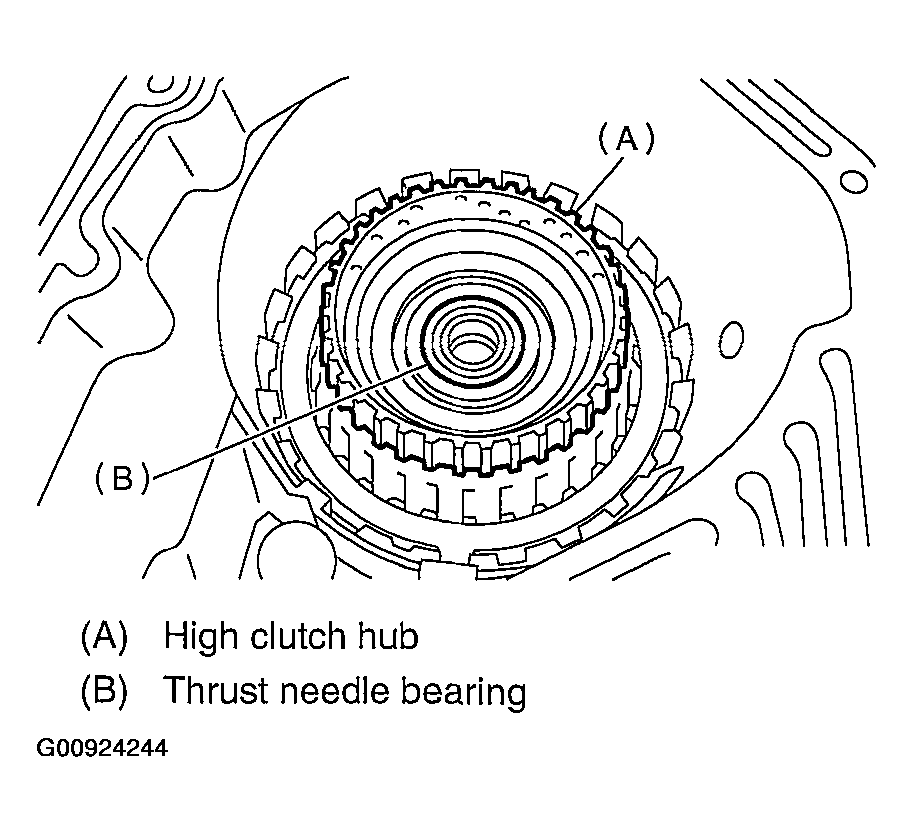

Take out the high clutch hub and the thrust bearing.

Fig 3: Removing High Clutch Hub & Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.

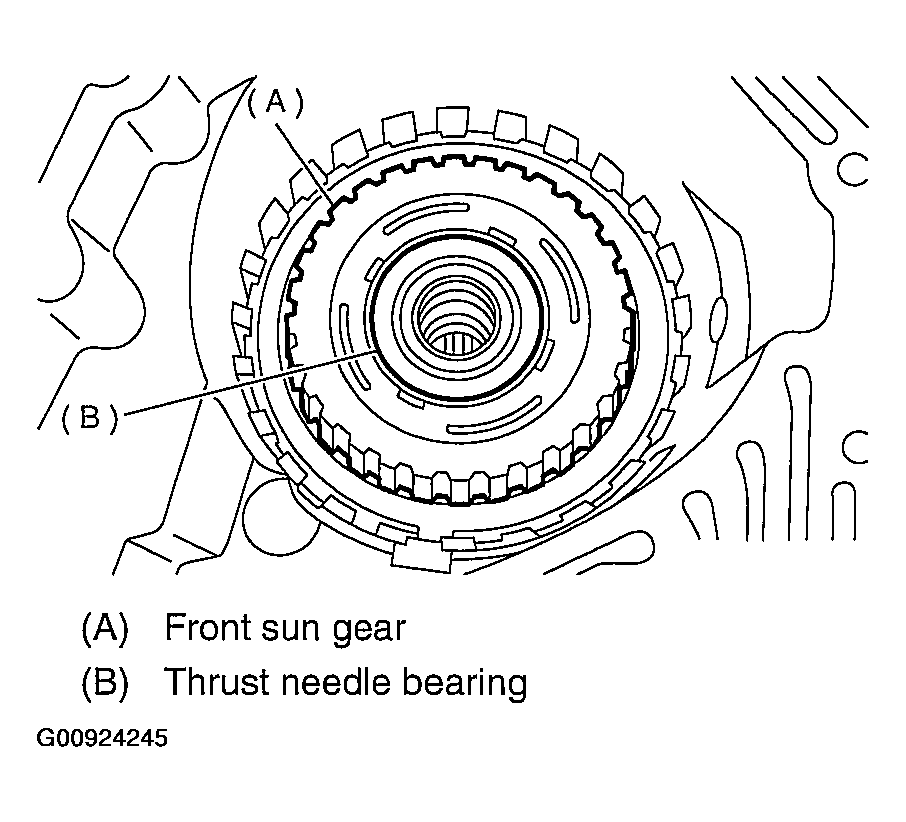

Take out the front sun gear and the thrust bearing.

Fig 4: Removing Front Sun Gear & Thrust Bearing
Courtesy of SUBARU OF AMERICA, INC.

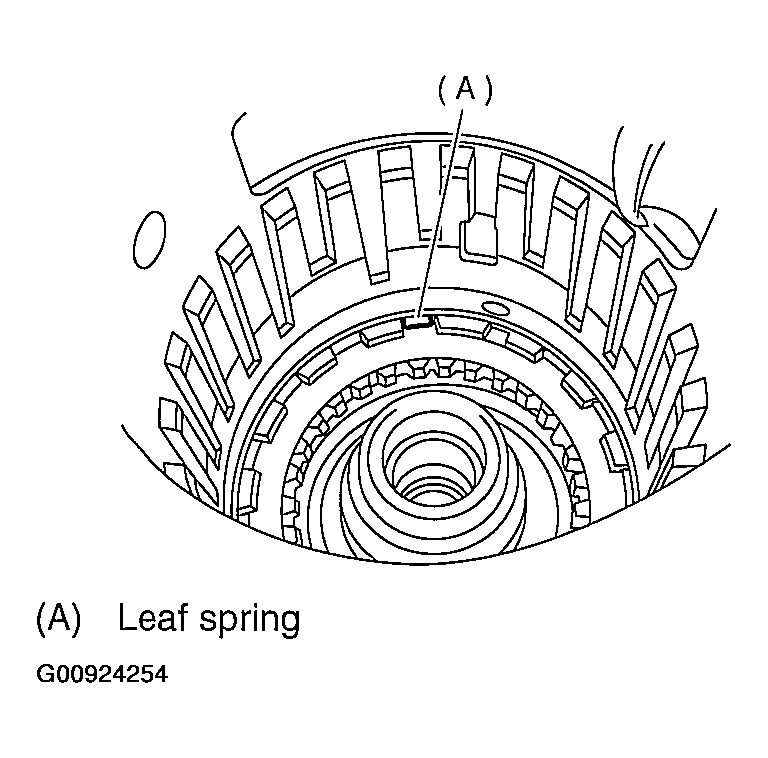

Pull out the leaf spring without folding.
NOTE: Remove it while pressing the lower leaf spring down.

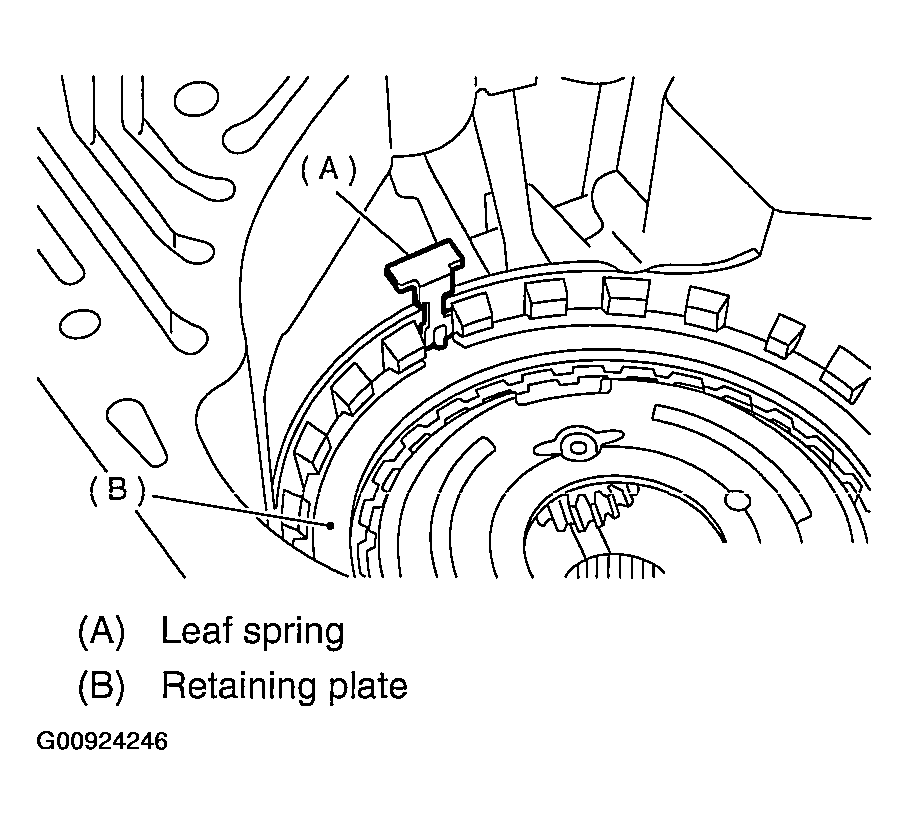

Fig 5: Pulling Out Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.

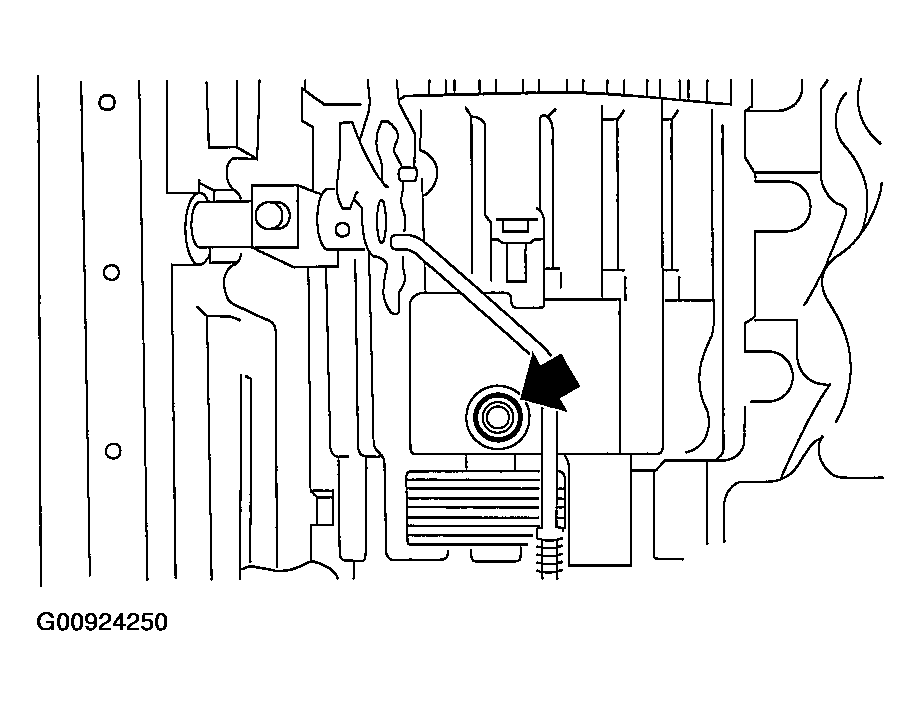

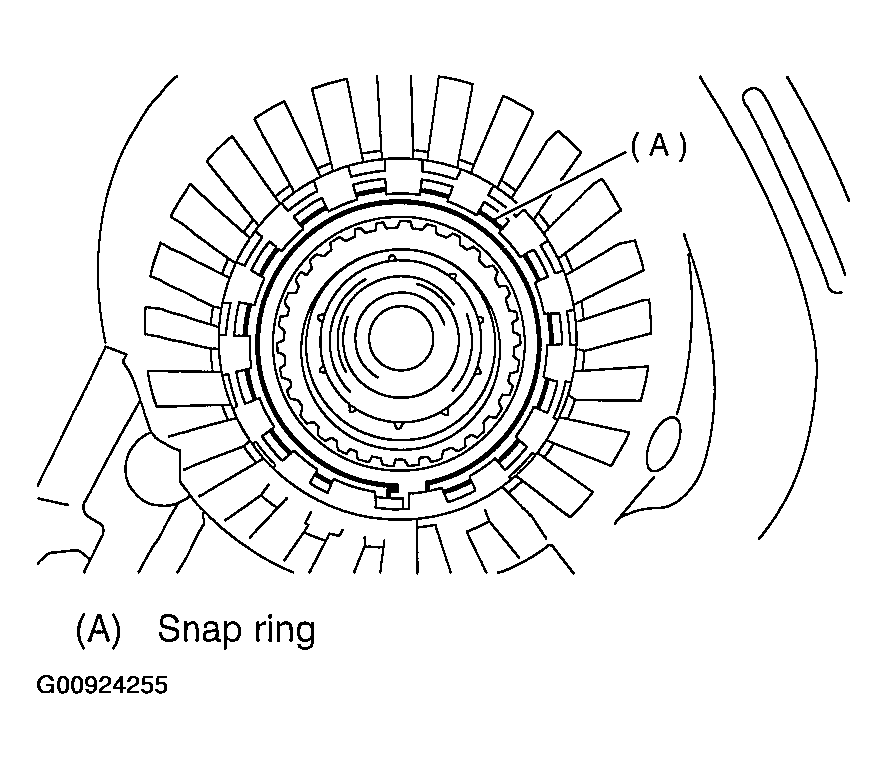

Remove the snap ring and thrust needle bearing.

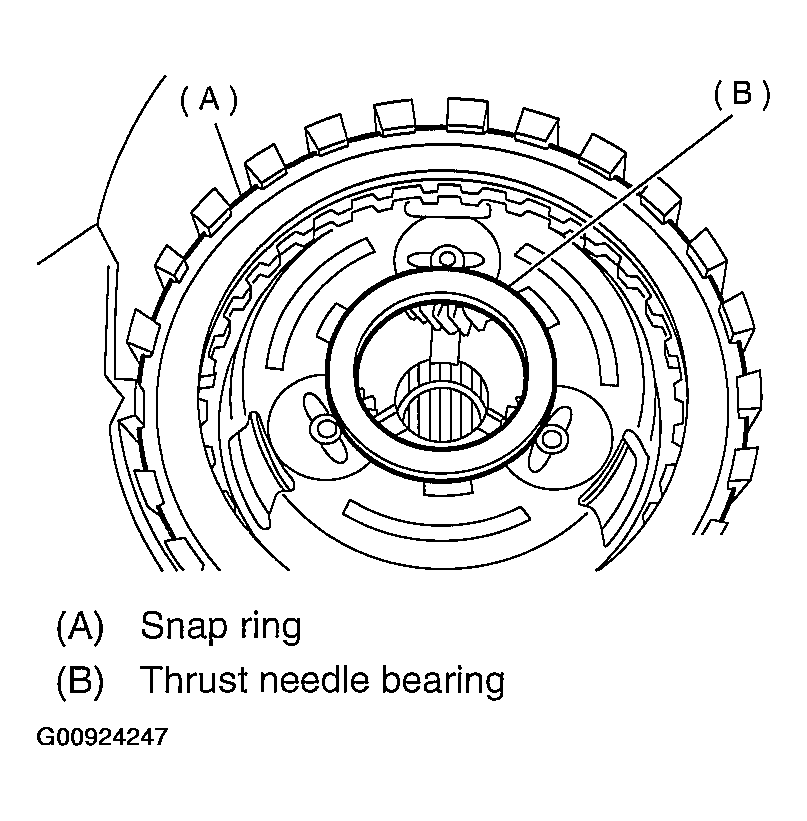

Fig 6: Removing Snap Ring & Thrust Needle Bearing
Courtesy of SUBARU OF AMERICA, INC.
Take out the retaining plate, drive plate and driven plate of 2-4 brake.

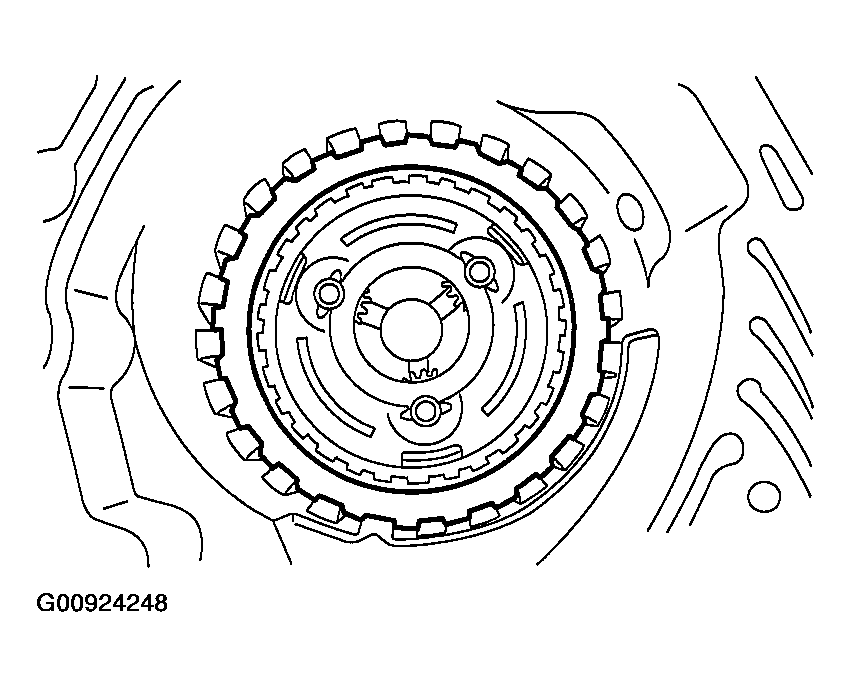

Fig 7: Removing Retaining Plate, Drive Plate & Driven Plate Of Brake
Courtesy of SUBARU OF AMERICA, INC.

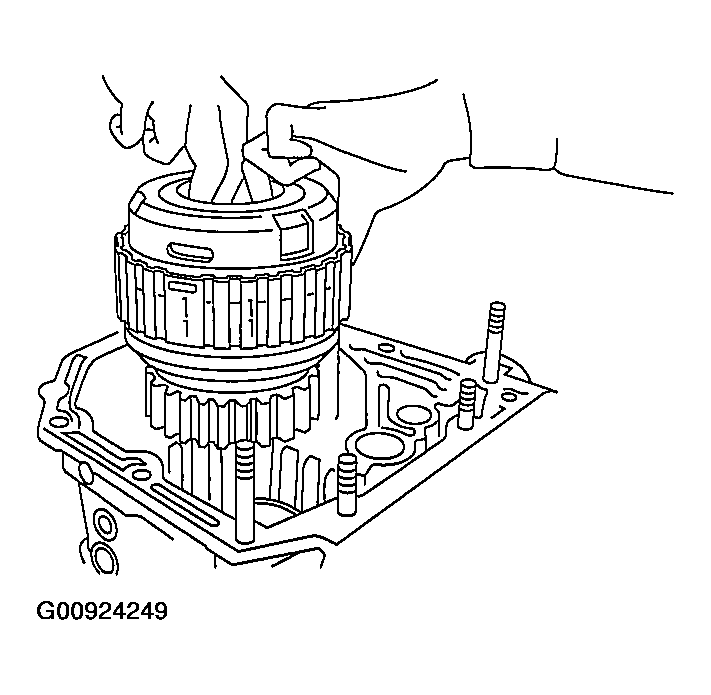

Take out the thrust needle bearing, planetary gear assembly and the low clutch assembly.

Fig 8: Removing Thrust Needle Bearing, Planetary Gear Assembly & Low Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.

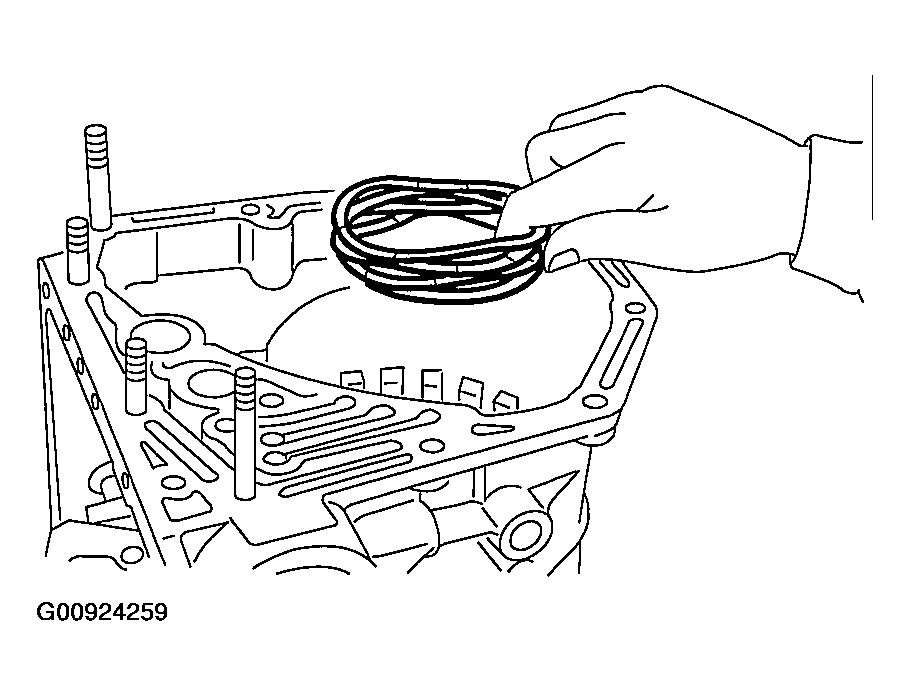

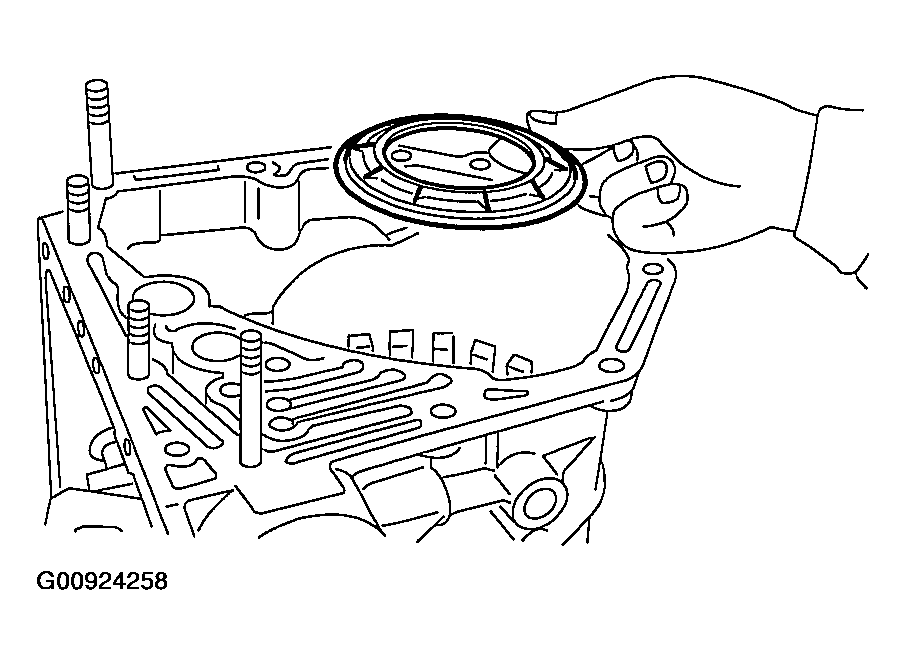

Remove the 2-4 brake seal.

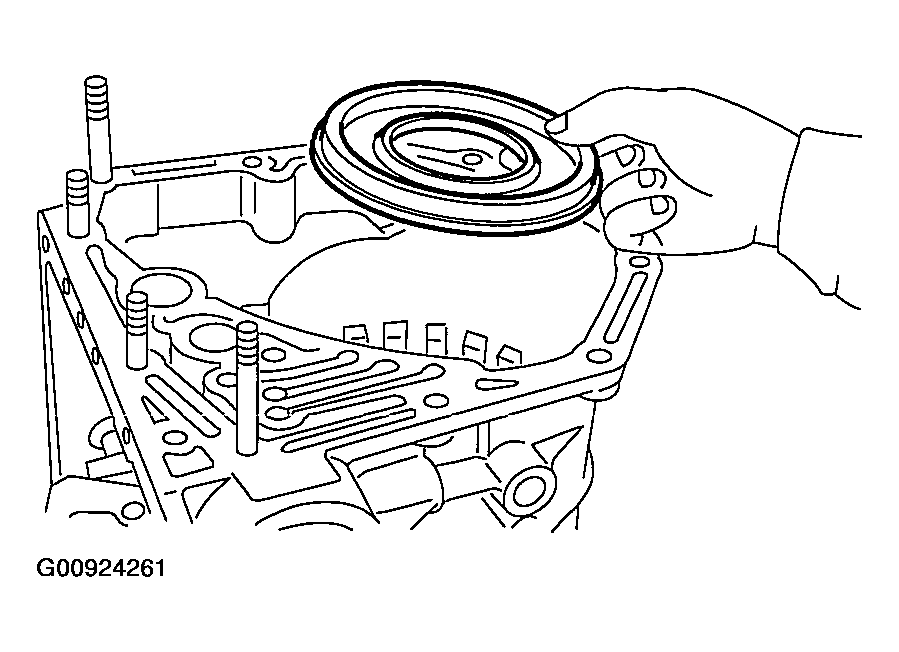

Fig 9: Removing 2-4 Brake Seal
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

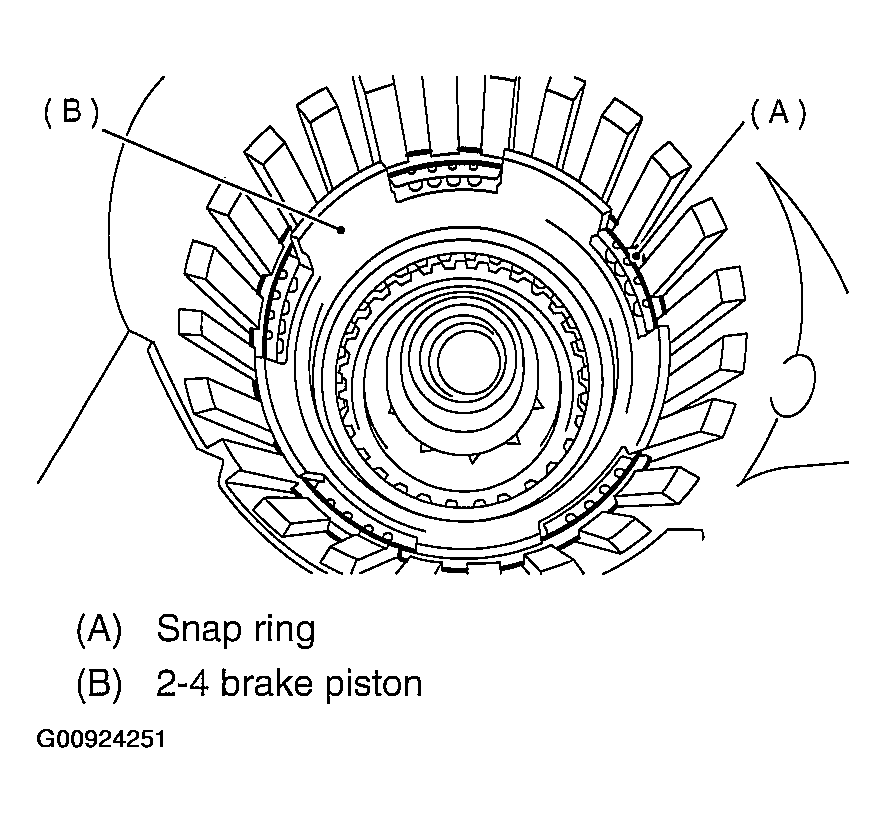

Fig 10: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Take out the 2-4 brake return spring.

Fig 11: Removing 2-4 Brake Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the 2-4 brake piston and piston retailer without damaging.

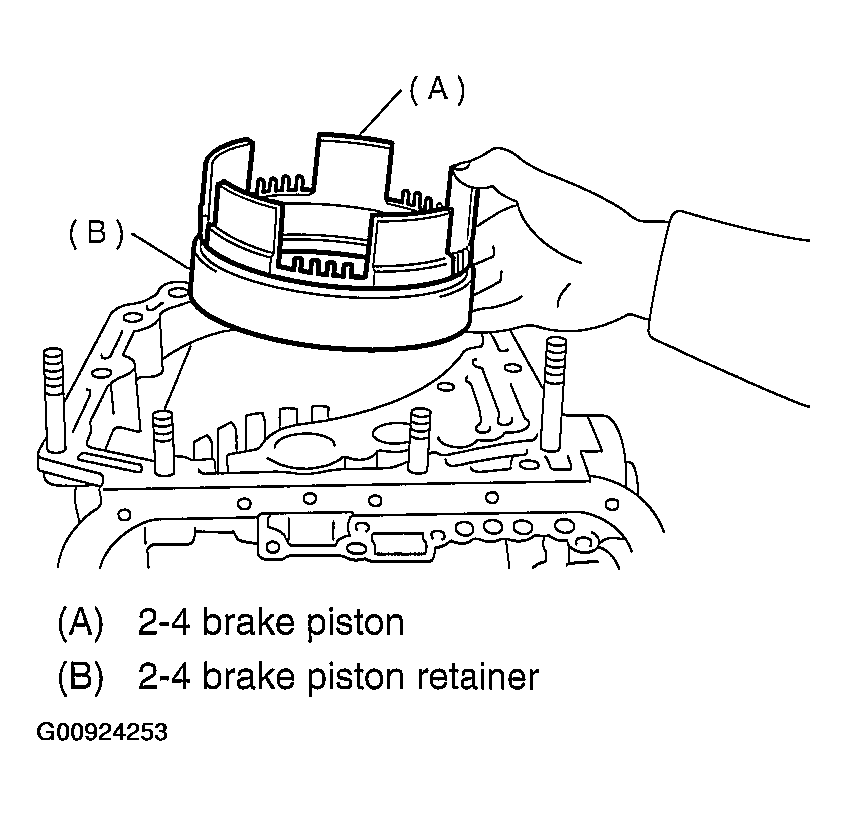

Fig 12: Removing 2-4 Brake Piston & Piston Retailer
Courtesy of SUBARU OF AMERICA, INC.

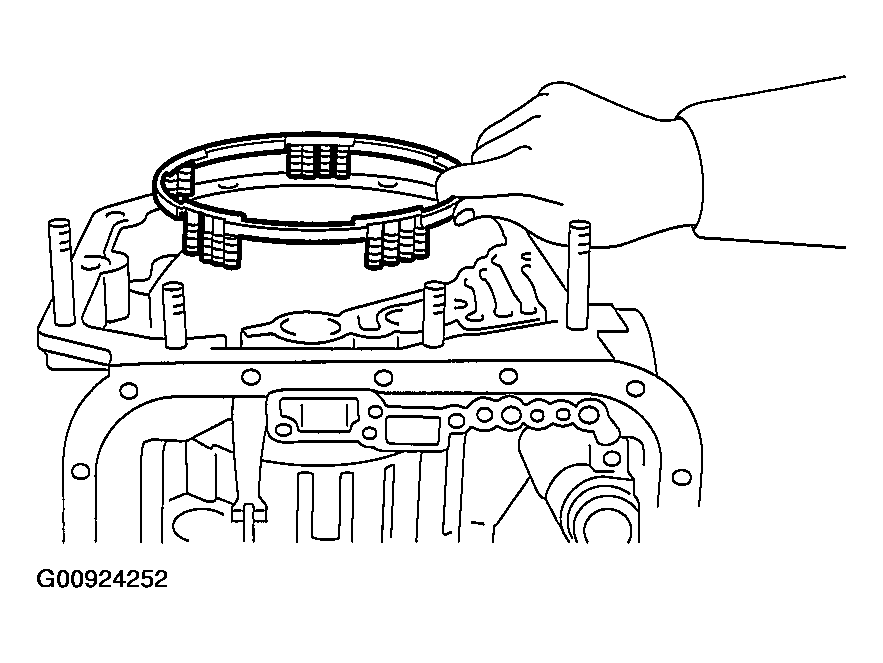

Pull out the leaf spring without folding.

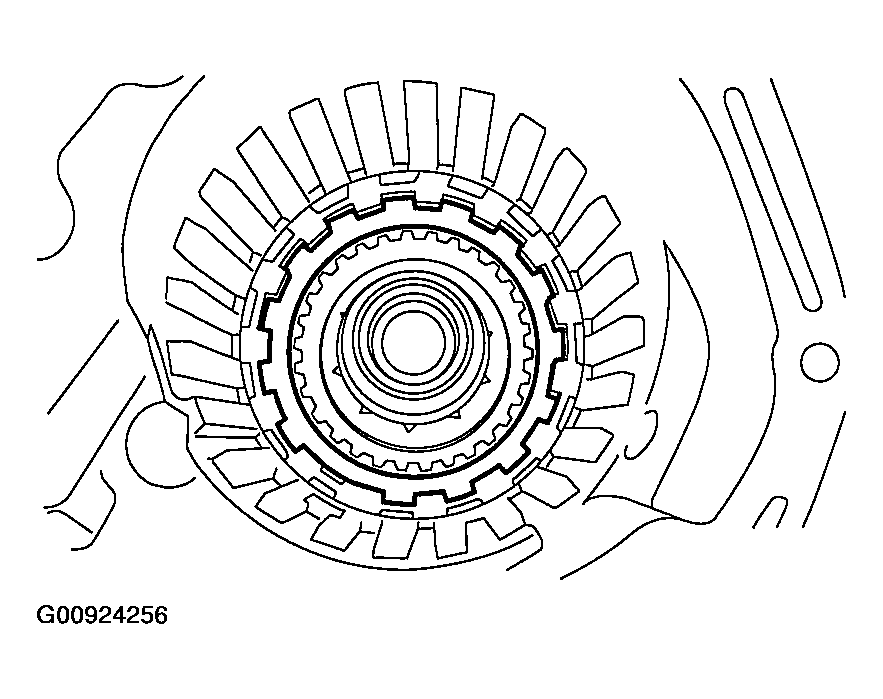

Fig 13: Pulling Out Leaf Spring
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring.

Fig 14: Removing Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Take out the retaining plate, drive plate, driven plate and dish plate.

Fig 15: Removing Retaining Plate, Drive Plate, Driven Plate & Dish Plate
Courtesy of SUBARU OF AMERICA, INC.

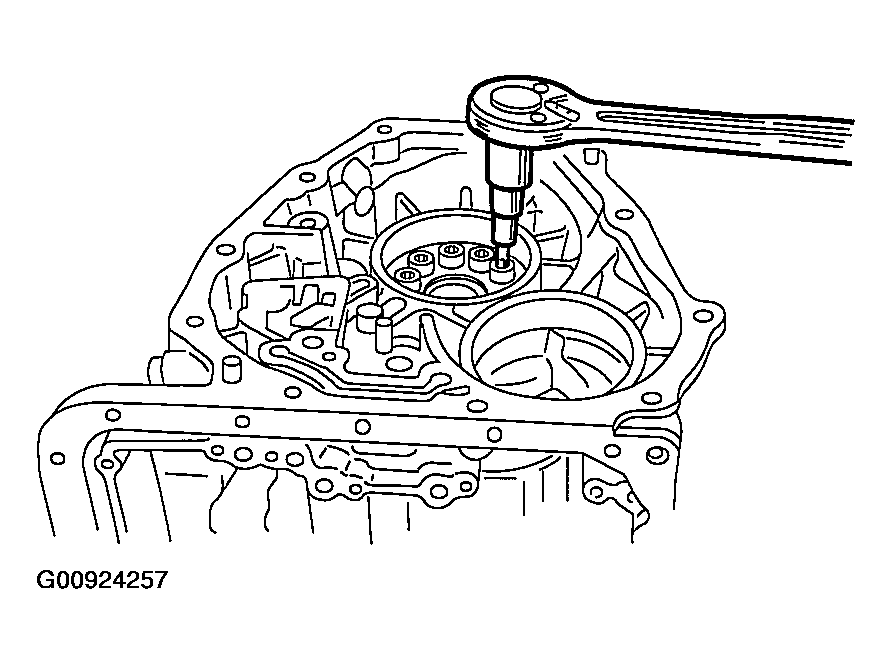

Turn the transmission case upside down, and then take out the socket bolts while holding the one-way clutch inner race with hand.

Fig 16: Removing Socket Bolts
Courtesy of SUBARU OF AMERICA, INC.
Take out the spring retainer.

Fig 17: Removing Spring Retainer
Courtesy of SUBARU OF AMERICA, INC.
Take out the return spring.

Fig 18: Removing Return Spring
Courtesy of SUBARU OF AMERICA, INC.
Apply compressed air.

Fig 19: Applying Compressed Air
Courtesy of SUBARU OF AMERICA, INC.
Take out the low & reverse piston.

Fig 20: Removing Low & Reverse Piston
Courtesy of SUBARU OF AMERICA, INC.
