Extension Case: Removal

Remove the transmission assembly. Refer to REMOVAL .
Remove rear vehicle speed sensor.
- MPT MODEL

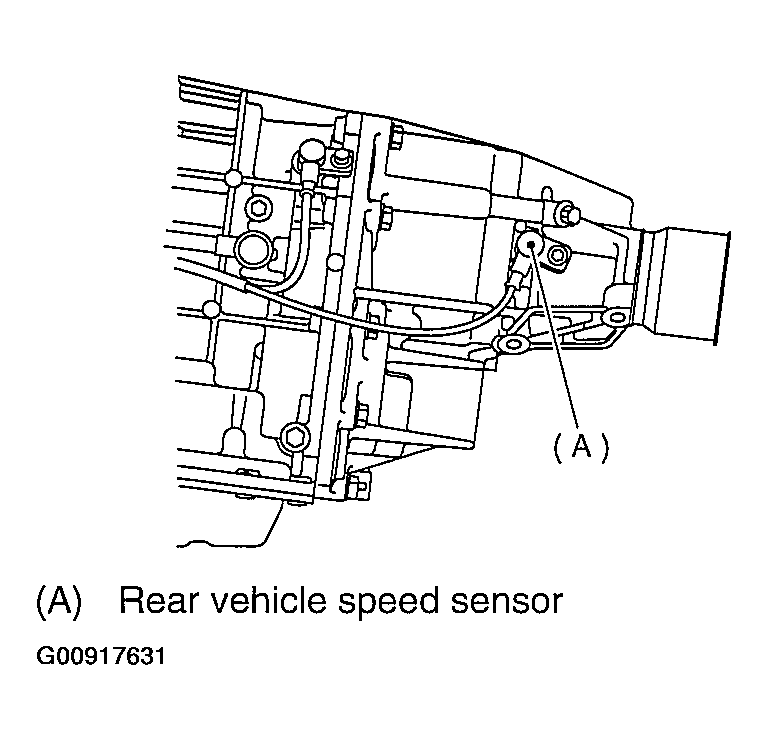

  Fig 1: Removing Rear Vehicle Speed Sensor - MPT Model
  Courtesy of SUBARU OF AMERICA, INC.
- VTD MODEL

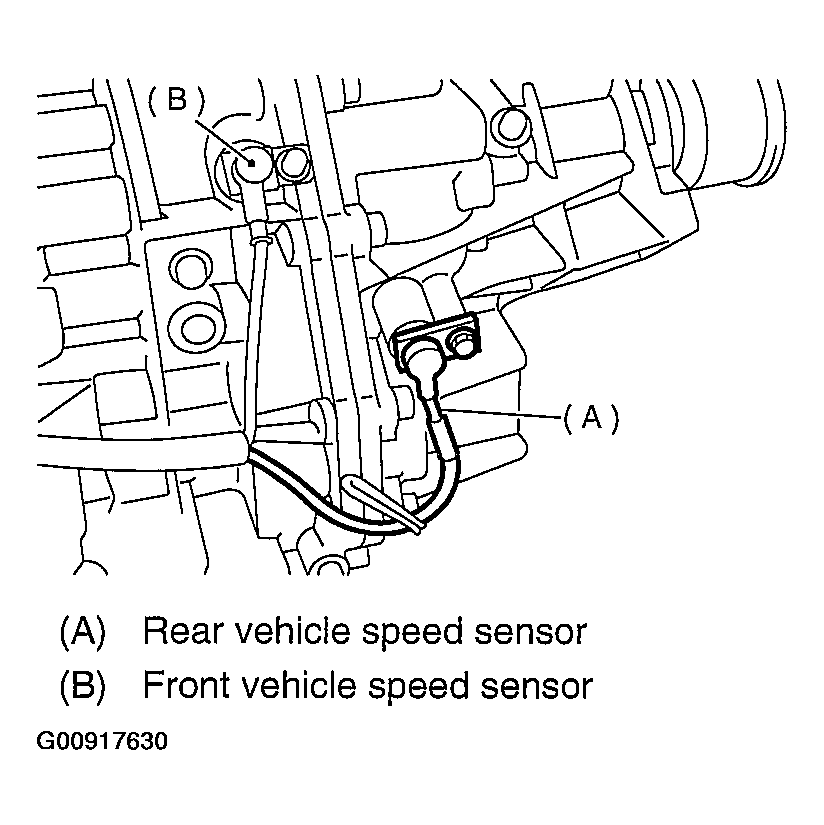

  Fig 2: Removing Rear Vehicle Speed Sensor - VTD Model
  Courtesy of SUBARU OF AMERICA, INC.
Separate transmission case and extension case sections.

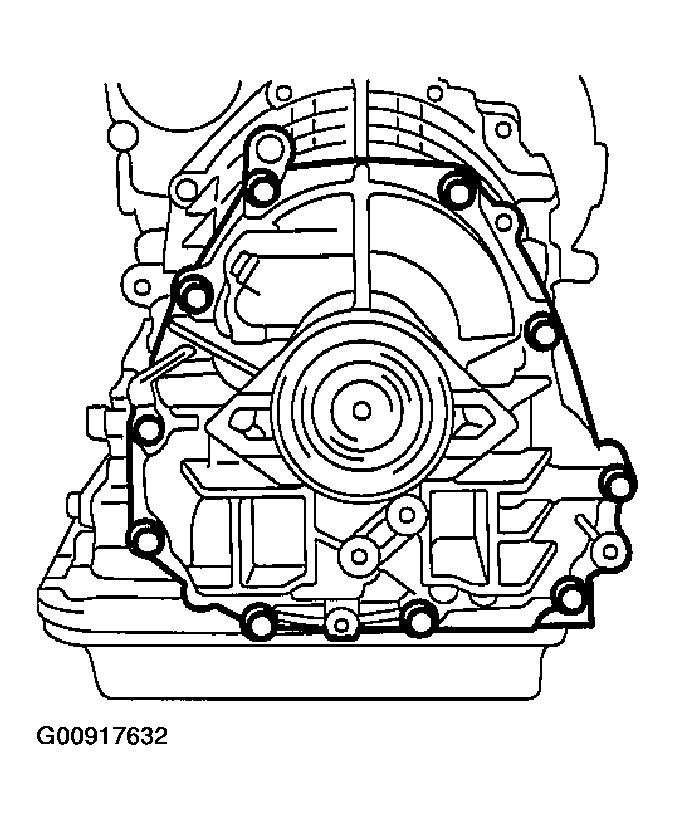

Fig 3: Removing Transmission Case & Extension Case Sections
Courtesy of SUBARU OF AMERICA, INC.
