Automatic Transmission: General Description: Component

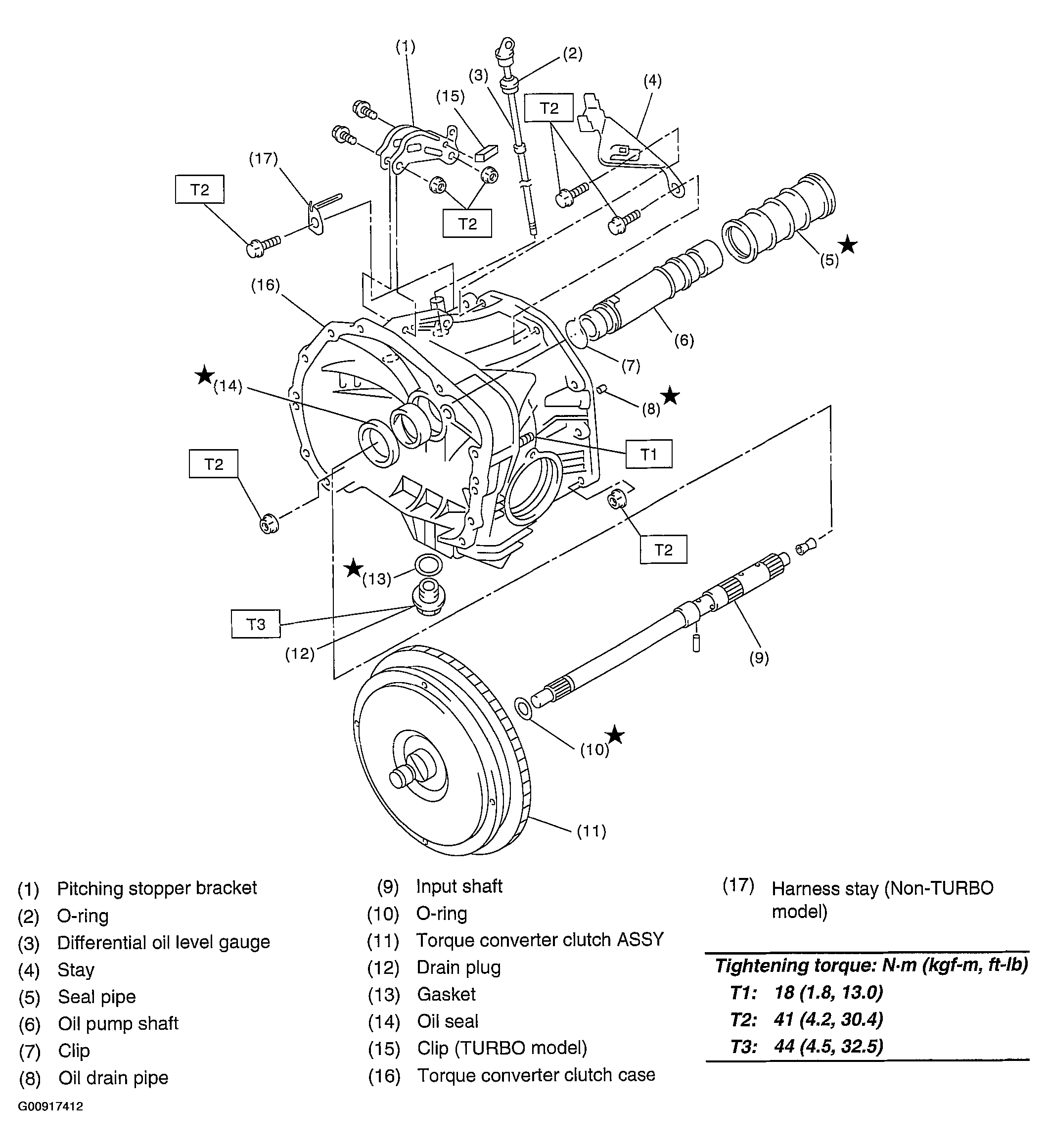

TORQUE CONVERTER CLUTCH AND CASE

Fig 1: Torque Converter Clutch & Case Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

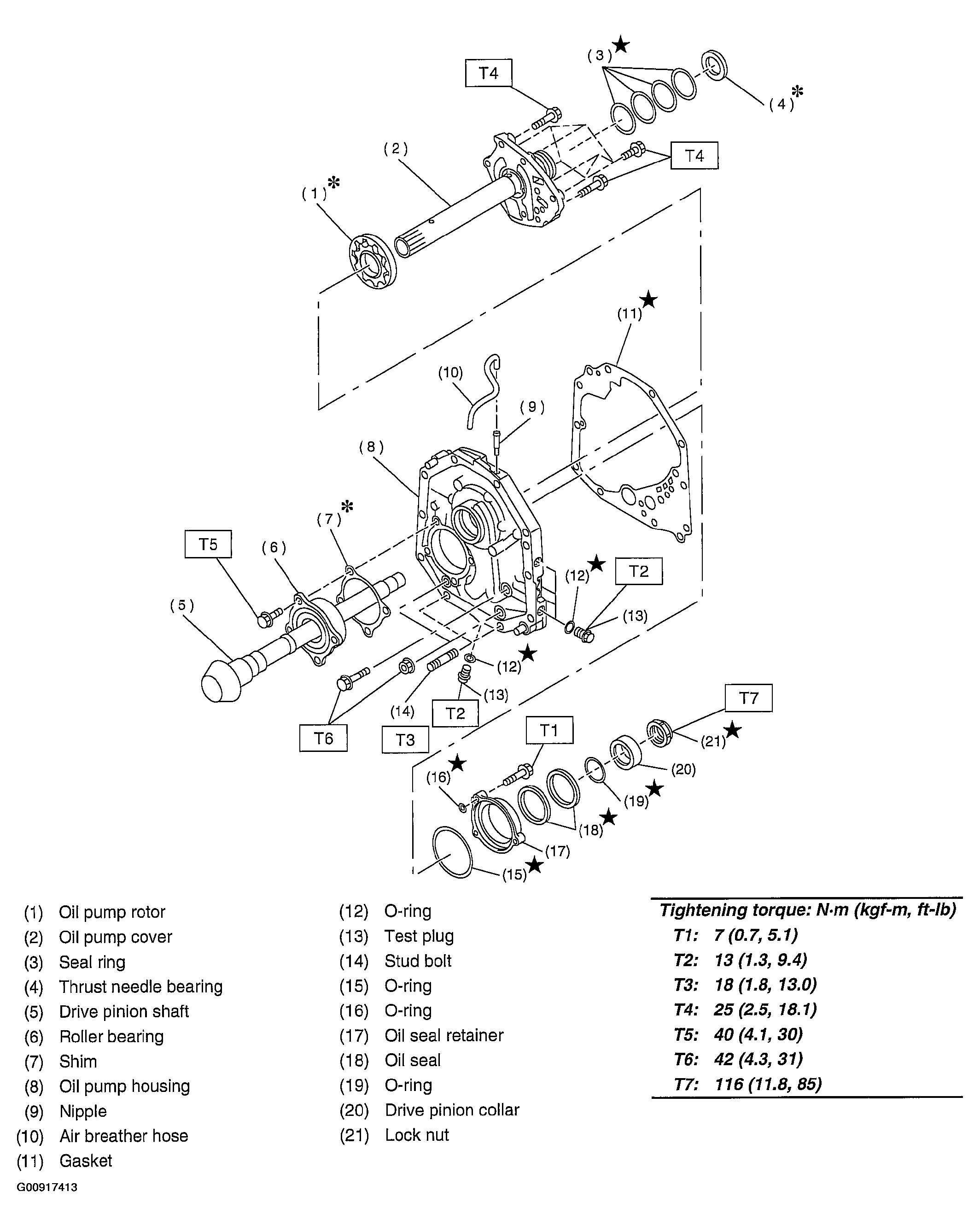

OIL PUMP

Fig 2: Oil Pump Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

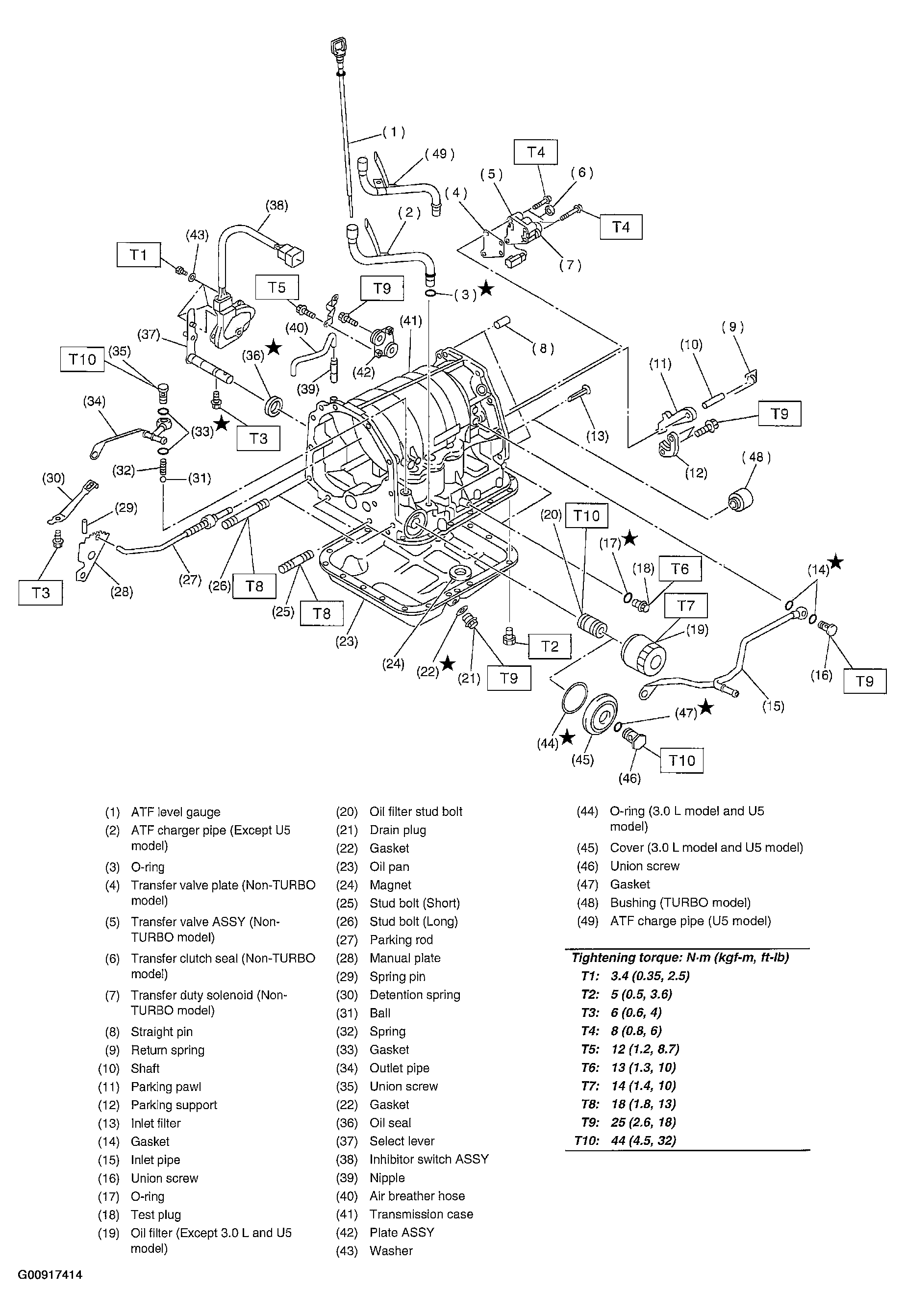

TRANSMISSION CASE AND CONTROL DEVICE

Fig 3: Transmission Case & Control Device Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

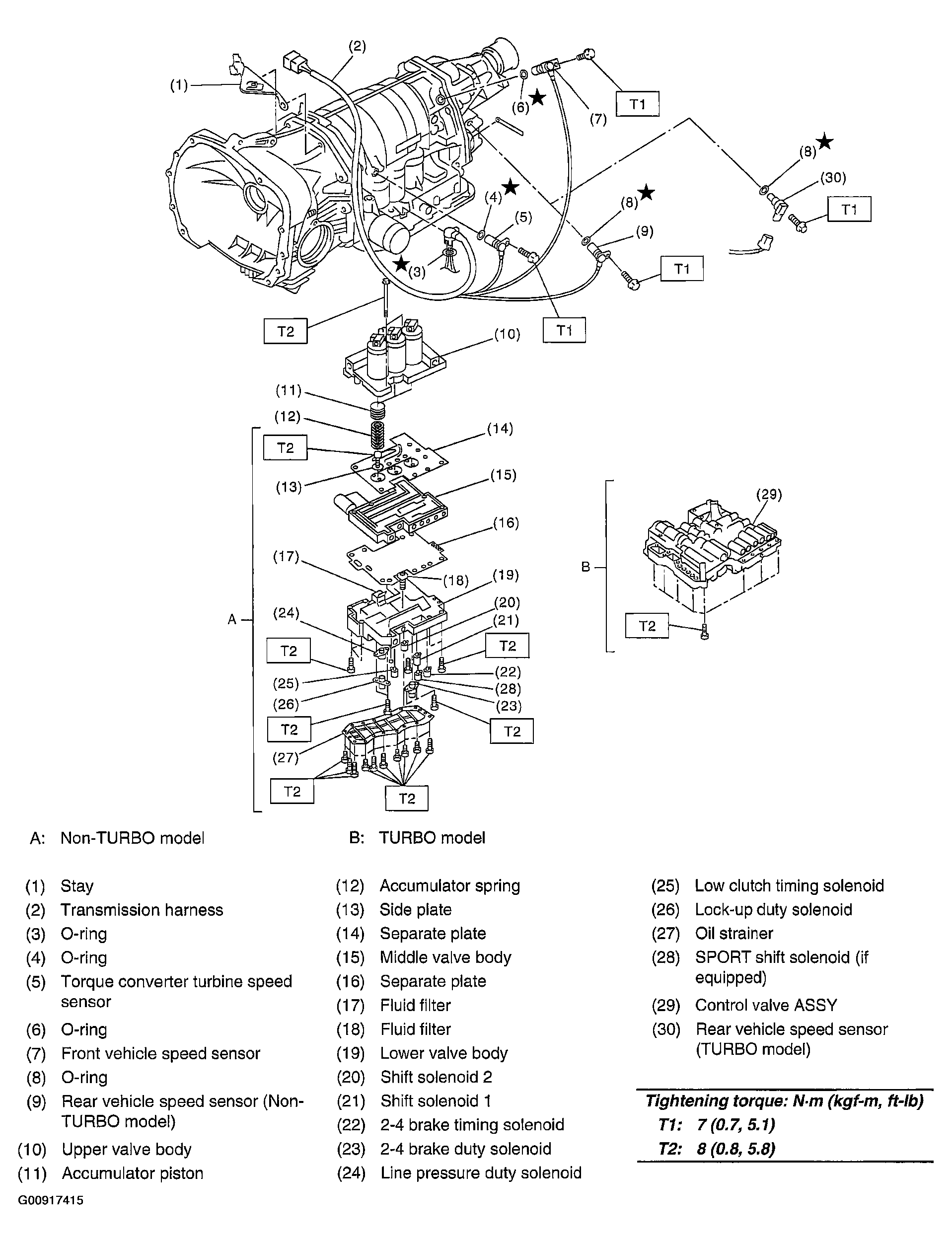

CONTROL VALVE AND HARNESS ROUTING

Fig 4: Control Valve & Harness Routing Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

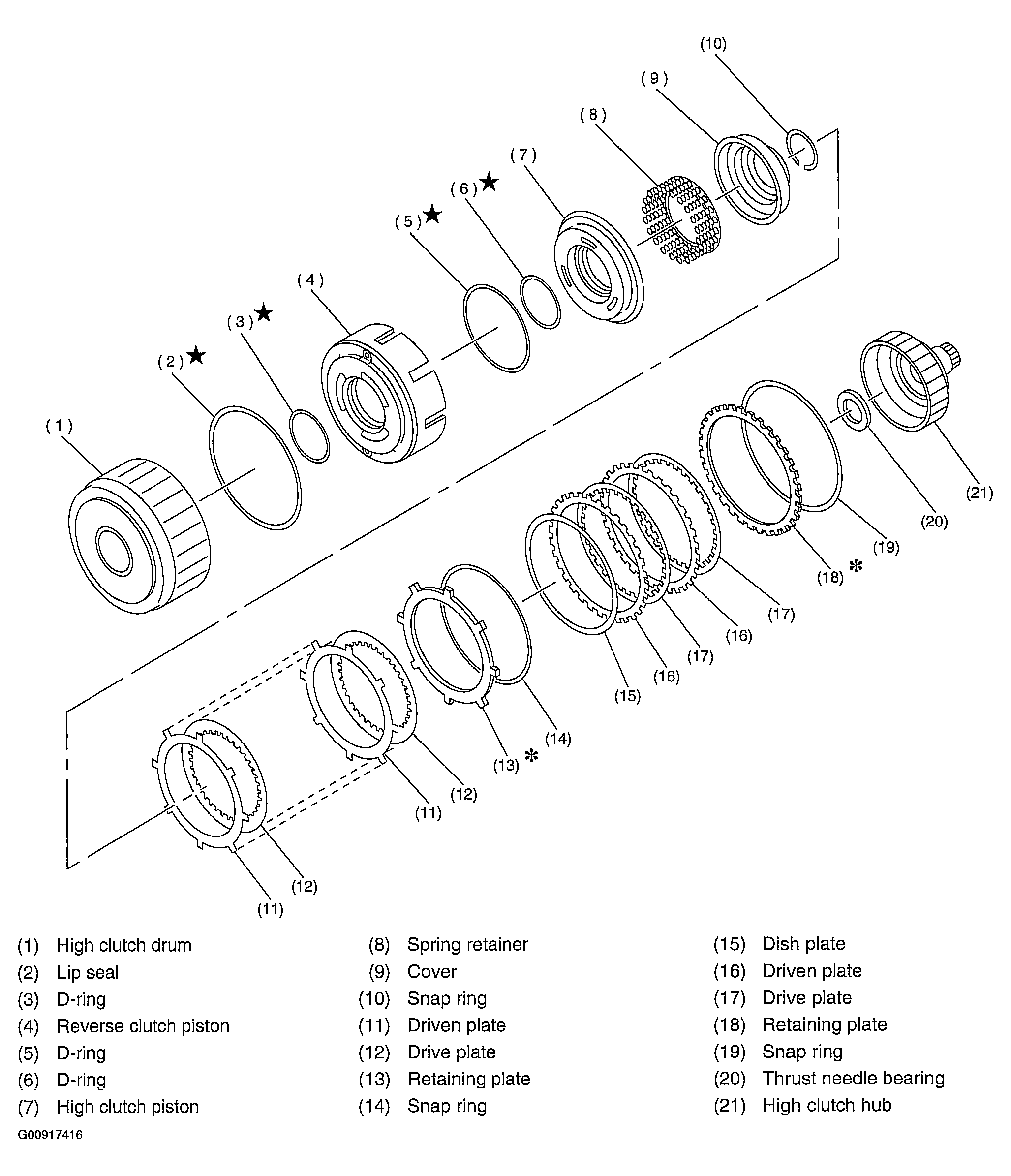

HIGH CLUTCH AND REVERSE CLUTCH

Fig 5: Identifying High Clutch & Reverse Clutch Components
Courtesy of SUBARU OF AMERICA, INC.

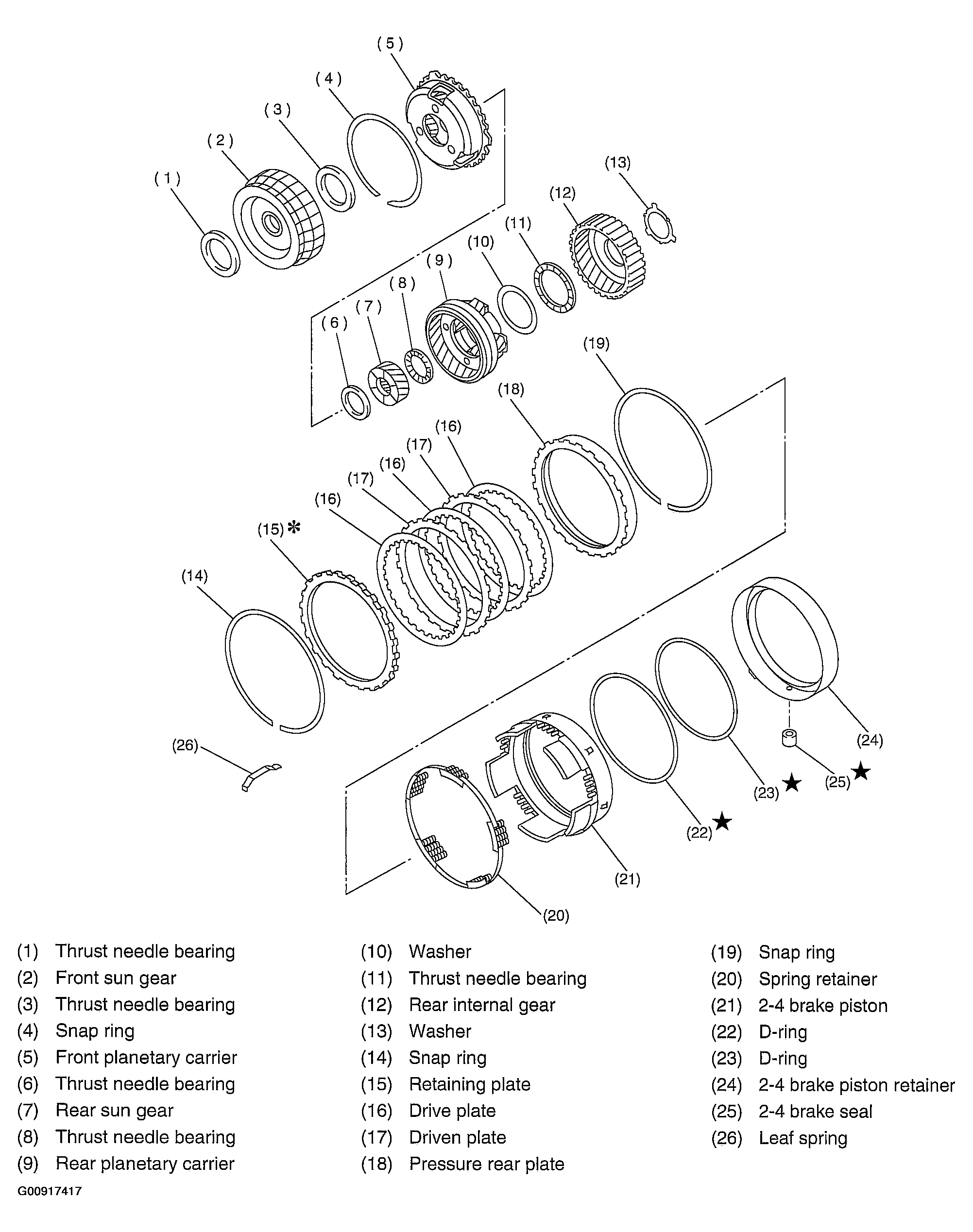

PLANETARY GEAR AND 2-4 BRAKE

Fig 6: Identifying Planetary Gear & 2-4 Brake Components
Courtesy of SUBARU OF AMERICA, INC.

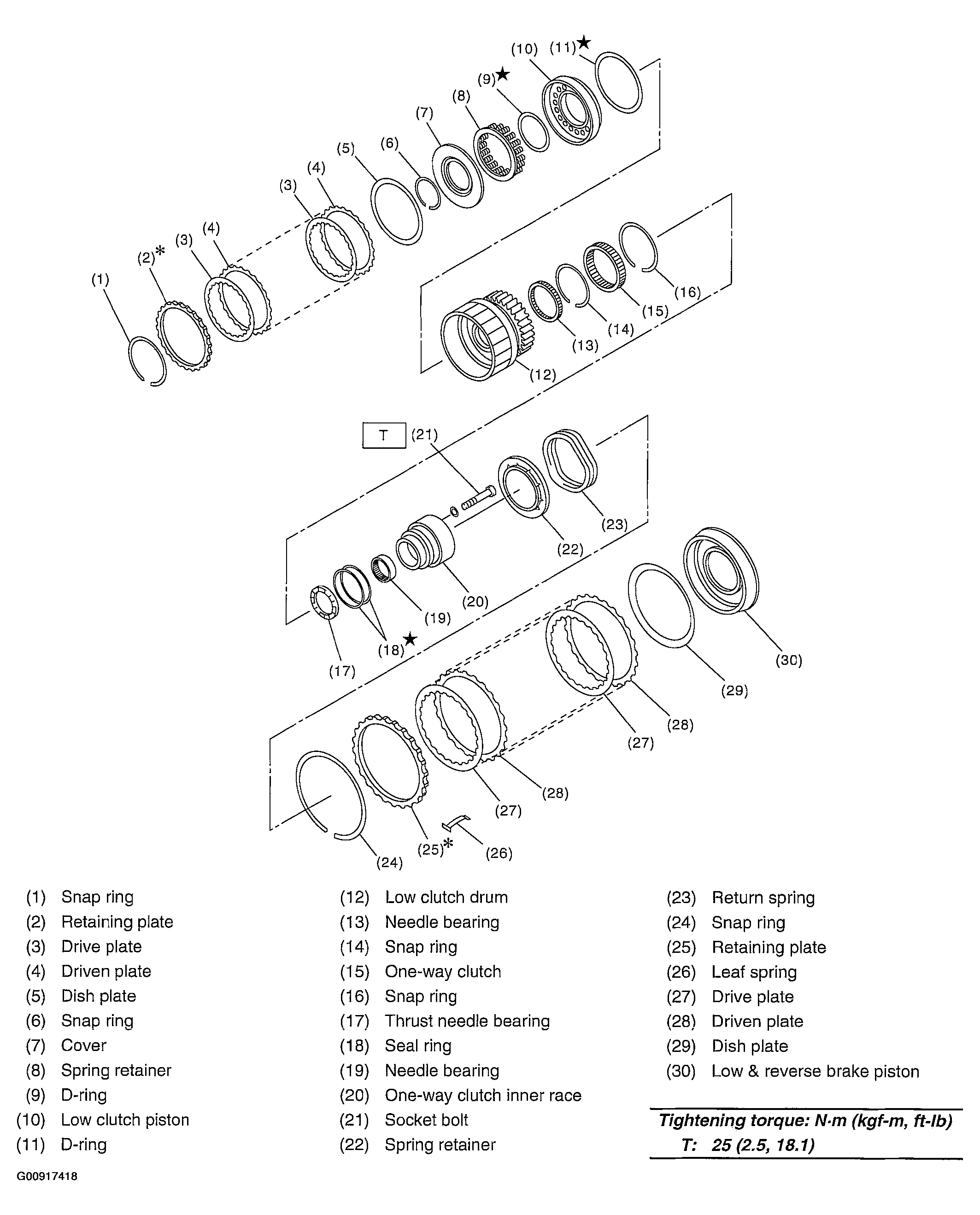

LOW CLUTCH AND LOW & REVERSE BRAKE

Fig 7: Low Clutch & Low & Reverse Brake Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

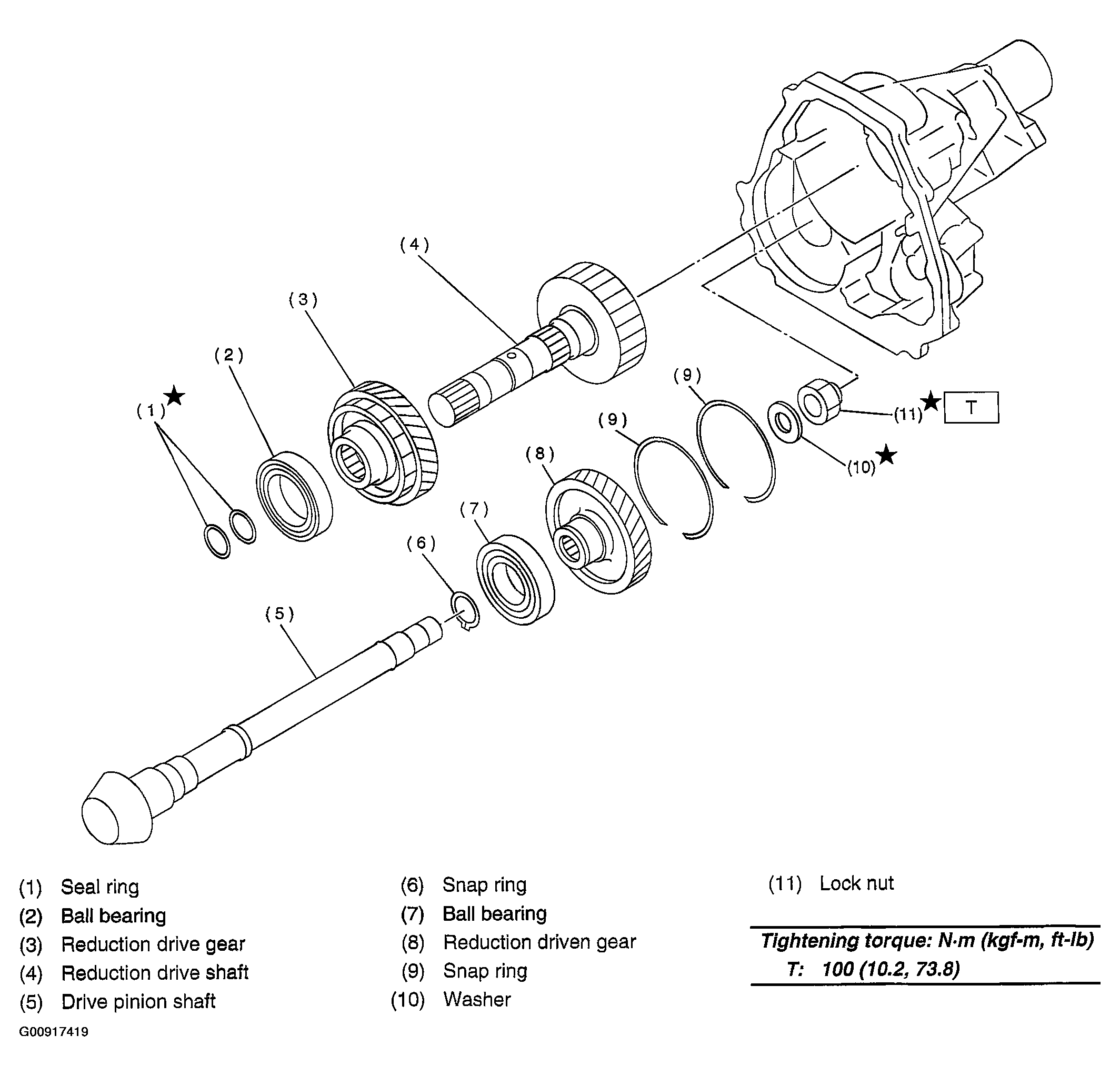

REDUCTION GEAR WITH MPT

Fig 8: Reduction Gear With MPT Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

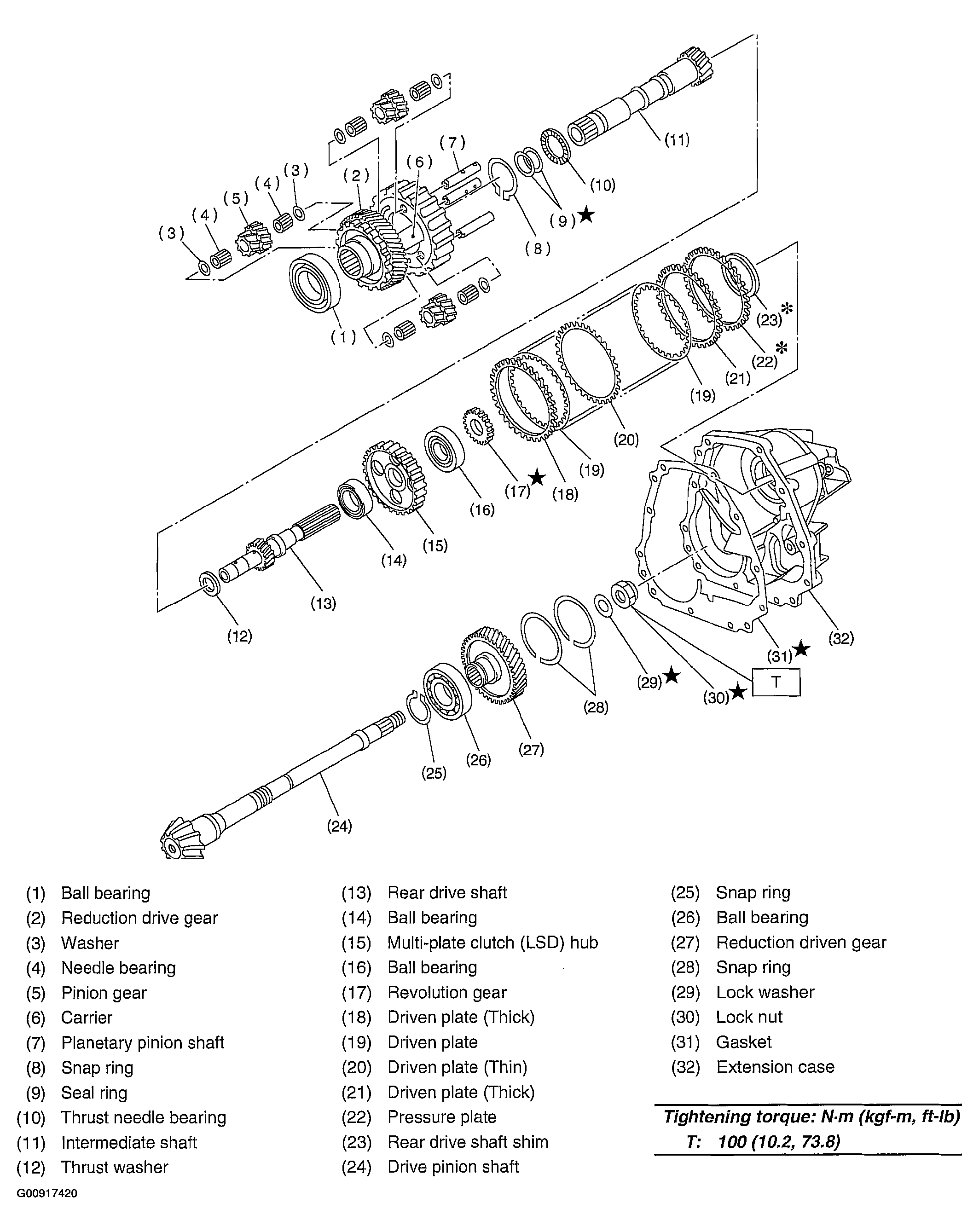

REDUCTION GEAR WITH VTD

Fig 9: Reduction Gear With VTD Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

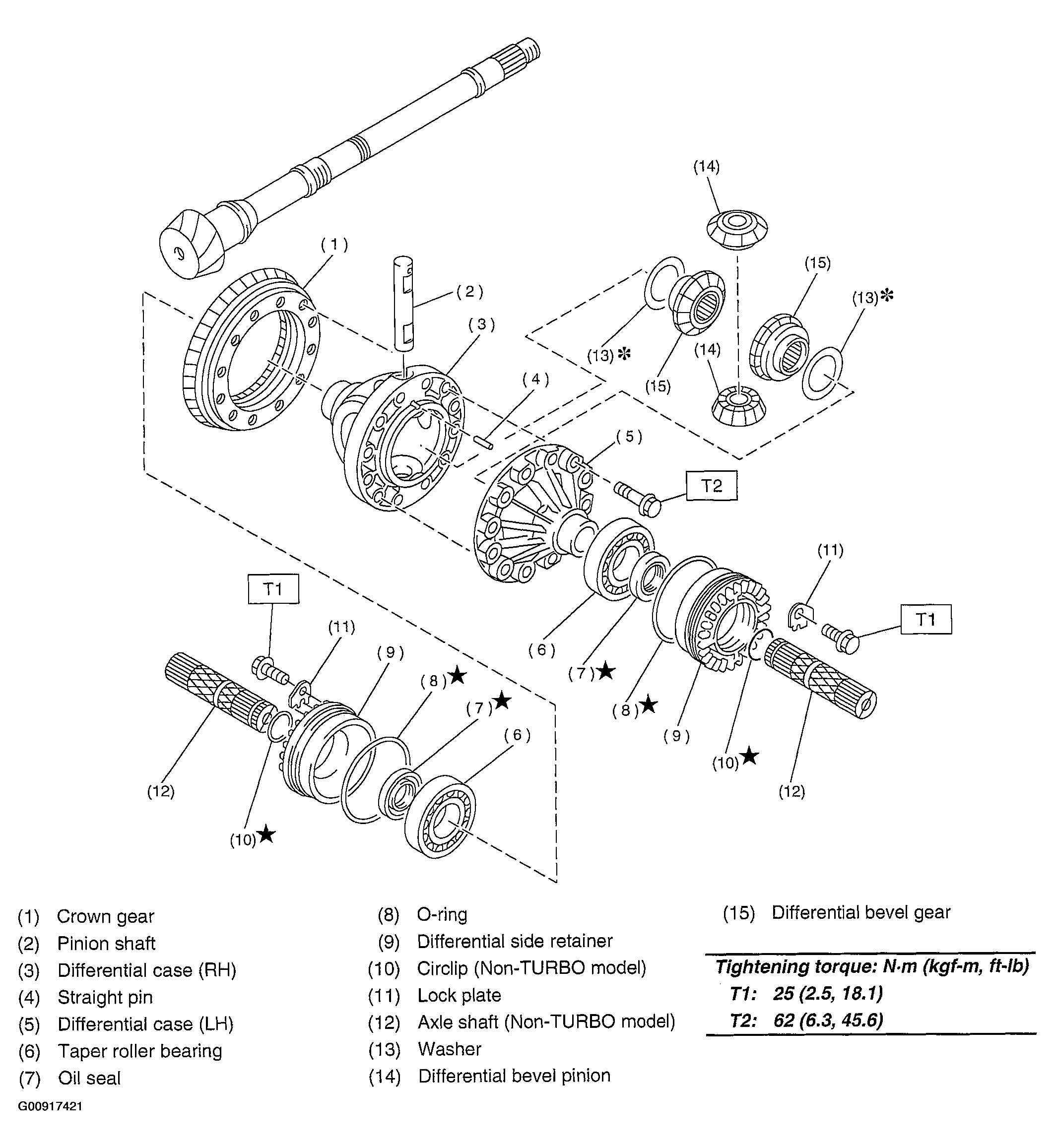

DIFFERENTIAL GEAR

Fig 10: Differential Gear Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
TRANSFER AND EXTENSION CASE WITH MPT

Fig 11: Transfer & Extension Case With MPT Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

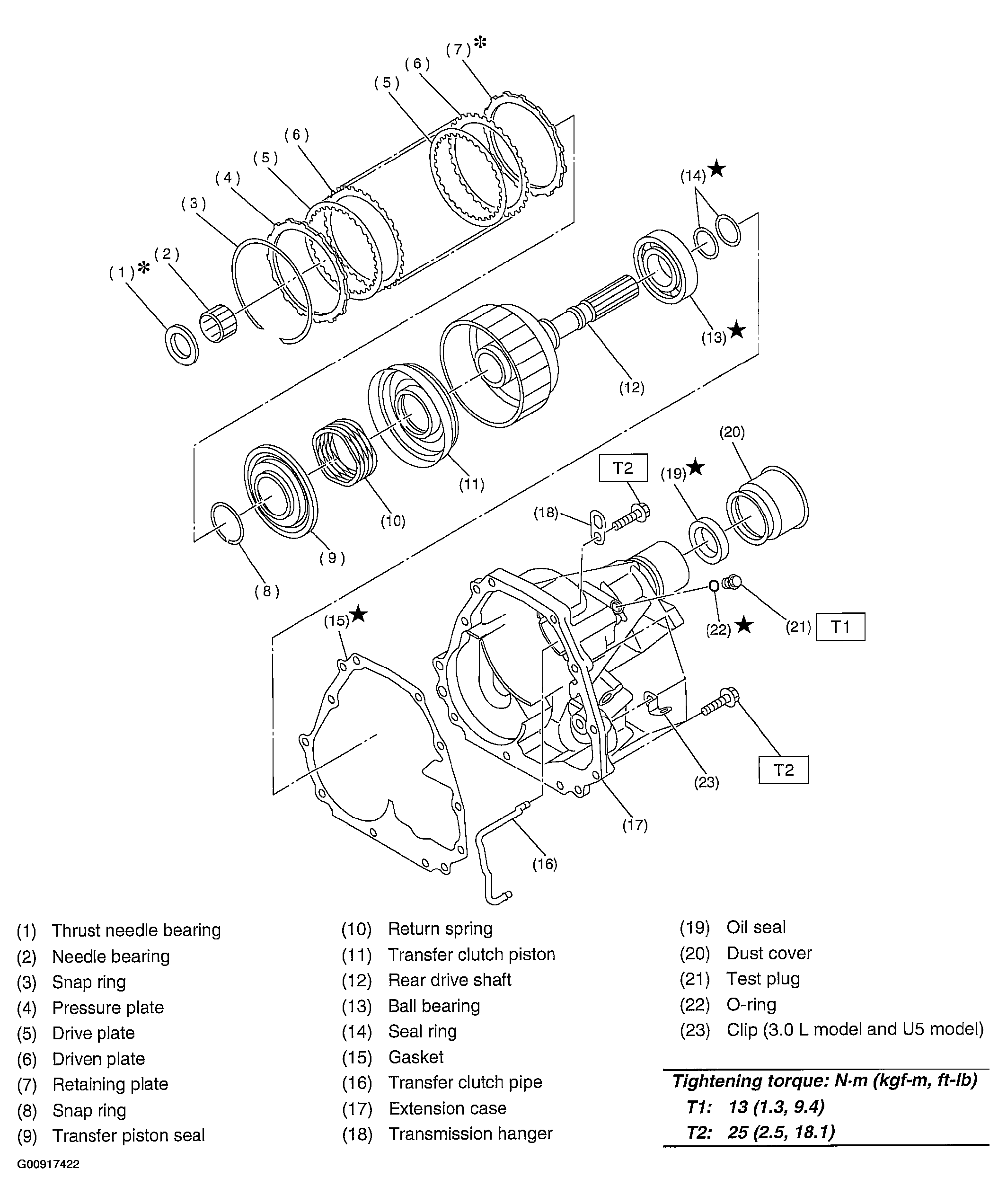

TRANSFER AND EXTENSION CASE WITH VTD

Fig 12: Transfer & Extension Case With VTD Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.

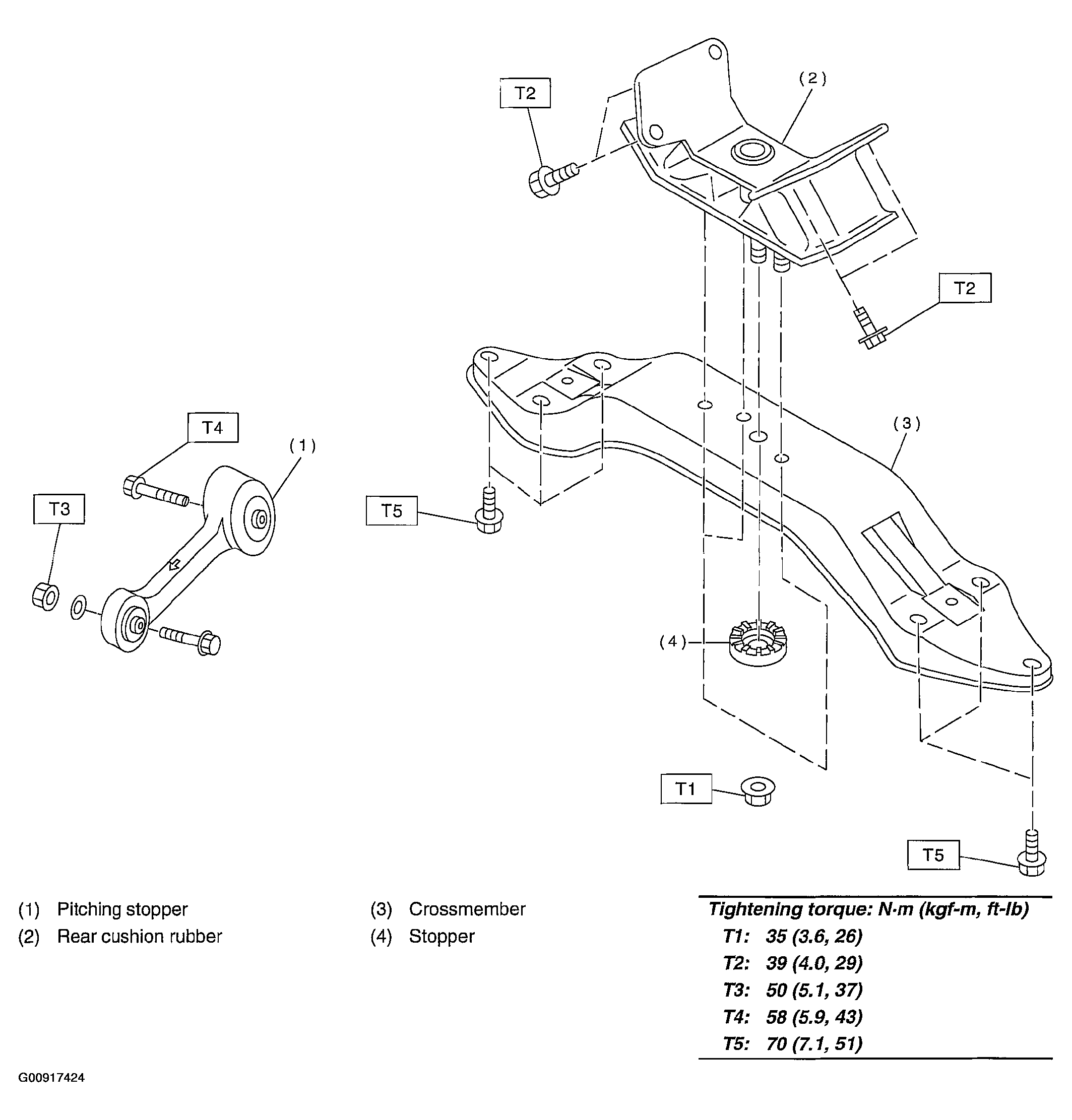

TRANSMISSION MOUNTING

Fig 13: Transmission Mounting Replacement Components With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
