Automatic Transmission: General Description: Specifications

TORQUE CONVERTER CLUTCH

Fig 1: Torque Converter Clutch Specifications
Courtesy of SUBARU OF AMERICA, INC.
OIL PUMP

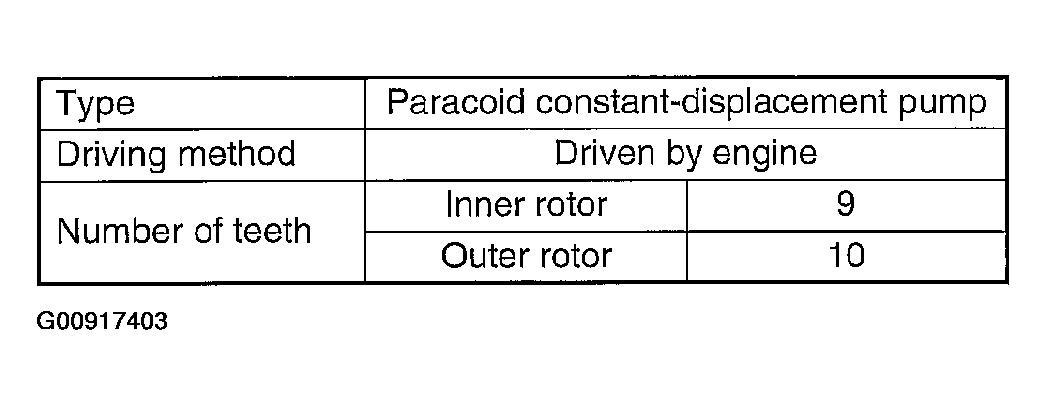

Fig 2: Oil Pump Specifications
Courtesy of SUBARU OF AMERICA, INC.
TRANSMISSION CONTROL ELEMENT

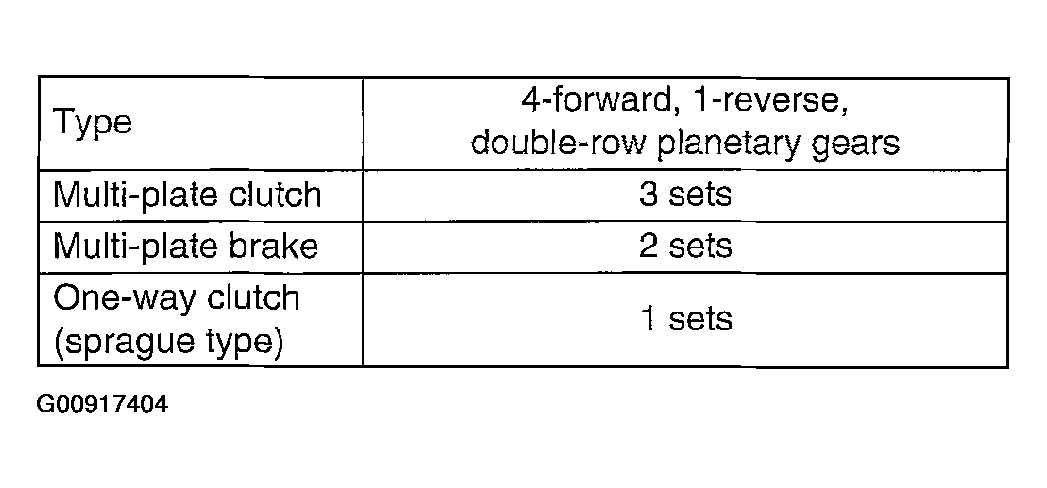

Fig 3: Transmission Control Element Specifications
Courtesy of SUBARU OF AMERICA, INC.
TRANSMISSION GEAR RATIO

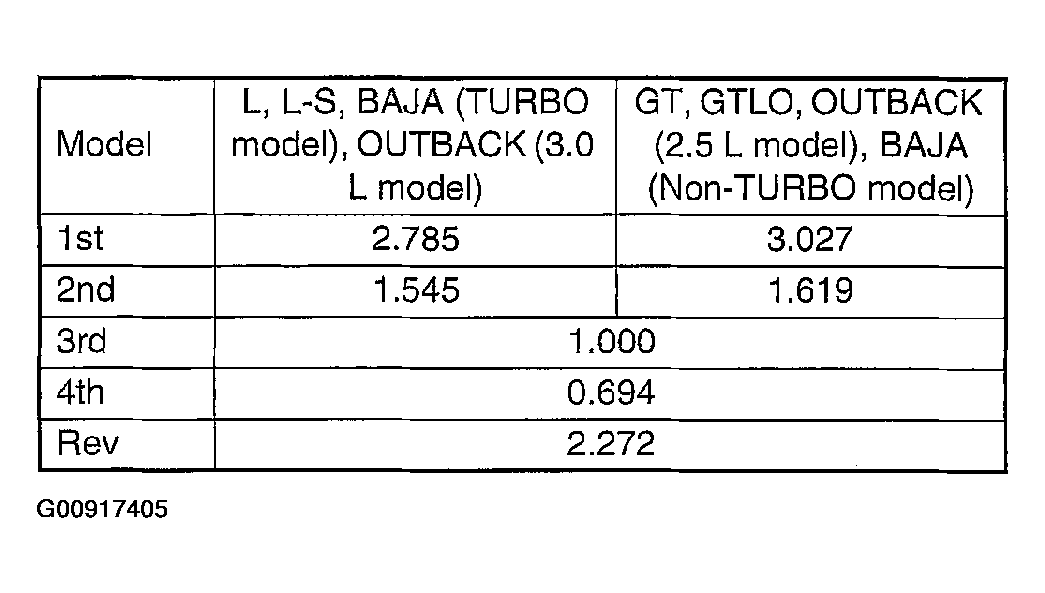

Fig 4: Transmission Gear Ratio Specifications
Courtesy of SUBARU OF AMERICA, INC.
PLANETARY GEAR AND PLATE

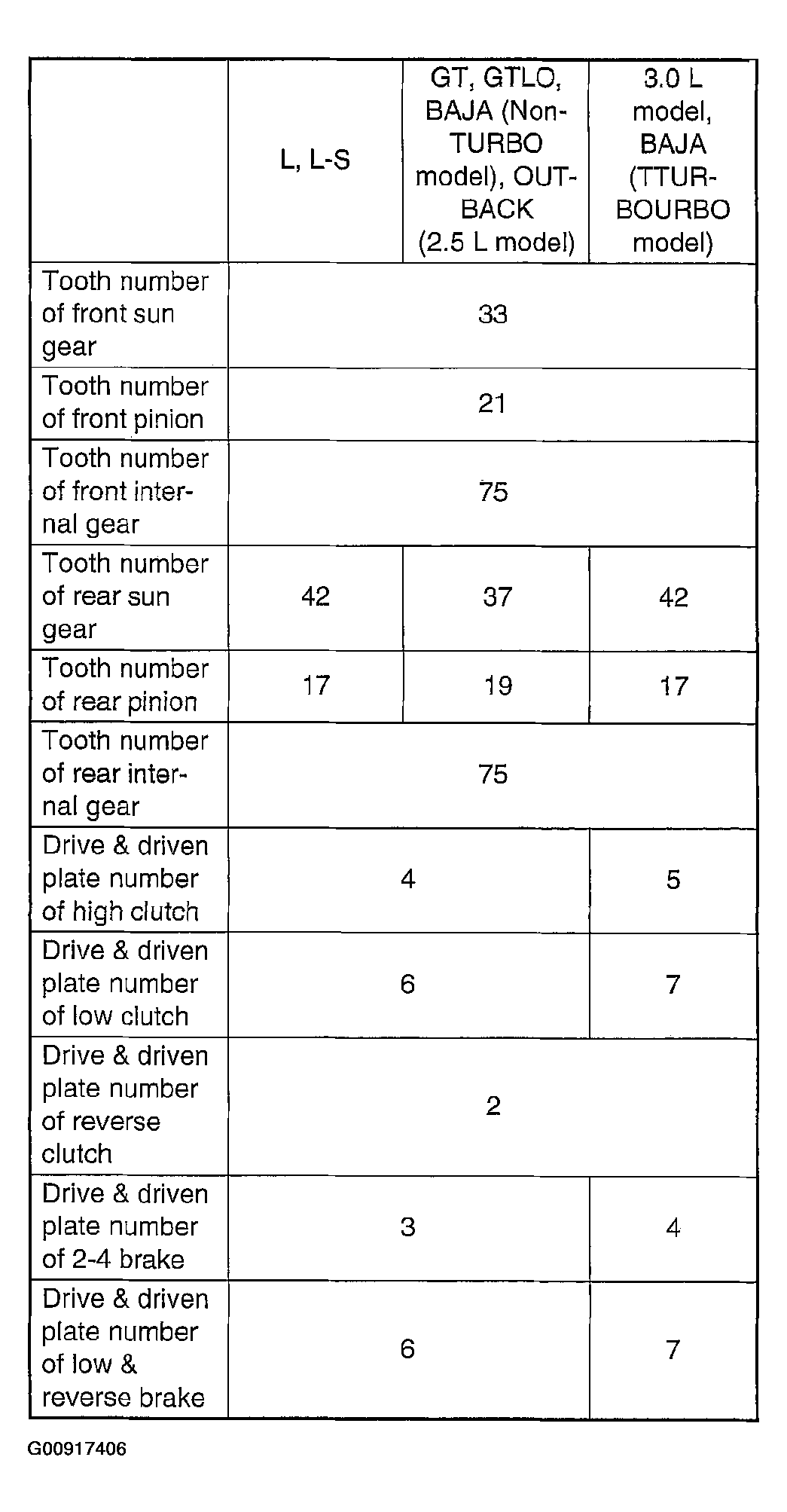

Fig 5: Planetary Gear And Plate Specifications
Courtesy of SUBARU OF AMERICA, INC.
SELECTOR POSITION

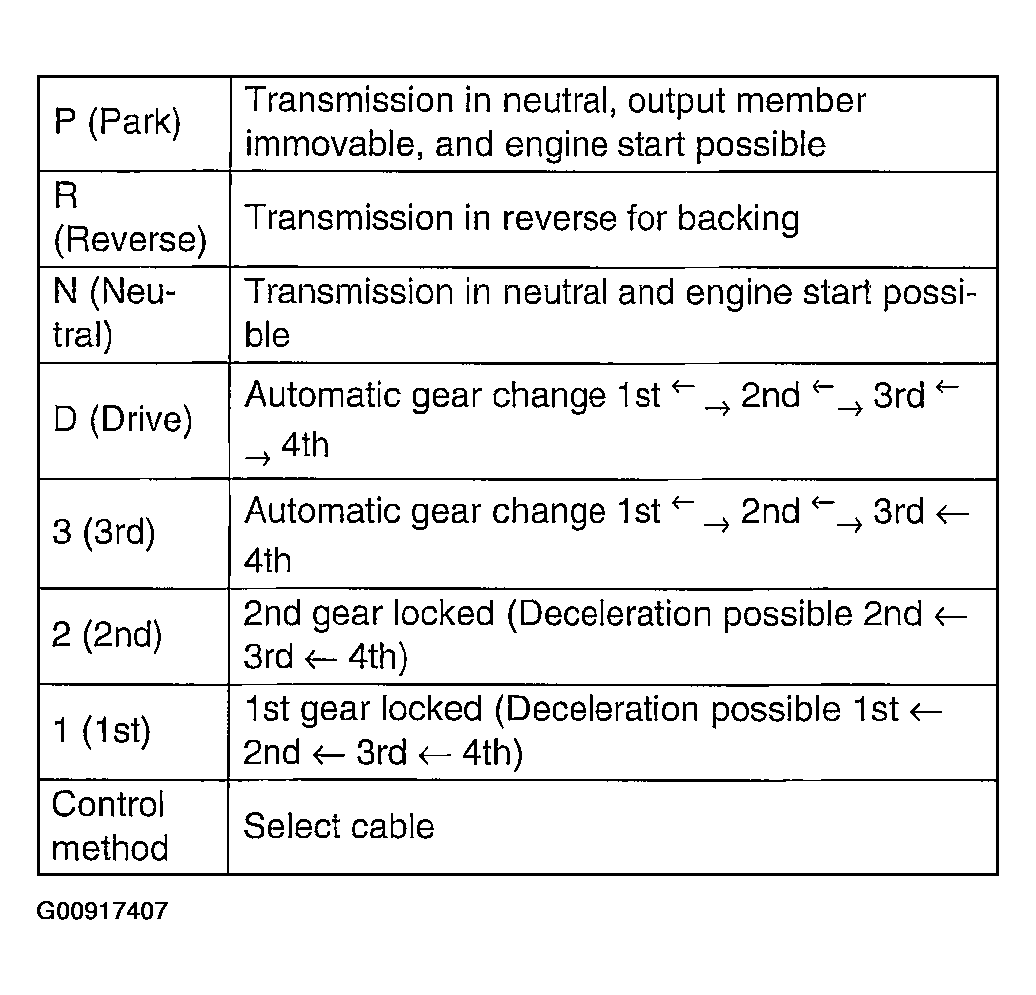

Fig 6: Selector Position Specifications
Courtesy of SUBARU OF AMERICA, INC.
HYDRAULIC CONTROL AND LUBRICATION

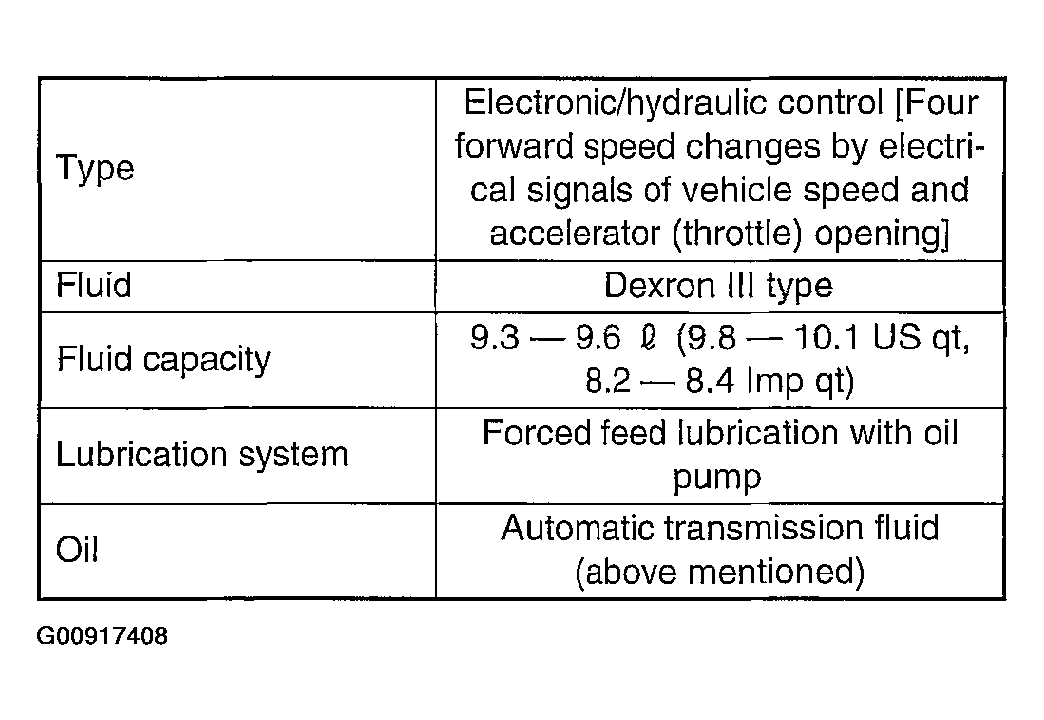

Fig 7: Hydraulic Control & Lubrication Specifications
Courtesy of SUBARU OF AMERICA, INC.
COOLING AND HARNESS

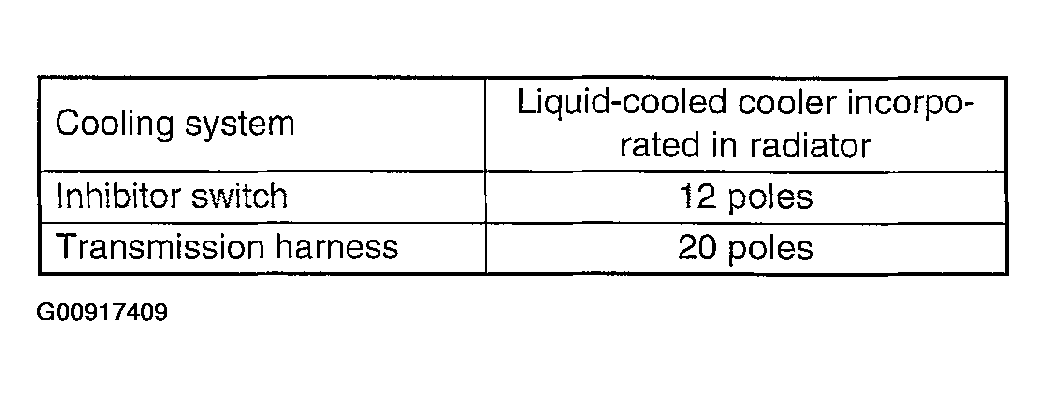

Fig 8: Cooling & Harness Specifications
Courtesy of SUBARU OF AMERICA, INC.
TRANSFER

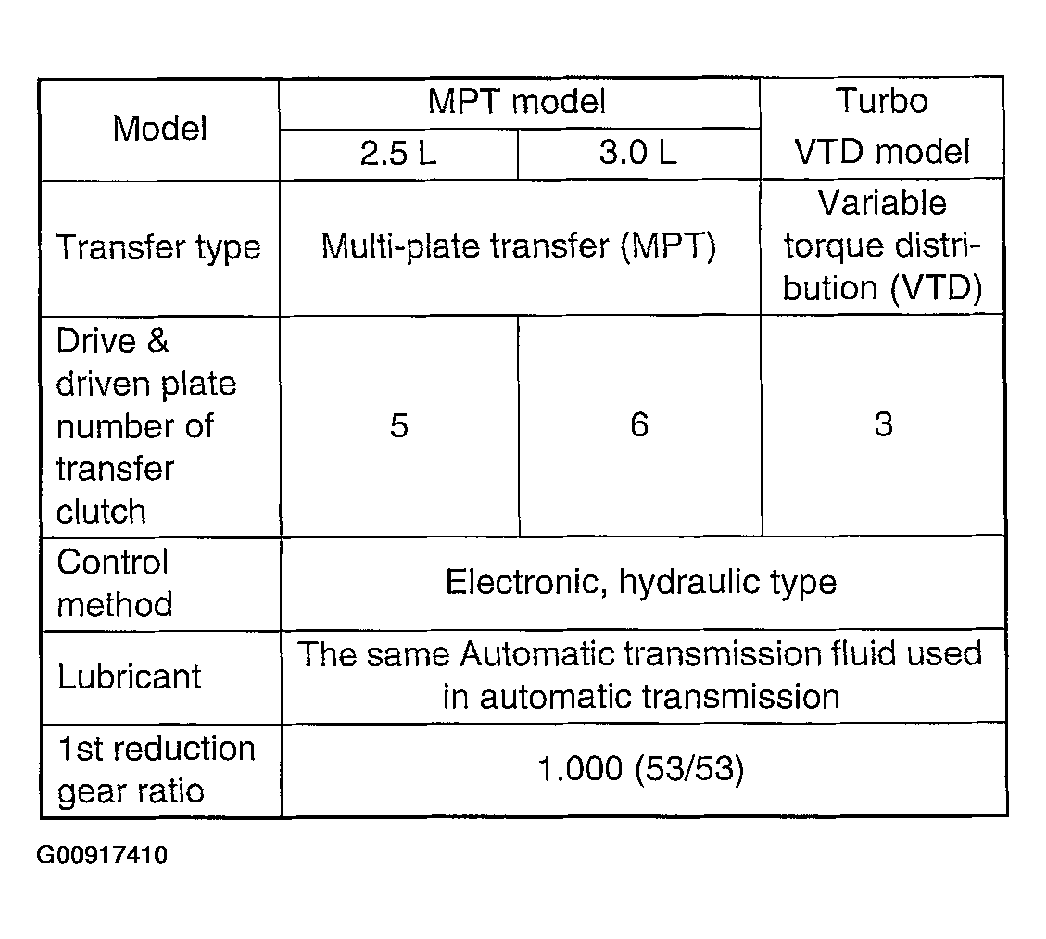

Fig 9: Transfer Specifications
Courtesy of SUBARU OF AMERICA, INC.
FINAL REDUCTION

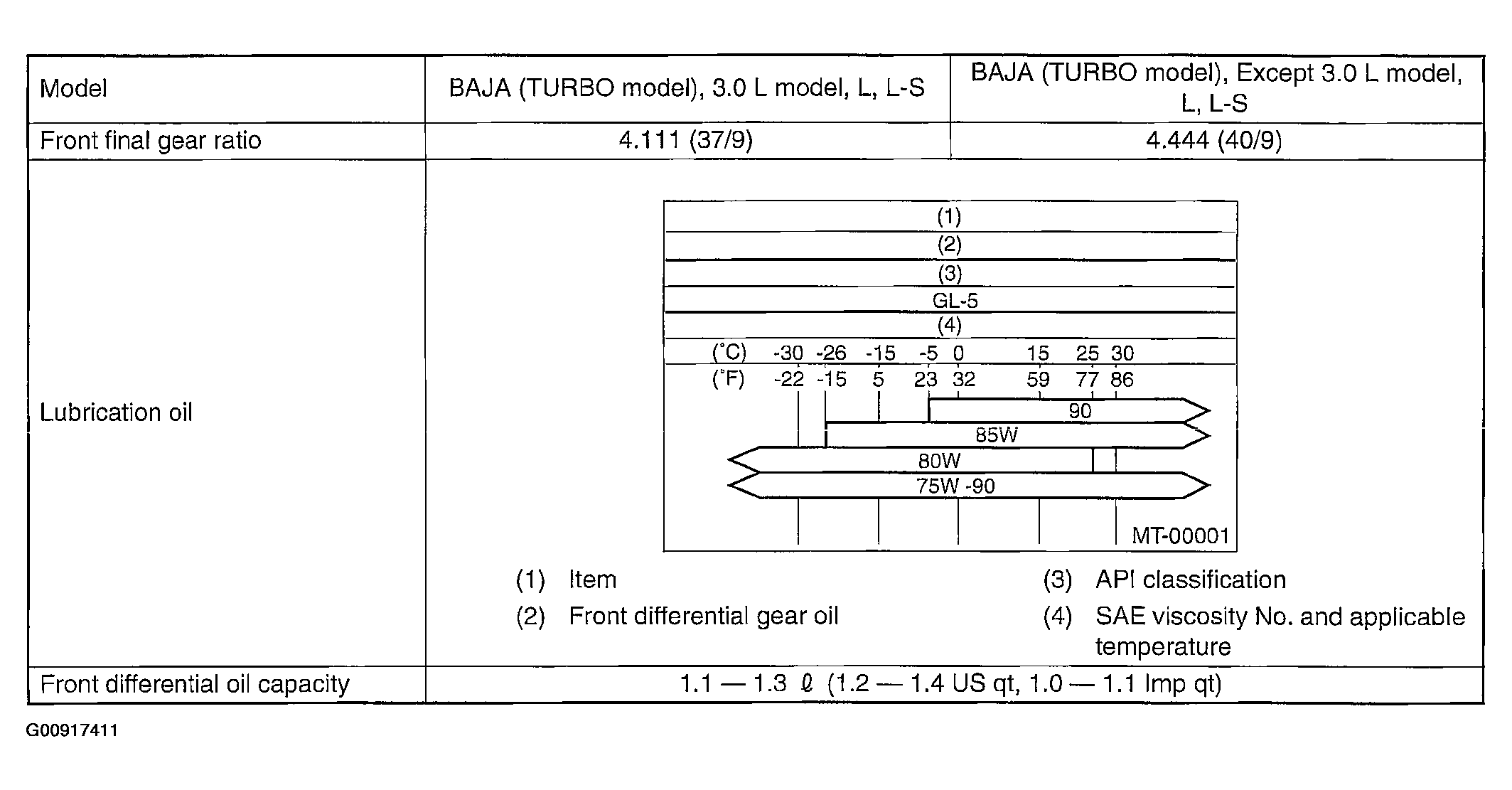

Fig 10: Final Reduction Specifications
Courtesy of SUBARU OF AMERICA, INC.
