Inhibitor Switch: Installation

Connect the inhibitor switch harness connector to inhibitor switch.

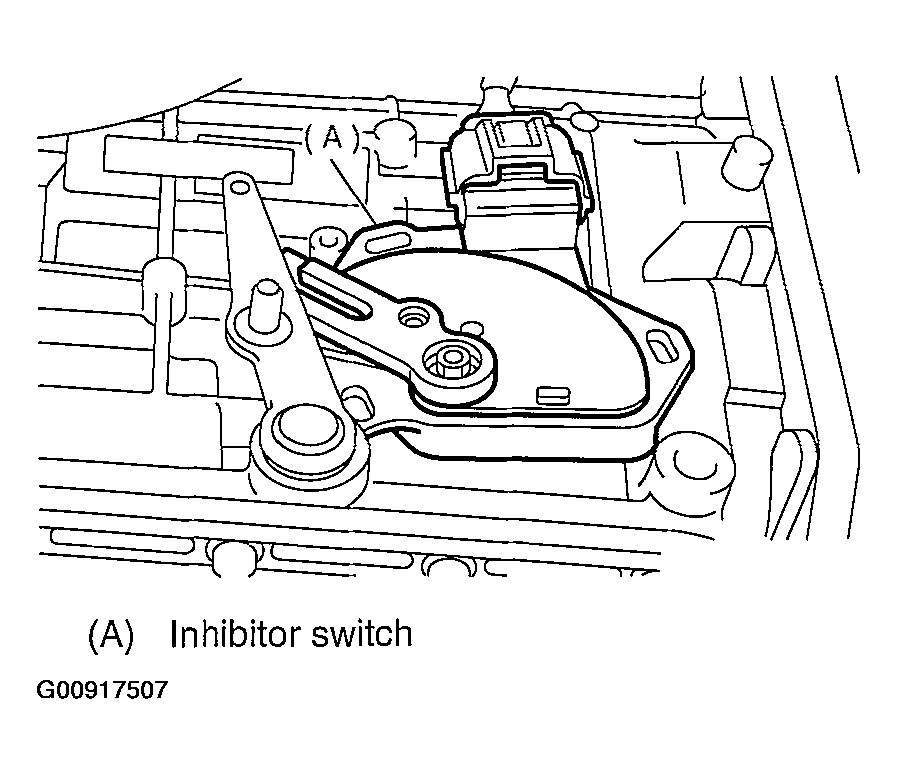

Install the inhibitor switch to transmission case.

Fig 1: Installing Inhibitor Switch To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Move the range select lever to neutral position.

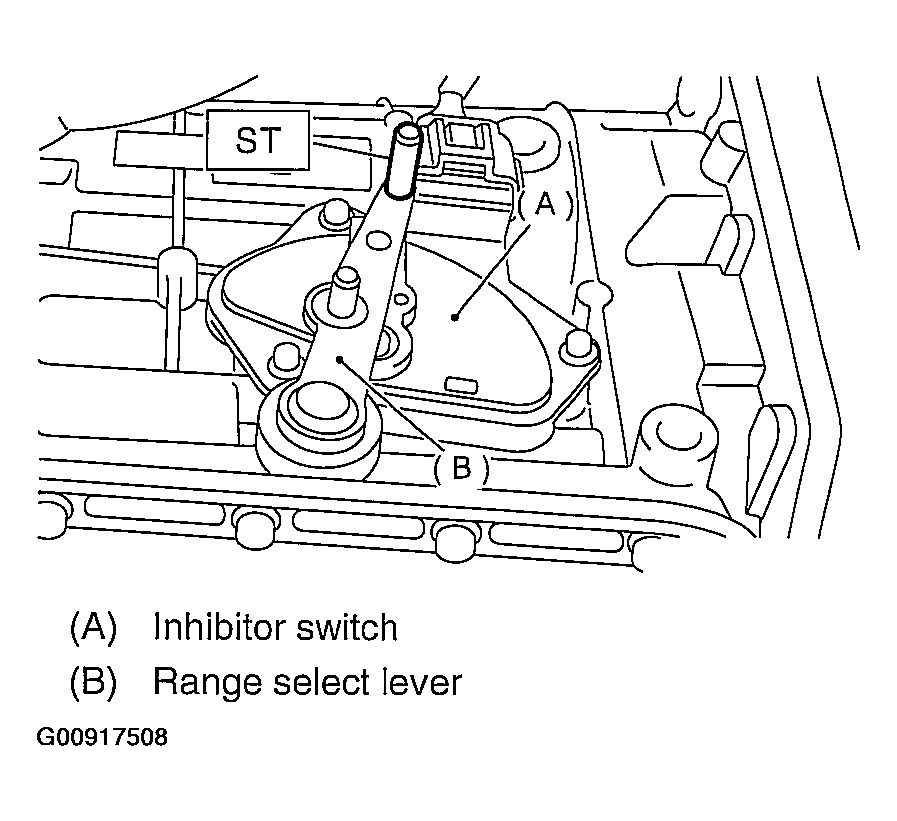

Using the ST, tighten the bolts of inhibitor switch. ST 499267300 STOPPER PIN
1. Tightening torque: 3.5 N.m (0.36 kgf.m, 2.6 ft.lb)
Fig 2: Tightening Bolts Of Inhibitor Switch
Courtesy of SUBARU OF AMERICA, INC.
Install the select cable to range select lever.

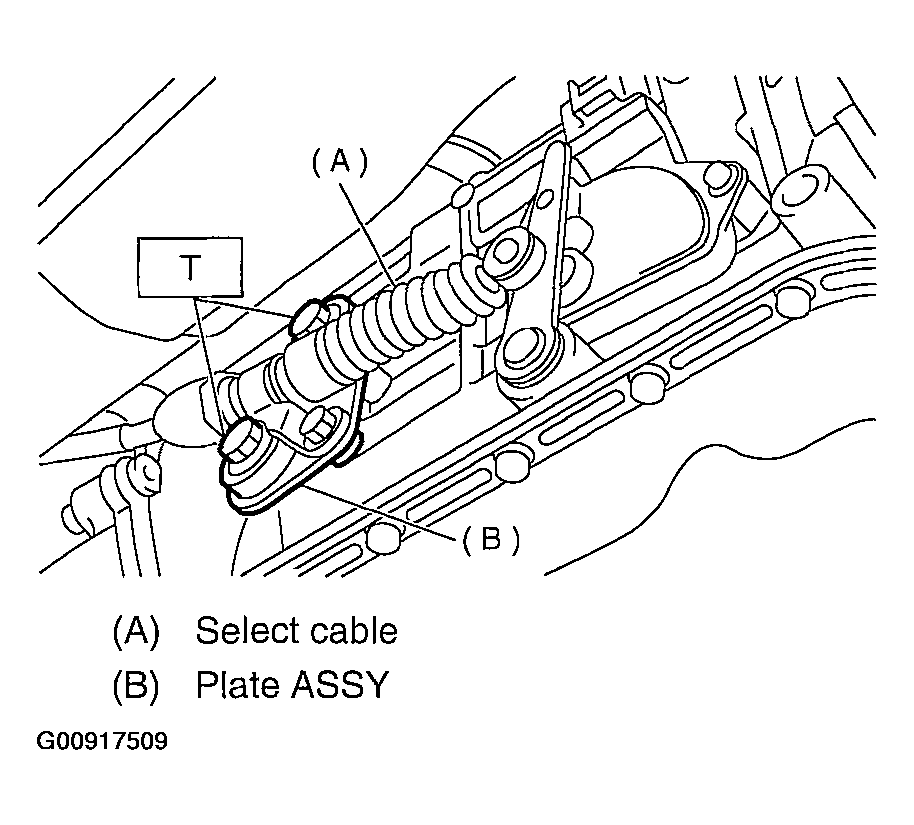

Install the plate assembly to transmission.
1. Tightening torque: T: 25 N.m (2.5 kgf.m, 18.1 ft.lb)
Fig 3: Installing Plate Assembly To Transmission
Courtesy of SUBARU OF AMERICA, INC.

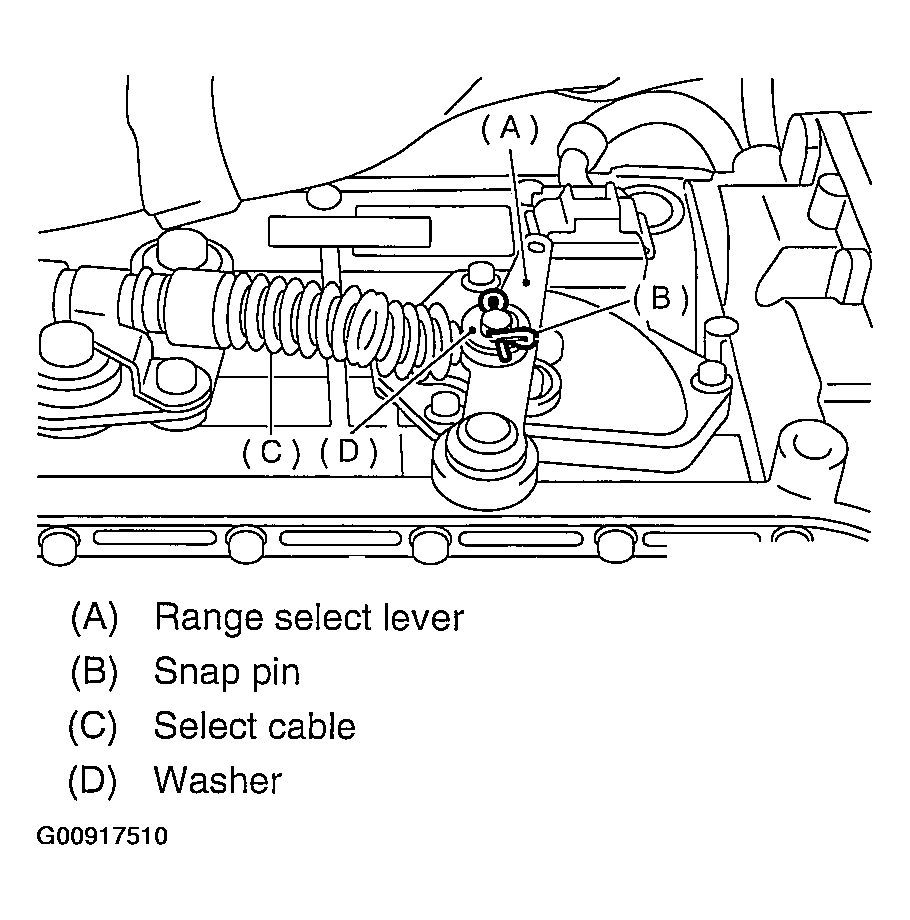

Install the washer and snap pin to range select lever.

Fig 4: Installing Washer & Snap Pin To Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.
Install the front and center exhaust pipes. (Non-TURBO model)
Except 2.5 L U5 model

Refer to INSTALLATION , Front Exhaust Pipe.

2.5 L U5 model

Refer to INSTALLATION , Front Exhaust Pipe.

3.0 L model

Refer to INSTALLATION , Front Exhaust Pipe.
Install the center exhaust pipe. (TURBO model) Refer to INSTALLATION , Center Exhaust Pipe.
Lower the vehicle.

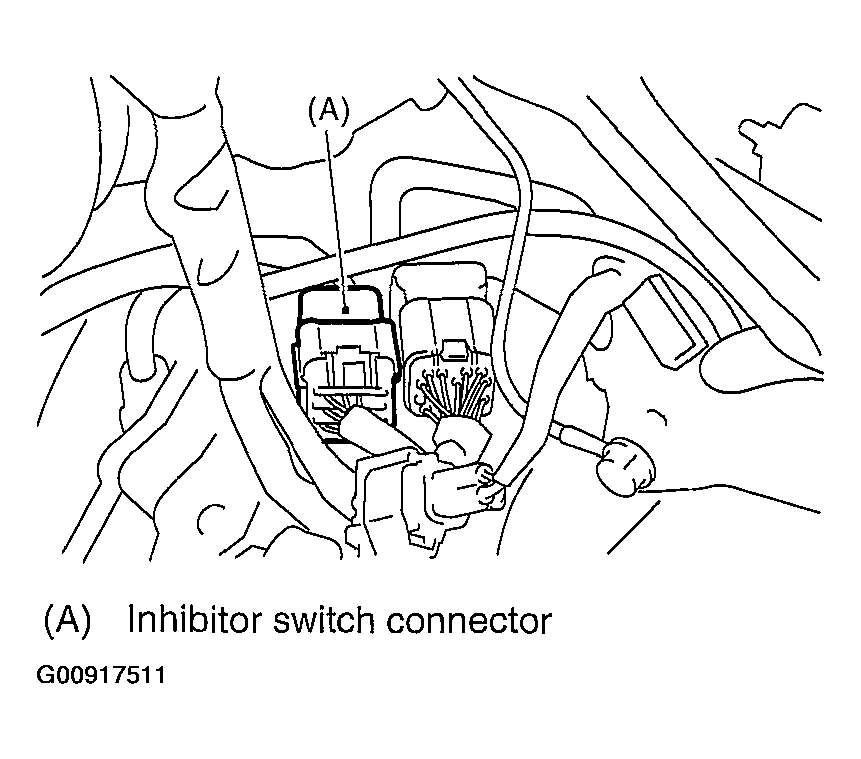

Install the inhibitor switch connector from stay.
Connect the inhibitor switch connector.

Fig 5: Installing Inhibitor Switch Connector From Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case or air intake chamber. (Non-TURBO model)
Except 2.5 L U5 model

Refer to INSTALLATION , Air Cleaner Case.

2.5 L U5 model

Refer to INSTALLATION , Air Intake Chamber.

3.0 L model

Refer to INSTALLATION , Air Intake Chamber.
Install the intercooler. (TURBO model) Refer to INSTALLATION , Intercooler.
Inspect the inhibitor switch. Refer to INSPECTION .
