Transmission Control Device: Installation

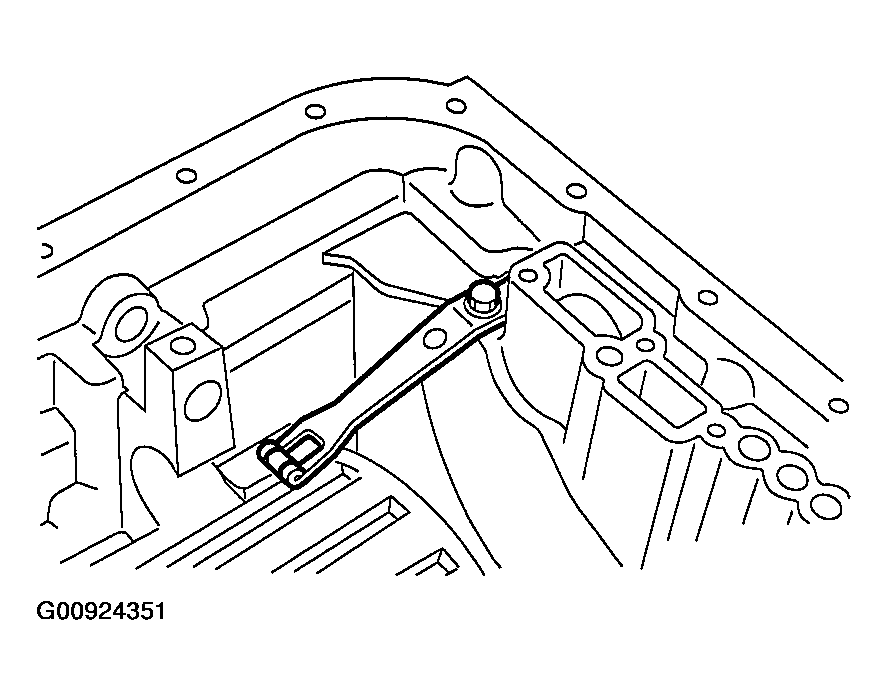

Install the detention spring to transmission case.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.3 ft-lb)
Fig 1: Installing Detention Spring To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.

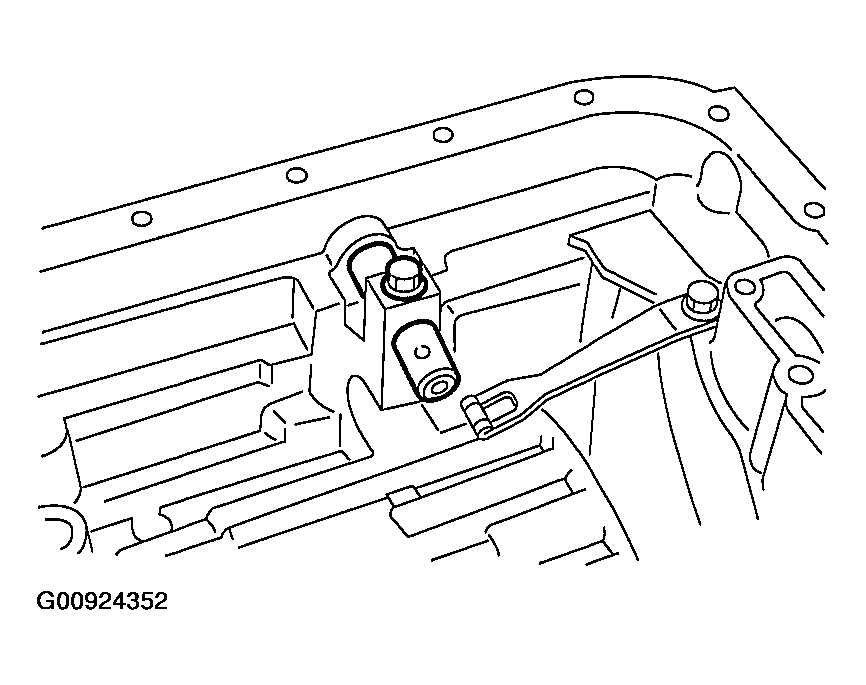

Insert the range select lever, and tighten the bolt.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.3 ft-lb)
Fig 2: Inserting Range Select Lever
Courtesy of SUBARU OF AMERICA, INC.

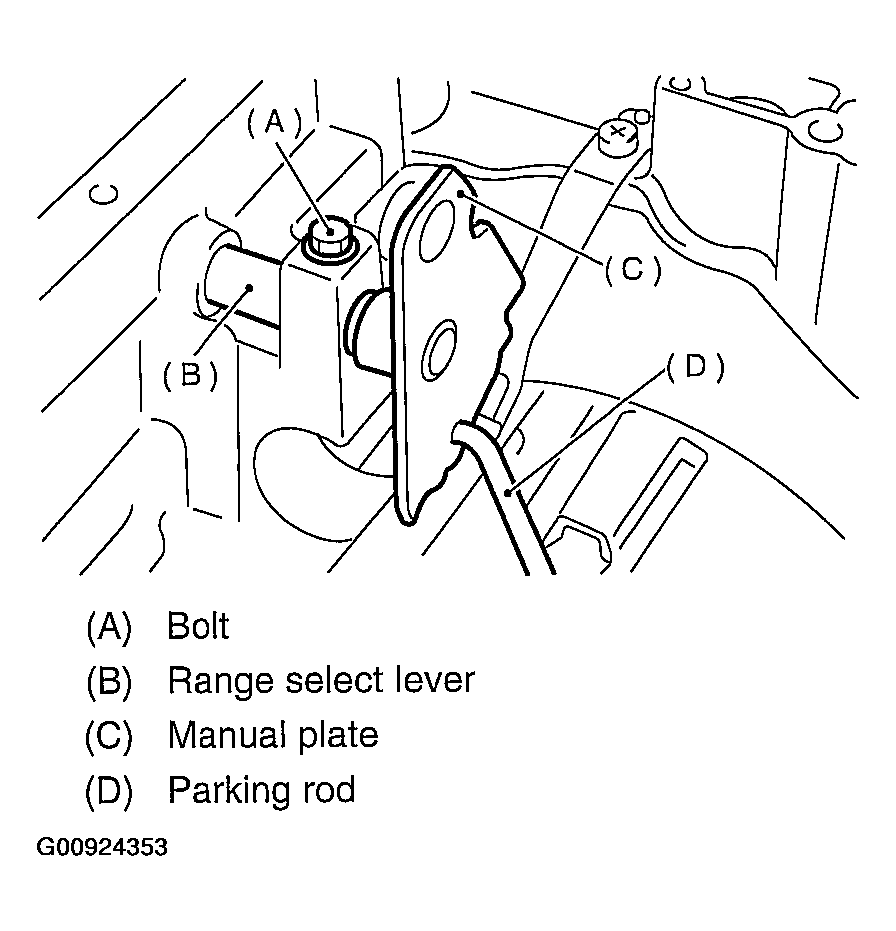

Insert the manual plate and parking rod.

Fig 3: Inserting Manual Plate & Parking Rod
Courtesy of SUBARU OF AMERICA, INC.

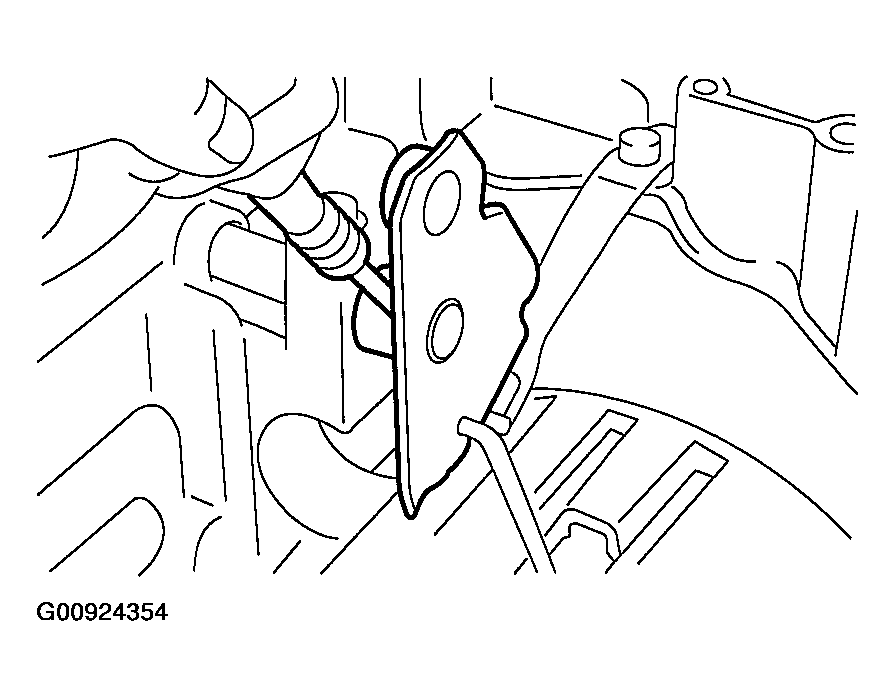

Insert the spring pin to manual plate.

Fig 4: Inserting Spring Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install the control valve assembly and oil pan. Refer to INSTALLATION .
Turn over the transmission case to its original position.
Install the pitching stopper bracket.
1. Tightening torque: 41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install the inhibitor switch and adjust the inhibitor switch. Refer to INHIBITOR SWITCH .

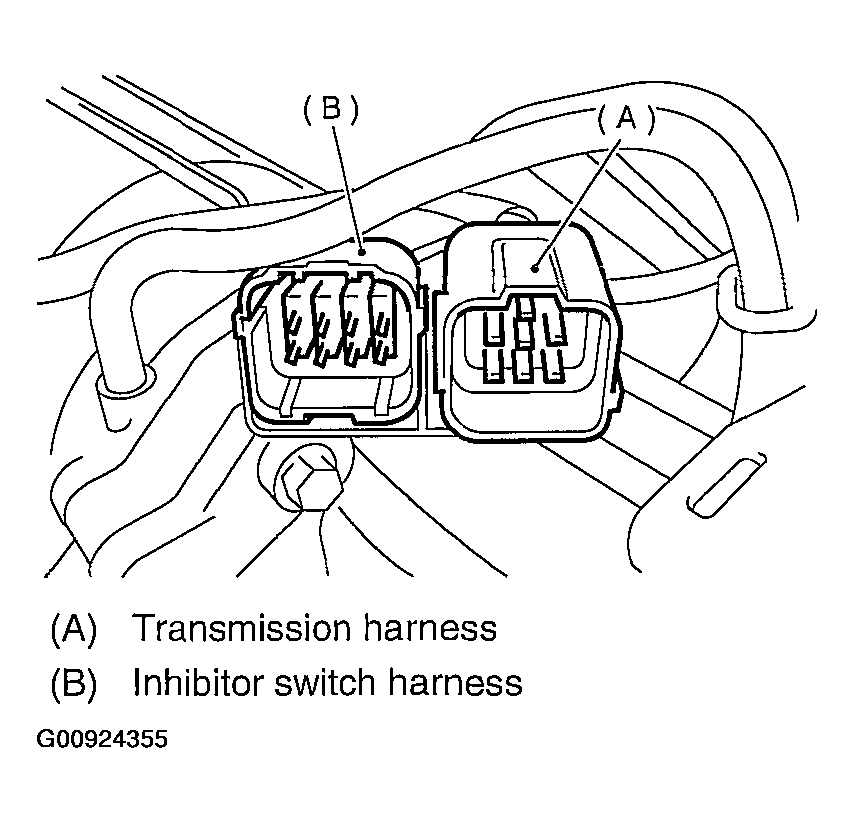

Insert the inhibitor switch and transmission connector into stay.

Fig 5: Inserting Inhibitor Switch & Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install the air breather hose. Refer to INSTALLATION .

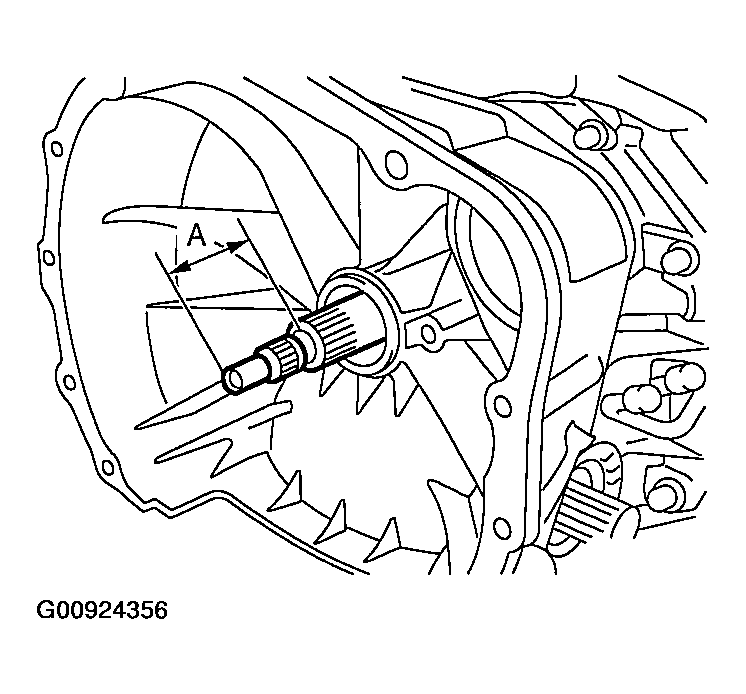

Insert the input shaft while turning it lightly by hand and verify the protrusion amount.
1. Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)
Fig 6: Inserting Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly.
Refer to INSTALLATION .
Install the transmission assembly to the vehicle. Refer to INSTALLATION .
