Abs Sequence Control With Diagnosis Connector

  1. Connect diagnosis terminals to terminals No. 5 and No. 8 of the diagnosis connector beside driver's seat heater unit.

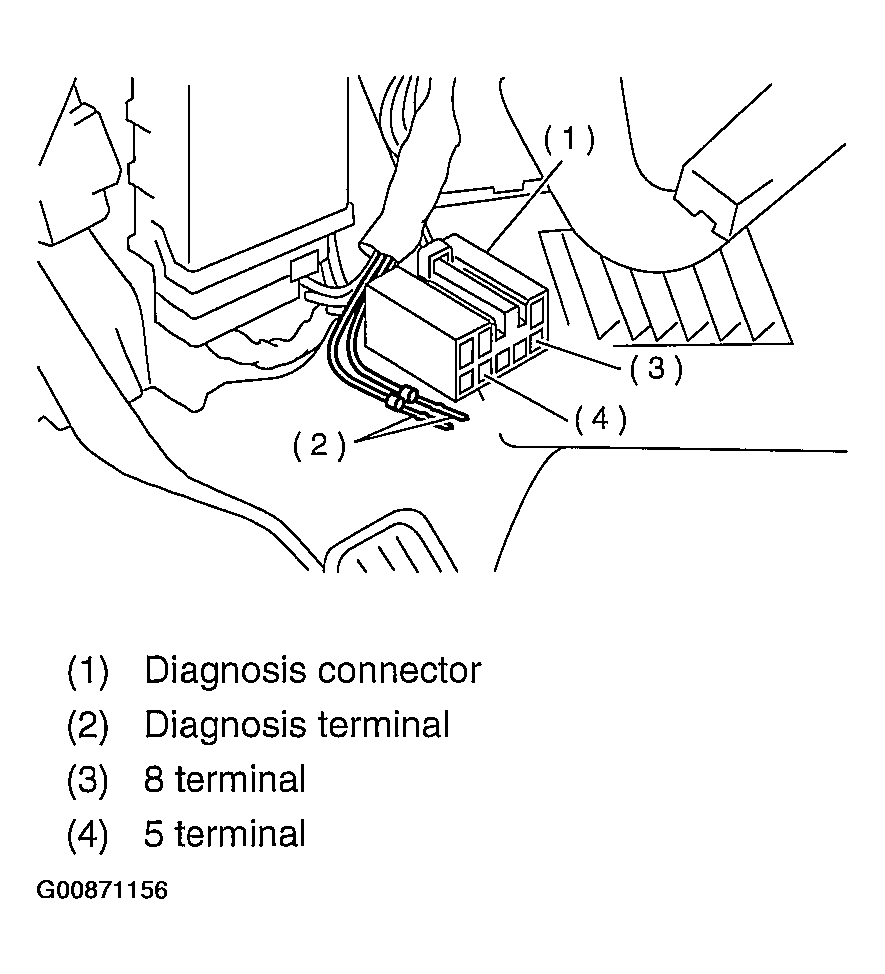

    Fig 1: Connecting Diagnosis Terminals To Terminals Of Diagnosis Connector
    G00871156Courtesy of SUBARU OF AMERICA, INC.
  2. Set the speed of all wheels at 2.75 km/h (2 MPH) or less.
  3. Turn ignition switch OFF.
  4. Immediately after ignition switch is turned ON, depress the brake pedal within 0.5 seconds after the ABS warning light goes out, and hold the brake pedal.
    CAUTION: Do not depress the clutch pedal.
    NOTE:
    • When the ignition switch is set to on, the brake pedal must not be depressed.
    • Engine must not operate.
  5. After completion of ABS sequence control, turn ignition switch OFF.
