Idle Air Control Solenoid Valve: Installation

Install in the reverse order of removal.

NOTE: Always use a new gasket.
  1. Tightening torque:  2.4 N.m (0.24 kgf-m, 1.7 ft-lb)

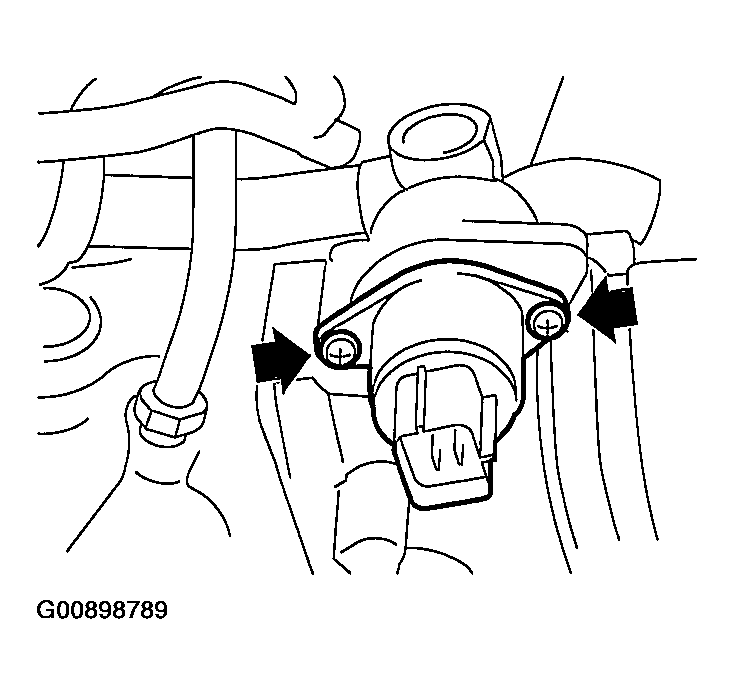

    Fig 1: Installing Idle Air Control Solenoid Valve
    G00898789Courtesy of SUBARU OF AMERICA, INC.
