Throttle Body: Removal

Disconnect ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove air cleaner case. Refer to REMOVAL , Air Cleaner.
Disconnect accelerator cable (A).
Disconnect cruise control cable (B). (With cruise control model)

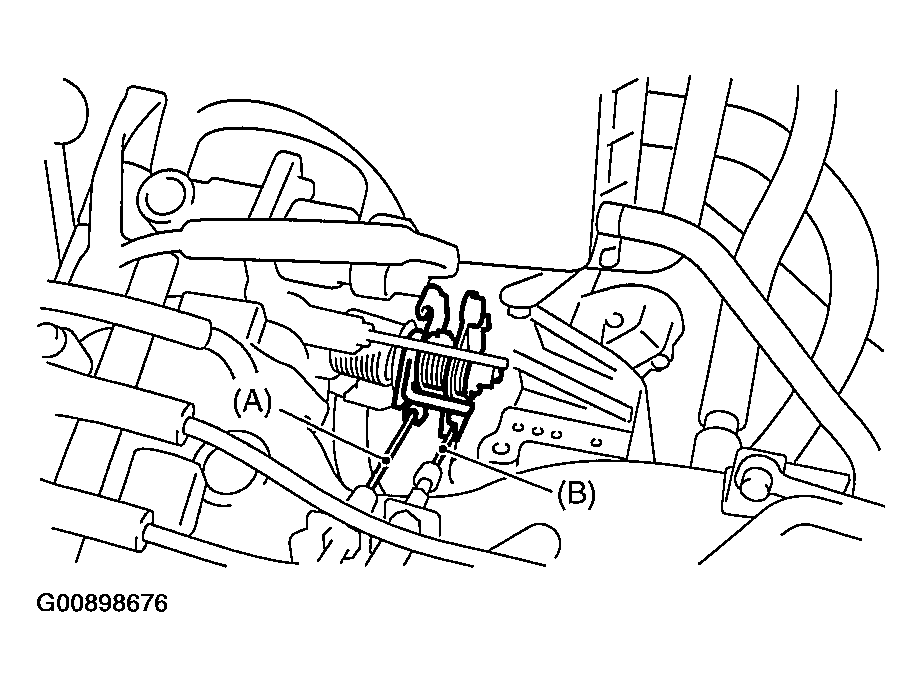

Fig 2: Disconnecting Cruise Control Cable & Accelerator Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect connectors from idle air control solenoid valve, throttle position sensor and pressure sensor.
Disconnect air by-pass hose from throttle body.

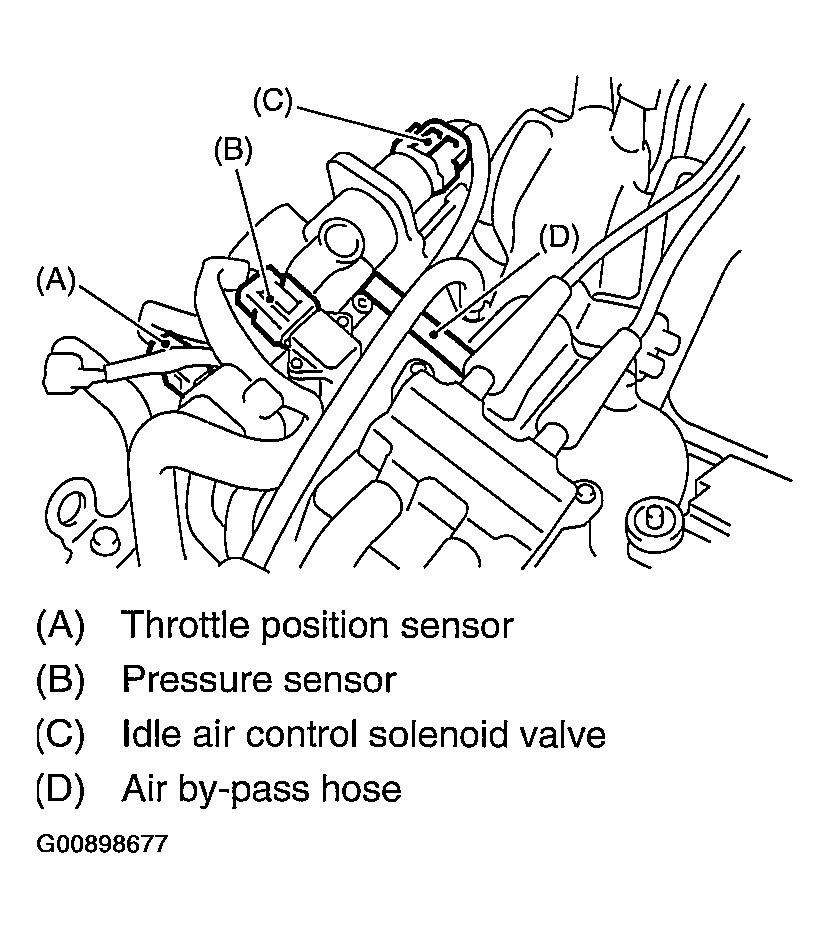

Fig 3: Disconnecting Air By-Pass Hose & Connectors From Idle Air Control Solenoid Valve, Throttle Position Sensor & Pressure Sensor
Courtesy of SUBARU OF AMERICA, INC.
Disconnect engine coolant hoses (A) from throttle body.
Remove bolts (B) which install throttle body to intake manifold.

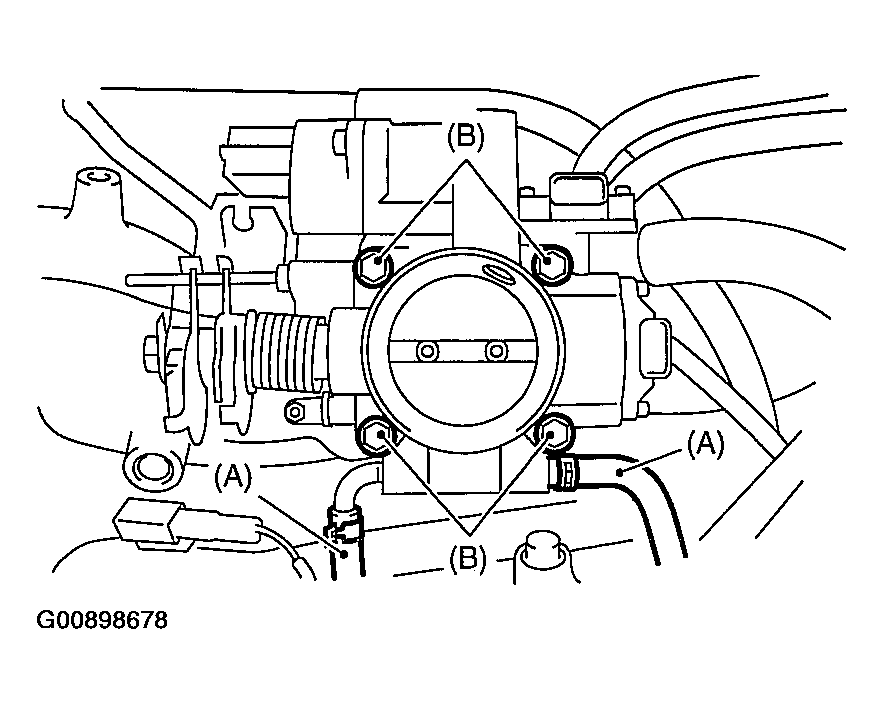

Fig 4: Removing Throttle Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
