EGR Valve: Removal

  1. Disconnect the ground cable from battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G00994822Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from EGR valve.
    Fig 2: Disconnecting Connector From EGR Valve
    G00994823Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the EGR valve from intake manifold.

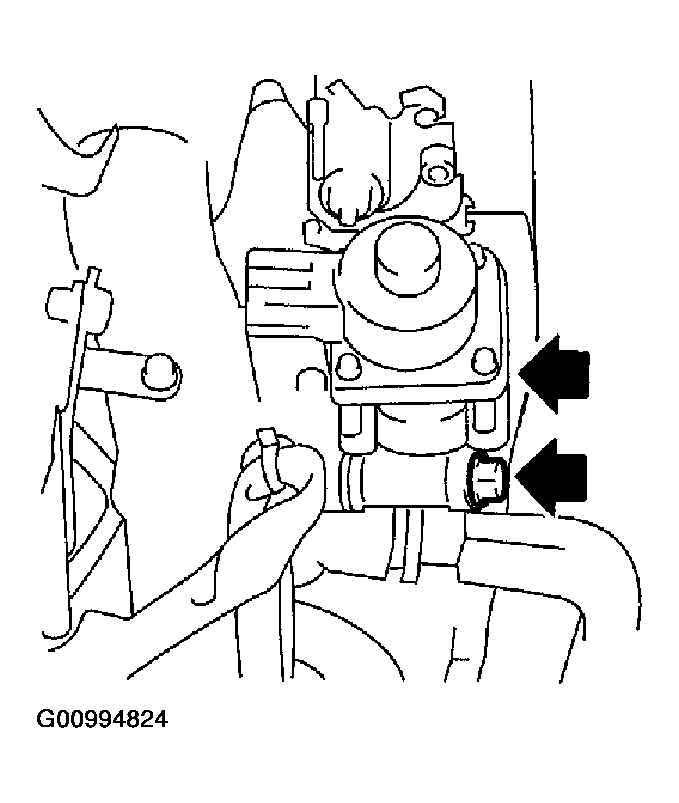

    Fig 3: Identifying EGR Valve
    G00994824Courtesy of SUBARU OF AMERICA, INC.
