Fuel Pump: Removal

WARNING:

NOTE: Fuel pump assembly consists of fuel pump and fuel level sensor.

Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Open the fuel filler flap lid and remove the fuel filler cap.
Disconnect the ground cable from battery.

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

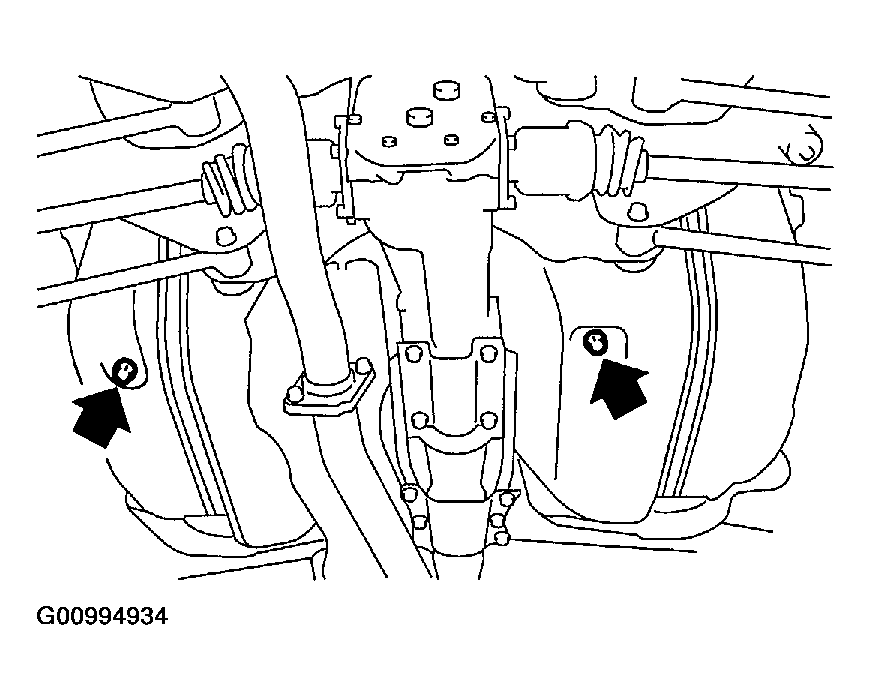

Fig 2: Identifying Drain Plug & Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 3: Tightening Fuel Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Raise the rear seat and turn the floor mat up.
Remove the access hole lid.

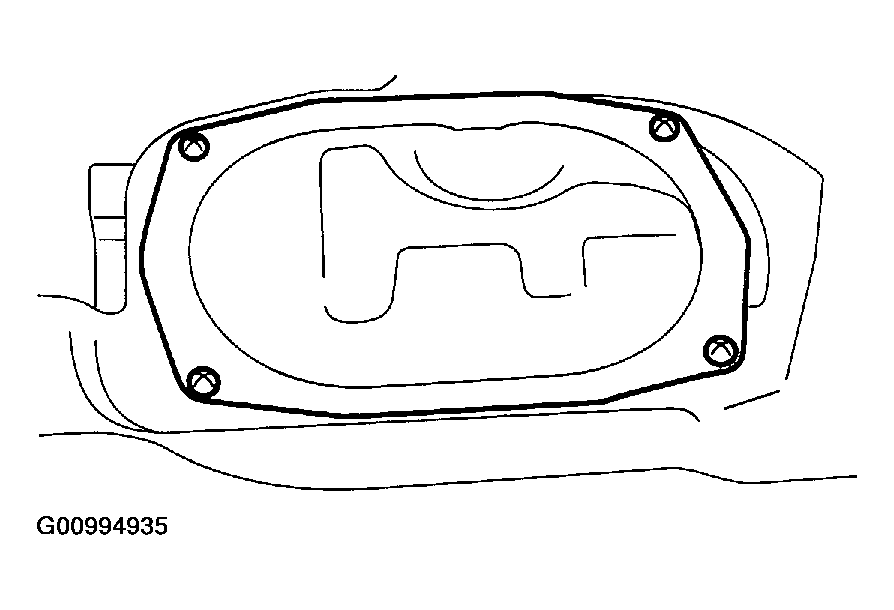

Fig 4: Identifying Access Hole Lid
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel pump.

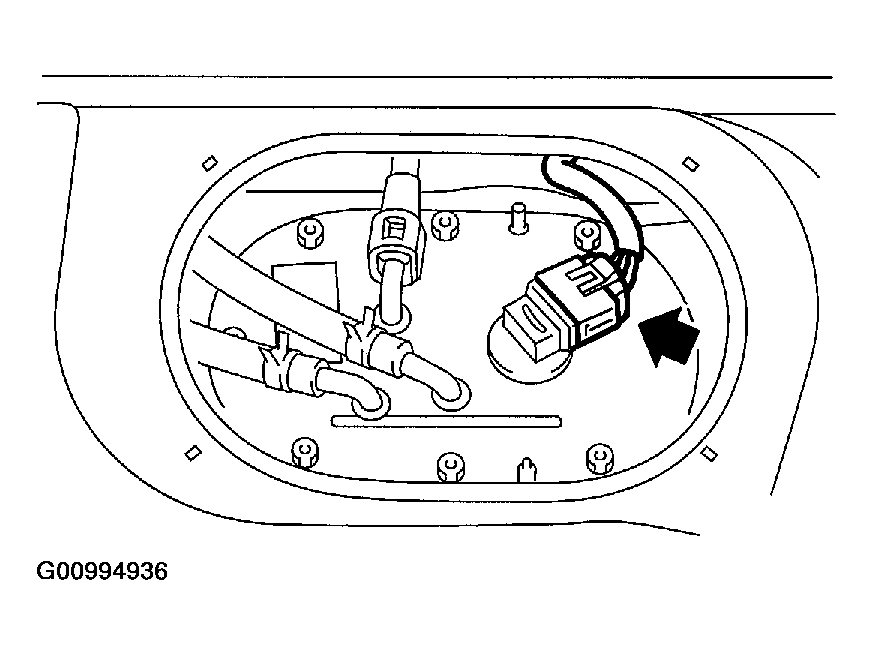

Fig 5: Disconnecting Connector From Fuel Pump
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the quick connector and then disconnect the fuel delivery hose. Refer to REMOVAL , Fuel Delivery, Return and Evaporation Lines.
Loosen the clip and then disconnect the fuel return hose (A) and jet pump hose (B).

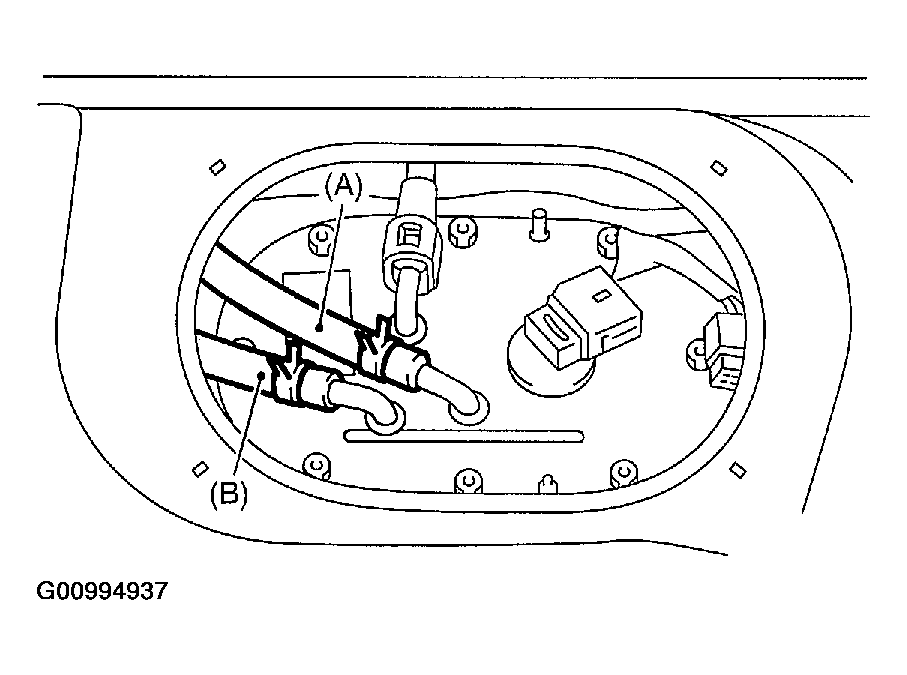

Fig 6: Disconnecting Fuel Return Hose & Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the nuts which install the fuel pump assembly onto the fuel tank.

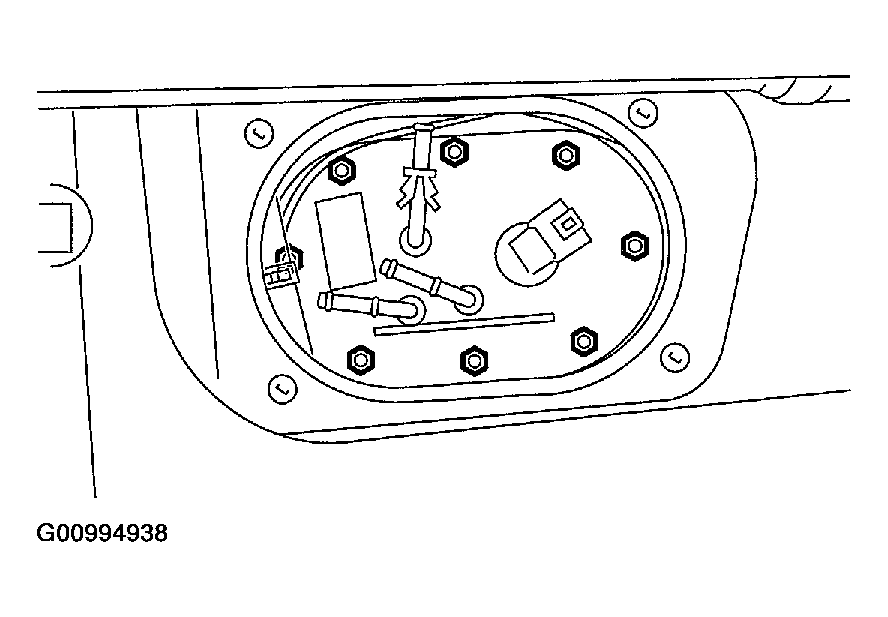

Fig 7: Identifying Nuts & Fuel Pump Assembly
Courtesy of SUBARU OF AMERICA, INC.
Take off the fuel pump assembly from the fuel tank.
