Fuel Sub Level Sensor: Removal

WARNING:

Disconnect the ground cable from battery.

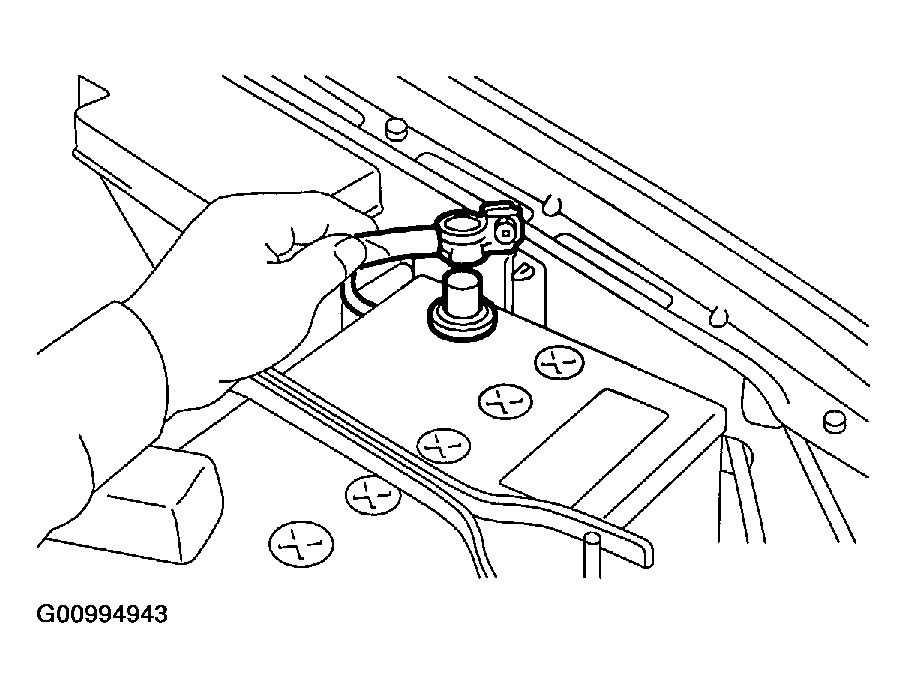

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Drain the fuel from the fuel tank. Set a container under the vehicle and remove the drain plug from the fuel tank.

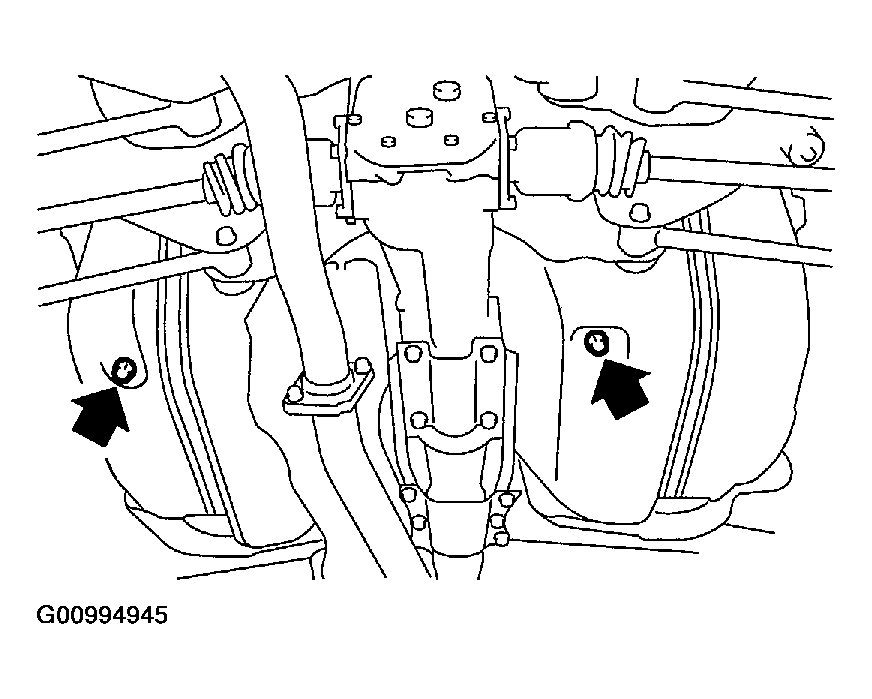

Fig 2: Identifying Drain Plug & Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Tighten the fuel drain plug.
Tightening torque: 26 N.m (2.65 kgf-m, 19.2 ft-lb)

Fig 3: Tightening Fuel Drain Plug
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear seat.
Remove the service hole cover.

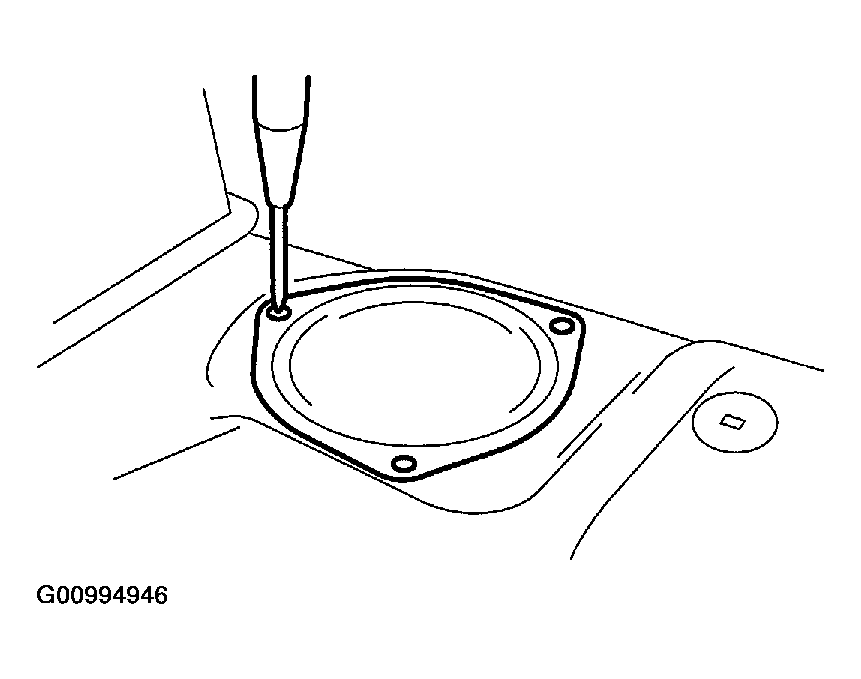

Fig 4: Identifying Service Hole Cover
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the fuel sub level sensor.
Disconnect the fuel jet pump hose.

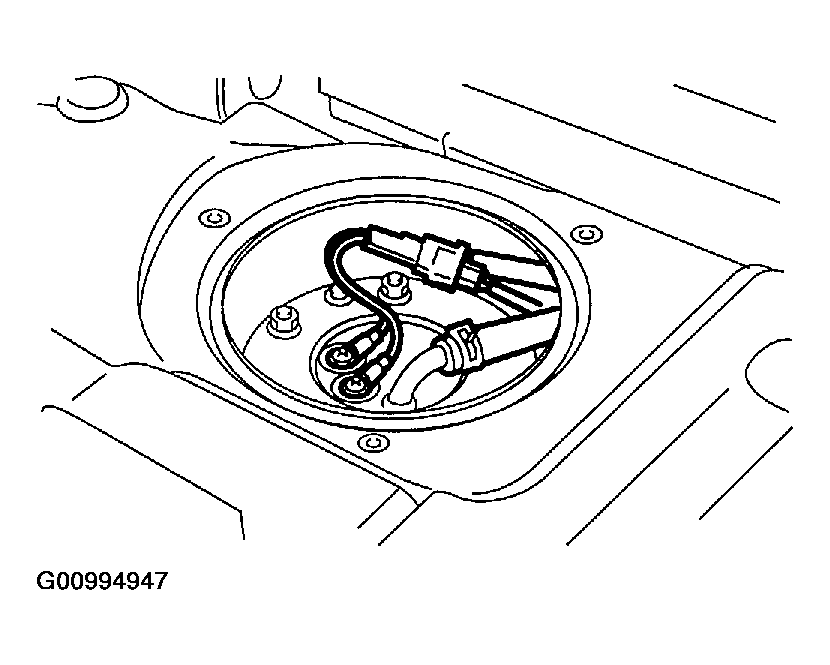

Fig 5: Disconnecting Fuel Jet Pump Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the fuel sub level sensor on the fuel tank.

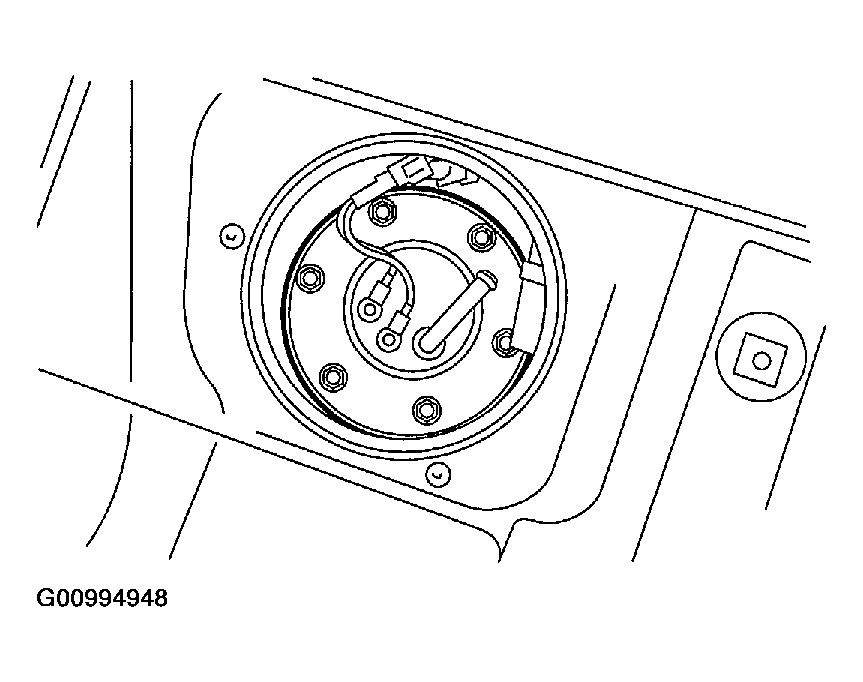

Fig 6: Identifying Bolts & Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
Remove the fuel sub level sensor.

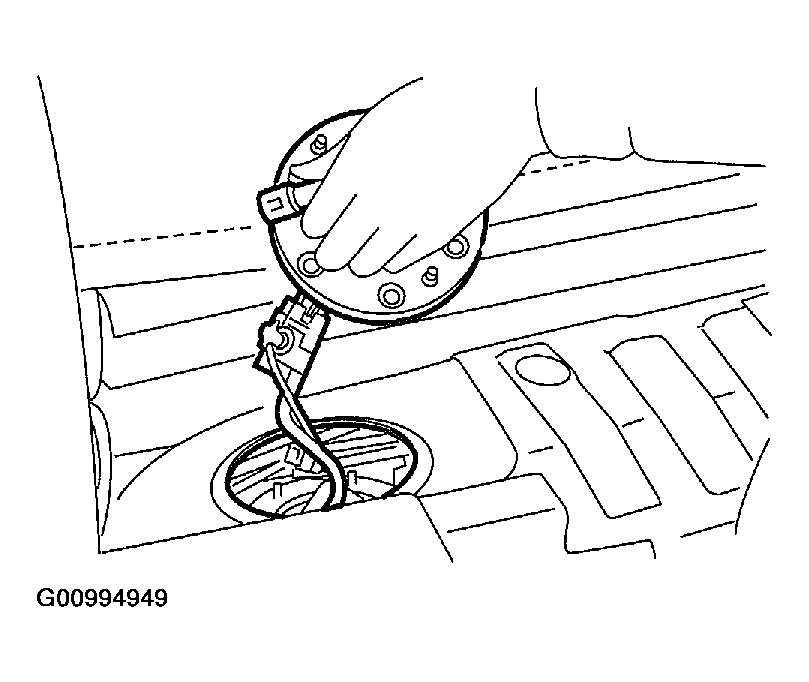

Fig 7: Identifying Fuel Sub Level Sensor
Courtesy of SUBARU OF AMERICA, INC.
