Fuel Tank: Removal

WARNING:

Place "NO FIRE" signs near the working area.
Be careful not to spill fuel on the floor.

Set the vehicle on the lift.
Release the fuel pressure. Refer to RELEASING OF FUEL PRESSURE , OPERATION, Fuel.
Drain the fuel from the fuel tank. Refer to DRAINING FUEL , OPERATION, Fuel.
Remove the rear seat.
Disconnect the connector (A) of fuel tank cord to the rear harness.
Push the grommet (B) which holds the fuel tank cond on the floor panel into under the body.

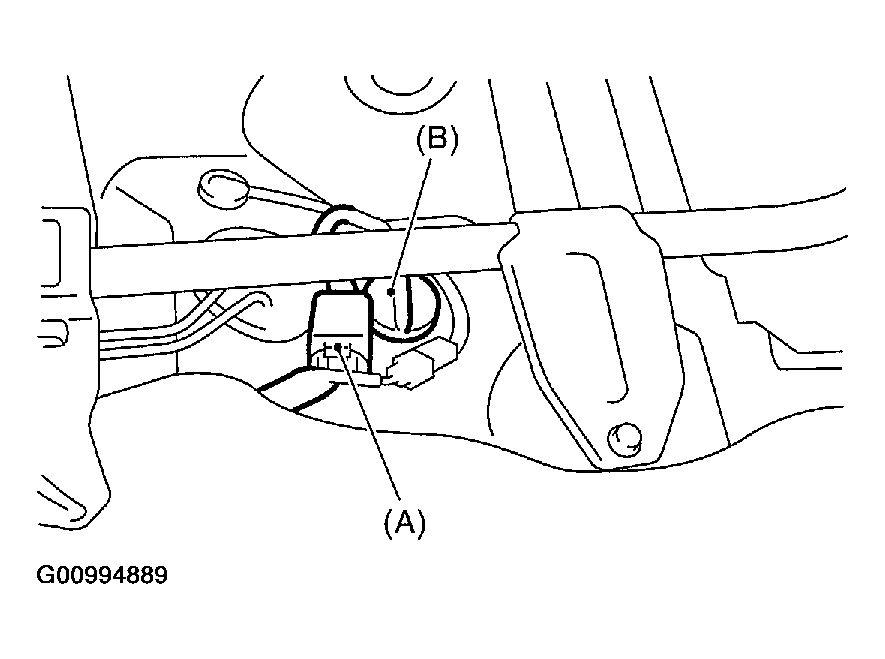

Fig 1: Pushing Grommet Which Holds Fuel Tank Cond On Floor Panel Into Under Body
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear crossmember. Refer to REMOVAL , Rear Crossmember.
Loosen the clamp, and disconnect the evaporation hose from the canister.

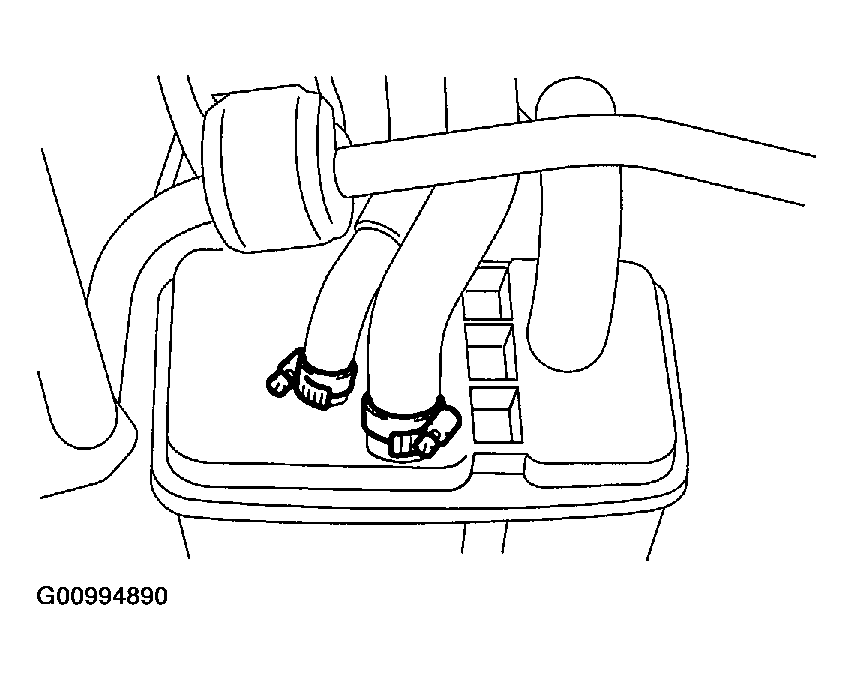

Fig 2: Disconnecting Evaporation Hose From Canister
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the pressure control solenoid valve.
Disconnect the connector from the drain valve.

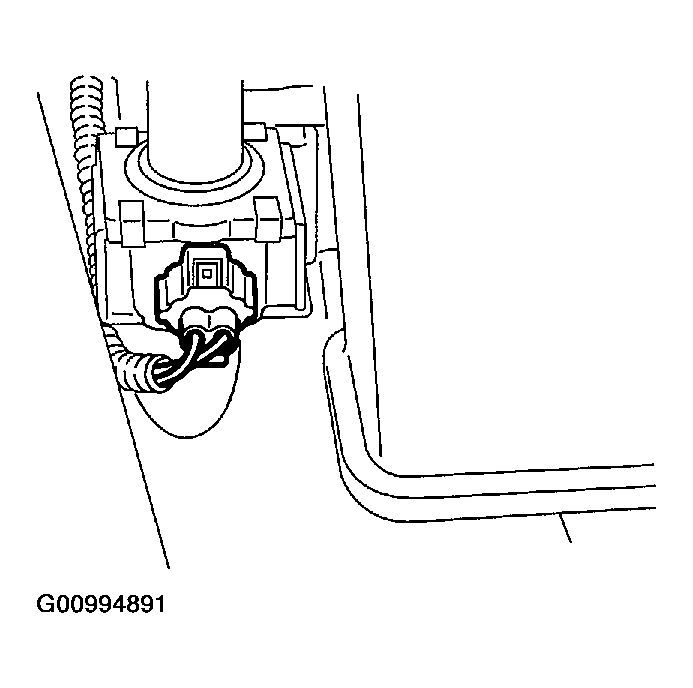

Fig 3: Disconnecting Connector From Drain Valve
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp and disconnect the fuel filler hose (A) and evaporation hose (B) from the fuel filler pipe.

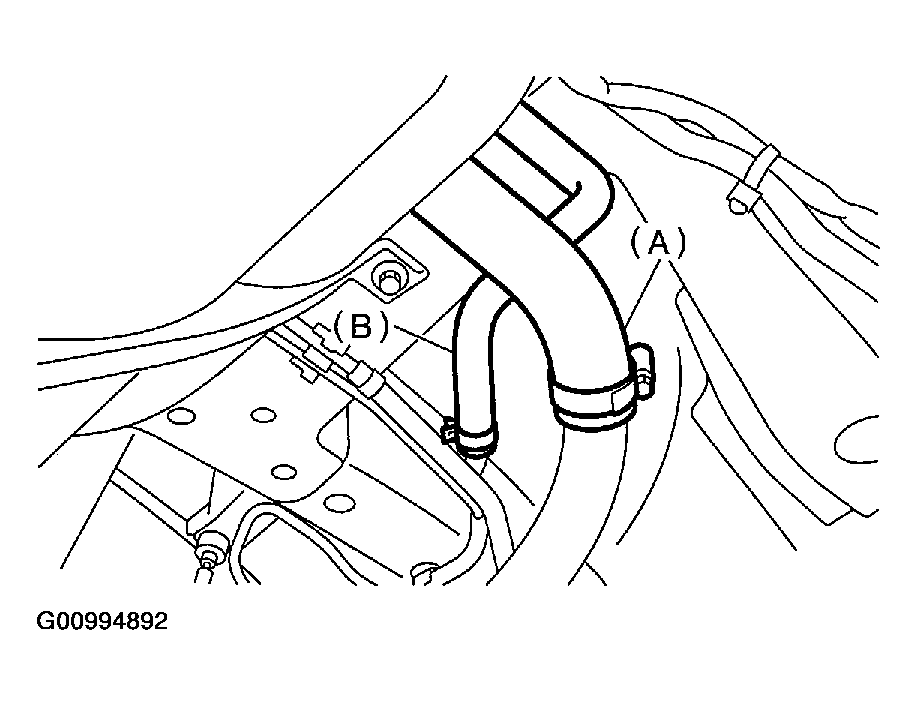

Fig 4: Disconnecting Fuel Filler Hose & Evaporation Hose From Fuel Filler Pipe
Courtesy of SUBARU OF AMERICA, INC.
Move the clips, and disconnect the quick connector. Refer to REMOVAL , Fuel Delivery, Return and Evaporation Lines.
Disconnect the fuel hoses.

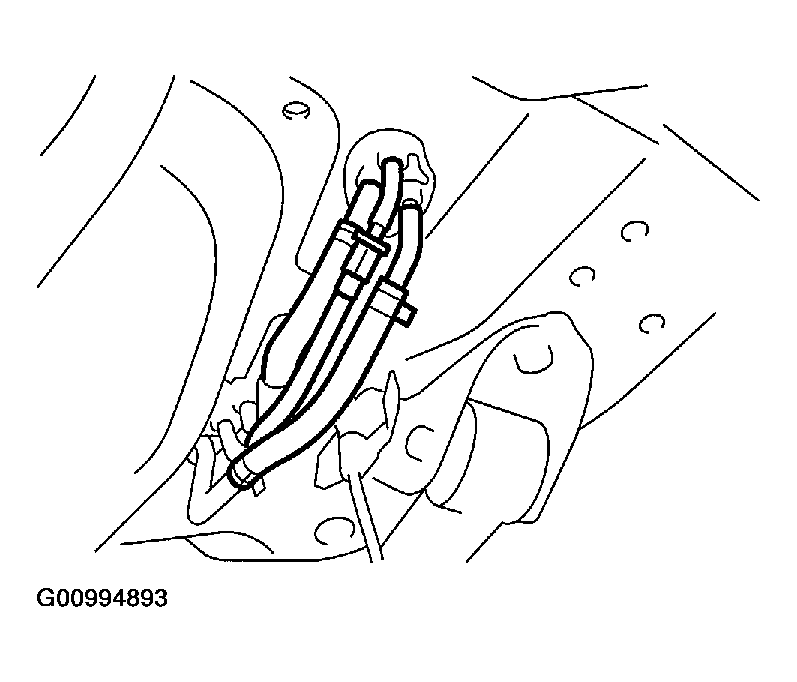

Fig 5: Disconnecting Fuel Hoses
Courtesy of SUBARU OF AMERICA, INC.
Support the fuel tank with transmission jack, remove the band mounting bolts and dismount the fuel tank from the vehicle.
WARNING: A helper is required to perform this work.

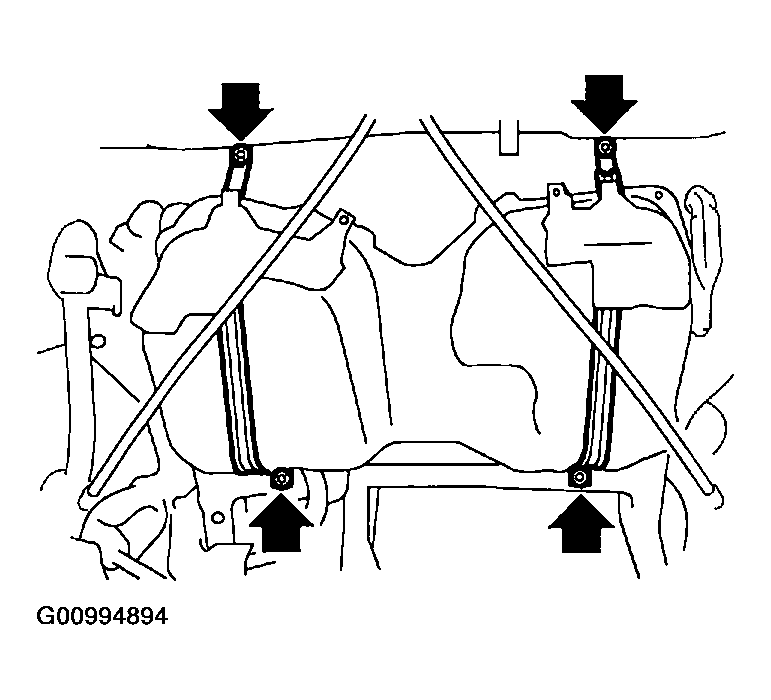

Fig 6: Identifying Band Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
