Knock Sensor: Installation

Install the knock sensor to the cylinder block.
Tightening torque: 24 N.m (2.4 kgf-m, 17.4 ft-lb)

CAUTION: The extraction area of the knock sensor cord must be positioned at a 60° angle relative to the engine rear.

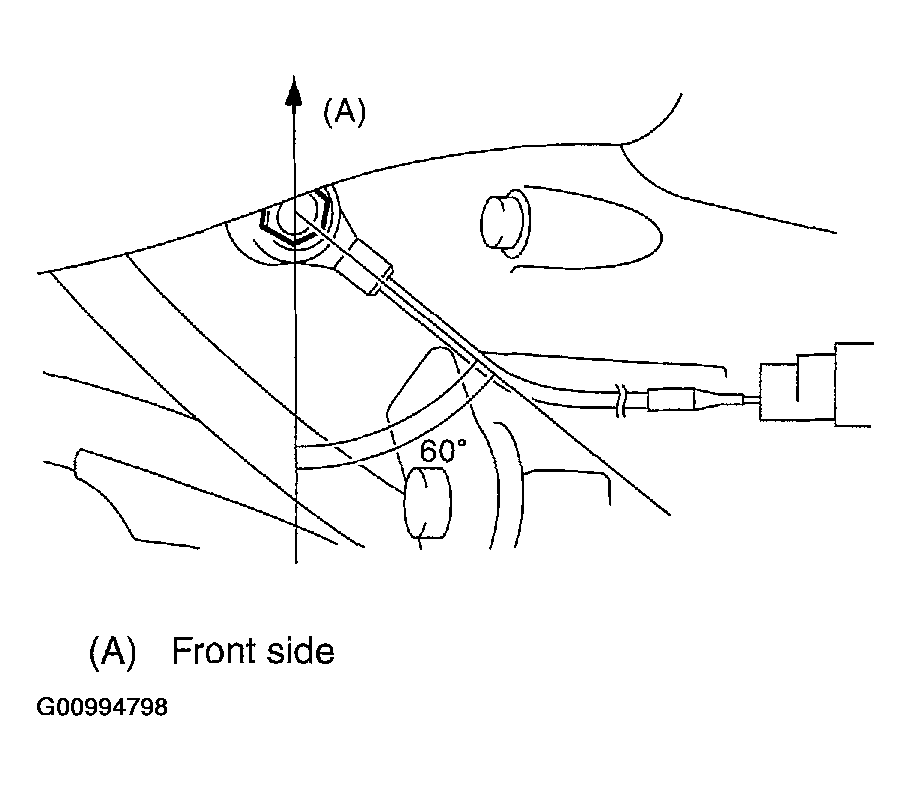

Fig 1: Identifying Knock Sensor
Courtesy of SUBARU OF AMERICA, INC.
Connect the knock sensor connector.

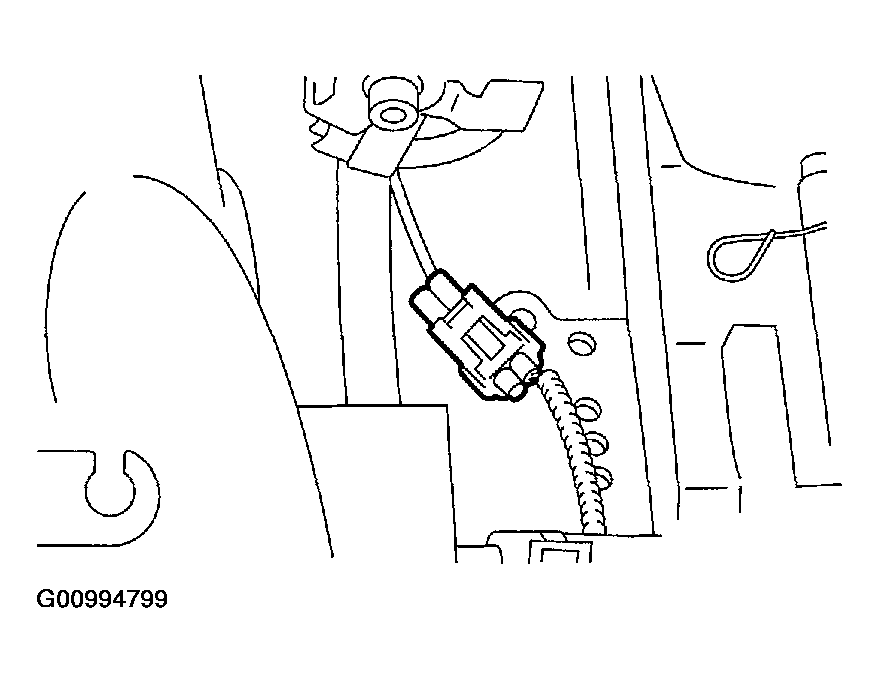

Fig 2: Connecting Knock Sensor Connector
Courtesy of SUBARU OF AMERICA, INC.
Install the air cleaner case. Refer to INSTALLATION , Air Cleaner Case.
Connect the battery ground cable to battery.

Fig 3: Connecting Battery Ground Cable To Battery
Courtesy of SUBARU OF AMERICA, INC.
