Main Relay: Removal

Disconnect the ground cable from battery.

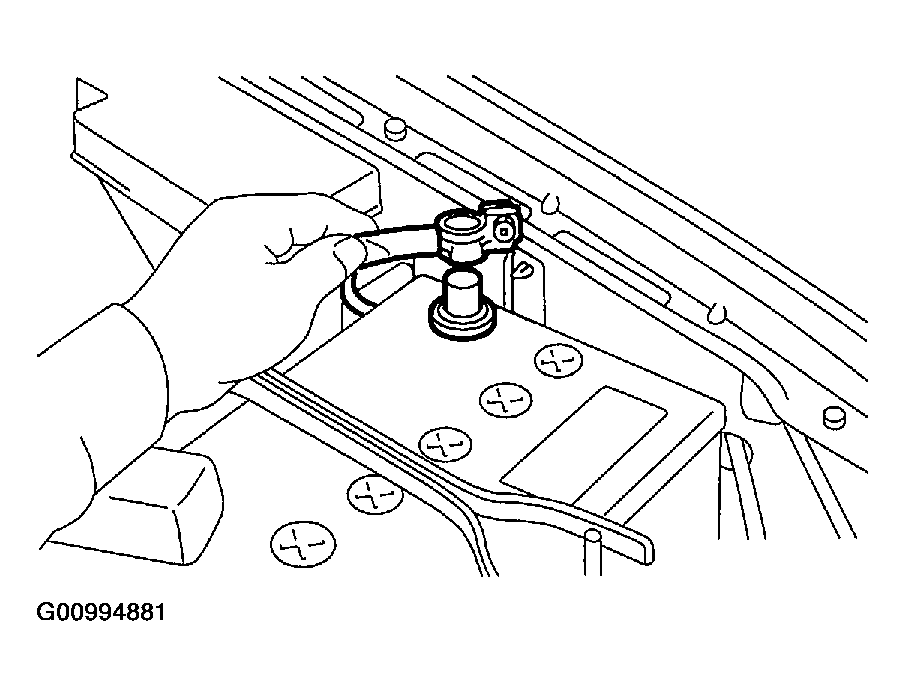

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the passenger's side front side sill cover.
Remove the bolt which holds main relay bracket on the body.
Disconnect the connectors from the main relay.

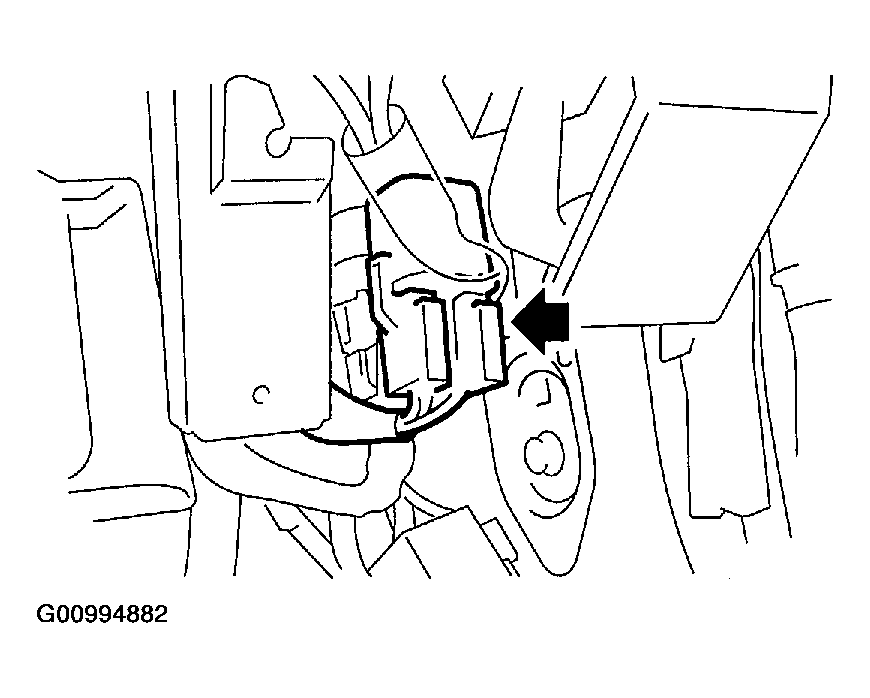

Fig 2: Disconnecting Connectors From Main Relay
Courtesy of SUBARU OF AMERICA, INC.
