Manifold Absolute Pressure Sensor: Installation

Install in the reverse order of removal.

Tightening torque: 1.6 N.m (0.16 kgf-m, 1.2 ft-lb)

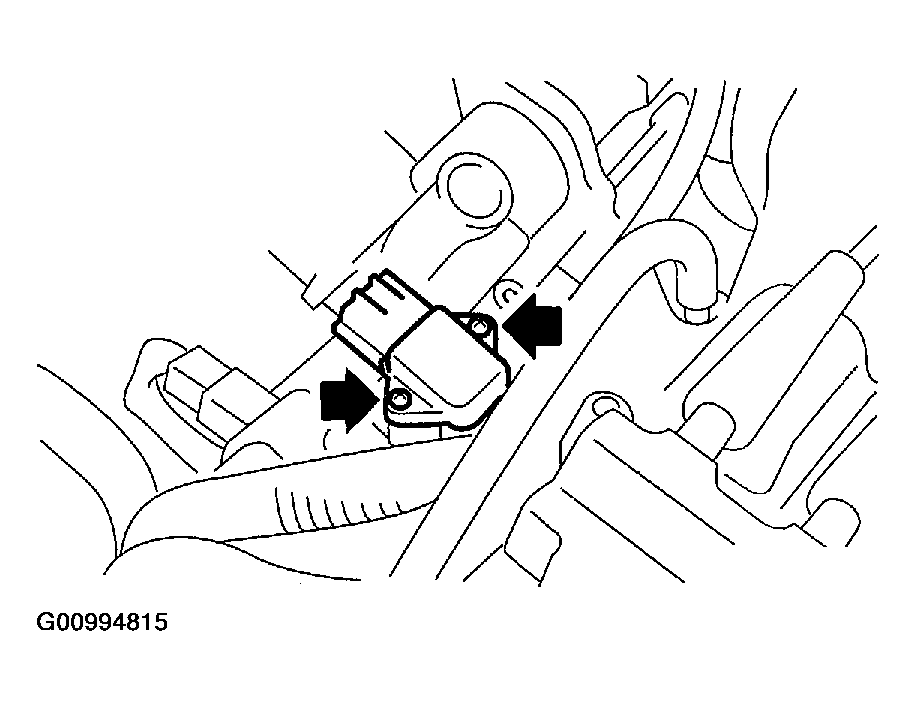

Fig 1: Identifying Manifold Absolute Pressure Sensor

G00994815

Courtesy of SUBARU OF AMERICA, INC.

NOTE: Replace the O-ring with a new one.
