ABS Control Module and Hydraulic Control Unit (ABSCM&H/U): Inspection: Notes

  1. Check the connected and fixed condition of connector.
  2. Check specifications of the mark with ABSCM&H/U.

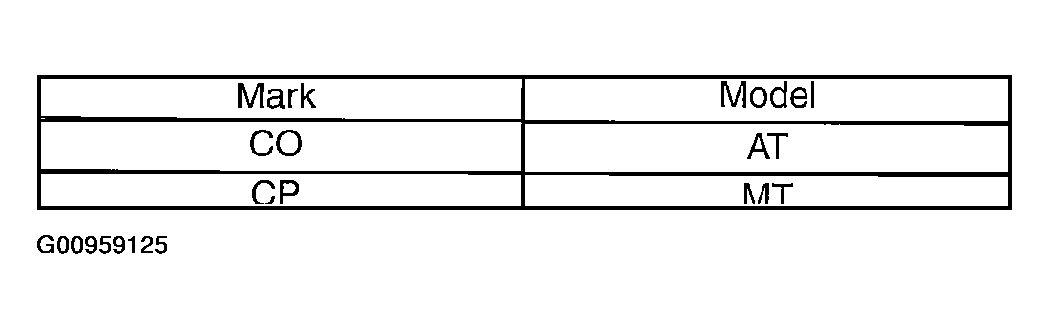

    Fig 1: Mark Inspection Chart
    G00959125Courtesy of SUBARU OF AMERICA, INC.

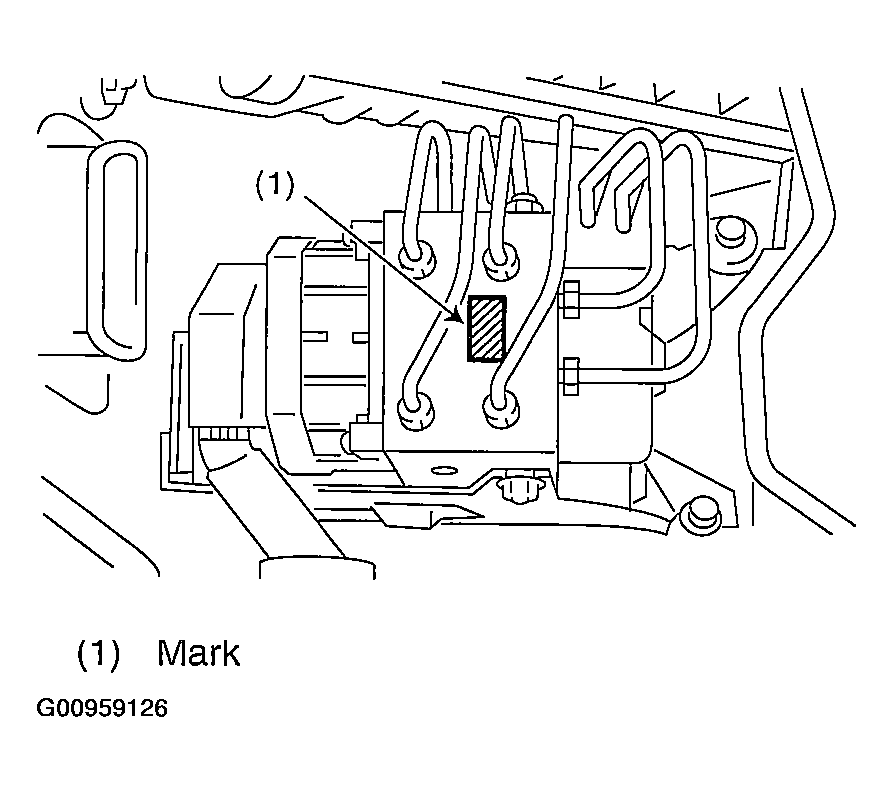

    Fig 2: Checking Specifications Of The Mark With ABSCM&H/U
    G00959126Courtesy of SUBARU OF AMERICA, INC.
