Conditions For Abs Sequence Control

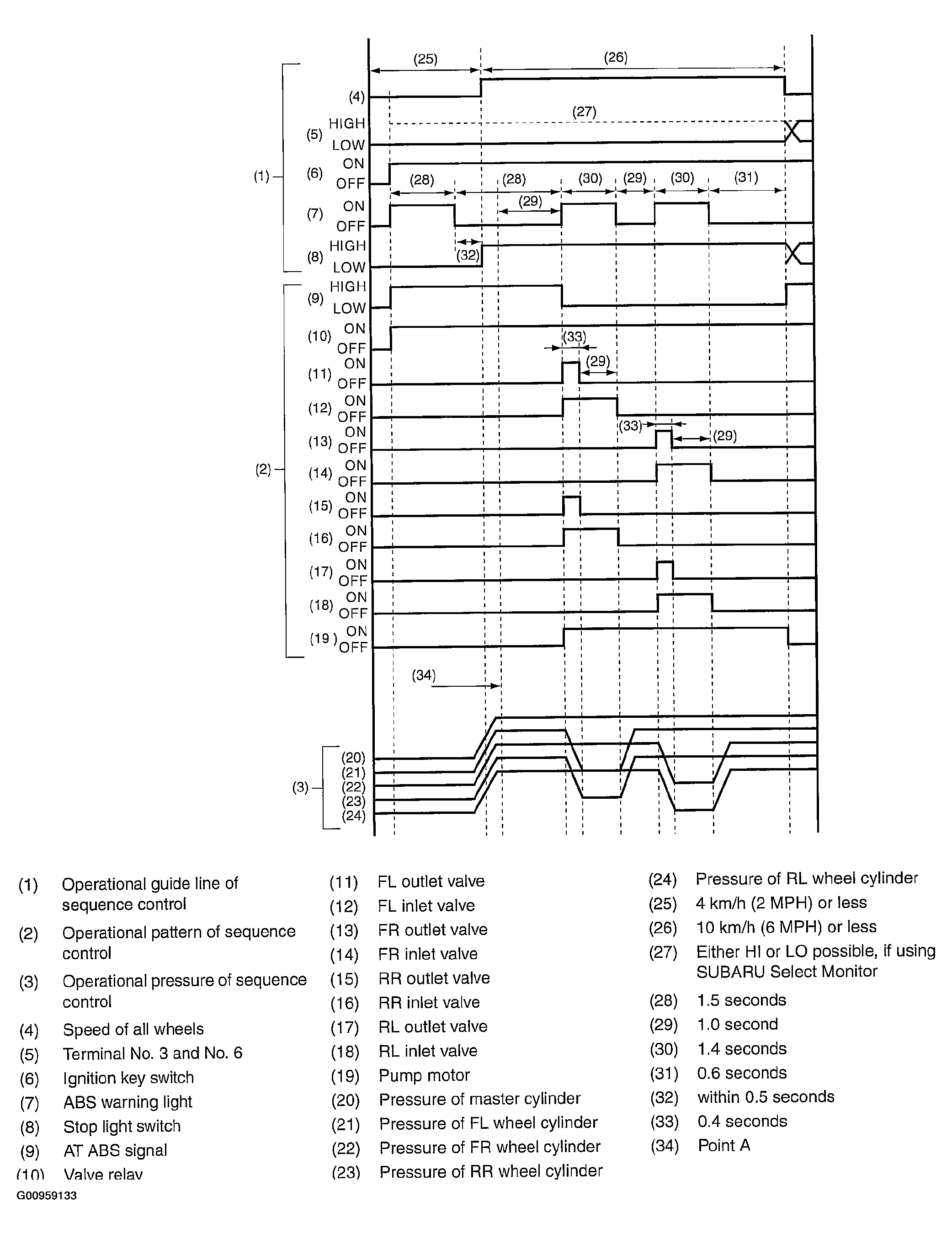

Fig 1: Identifying ABS Sequence Control Conditions

Courtesy of SUBARU OF AMERICA, INC.

NOTE:

When the SUBARU Select Monitor is used, control operation starts at point A. The patterns from ignition key ON to the point A show that operation is started by diagnosis connector. (However, the stop light switch must be ON before point A.)
HIGH means high voltage.
LOW means low voltage.
