Front ABS Wheel Speed Sensor: Removal
- Disconnect the ground cable from battery.
- Disconnect the front ABS wheel speed sensor connector located next to the front strut mounting house in engine compartment.

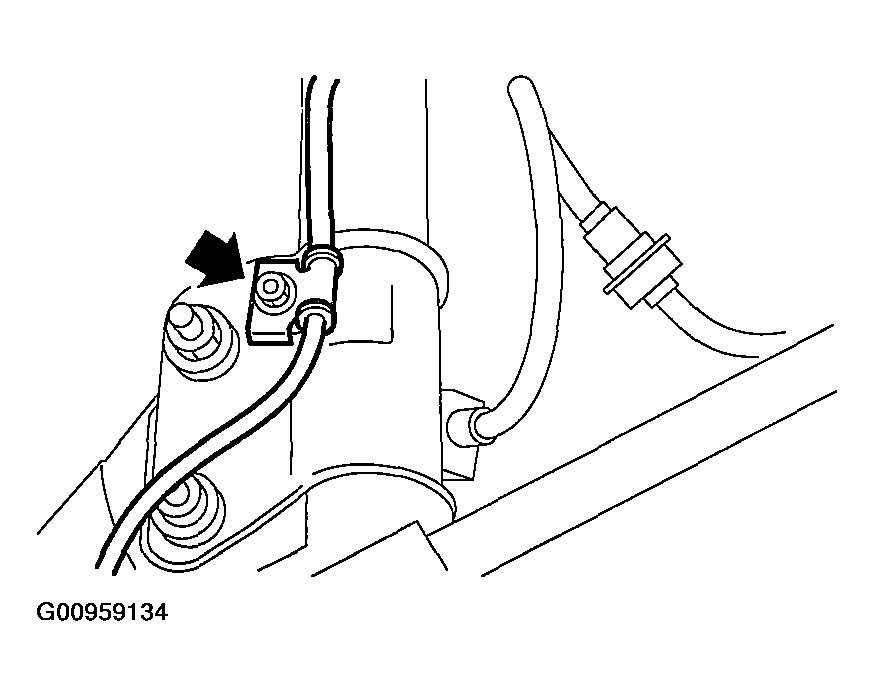

- Remove the bolts which secure sensor harness to strut.
Courtesy of SUBARU OF AMERICA, INC.

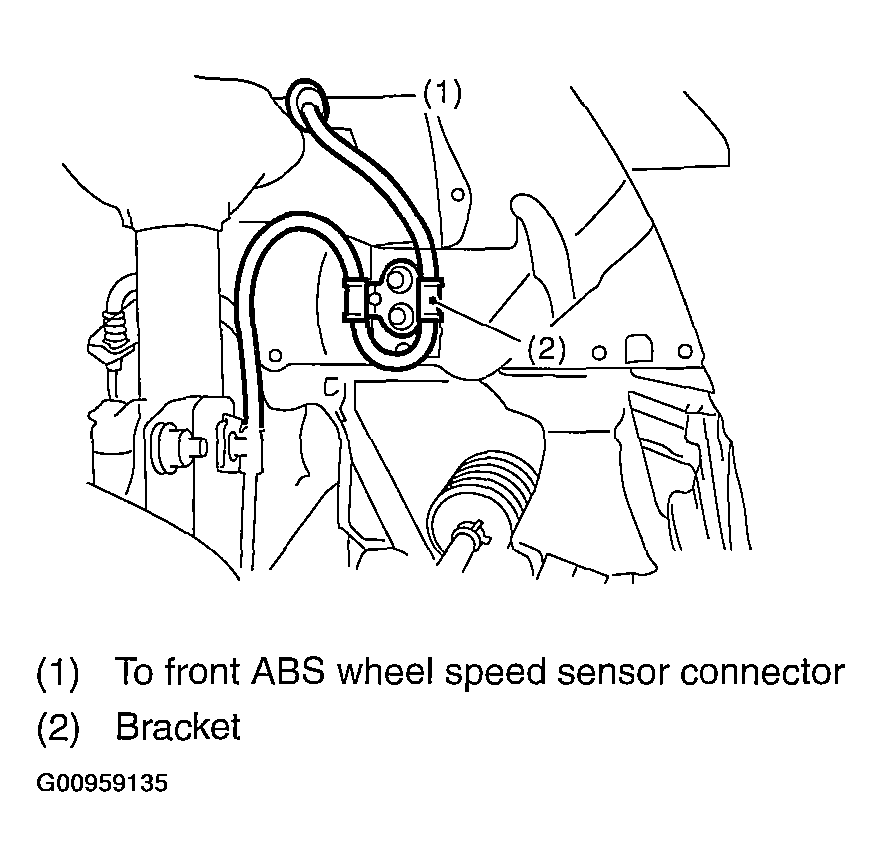

- Remove the bolts which secure sensor harness to body.
Courtesy of SUBARU OF AMERICA, INC.

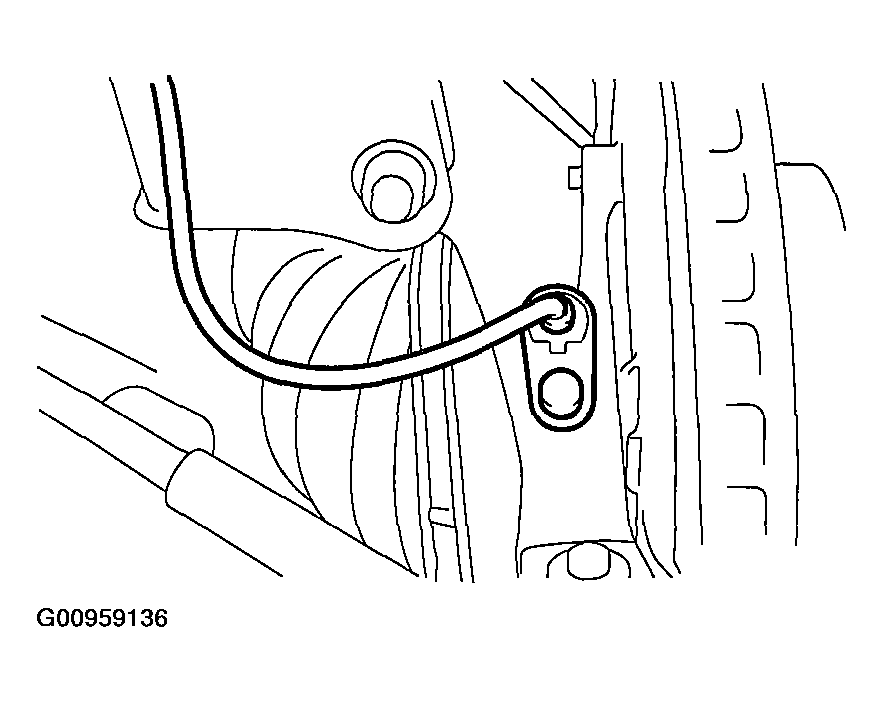

- Remove the bolts which secure front ABS wheel speed sensor to housing, and remove the front ABS wheel speed sensor.
CAUTION:
- Be careful not to damage the pole piece located at tip of the sensor and teeth faces during removal.
- Do not pull the sensor harness during removal.
Courtesy of SUBARU OF AMERICA, INC.
