G Sensor: Removal

Disconnect the ground cable from battery.

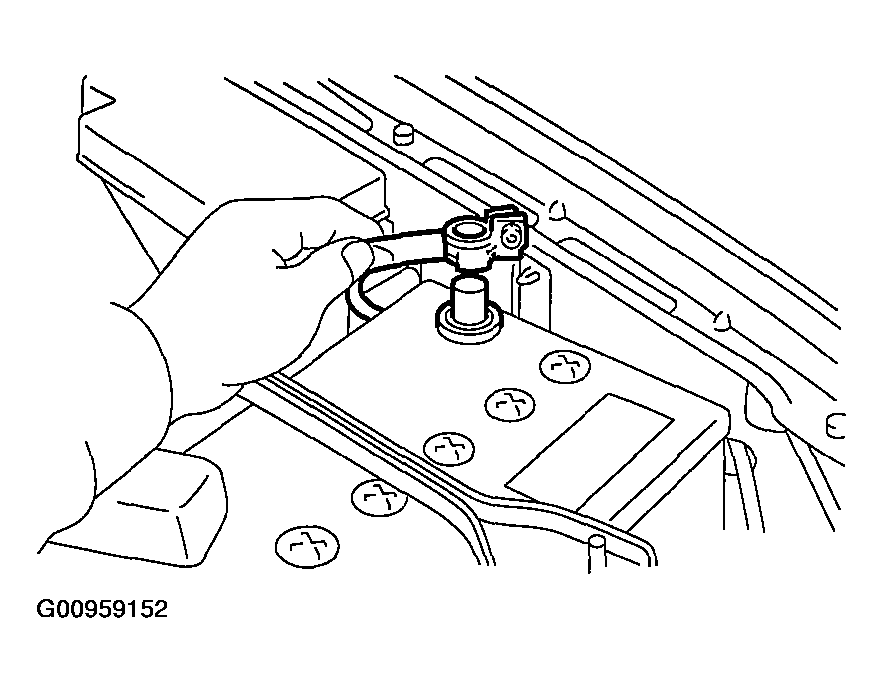

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the console cover.
< Ref. to REMOVAL , Console Box .>
Disconnect the connector from G sensor.
Remove the G sensor from body.

CAUTION:

Do not drop or bump the G sensor.
G sensor and the bracket are integrated into one unit. Therefore, do not disassemble it.

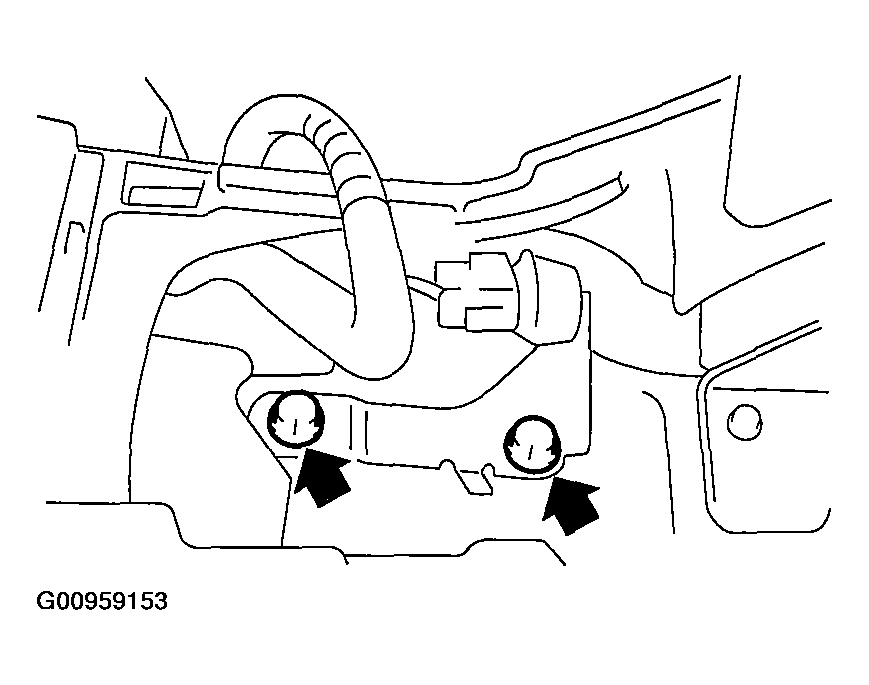

Fig 2: Identifying G Sensor
Courtesy of SUBARU OF AMERICA, INC.
