Abs Control Module And Hydraulic Control Unit (ABSCM&H/U)

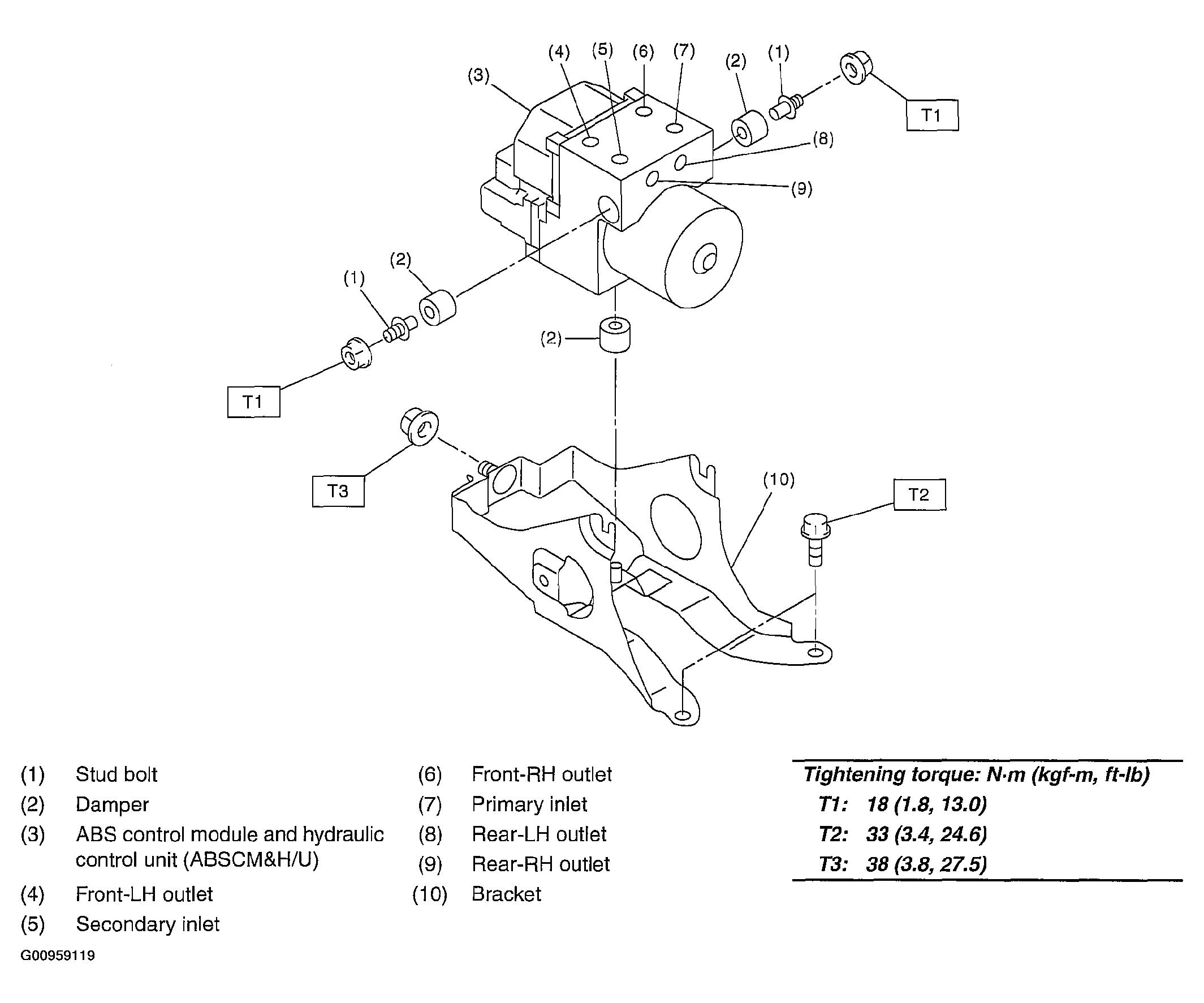

Fig 1: Identifying ABS Control Module And Hydraulic Control Unit (ABSCM&H/U)
G00959119Courtesy of SUBARU OF AMERICA, INC.
