Traction Control: Abs: General Description: Components: Sensor

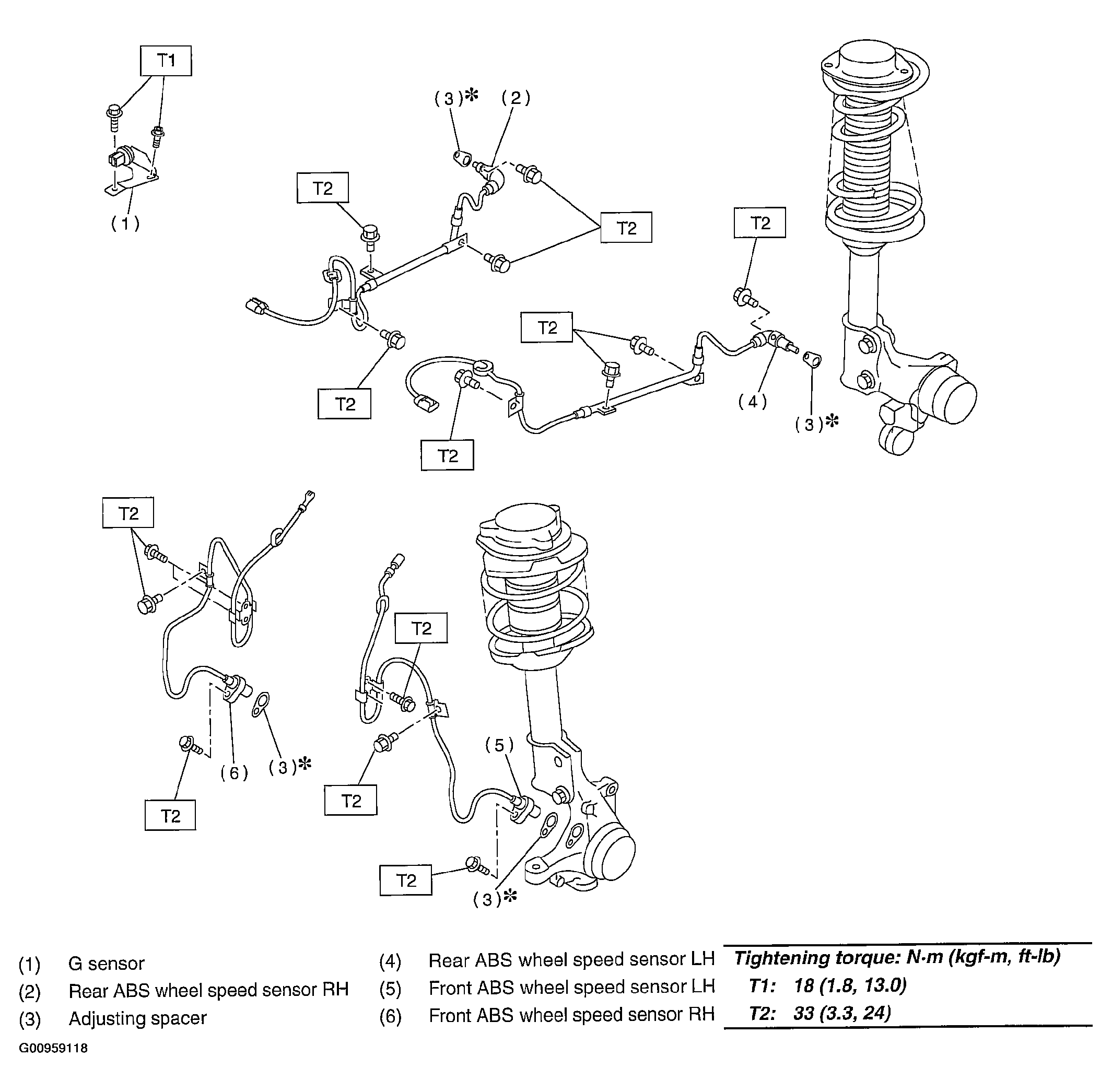

Fig 1: Identifying ABS Components (Sensor)
G00959118Courtesy of SUBARU OF AMERICA, INC.
