Select Cable: Installation

Install the select cable to plate assembly.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)
Install the select cable to range select lever.
Install the plate assembly to transmission.
1. Tightening torque: T: 24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

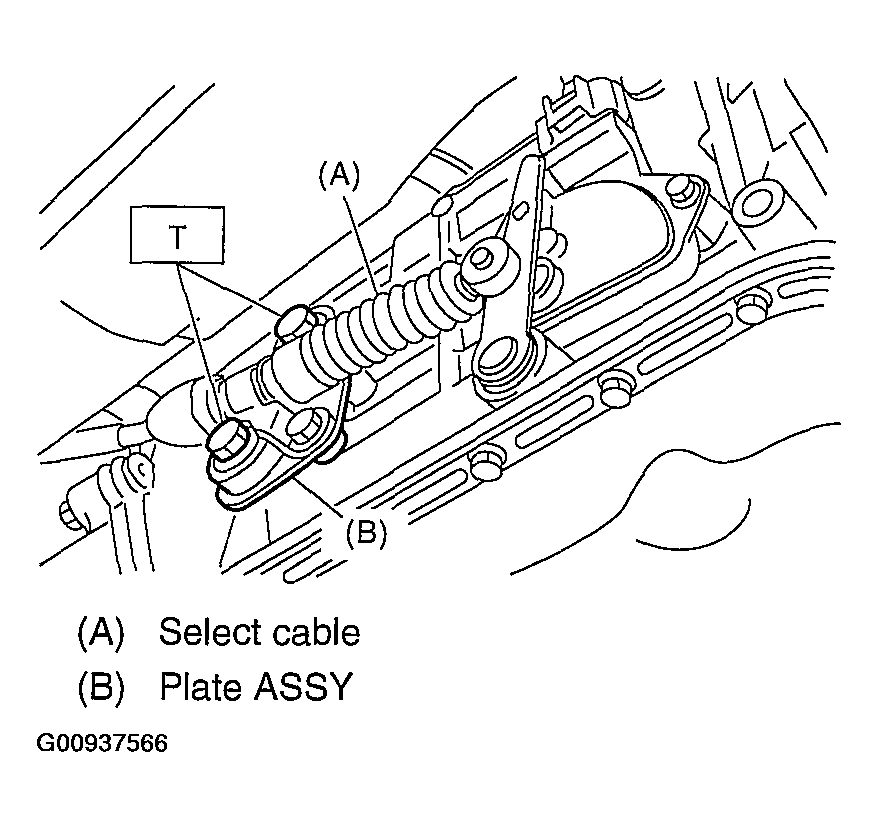

Fig 1: Identifying Adjusting Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the washer and snap pin to range select lever.

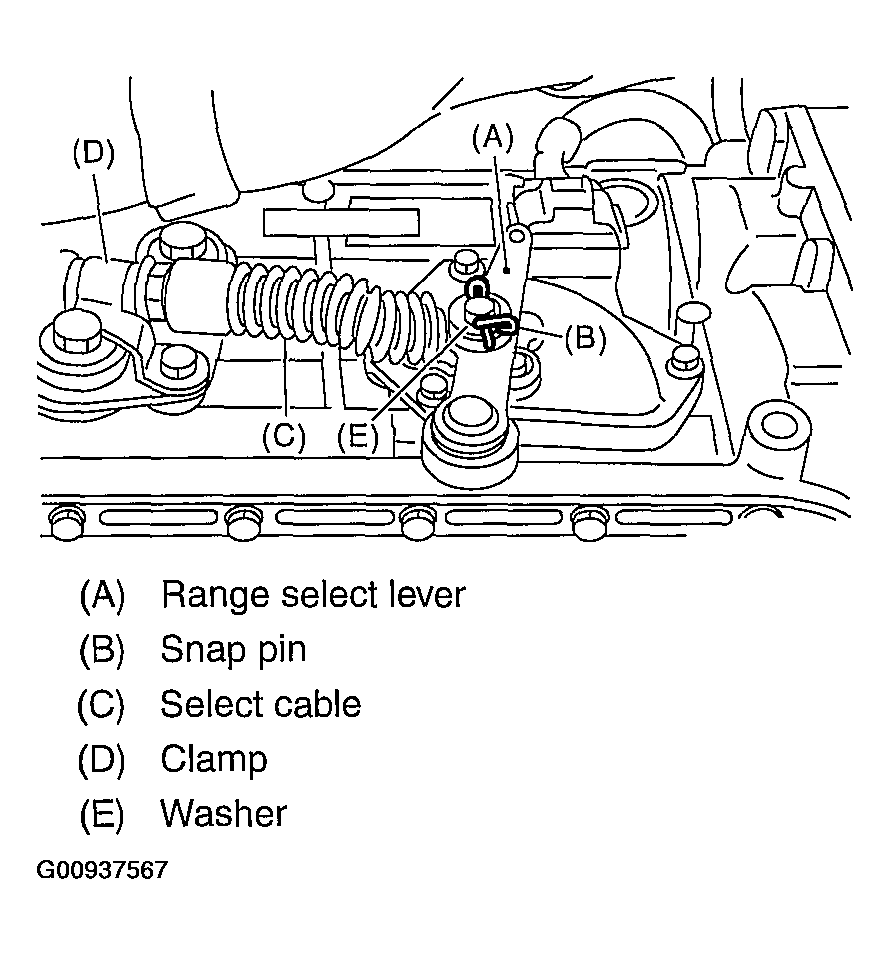

Fig 2: Identifying Washer
Courtesy of SUBARU OF AMERICA, INC.
Move the select lever to "N" range, then adjust the select cable position.< Ref. to ADJUSTMENT . >
Install the heat shield cover. (If equipped)
Install the front and center exhaust pipe.
Non-turbo model

< Ref. to REMOVAL , Front Exhaust Pipe . >

Turbo model

< Ref. to INSTALLATION , Front Exhaust Pipe . >
