Control Valve Body: Assembly

Install a new seal ring to the accumulator piston.

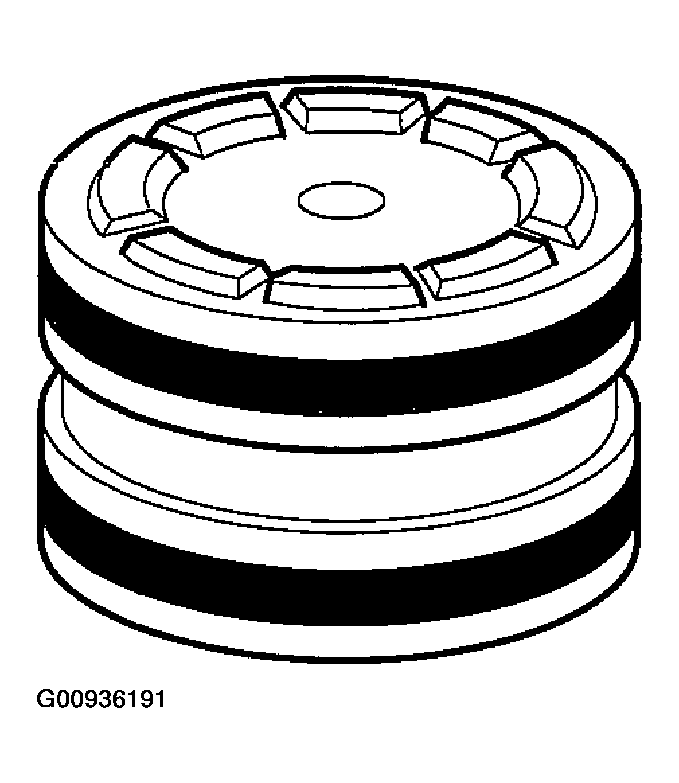

Fig 1: Identifying New Seal Ring
Courtesy of SUBARU OF AMERICA, INC.
Apply ATF to the seal ring.
Insert the piston fully into upper control valve body.

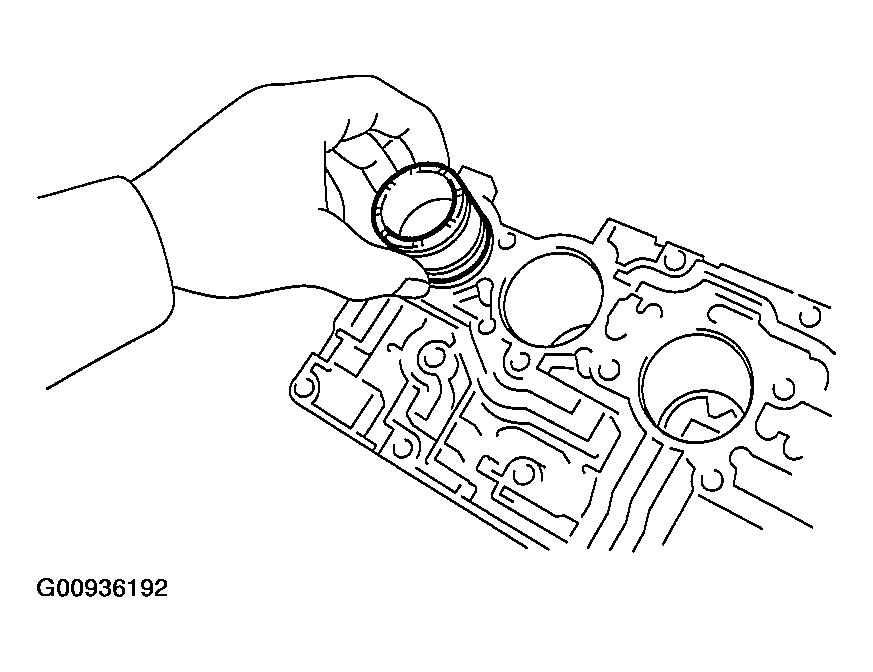

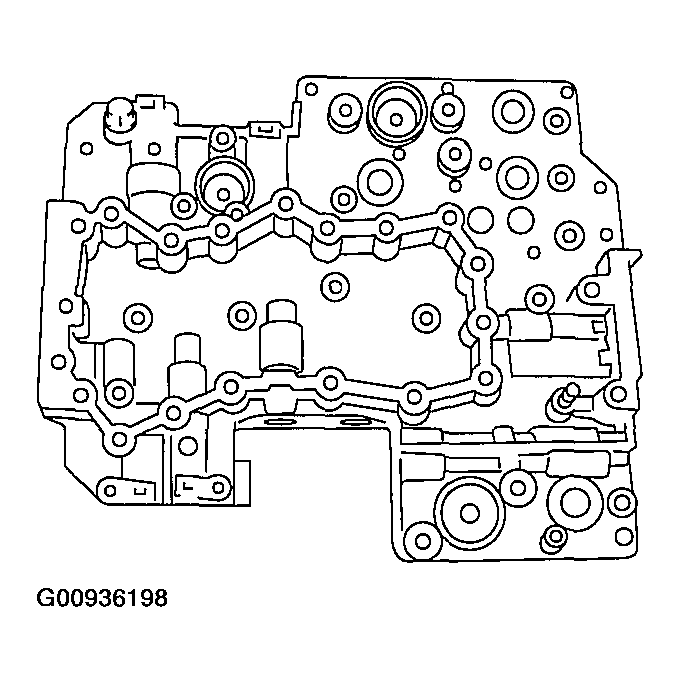

Fig 2: Inserting Piston Fully Into Upper Control Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Install the accumulator spring and four steel balls to specified positions of upper control valve body.

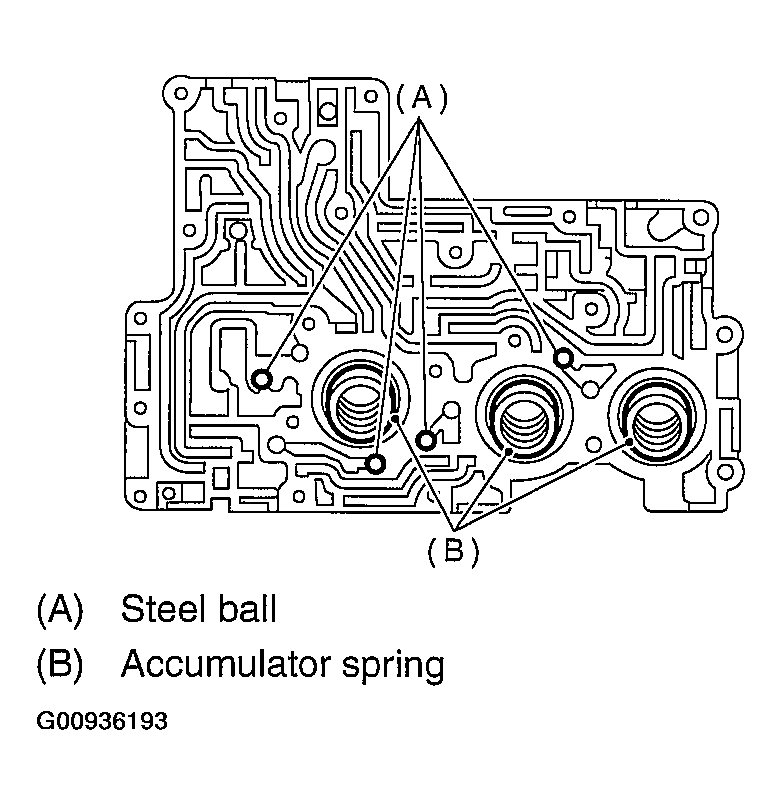

Fig 3: Identifying Accumulator Spring And Four Steel Balls
Courtesy of SUBARU OF AMERICA, INC.
Align the hole in side plate with the hole in upper separator plate, and then install side plate and upper separator plate to middle control valve body.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

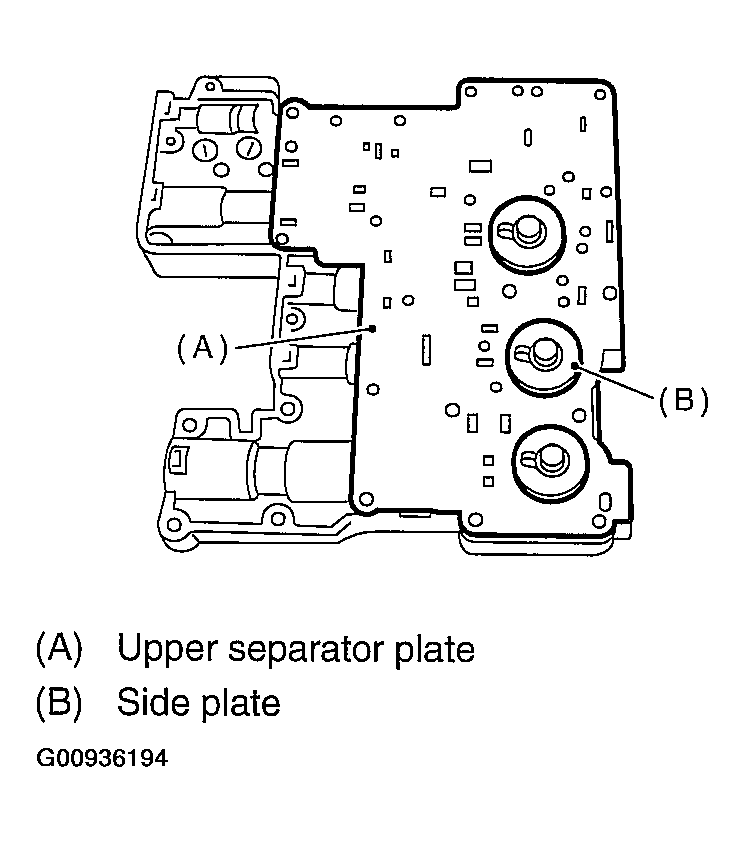

Fig 4: Identifying Side Plate And Upper Separator Plate
Courtesy of SUBARU OF AMERICA, INC.
Insert six steel balls in their proper positions to middle control valve body.

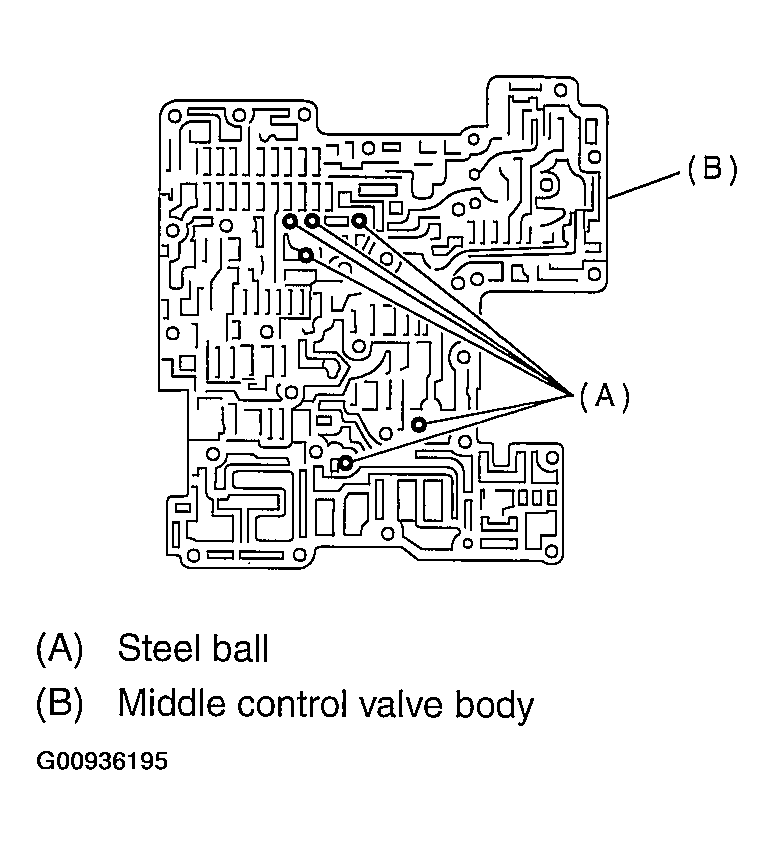

Fig 5: Inserting Six Steel Balls In Their Proper Positions To Middle Control Valve Body
Courtesy of SUBARU OF AMERICA, INC.
Install three oil filters to lower valve body.
NOTE: Pay attention to the location of oil filters.

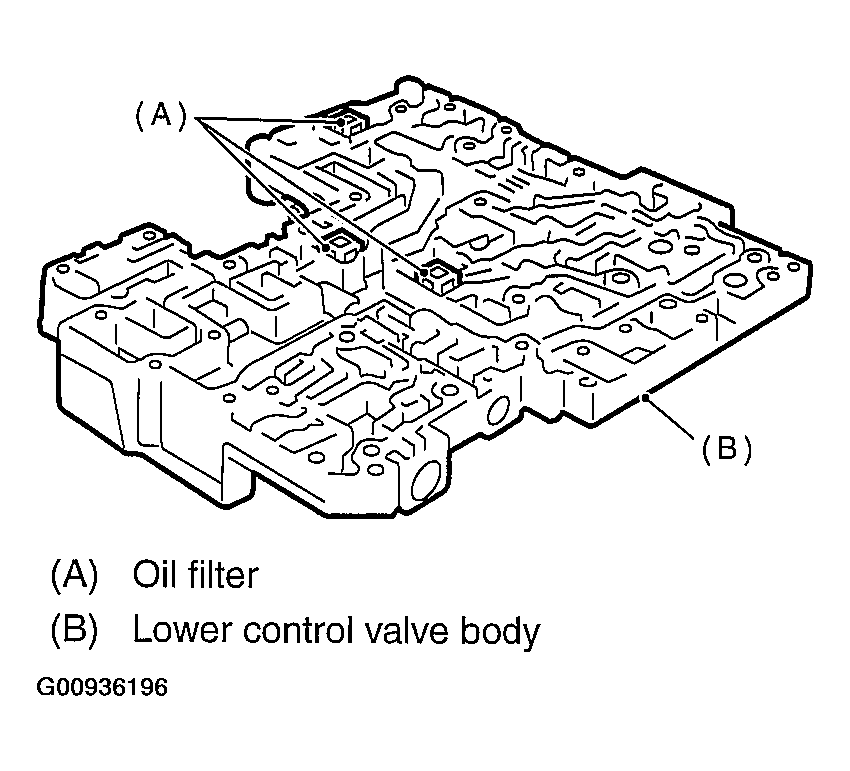

Fig 6: Identifying Three Oil Filters
Courtesy of SUBARU OF AMERICA, INC.
Install lower separate plate to lower control valve body.

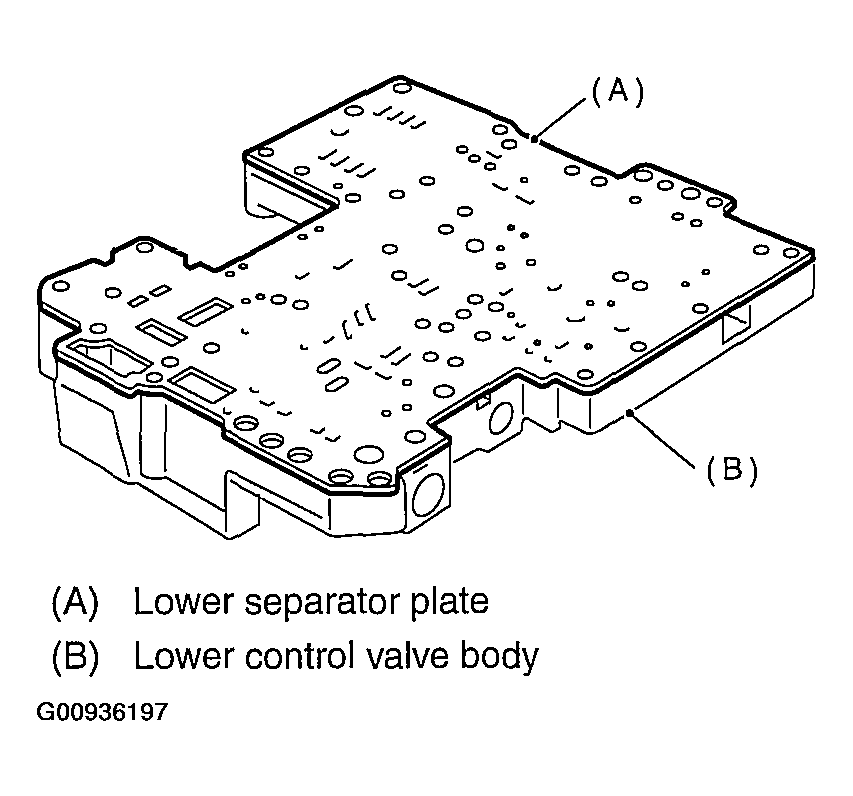

Fig 7: Identifying Lower Separate Plate
Courtesy of SUBARU OF AMERICA, INC.
Temporarily assemble valve body.
NOTE: Be careful not to drop the middle control valve body and upper control valve body interior steel ball, or the lower control valve body oil filter.

Fig 8: Identifying Upper Control Valve Body Interior Steel Ball, Or Lower Control Valve Body Oil Filter
Courtesy of SUBARU OF AMERICA, INC.
Tighten bolts.
NOTE: Install the bolts (D) from upper control valve body side.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

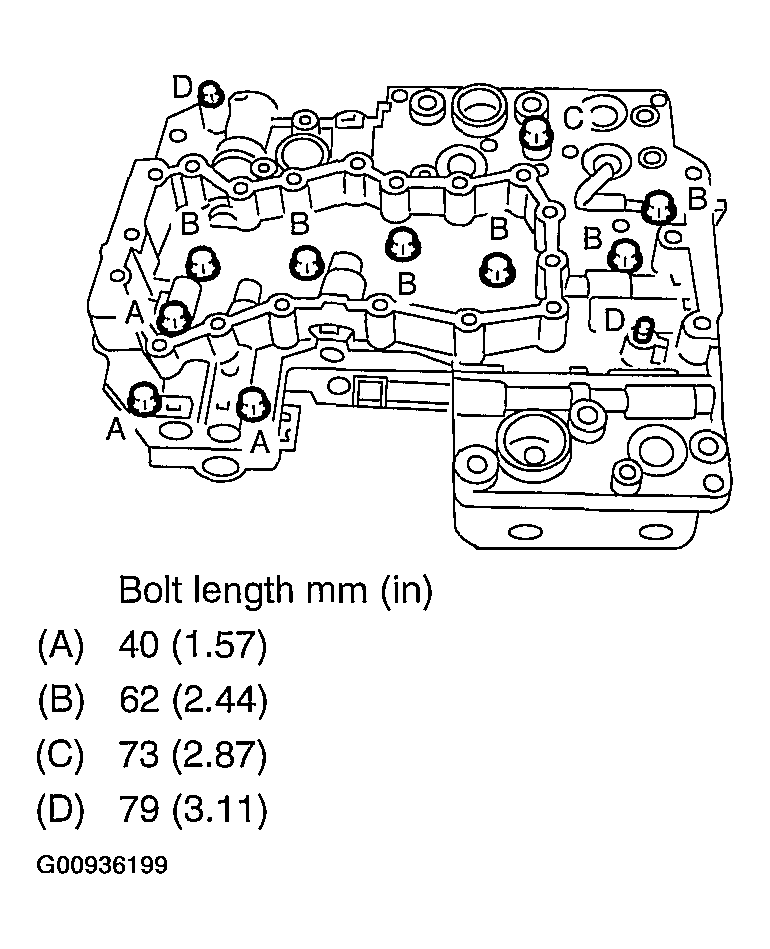

Fig 9: Identifying Bolts & Upper Control Valve Body Side
Courtesy of SUBARU OF AMERICA, INC.
Install the sensor, solenoids and duty solenoids to specified positions.

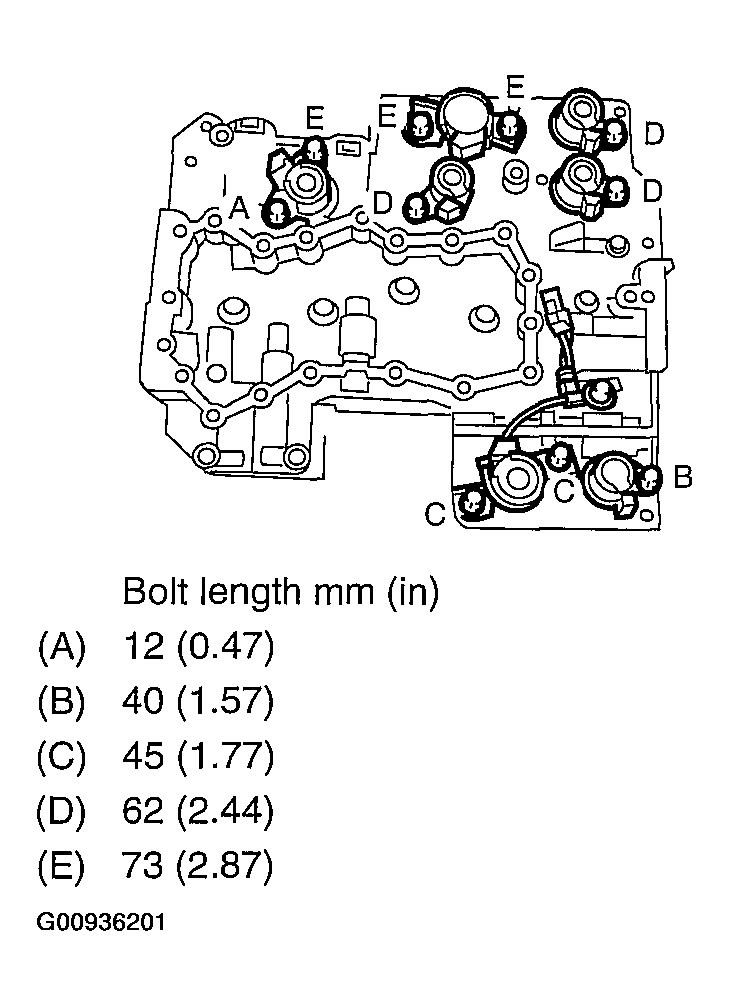

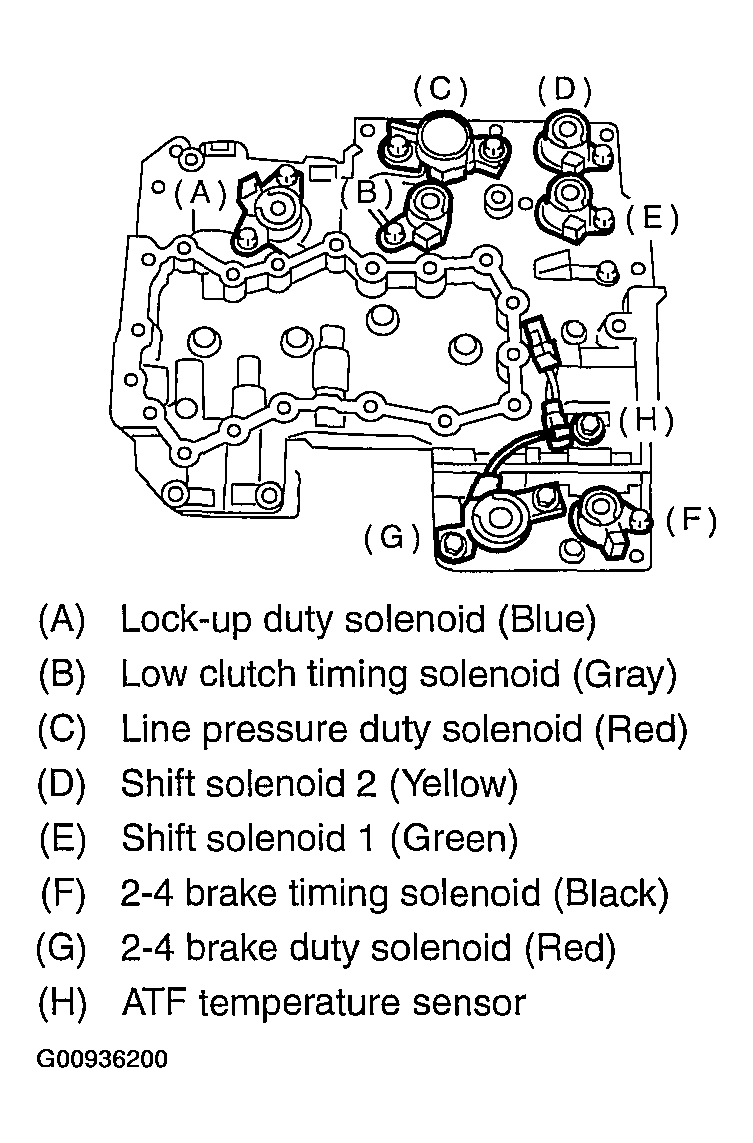

Fig 10: Identifying Bolts & Upper Control Valve Body Side
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts and nuts.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)

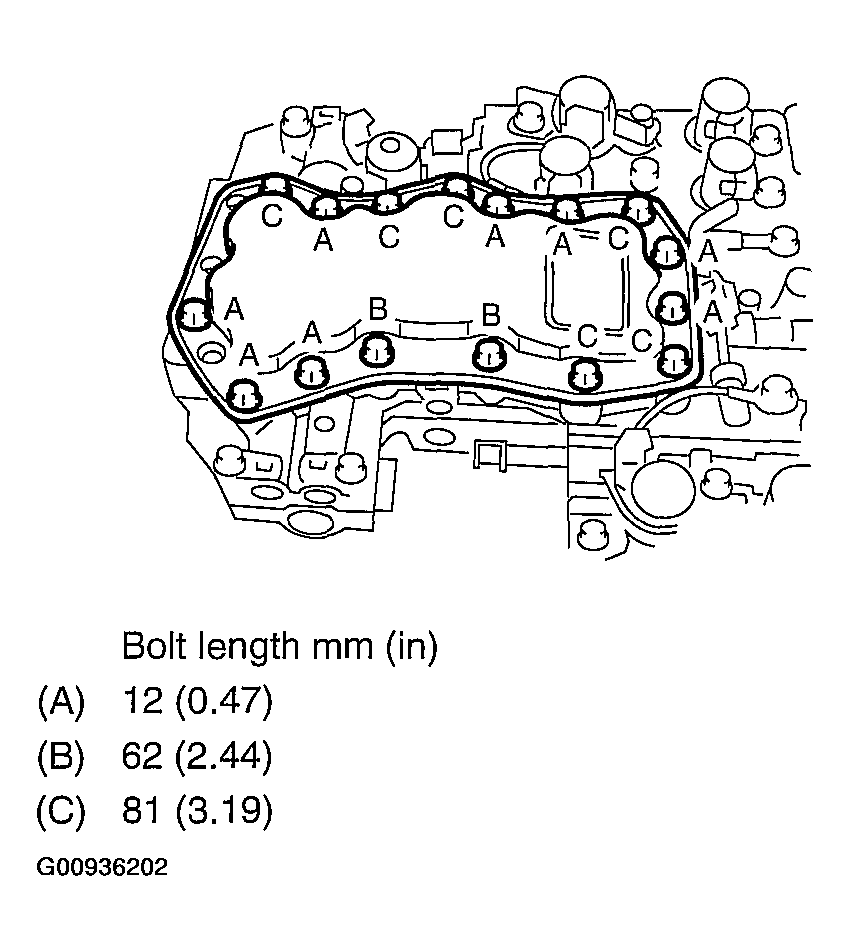

Fig 11: Identifying Tightening Torque Of Lower Control Valve Body Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install oil strainer to lower control valve body.
1. Tightening torque: 8 N.m (0.8 kgf-m, 5.8 ft-lb)
Fig 12: Identifying Oil Strainer
Courtesy of SUBARU OF AMERICA, INC.
