Extension Case: Disassembly

Take out the transfer clutch assembly by lightly tapping the end of the rear drive shaft using a plastic hammer.
NOTE: Be careful not to damage the oil seal in the extension.

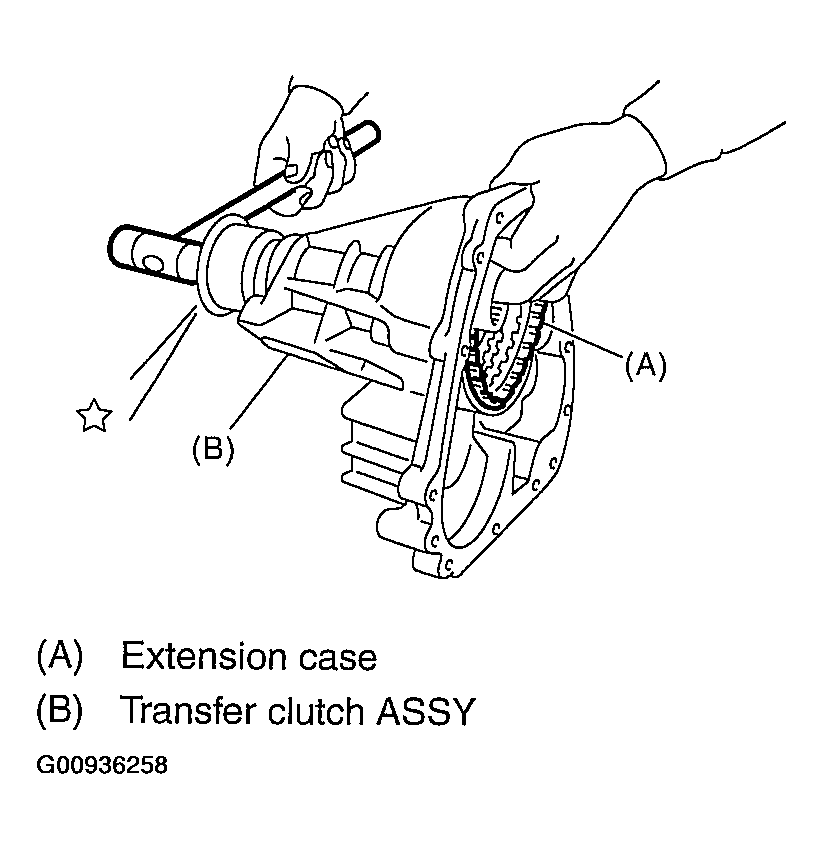

Fig 1: Identifying Transfer Clutch Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission clutch pipe without bending pipe.

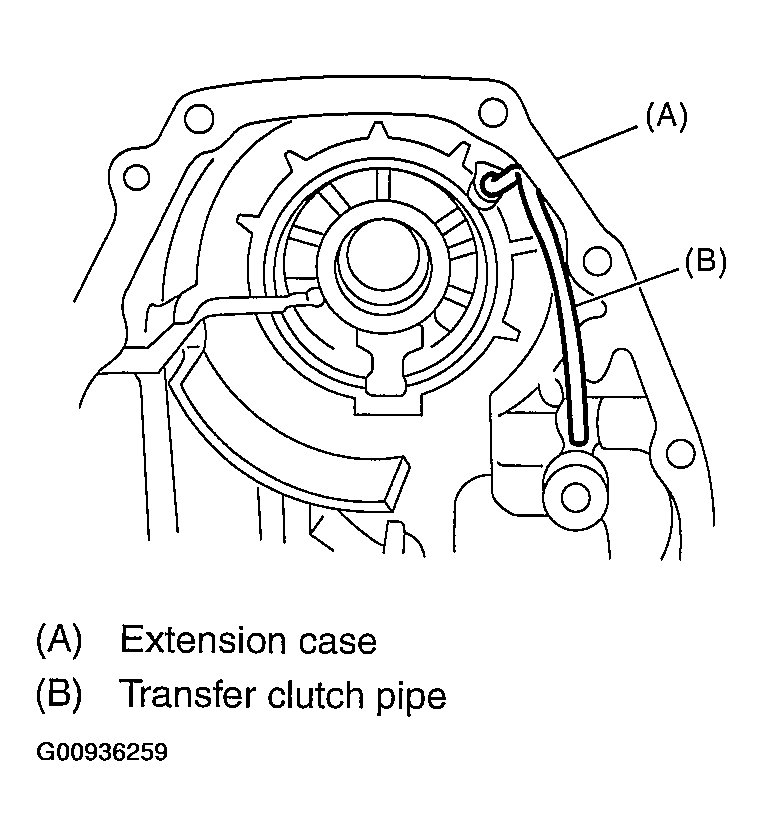

Fig 2: Identifying Transmission Clutch Pipe Without Bending Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the dust cover from the extension case.
Remove the oil seal from the extension case.
