Differential Case Assembly

Using a press and ST, remove the taper roller bearing.
1. ST 498077000 REMOVER
Fig 1: Identifying Taper Roller Bearing
Courtesy of SUBARU OF AMERICA, INC.
Secure the case in a vise and remove the hypoid driven gear tightening bolts, then separate the hypoid driven gear, differential case (RH) and differential case (LH).

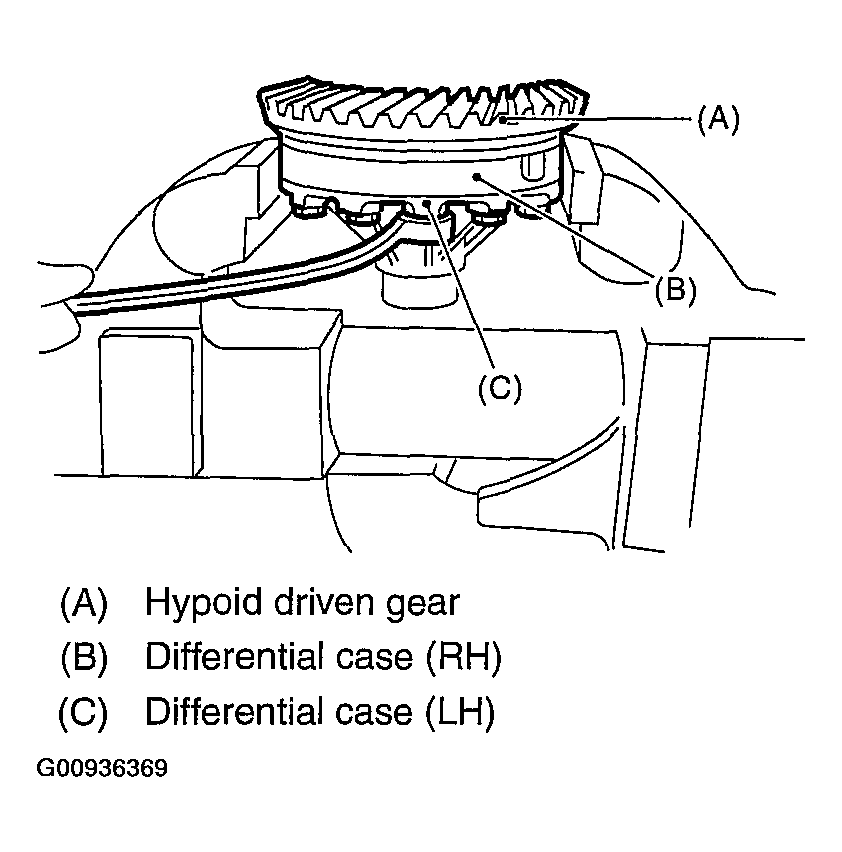

Fig 2: Identifying Hypoid Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Pull out the straight pin and pinion shaft, and remove the differential bevel gear, washer and differential bevel pinion.

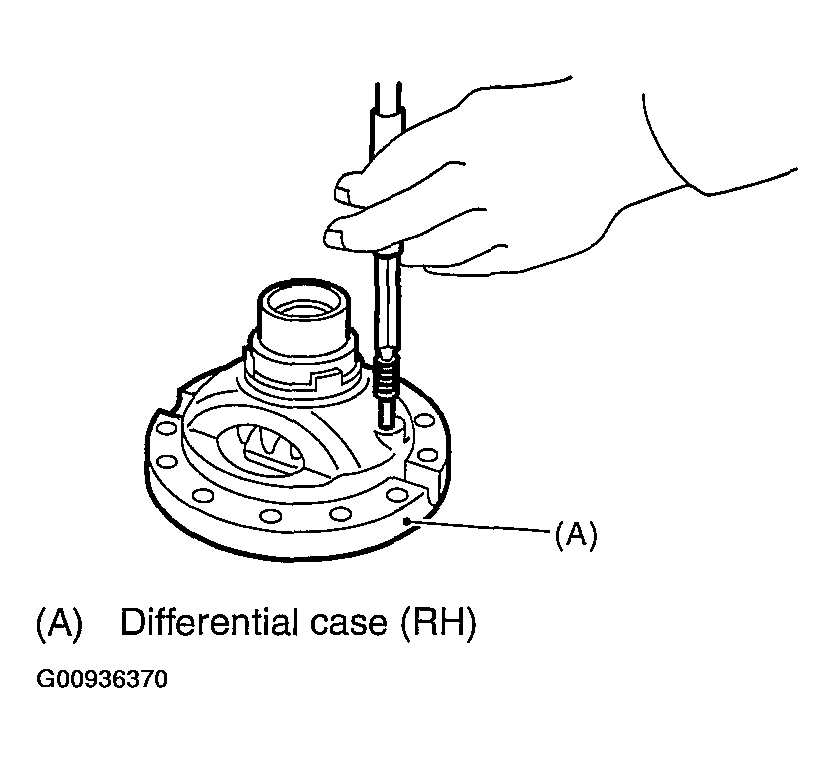

Fig 3: Pulling Out Straight Pin And Pinion Shaft
Courtesy of SUBARU OF AMERICA, INC.
