Differential Side Retainer

NOTE: After adjusting the drive pinion backlash and tooth contact, remove and install the oil seal and O-ring.

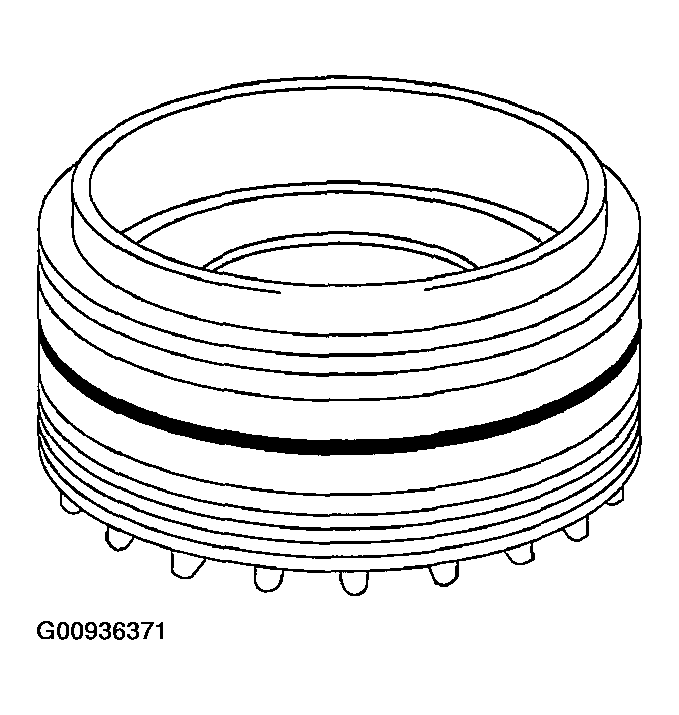

Remove O-ring.

Fig 1: Identifying O-Ring
Courtesy of SUBARU OF AMERICA, INC.

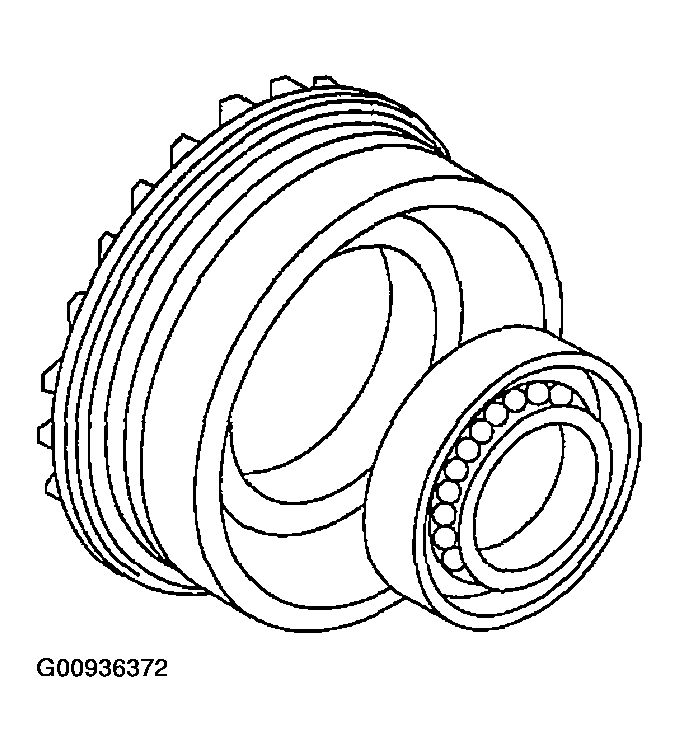

Remove oil seal.

Fig 2: Identifying Oil Seal
Courtesy of SUBARU OF AMERICA, INC.

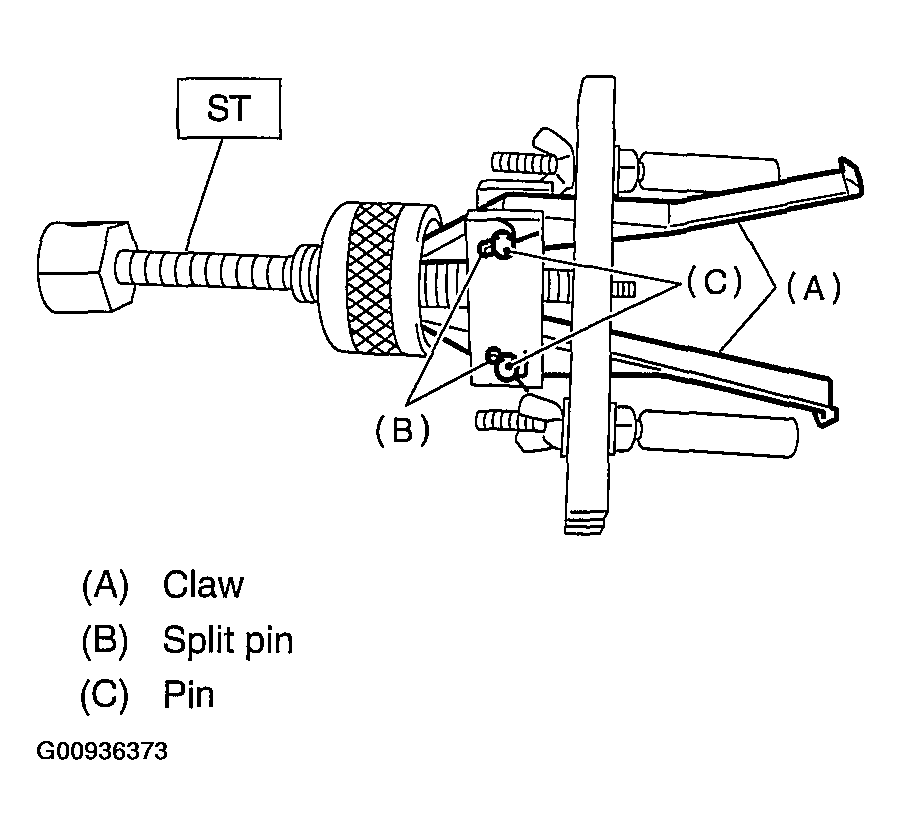

Take out either split pin, remove claw.
1. ST 398527700 PULLER ASSY
Fig 3: Taking Out Either Split Pin, Identifying Claw
Courtesy of SUBARU OF AMERICA, INC.

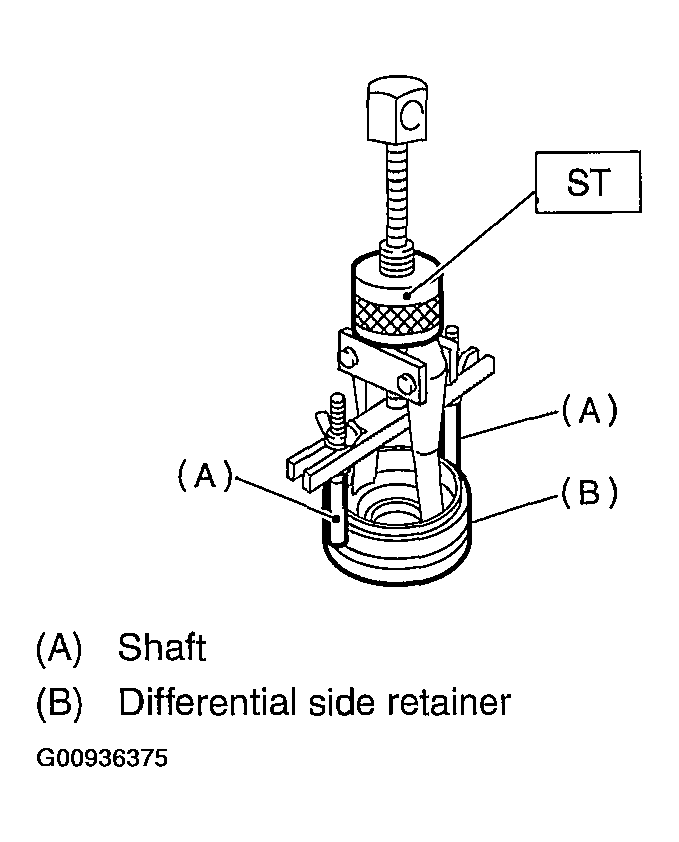

Securely attach two claws to outer race, set ST to differential side retainer.
1. ST 398527700 PULLER ASSY
Fig 4: Attaching Two Claws To Outer Race, Setting ST To Differential Side Retainer
Courtesy of SUBARU OF AMERICA, INC.
Return removed claw to the original position, and install pin and split pin.

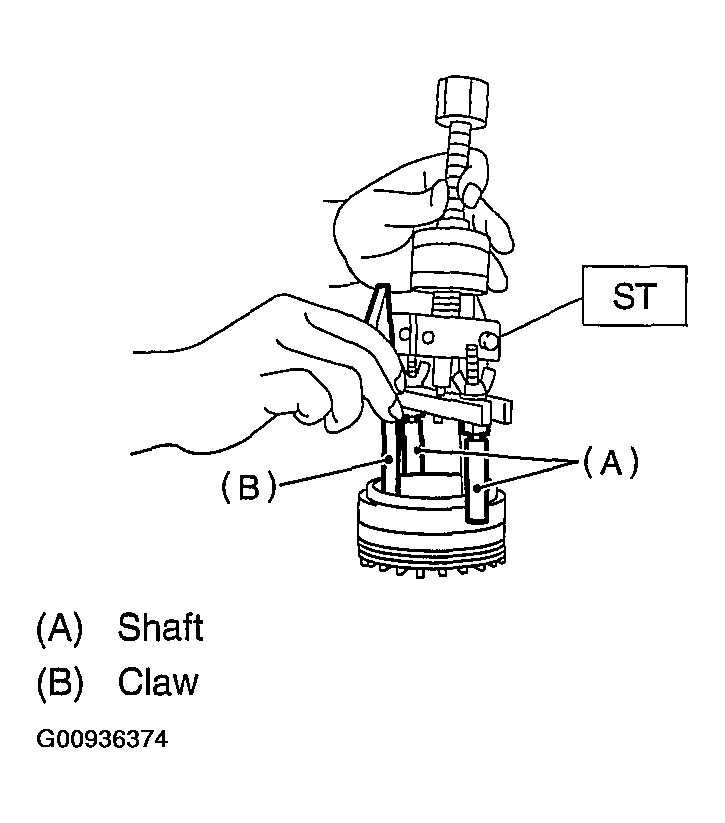

Hold the shaft of ST to avoid Identifying from differential side retainer, and then remove the bearing outer race.
1. ST 398527700 PULLER ASSY
NOTE: Replace bearing inner and outer races as a single unit.

Fig 5: Identifying Bearing Outer Race
Courtesy of SUBARU OF AMERICA, INC.
