Transmission Case And Control Device

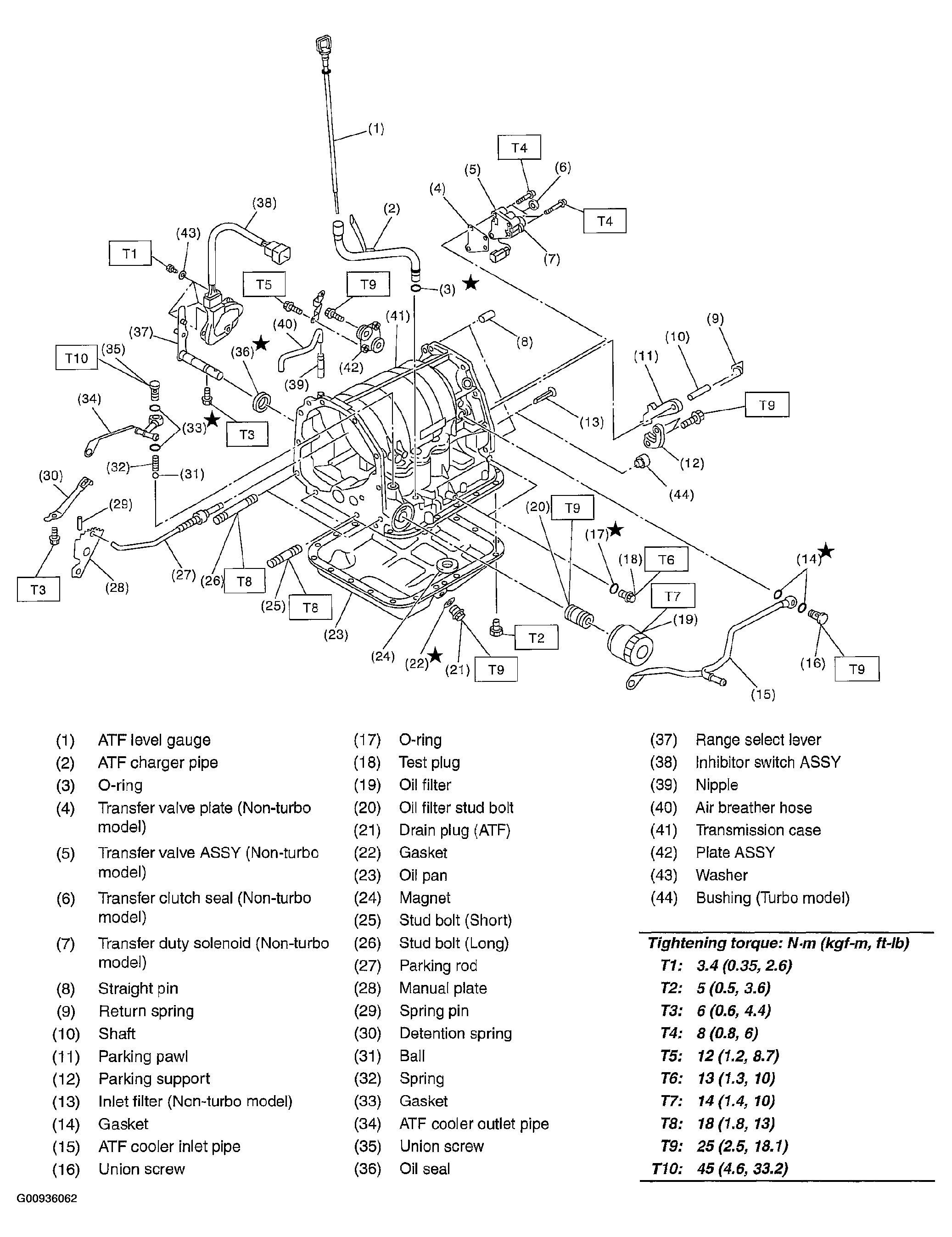

Fig 1: Transmission Case And Control Device Components With Torque Specifications
G00936062Courtesy of SUBARU OF AMERICA, INC.
