Special Tools

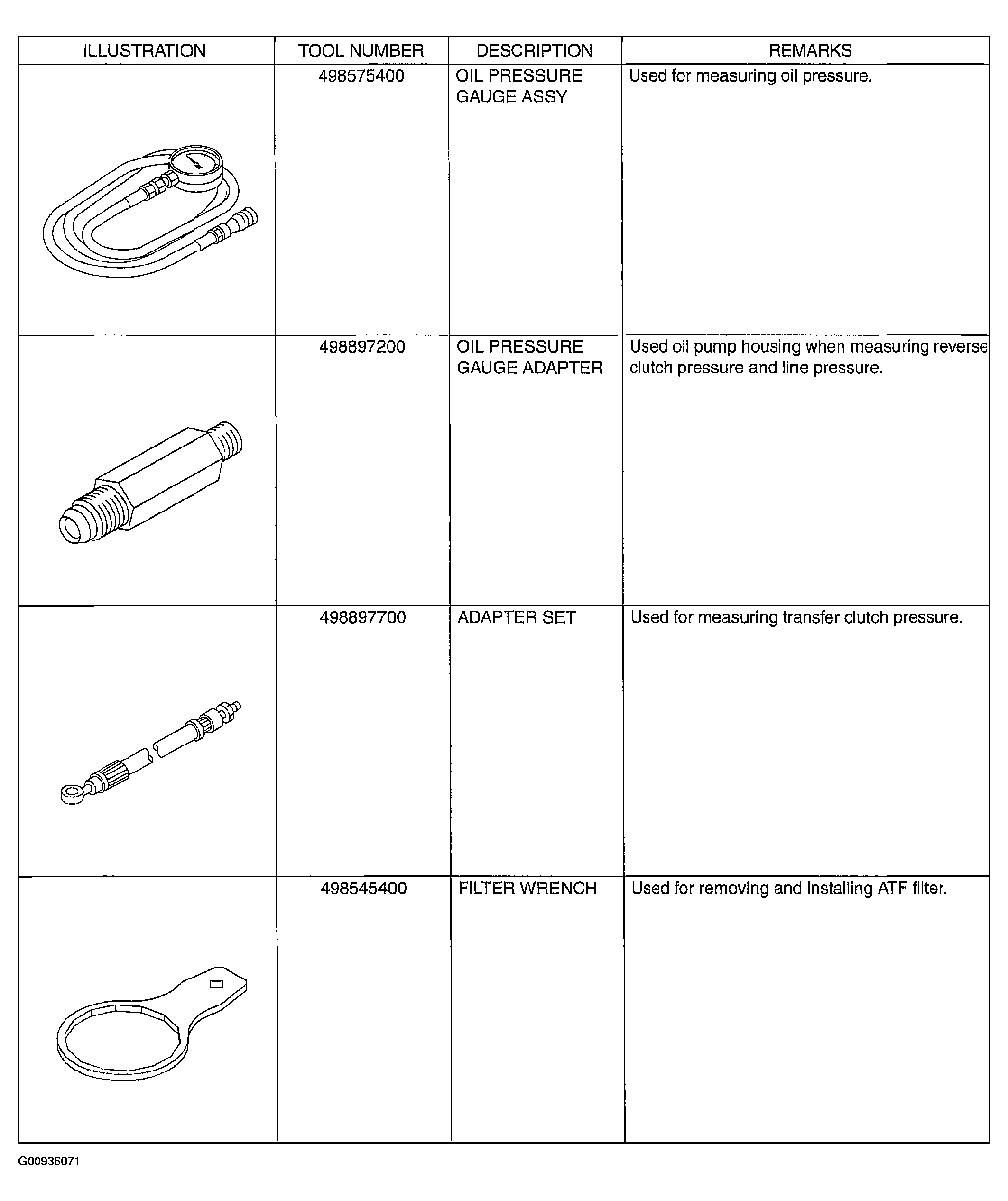

Fig 1: Identifying Special Tools (1 Of 11)

G00936071

Courtesy of SUBARU OF AMERICA, INC.

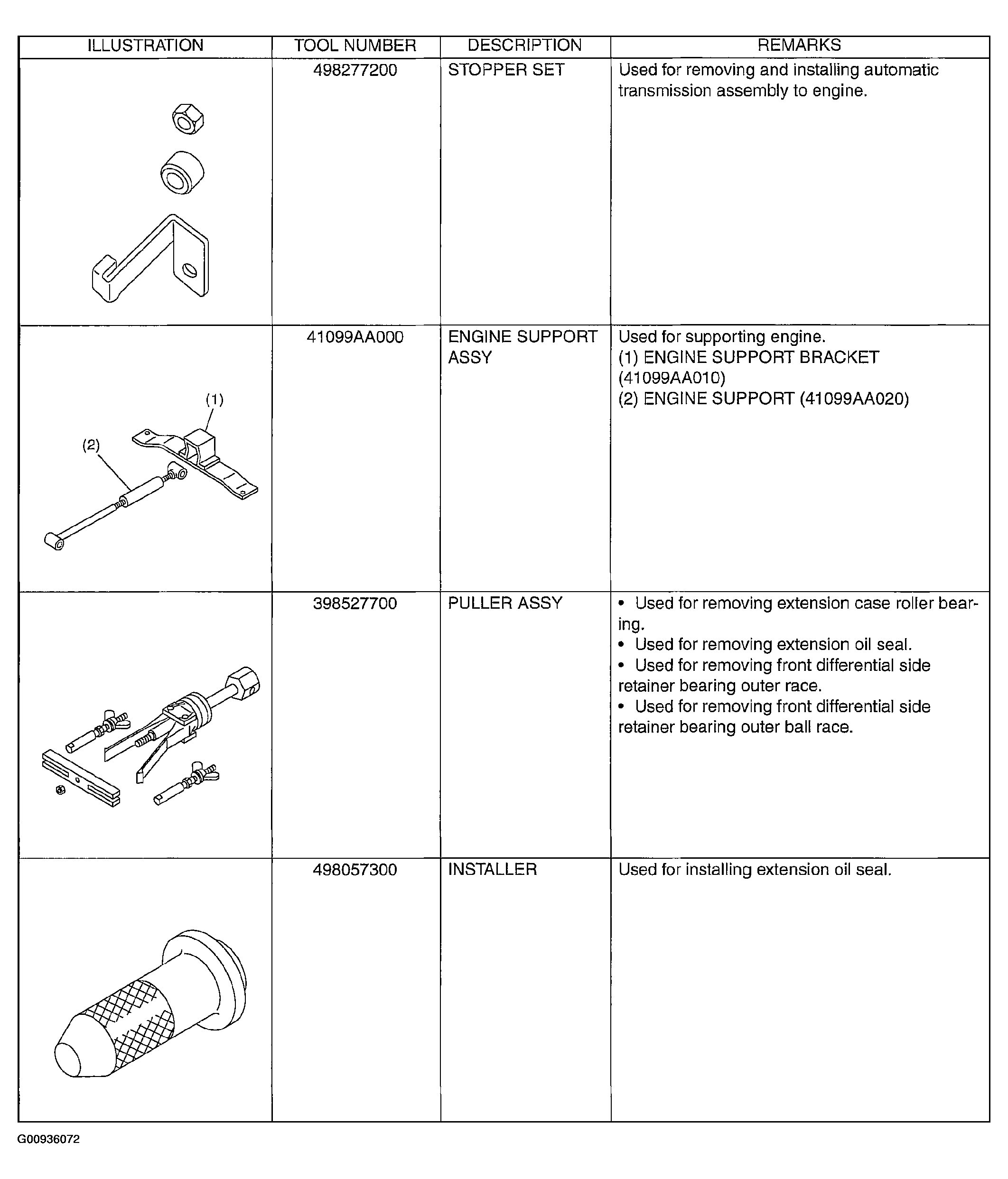

Fig 2: Identifying Special Tools (2 Of 11)

G00936072

Courtesy of SUBARU OF AMERICA, INC.

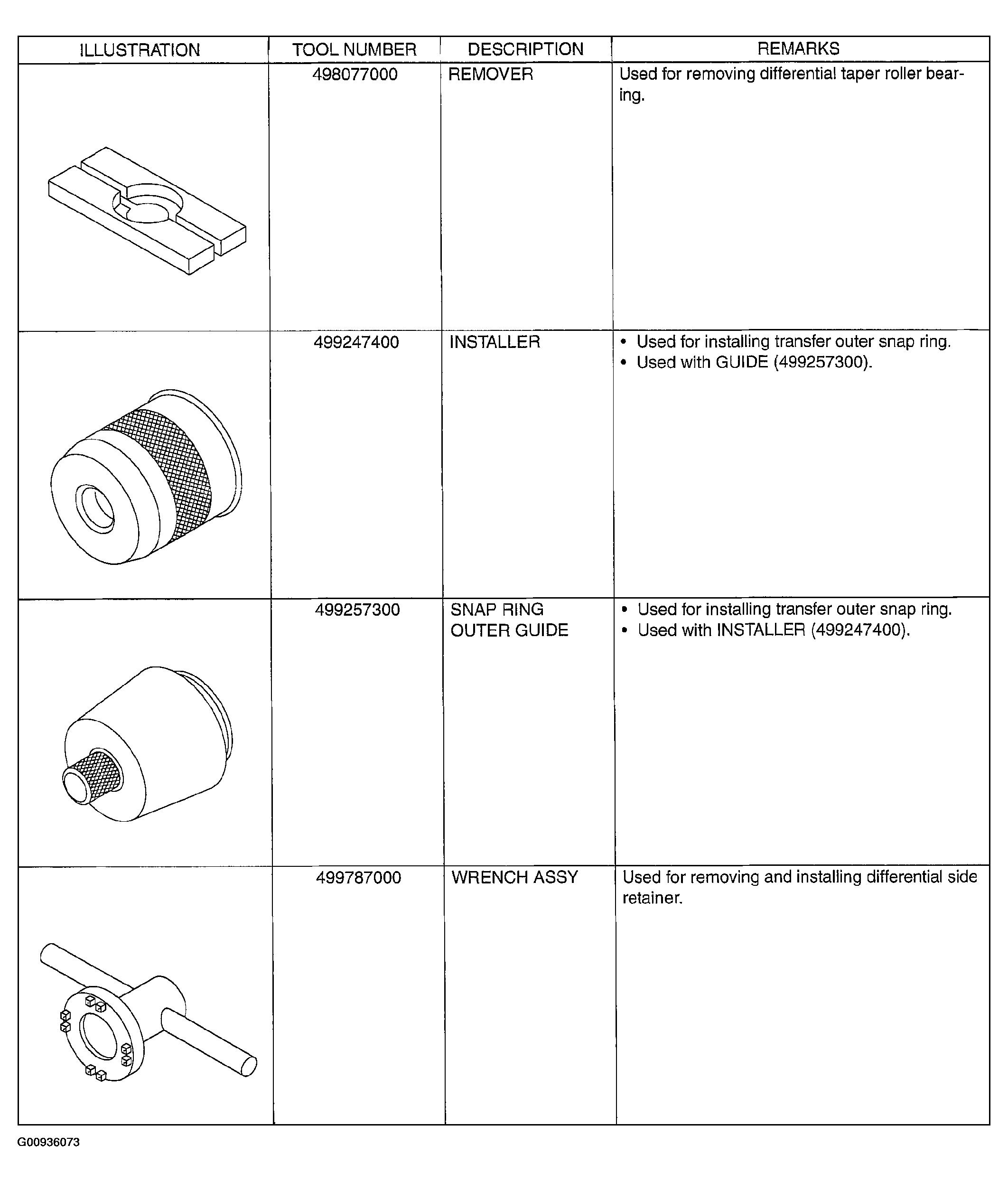

Fig 3: Identifying Special Tools (3 Of 11)

G00936073

Courtesy of SUBARU OF AMERICA, INC.

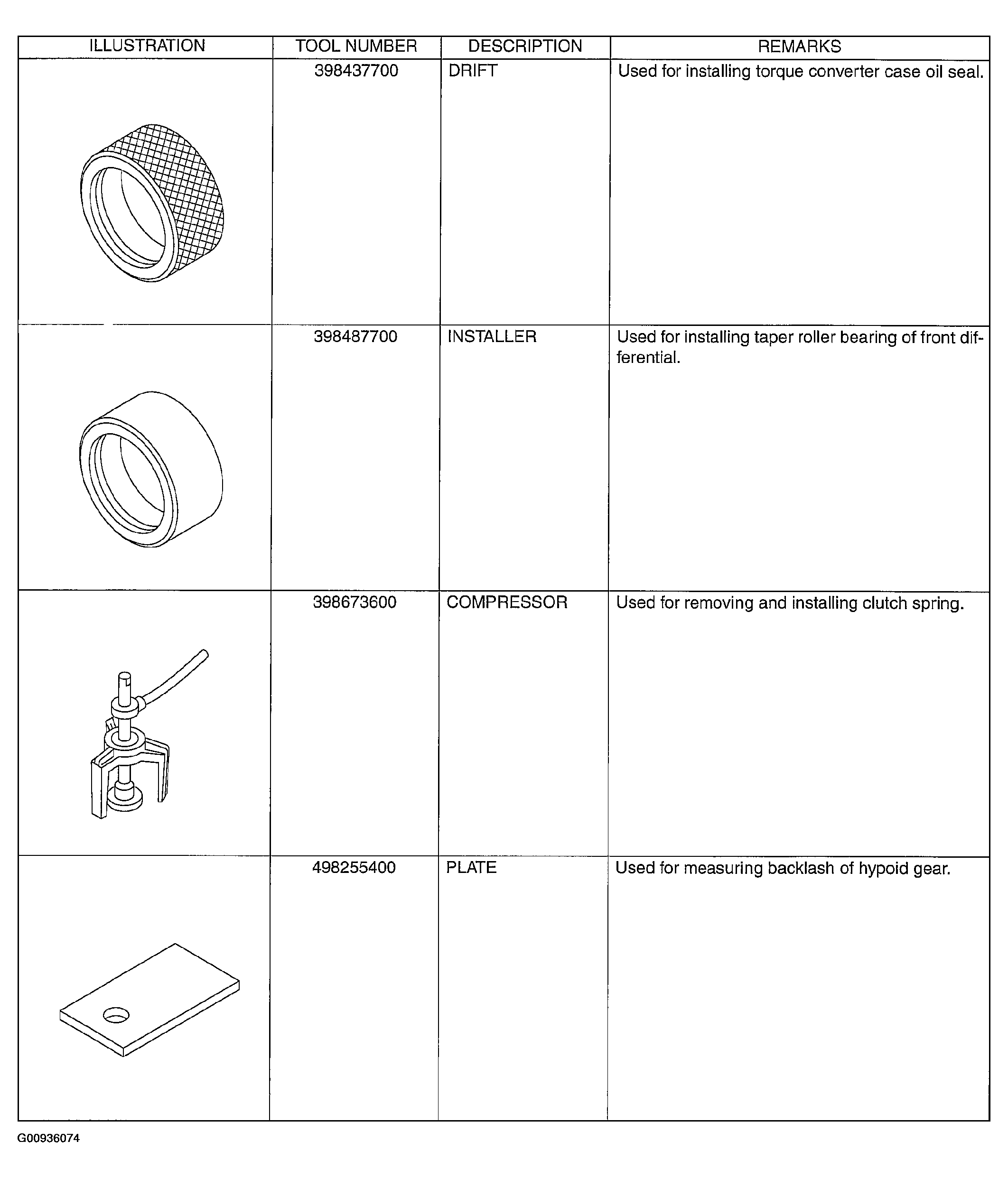

Fig 4: Identifying Special Tools (4 Of 11)

G00936074

Courtesy of SUBARU OF AMERICA, INC.

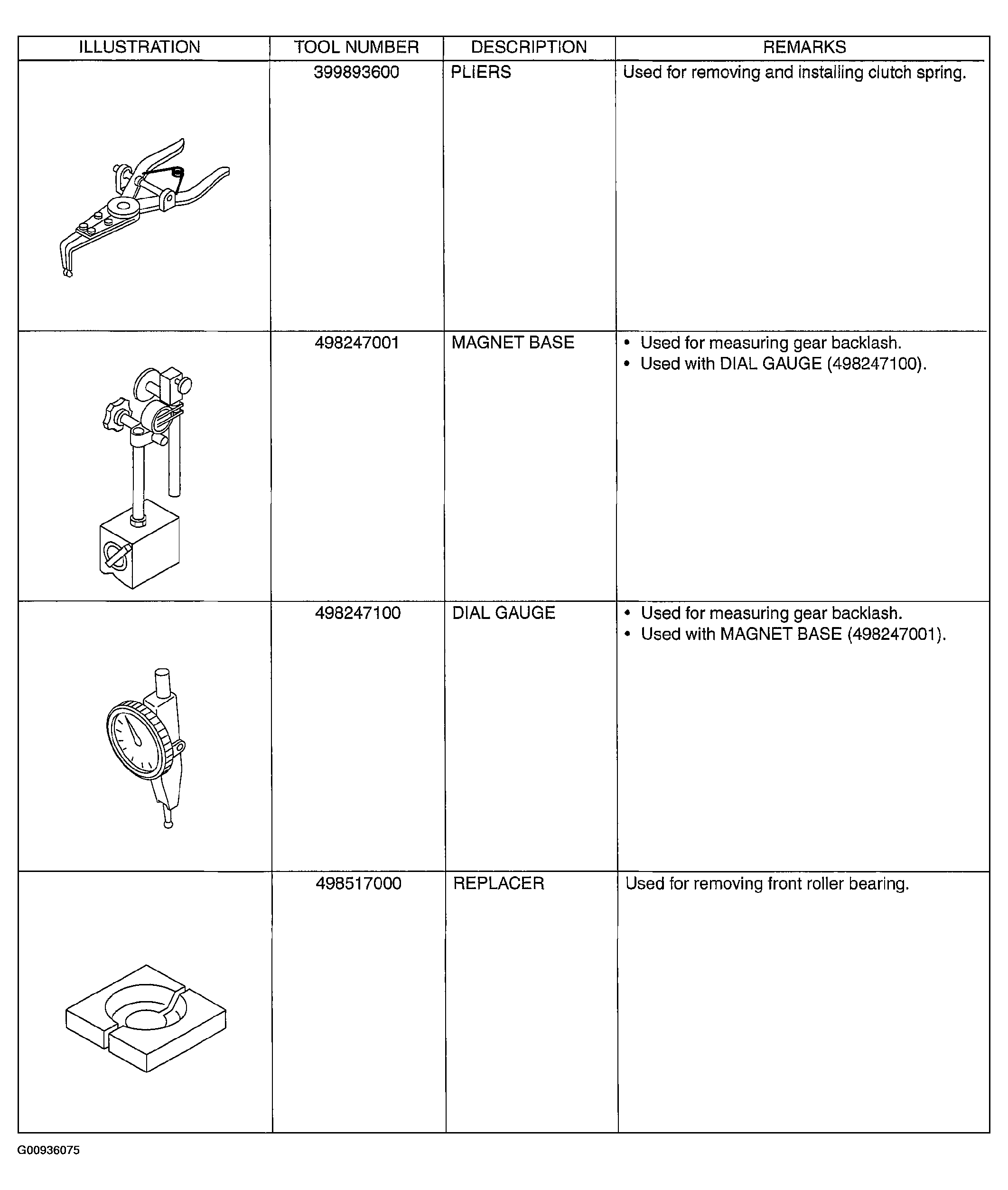

Fig 5: Identifying Special Tools (5 Of 11)

G00936075

Courtesy of SUBARU OF AMERICA, INC.

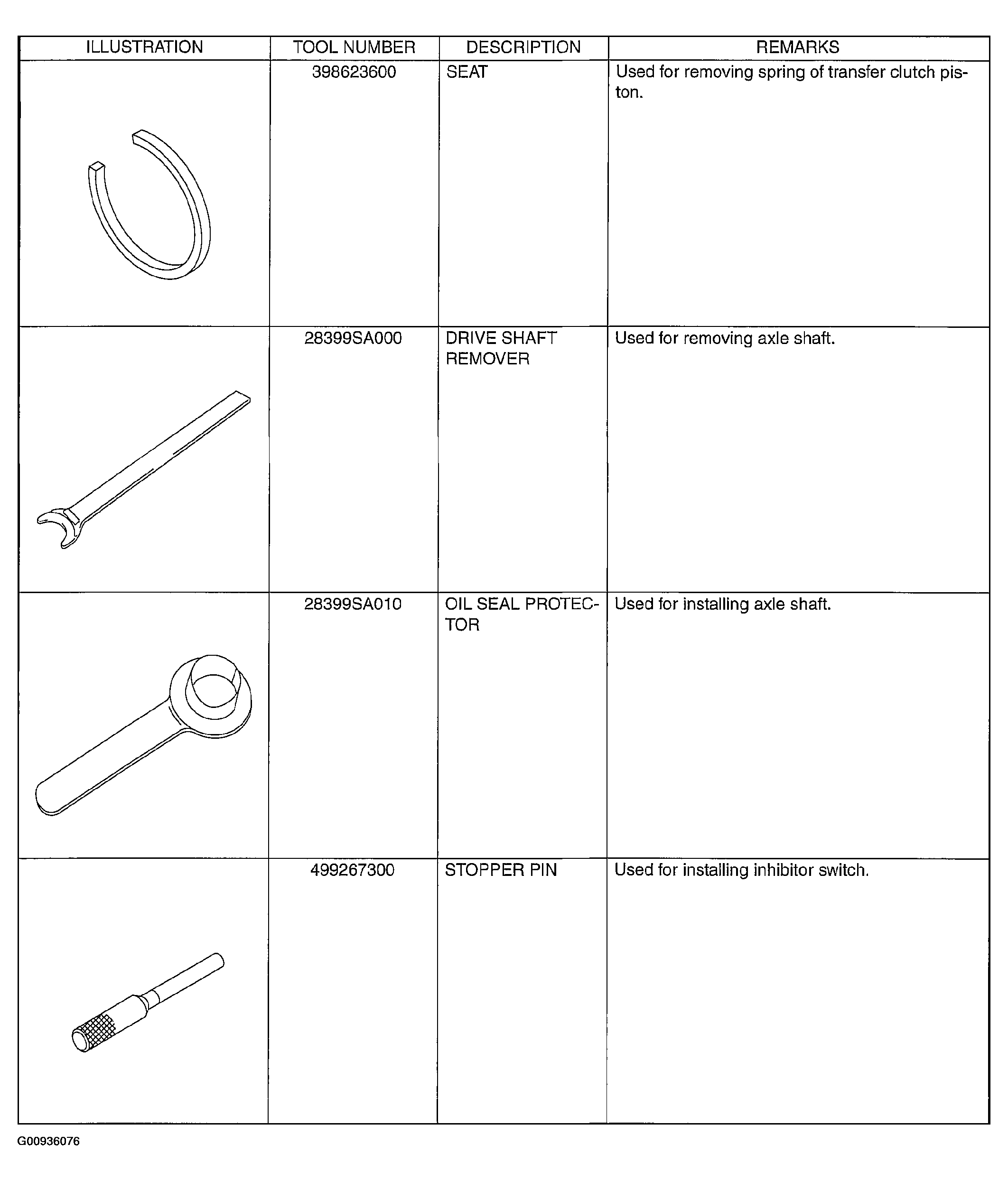

Fig 6: Identifying Special Tools (6 Of 11)

G00936076

Courtesy of SUBARU OF AMERICA, INC.

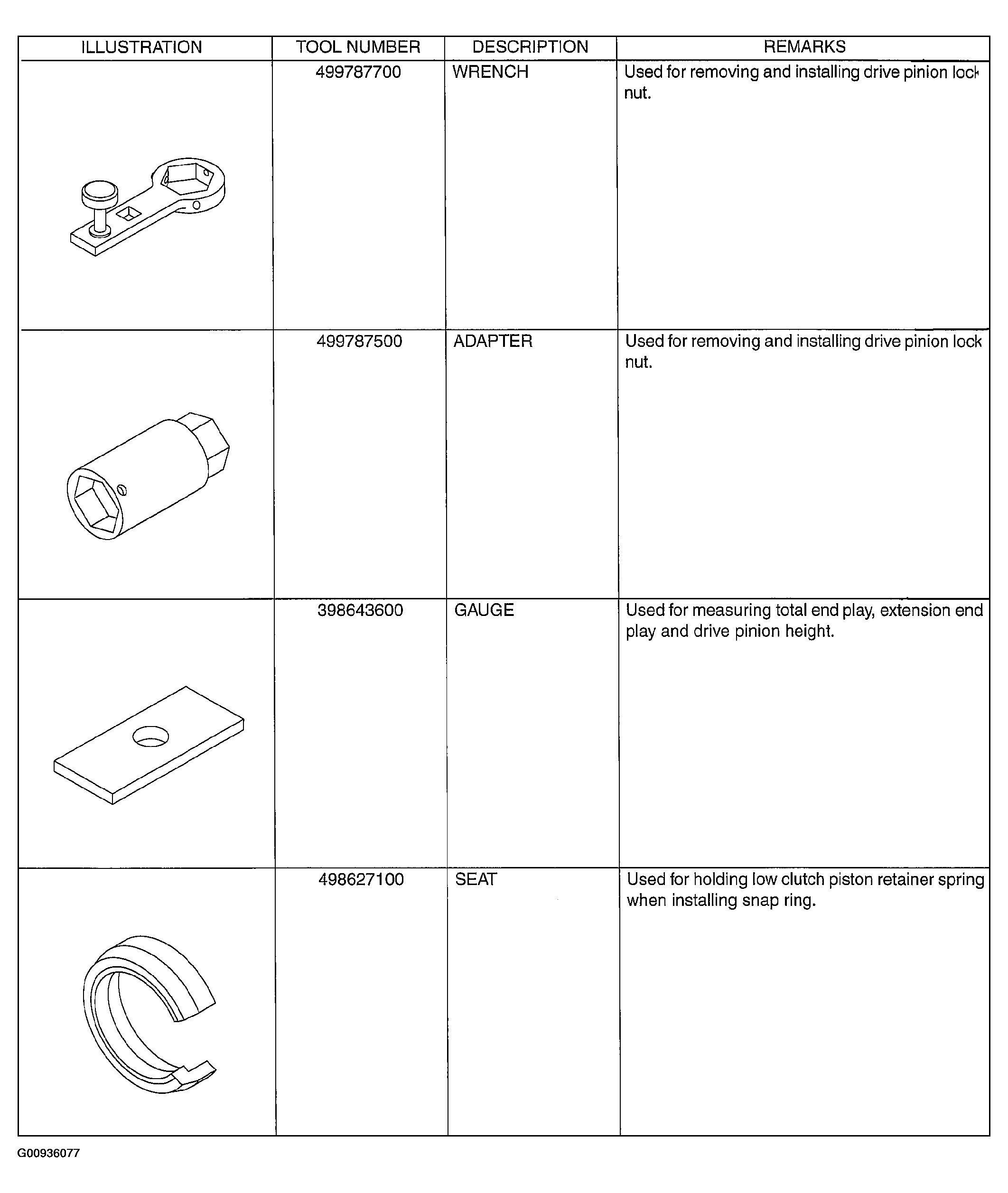

Fig 7: Identifying Special Tools (7 Of 11)

G00936077

Courtesy of SUBARU OF AMERICA, INC.

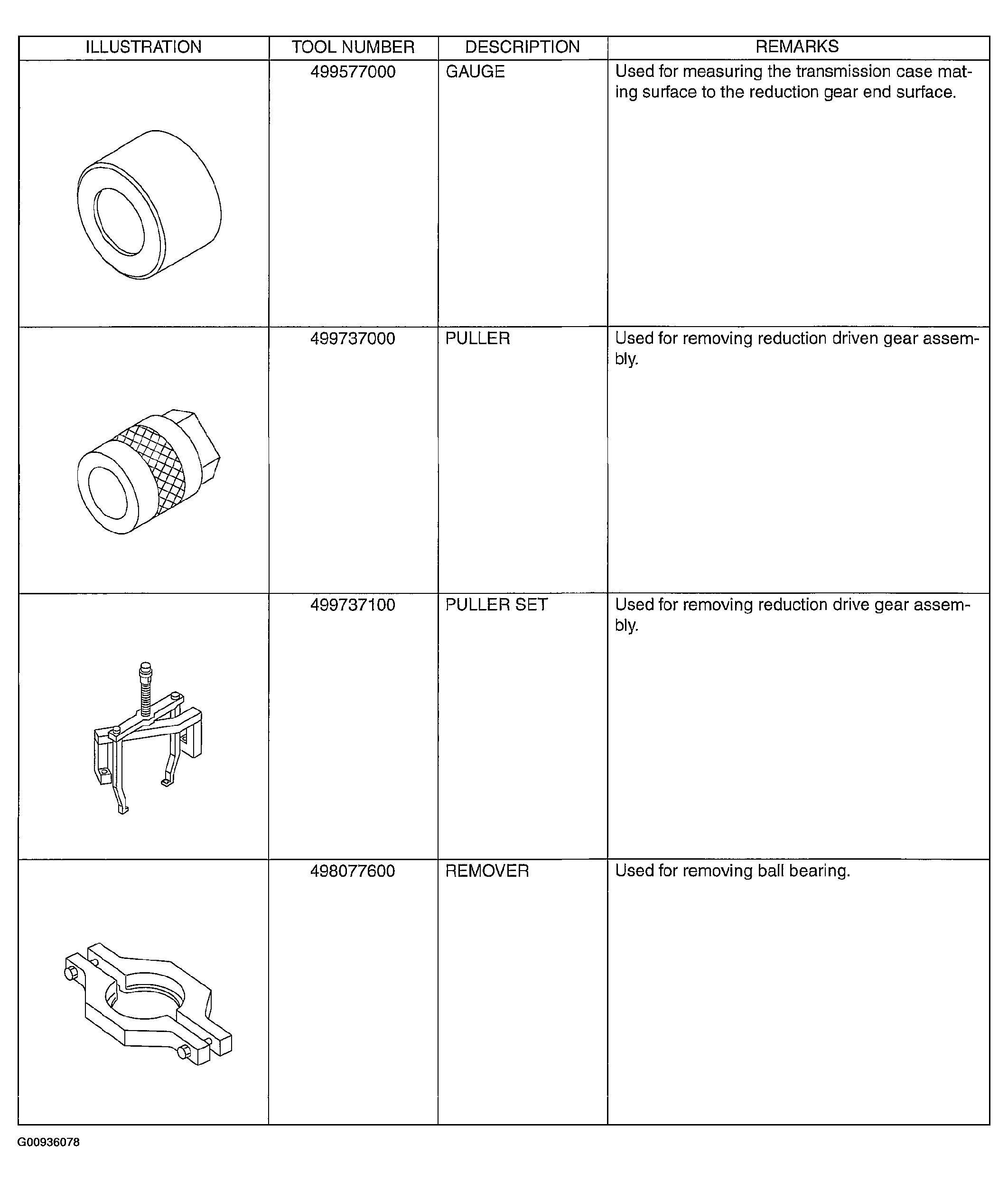

Fig 8: Identifying Special Tools (8 Of 11)

G00936078

Courtesy of SUBARU OF AMERICA, INC.

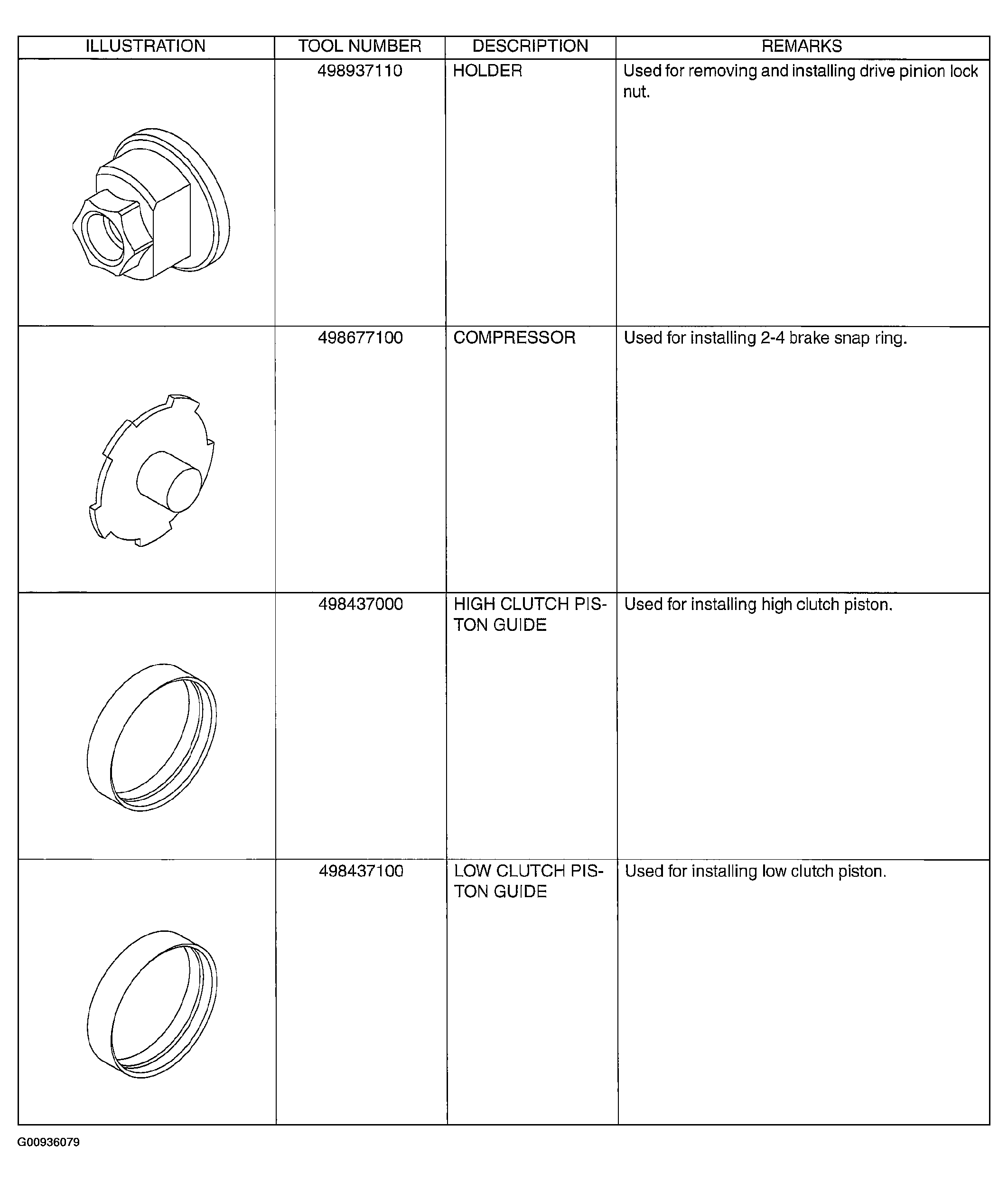

Fig 9: Identifying Special Tools (9 Of 11)

G00936079

Courtesy of SUBARU OF AMERICA, INC.

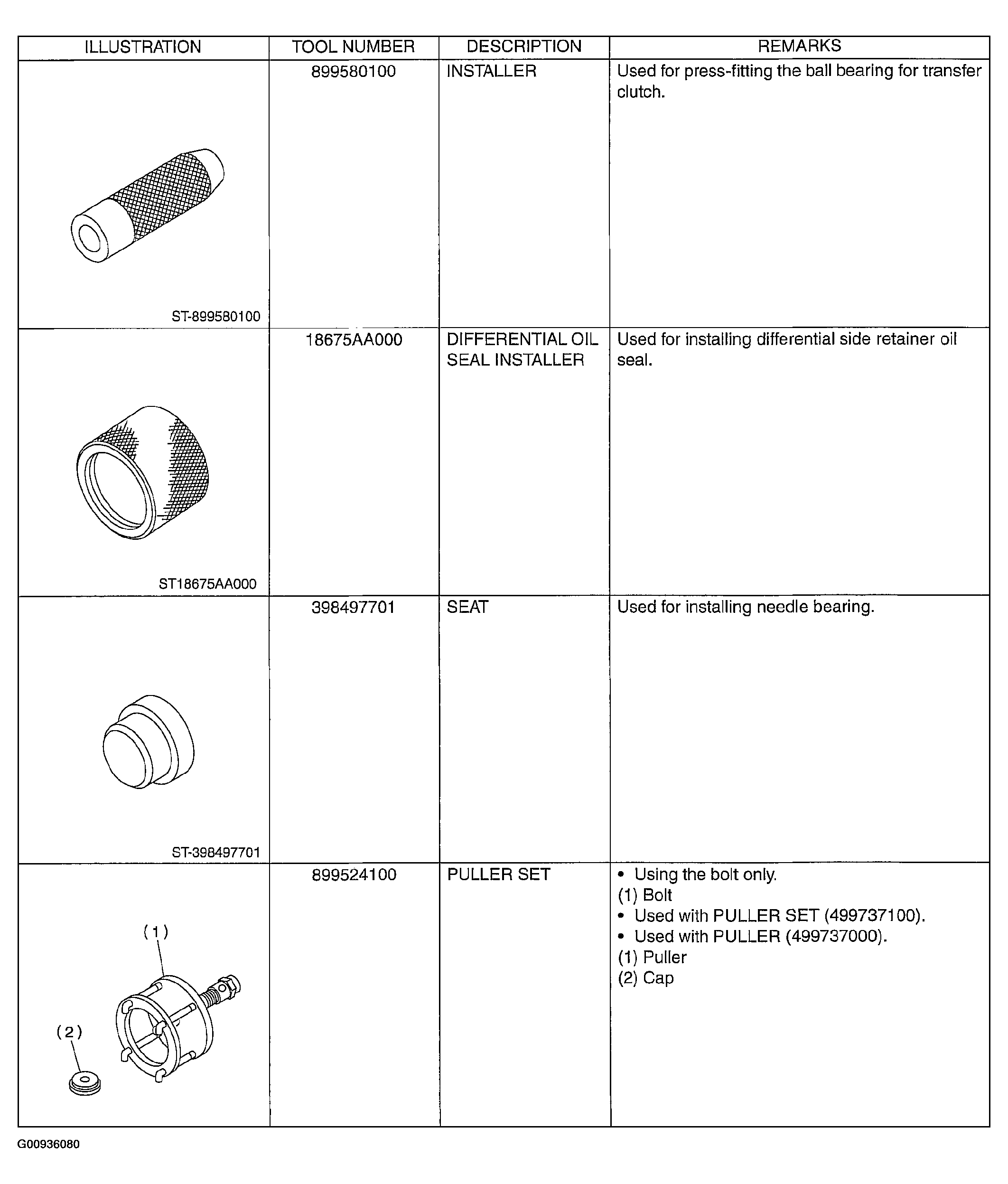

Fig 10: Identifying Special Tools (10 Of 11)

G00936080

Courtesy of SUBARU OF AMERICA, INC.

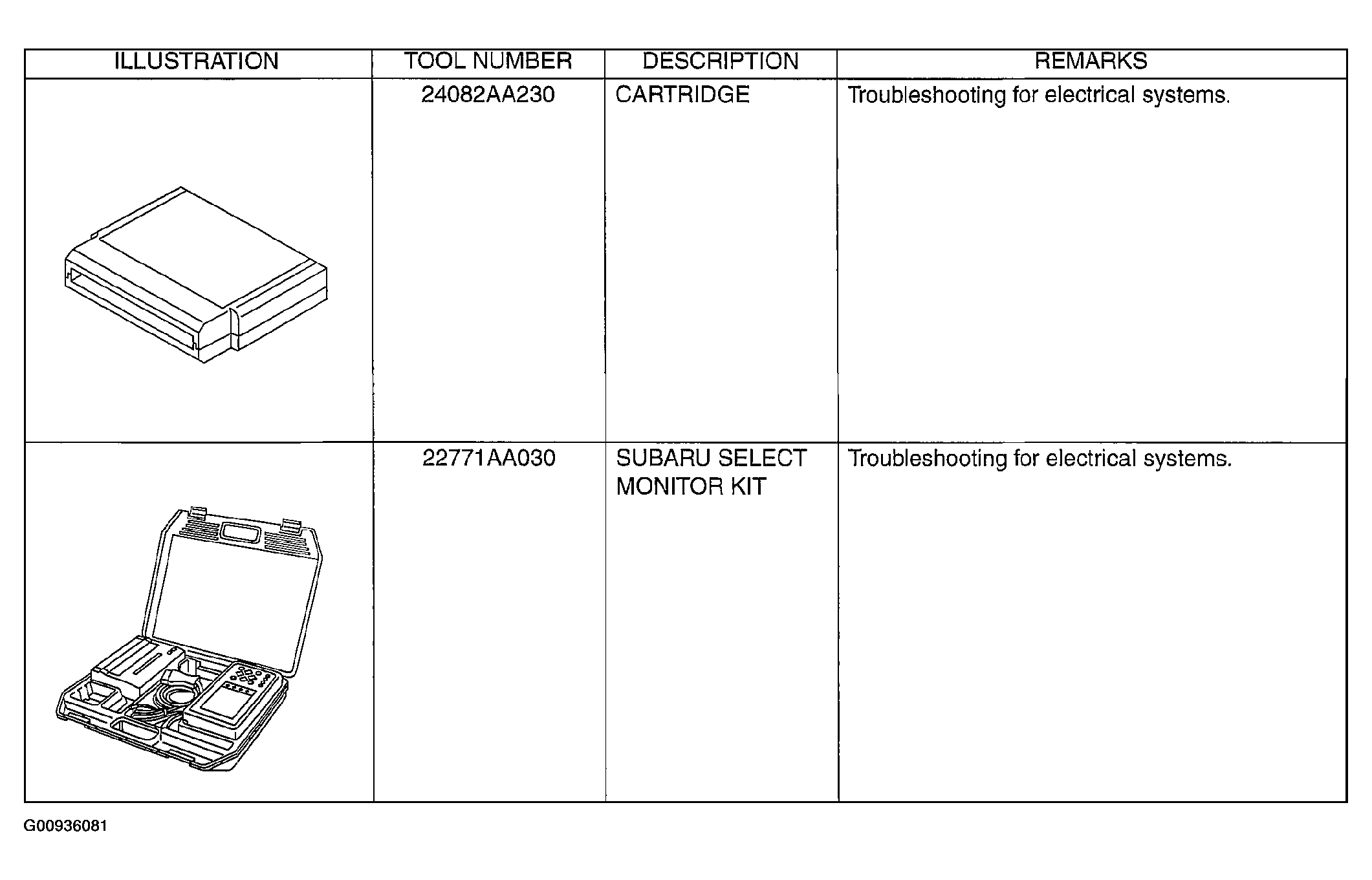

Fig 11: Identifying Special Tools (11 Of 11)

G00936081

Courtesy of SUBARU OF AMERICA, INC.
