Hydraulic Control And Lubrication

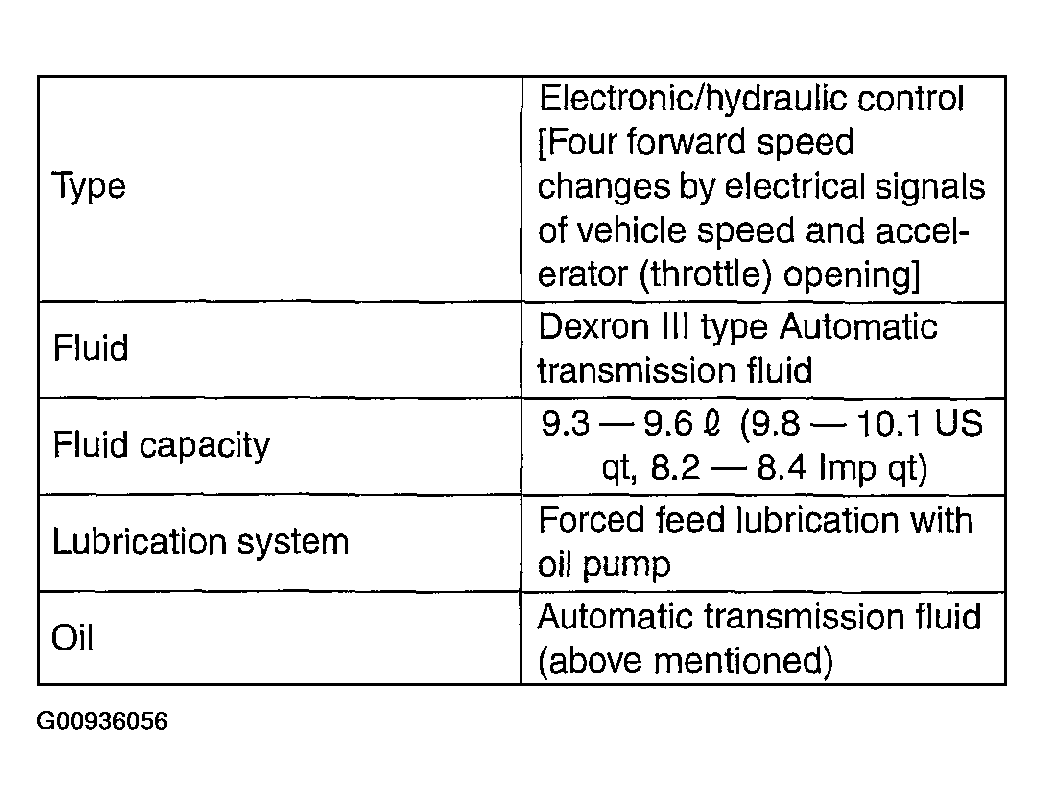

Fig 1: Hydraulic Control And Lubrication Specifications Chart
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
