Inhibitor Switch: Inspection

First check the shift linkage for improper operation.

If the shift linkage is functioning properly, check the inhibitor switch.

1. Disconnect the inhibitor switch connector.
2. Check continuity in inhibitor switch circuits with the select lever moved to each position.
   NOTE:

   • Also check that continuity in ignition circuit does not exist when the select lever is in "R", "D", "3", "2" and "1" ranges.
   • If the inhibitor switch is inoperative, check for poor contact of connector on transmission side.

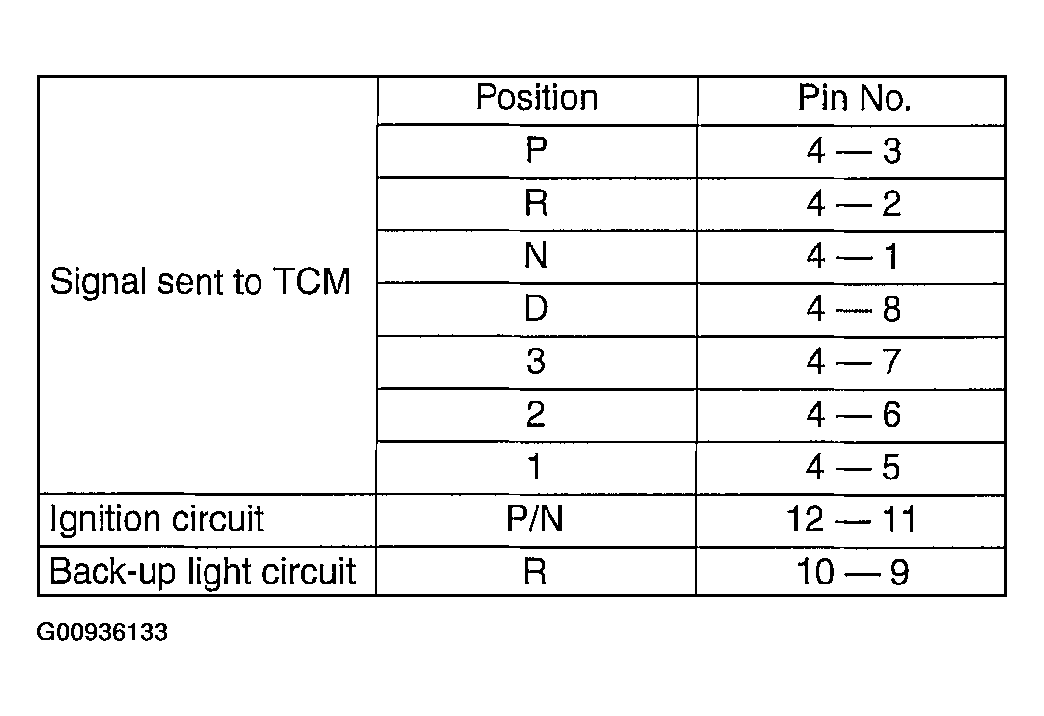

   Fig 1: Inhibitor Switch Connector Pin Identifying Chart

   Courtesy of SUBARU OF AMERICA, INC.

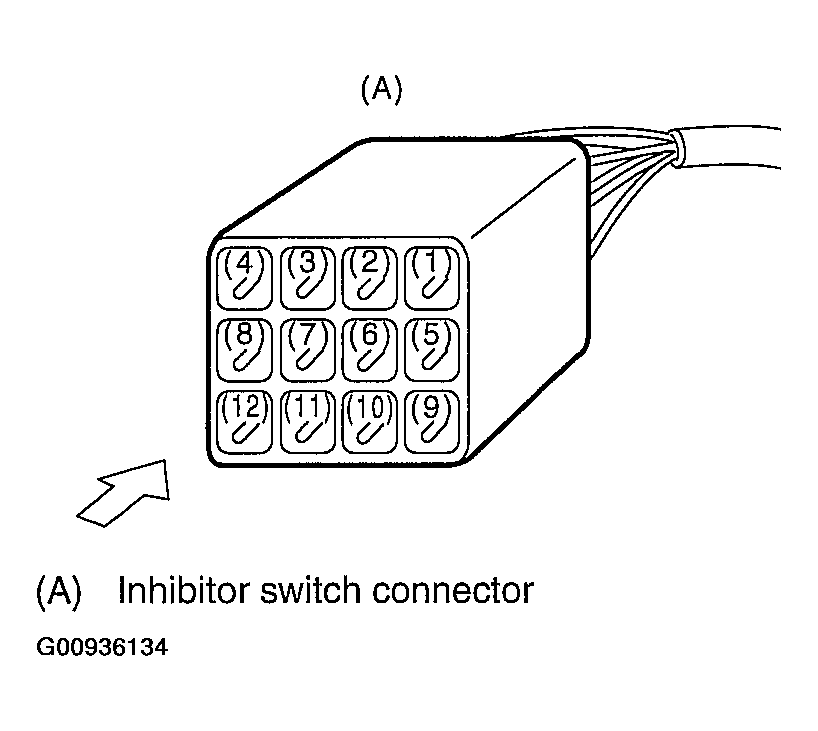

   Fig 2: Identifying Inhibitor Switch Connector Terminals

   Courtesy of SUBARU OF AMERICA, INC.
3. Check if there is continuity at equal points when the select lever is tied by 1.5° in both directions from "N" range.

   If there is continuity in one direction and the continuity in the other or if there is continuity at unequal points, adjust the inhibitor switch. < Ref. to ADJUSTMENT . >

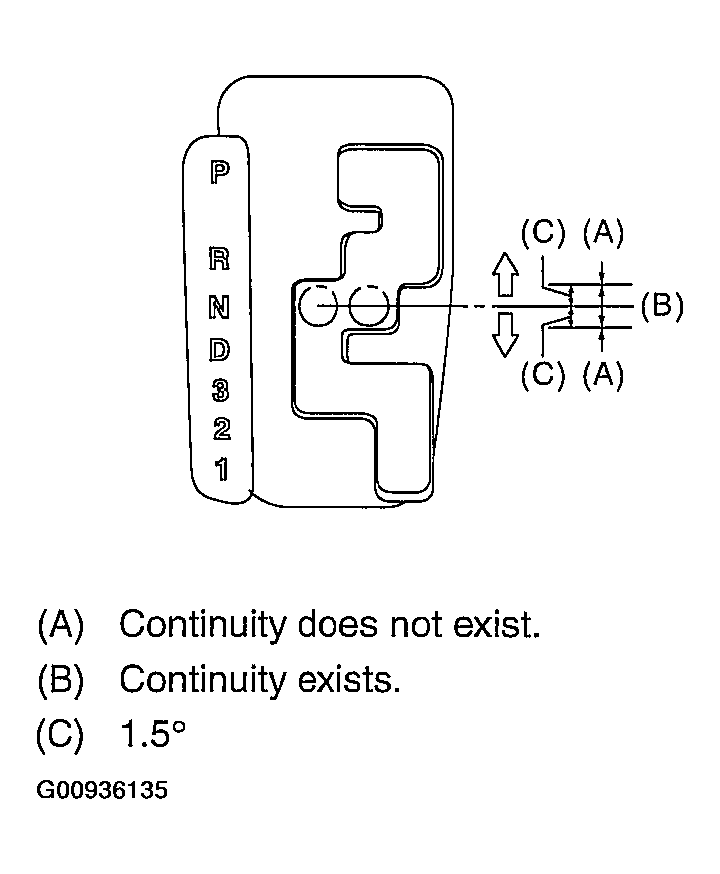

   Fig 3: Checking continuity equal points when select lever "N" range

   Courtesy of SUBARU OF AMERICA, INC.
4. Repeat the above checks in another range. If there are abnormalities, adjust the select cable.

   < Ref. to ADJUSTMENT , Select Cable . >
