Reduction Driven Gear: Disassembly

  1. Remove snap ring from reduction driven gear.
    Fig 1: Identifying Snap Ring From Reduction Driven Gear
    G00936288Courtesy of SUBARU OF AMERICA, INC.
  2. Using ST, remove ball bearing from reduction driven gear.

    ST 498077600 REMOVER

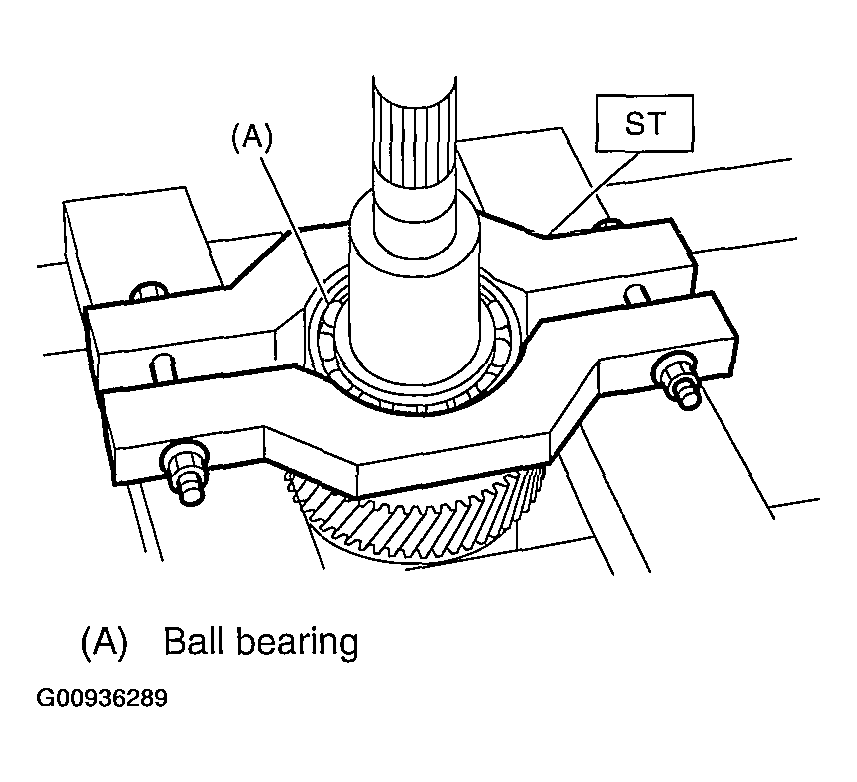

    Fig 2: Identifying Ball Bearing From Reduction Driven Gear
    G00936289Courtesy of SUBARU OF AMERICA, INC.
