Reduction Driven Gear: Installation

Set the range select lever to "P" range.
Using a plastic hammer, install reduction driven gear assembly and new washer, and tighten new lock nut.
1. Tightening torque: 100 N.m (10.2 kgf-m, 73.8 ft-lb)

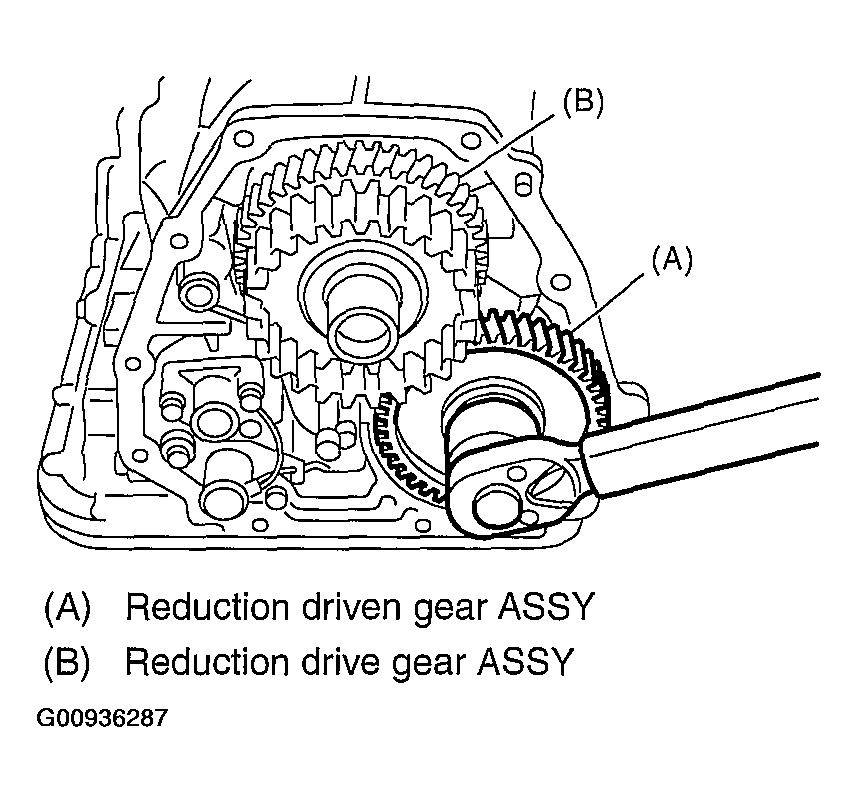

Fig 1: Identifying Reduction Driven Gear Assembly And Tightening New Lock Nut
Courtesy of SUBARU OF AMERICA, INC.
After tightening, stake the lock nut securely.
Combine the transmission case with the extension case, and install rear vehicle speed sensor. < Ref. to INSTALLATION . >
Install the transmission assembly to vehicle. < Ref. to INSTALLATION . >
