Transmission Control Device: Installation

Install detention spring to transmission case.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

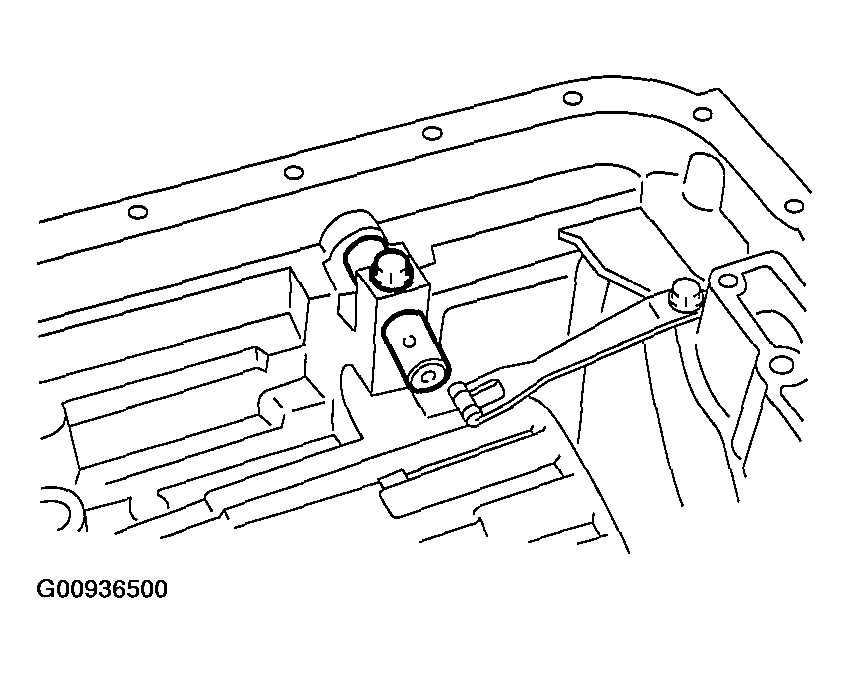

Fig 1: Identifying Detention Spring To Transmission Case
Courtesy of SUBARU OF AMERICA, INC.
Insert range select lever, and tighten bolt.
1. Tightening torque: 6 N.m (0.6 kgf-m, 4.4 ft-lb)

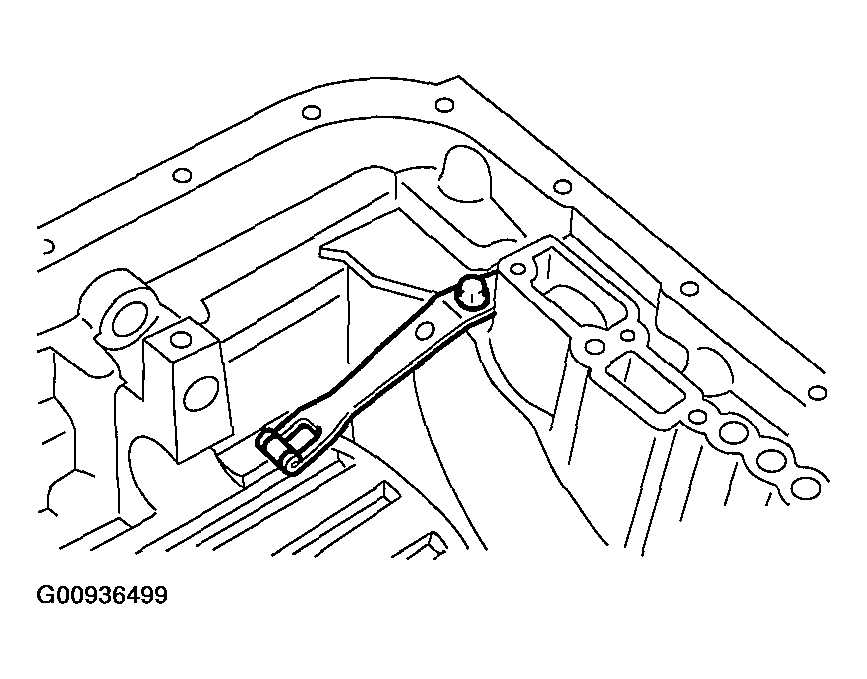

Fig 2: Inserting Range Select Lever, And Tighten Bolt
Courtesy of SUBARU OF AMERICA, INC.
Insert manual plate and parking rod.

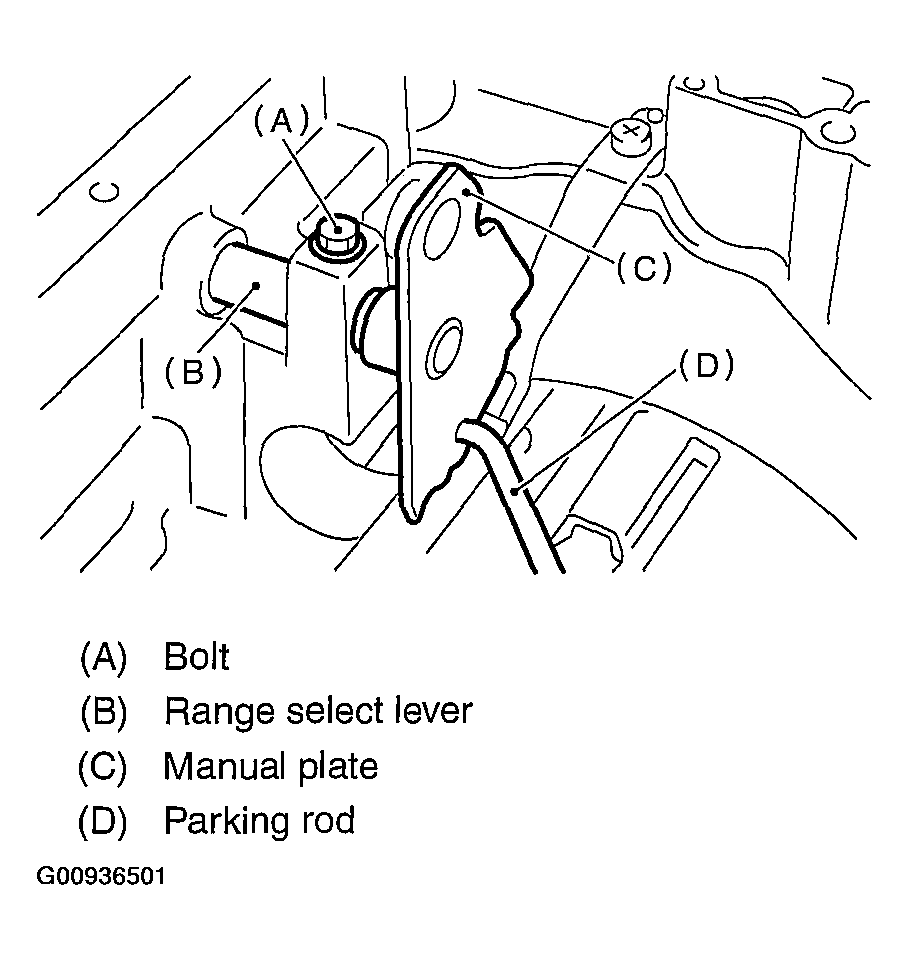

Fig 3: Inserting Manual Plate And Parking Rod
Courtesy of SUBARU OF AMERICA, INC.
Insert spring pin to manual plate.

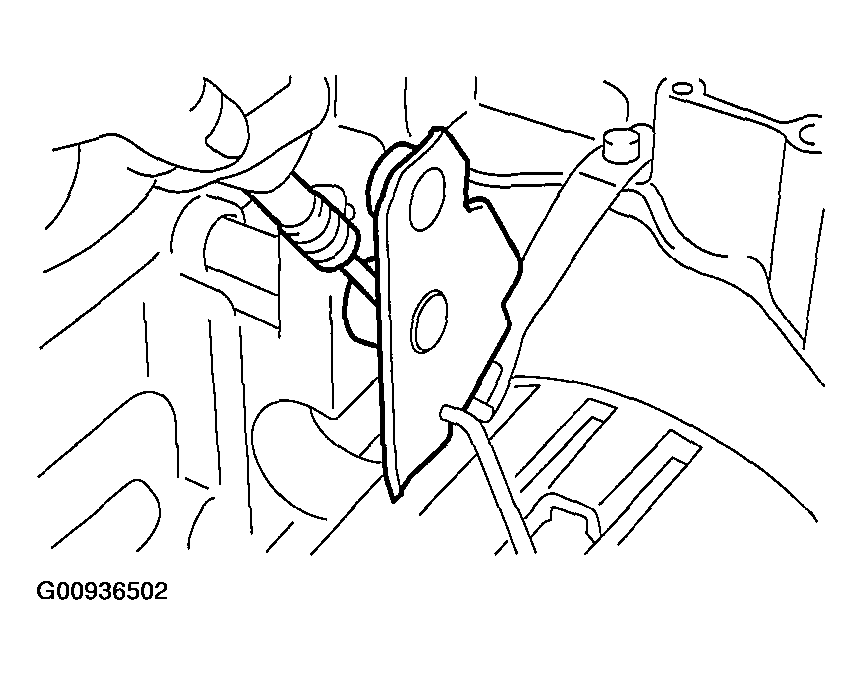

Fig 4: Inserting Spring Pin To Manual Plate
Courtesy of SUBARU OF AMERICA, INC.
Install control valve assembly and oil pan. < Ref. to B: INSTALLATION . >
Turn over the transmission case to its original position.
Install pitching stopper bracket.
1. Tightening torque: 41 N.m (4.2 kgf-m, 30.4 ft-lb)
Install inhibitor switch and adjust the inhibitor switch. < Ref. to 13. INHIBITOR SWITCH . >
Insert inhibitor switch and transmission connector into stay.

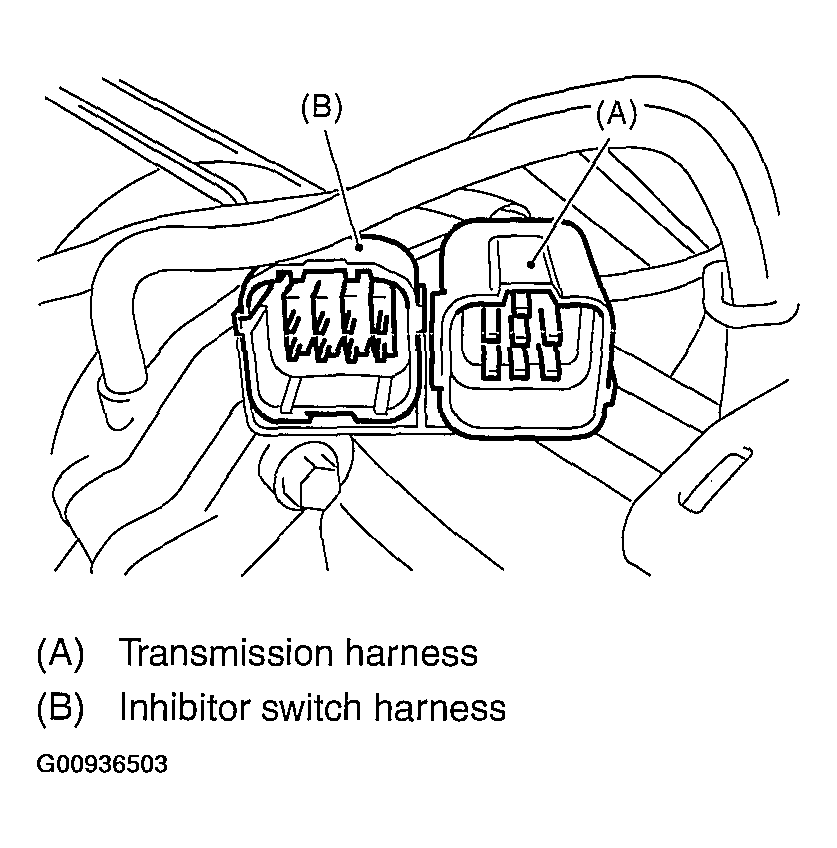

Fig 5: Inserting Inhibitor Switch And Transmission Connector Into Stay
Courtesy of SUBARU OF AMERICA, INC.
Install air breather hose. < Ref. to B: INSTALLATION . >
Insert the input shaft while turning lightly by hand and verify the protrusion amount.
1. Normal protrusion A: 50 - 55 mm (1.97 - 2.17 in)

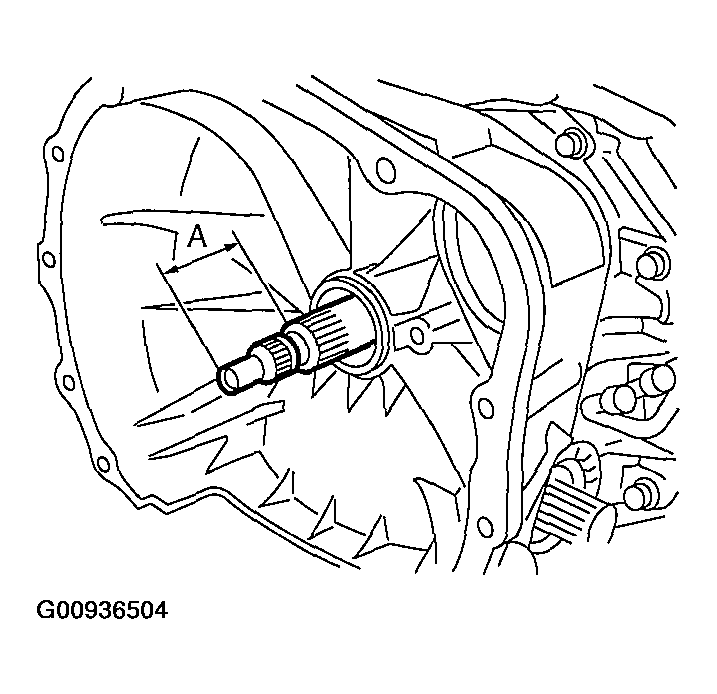

Fig 6: Inserting Input Shaft
Courtesy of SUBARU OF AMERICA, INC.
Install the torque converter clutch assembly. < Ref. to INSTALLATION . >
Install the transmission assembly to the vehicle. < Ref. to INSTALLATION . >
