Transmission Control Module (TCM): Installation

  1. Install the transmission control module.
    1. Tightening torque: 7.5 N.m (0.75 kgf-m, 5.5 ft-lb)

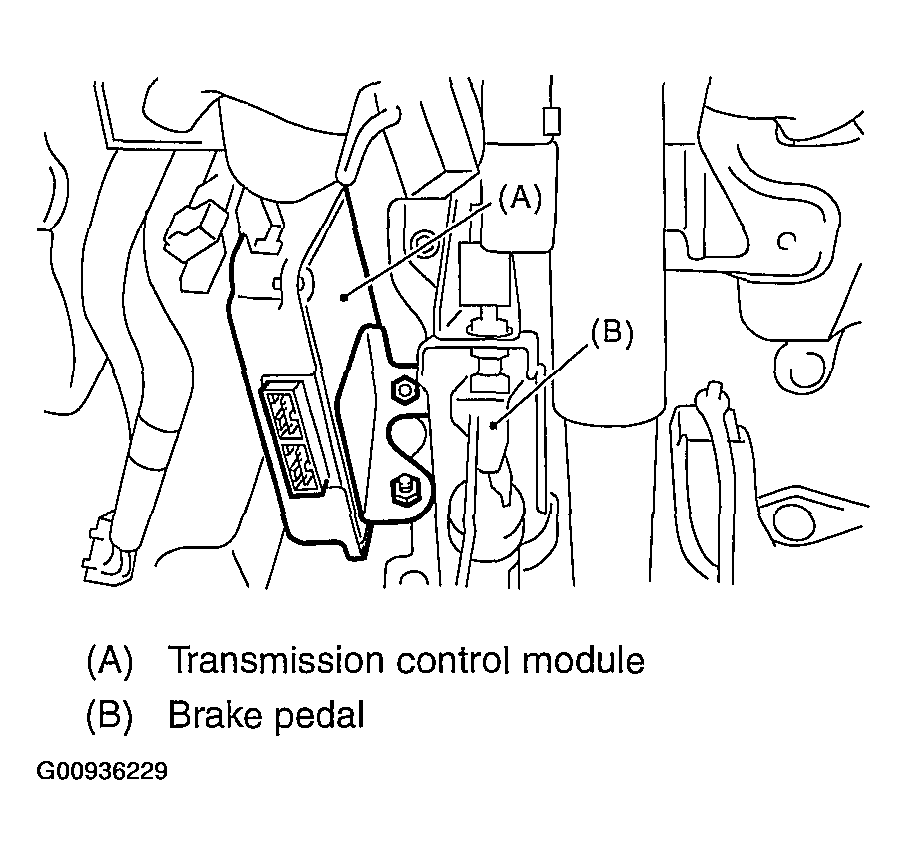

    Fig 1: Identifying Transmission Control Module
    G00936229Courtesy of SUBARU OF AMERICA, INC.
  2. Connect the connectors to transmission control module.
  3. Install in the reverse order of removal.
