Transmission Control Module (TCM): Removal

Disconnect the ground cable from battery.

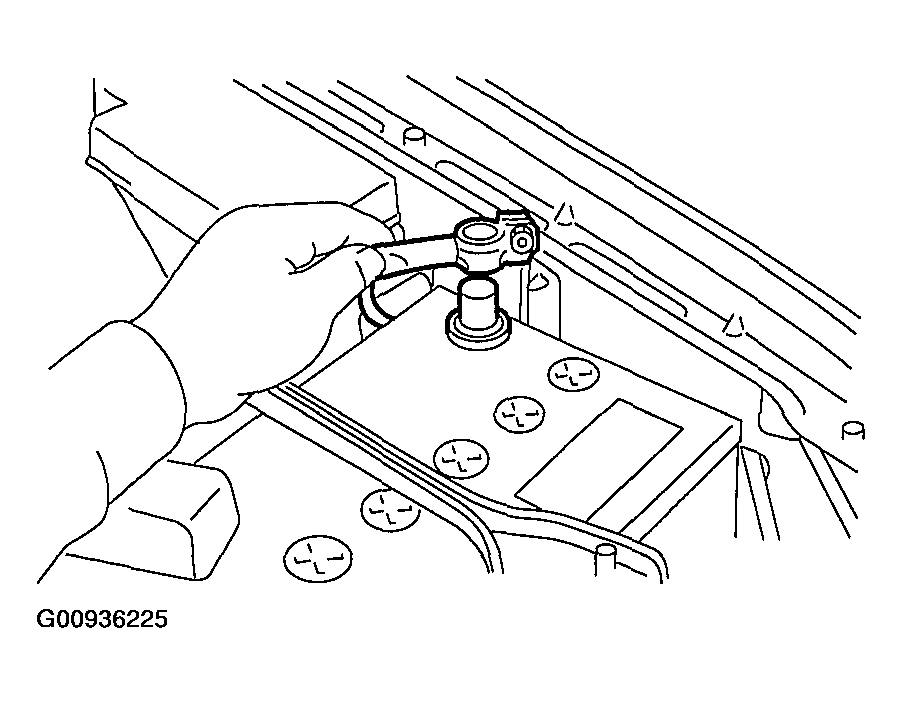

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the lower cover and then disconnect the connector.
Remove the knee bolster.

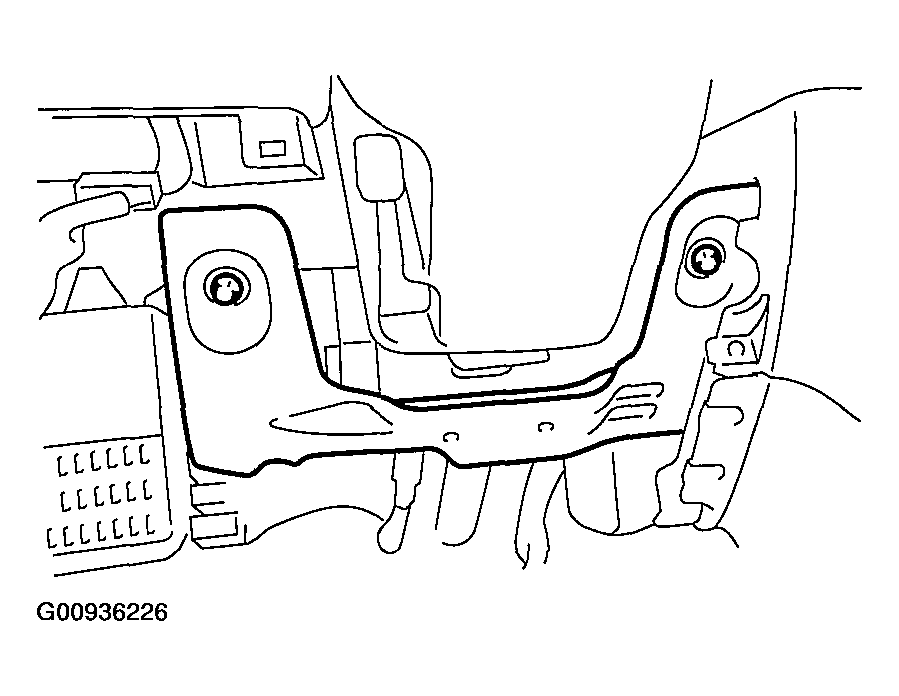

Fig 2: Identifying Knee Bolster
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connectors from transmission control module.

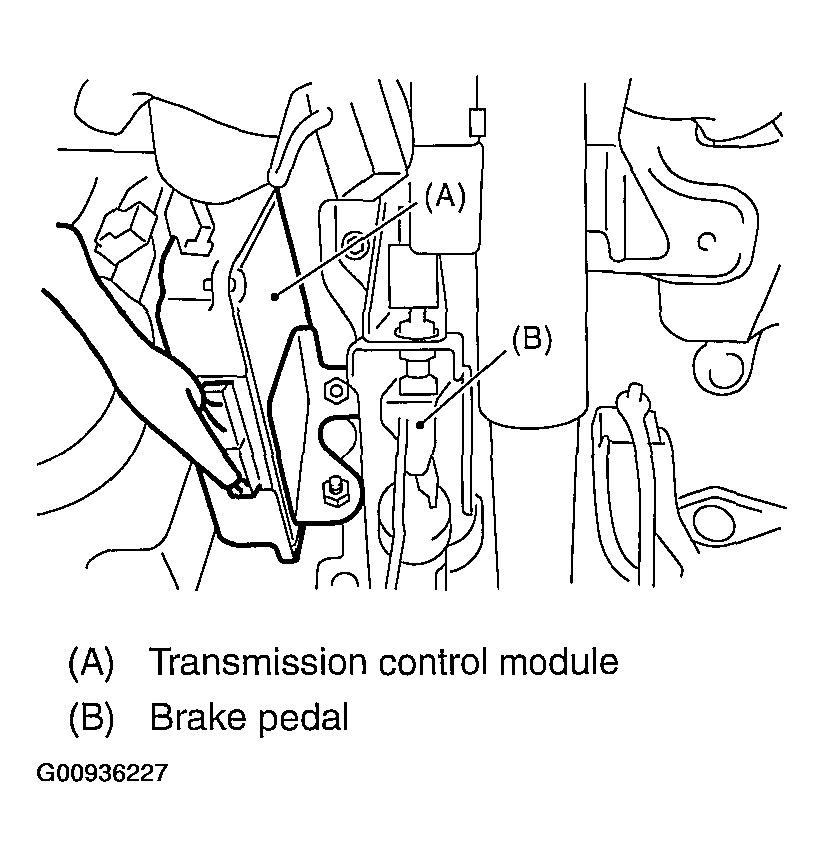

Fig 3: Disconnecting Connectors From Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
Remove the transmission control module.

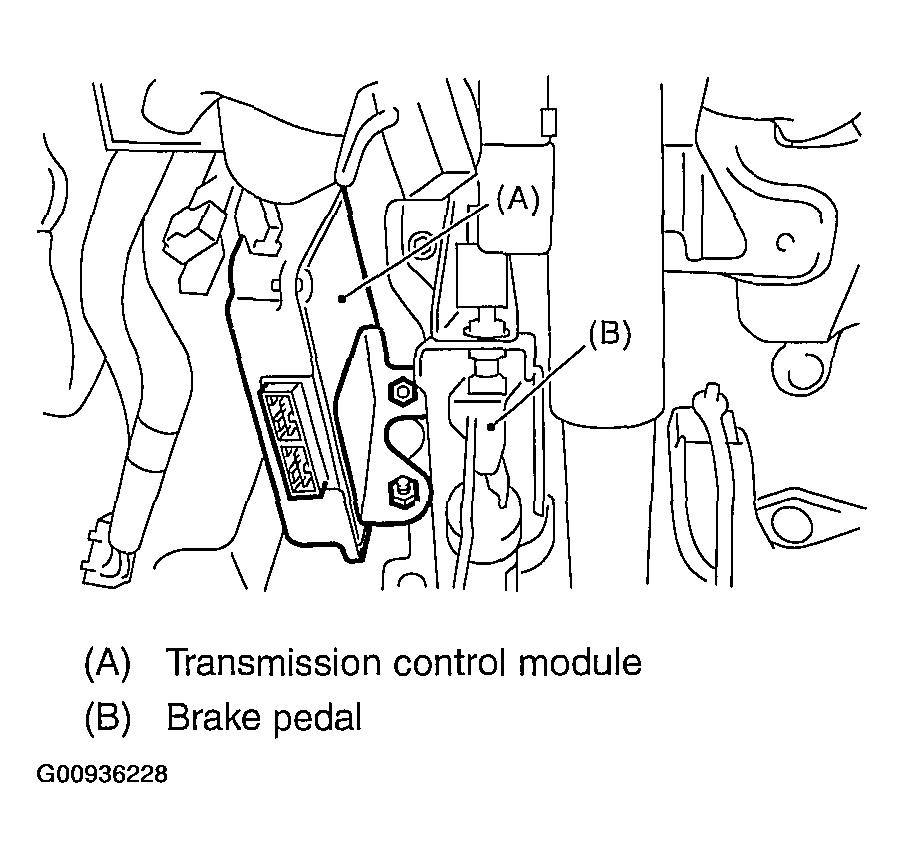

Fig 4: Identifying Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
