Pitching Stopper

  1. Disconnect the ground cable from battery.
  2. Remove the air cleaner case. (Non-turbo model)

    < Ref. to REMOVAL , Air Cleaner Case . >

  3. Remove the intercooler. (Turbo model)

    < Ref. to REMOVAL , Intercooler . >

  4. Remove the pitching stopper.

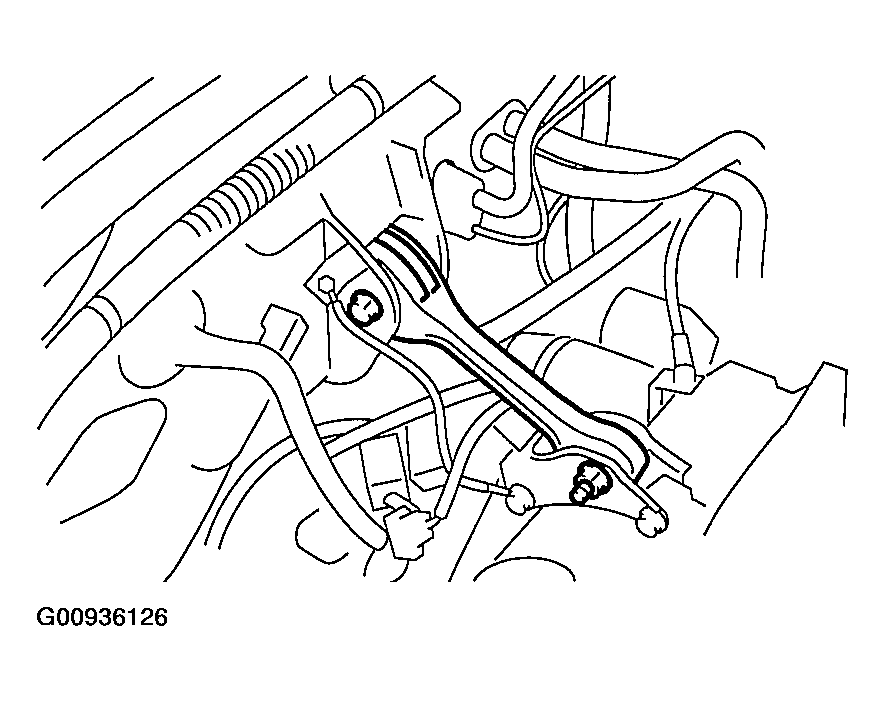

    Fig 1: Identifying Pitching Stopper
    G00936126Courtesy of SUBARU OF AMERICA, INC.
