Select Lever Shift Lock Cannot Be Released

WIRING DIAGRAM:

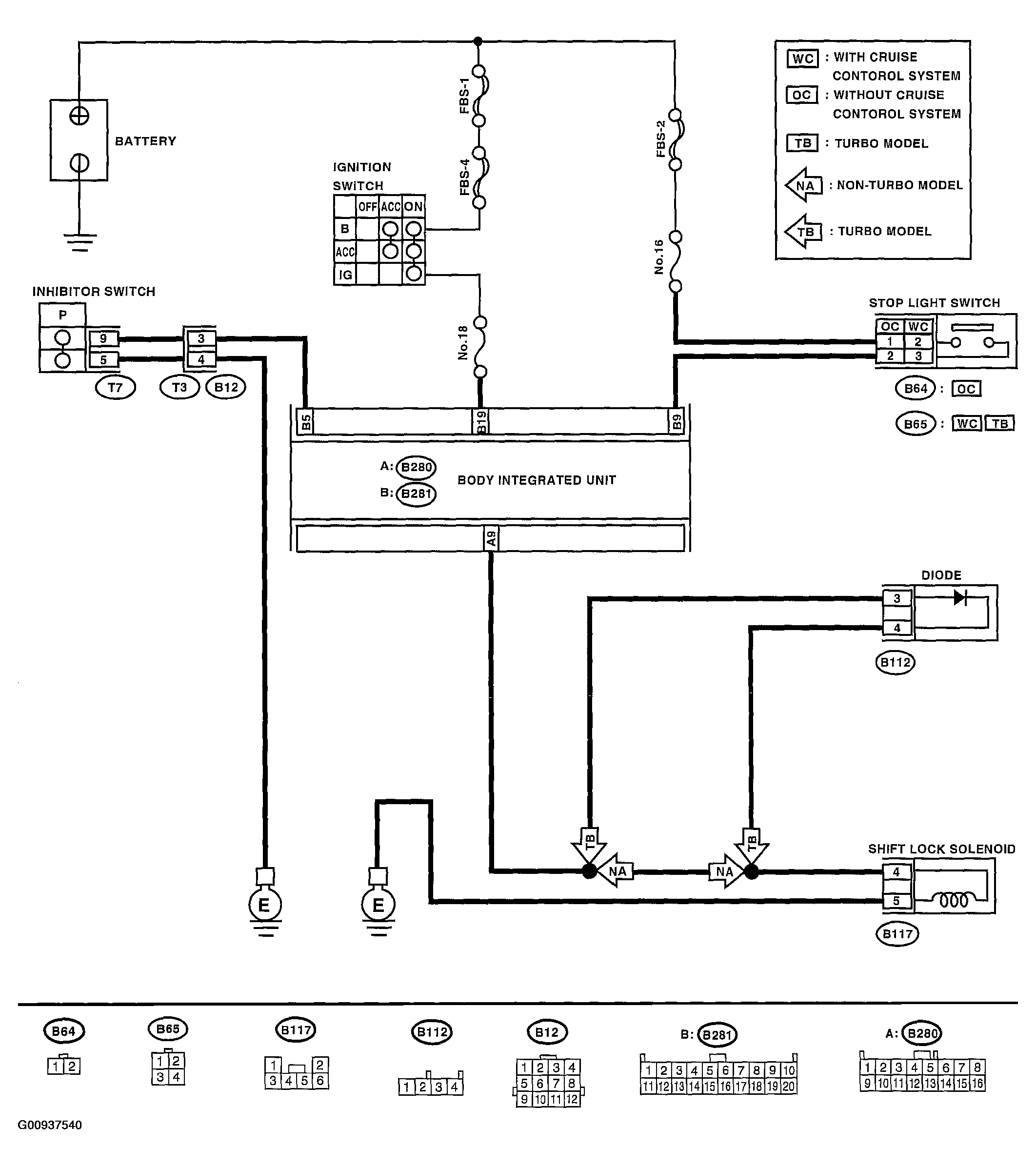

Fig 1: Select Lever Shift Lock Cannot Be Released Wiring Diagram

Courtesy of SUBARU OF AMERICA, INC.

SHIFT LOCK OPERATION CHART:

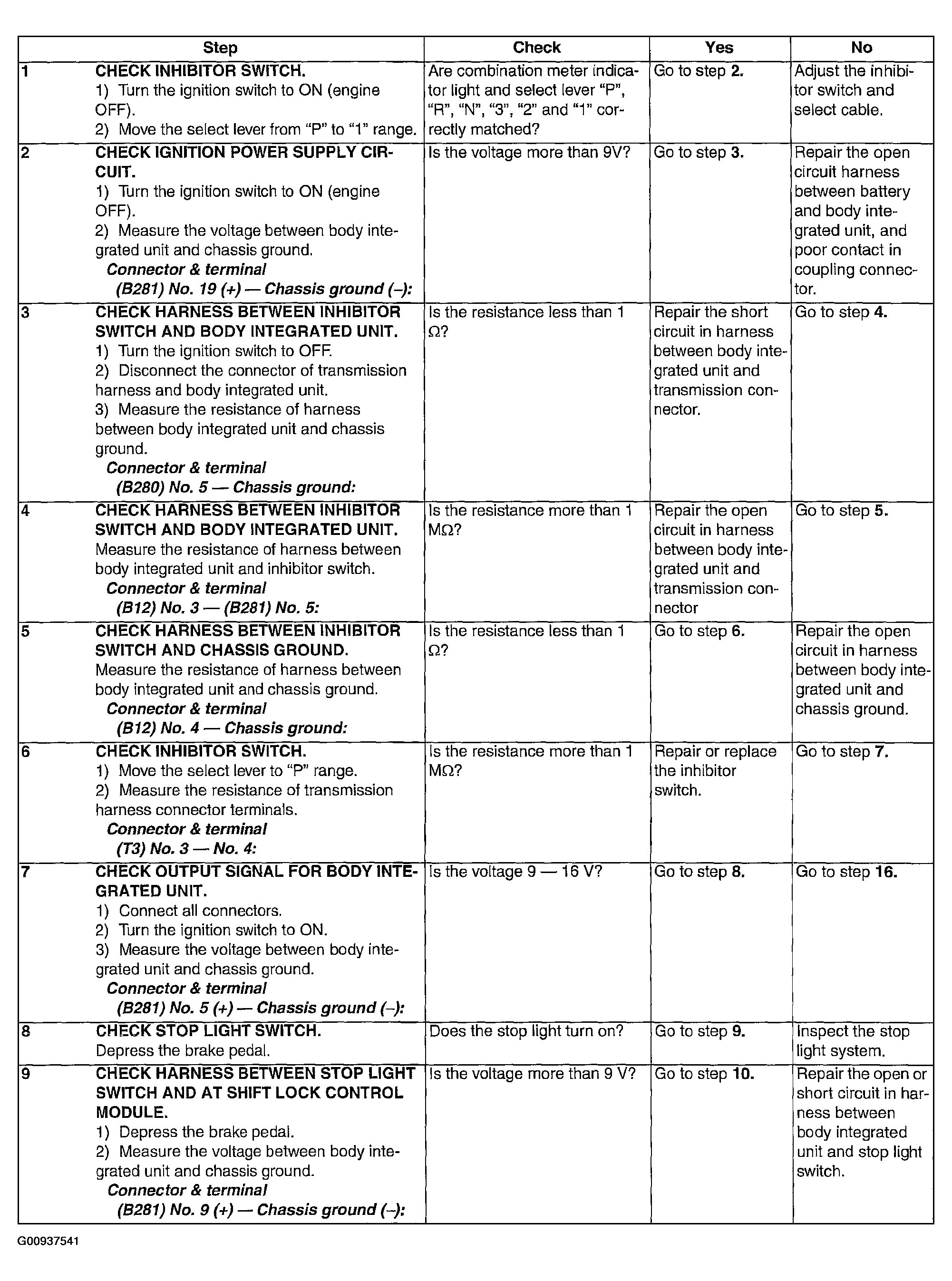

Fig 2: Shift Lock Operation Chart (1 Of 2)

Courtesy of SUBARU OF AMERICA, INC.

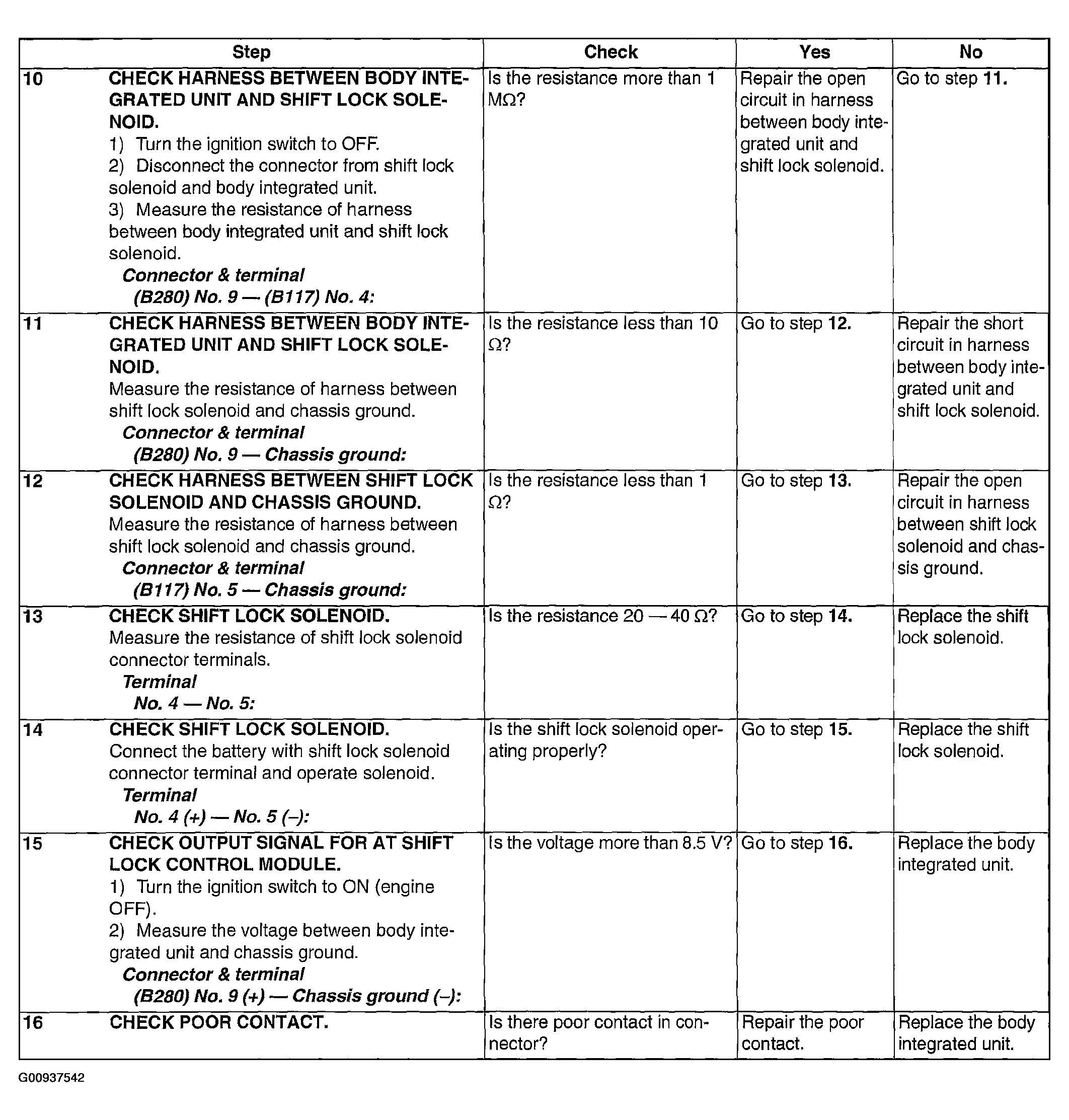

Fig 3: Shift Lock Operation Chart (2 Of 2)

Courtesy of SUBARU OF AMERICA, INC.
