A/T Shift Lock System: Wiring Diagram

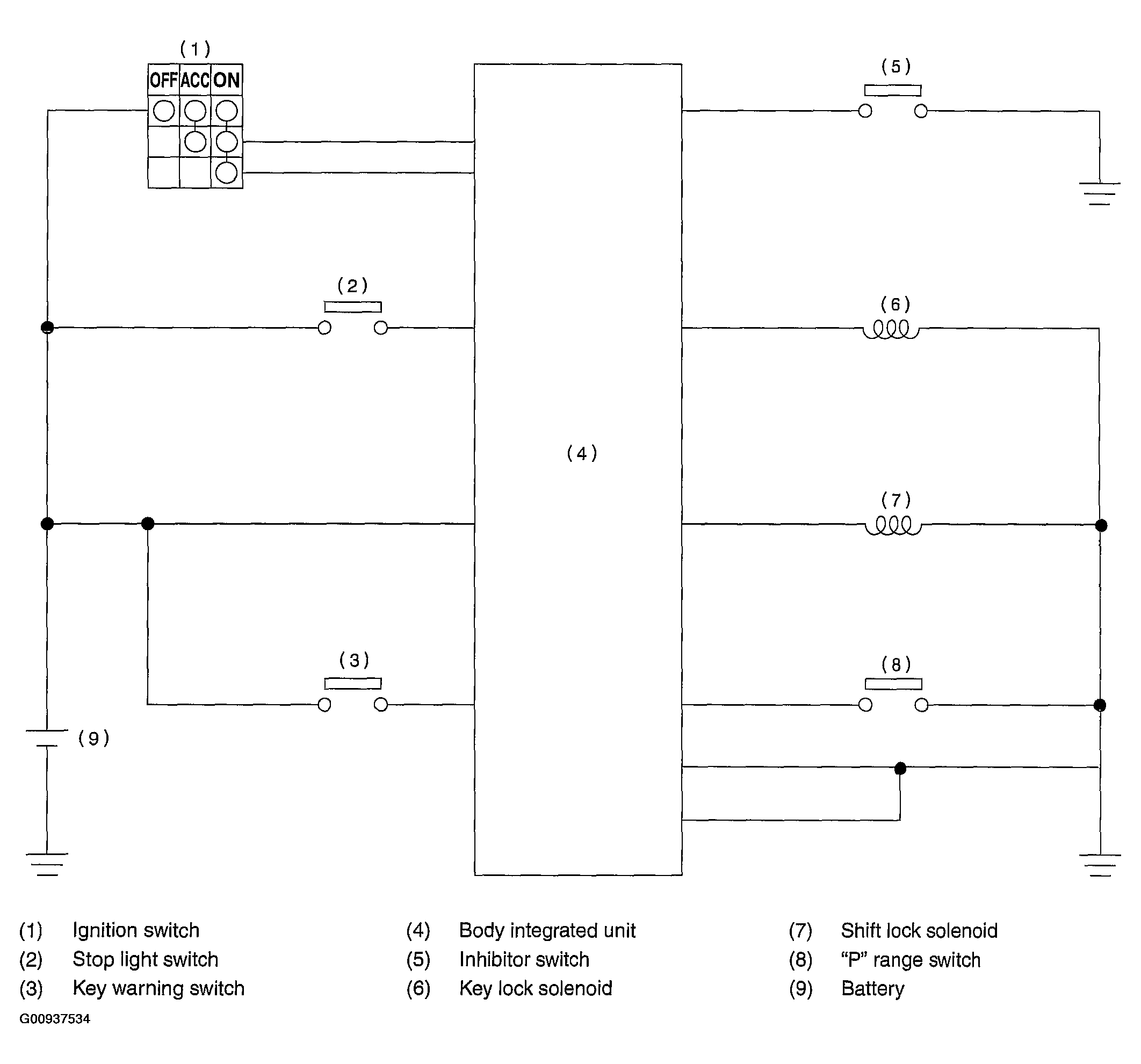

Fig 1: Wiring Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
