Electrical Components: Location

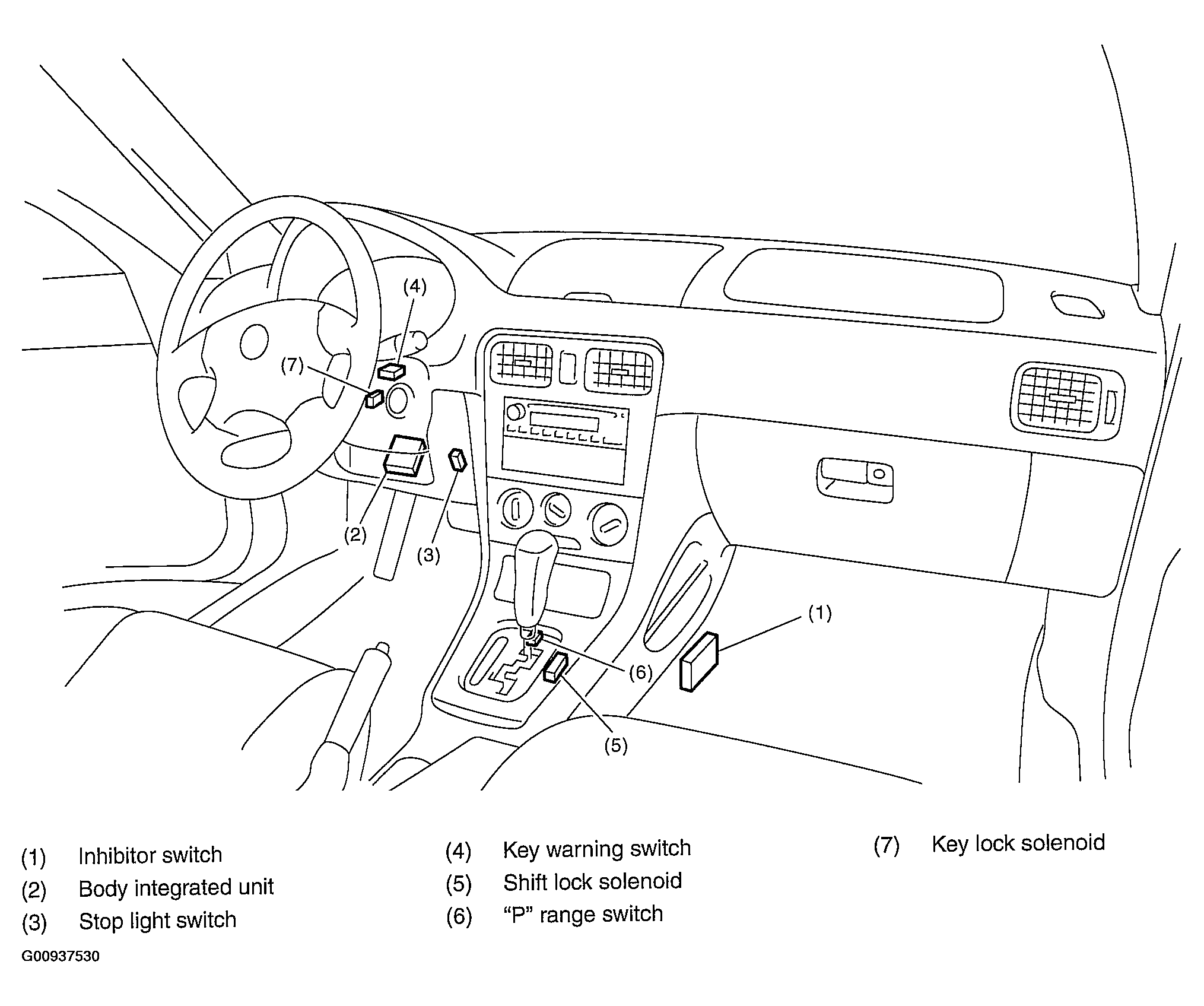

Fig 1: Locating Electrical Components (1 Of 2)
G00937530Courtesy of SUBARU OF AMERICA, INC.

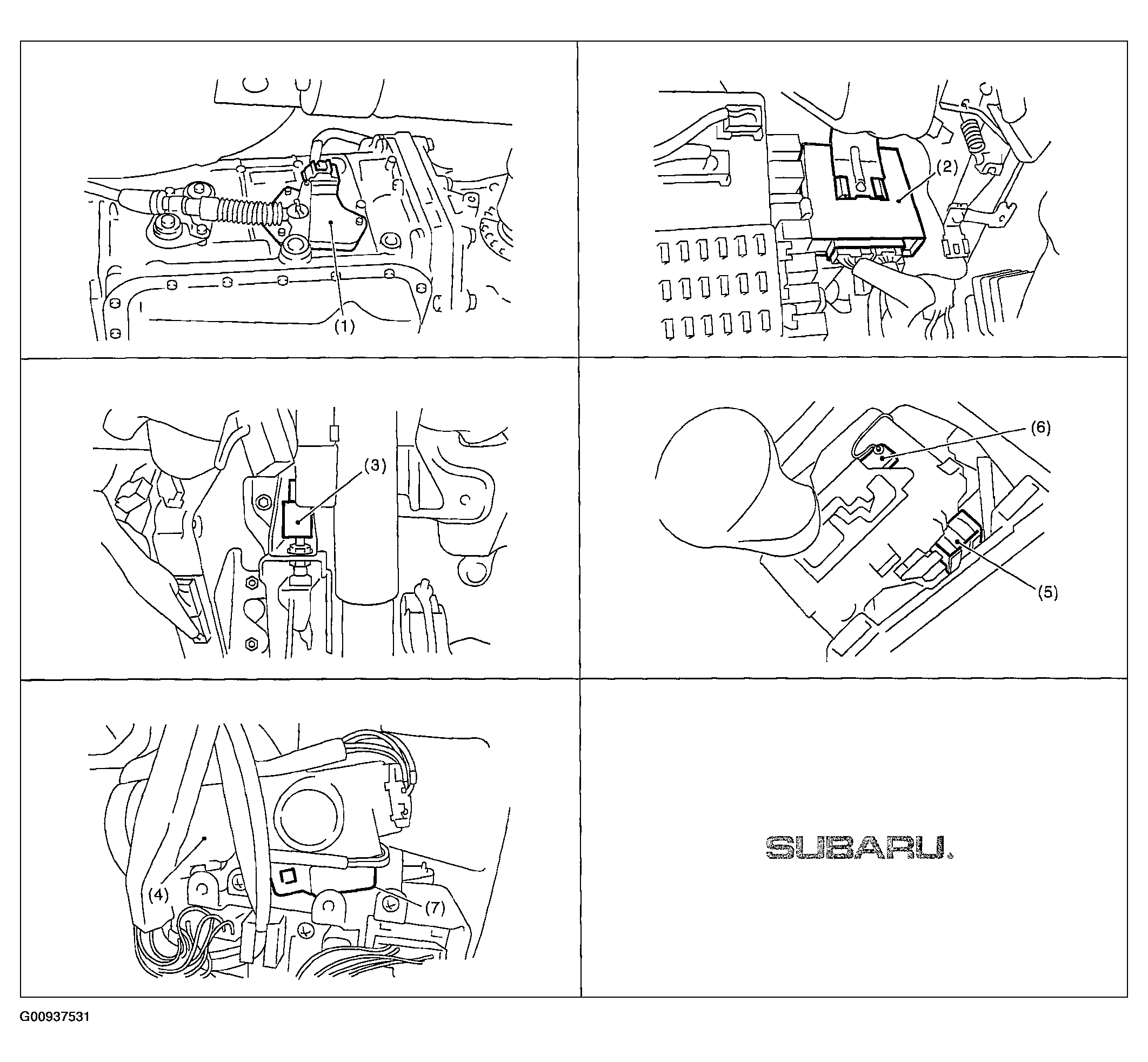

Fig 2: Locating Electrical Components (2 Of 2)
G00937531Courtesy of SUBARU OF AMERICA, INC.
