A/T Select Lever

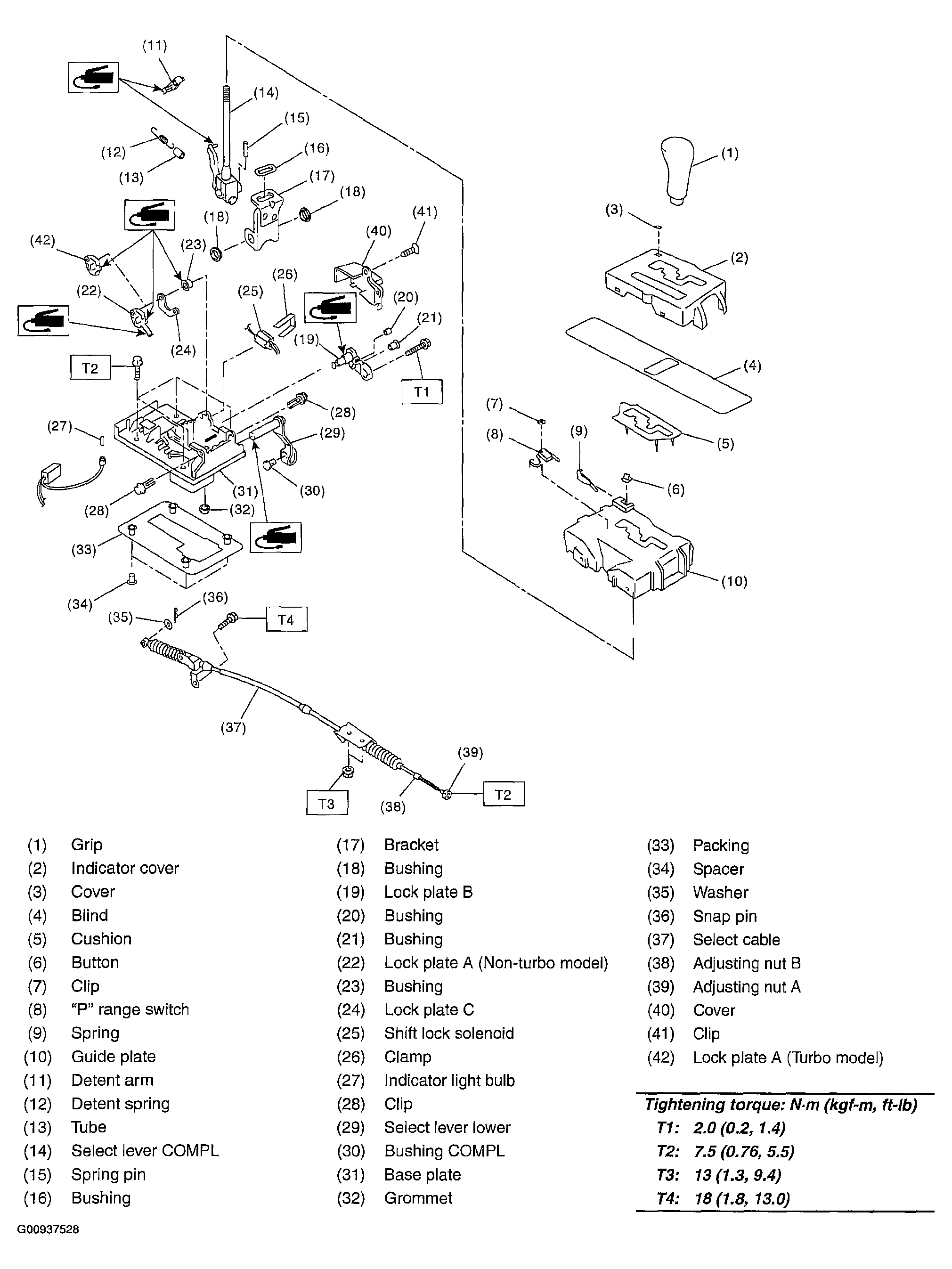

Fig 1: Exploded View Of A/T Select Lever With Torque Specifications
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
