M/T Gear Shift Lever: Assembly

Clean all parts before assembly.
Mount the bushing and cushion rubber on the stay.

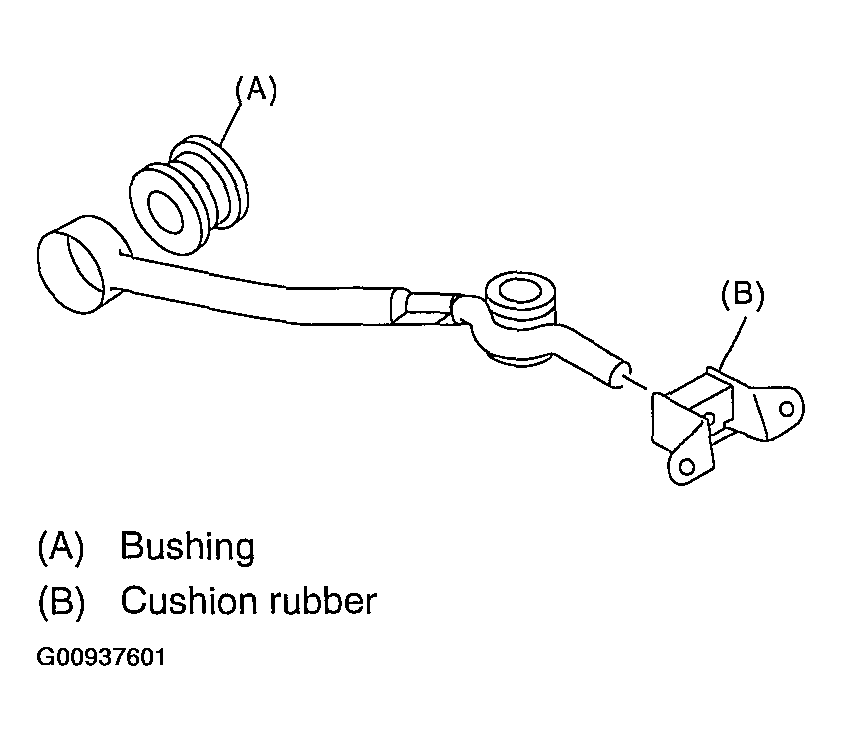

Fig 1: Assembling Mount Bushing And Cushion Rubber On Stay
Courtesy of SUBARU OF AMERICA, INC.

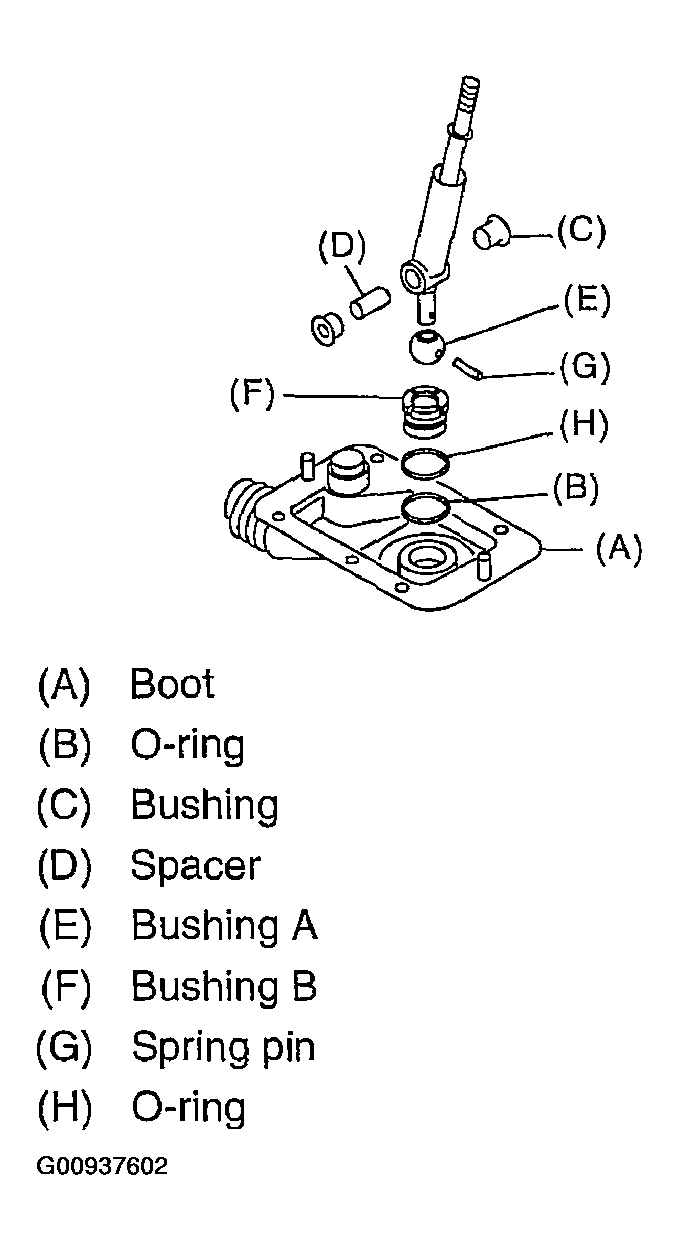

Mount each part; boot, O-ring, bushing A, spacer, bushing B, bushing and spring pin on the gear shift lever.
NOTE:
- Always use new O-rings.
- Apply grease [SUNLIGHT 2 (Part No. 003602010) or equivalent] to the inner and side surfaces of the bush when Identifying the spacer.
Fig 2: Identifying Spacer
Courtesy of SUBARU OF AMERICA, INC.
Insert the gear shift lever into boot hole.
Install the snap ring and stay to bushing B.

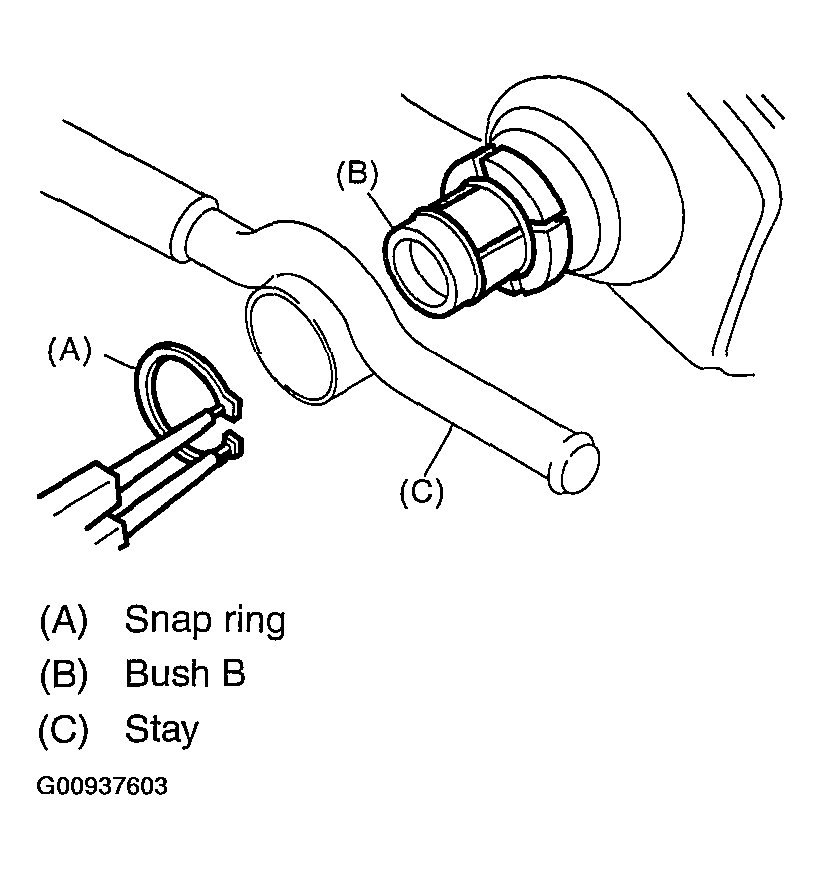

Fig 3: Identifying Snap Ring And Stay
Courtesy of SUBARU OF AMERICA, INC.
Tighten with a lock wire to the extent that the boot will not come off.
NOTE: Always use new lock wire.

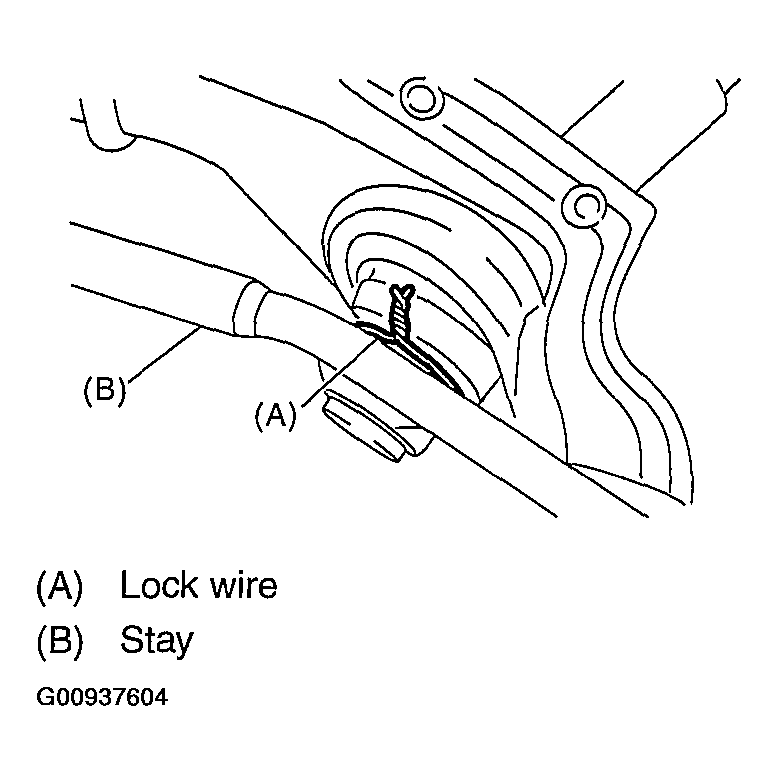

Fig 4: Using New Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Insert the rod into boot hole.
Connect the rod to gear shift lever.
1. Tightening torque: 12 N.m (1.2 kgf-m, 8.7 ft-lb)

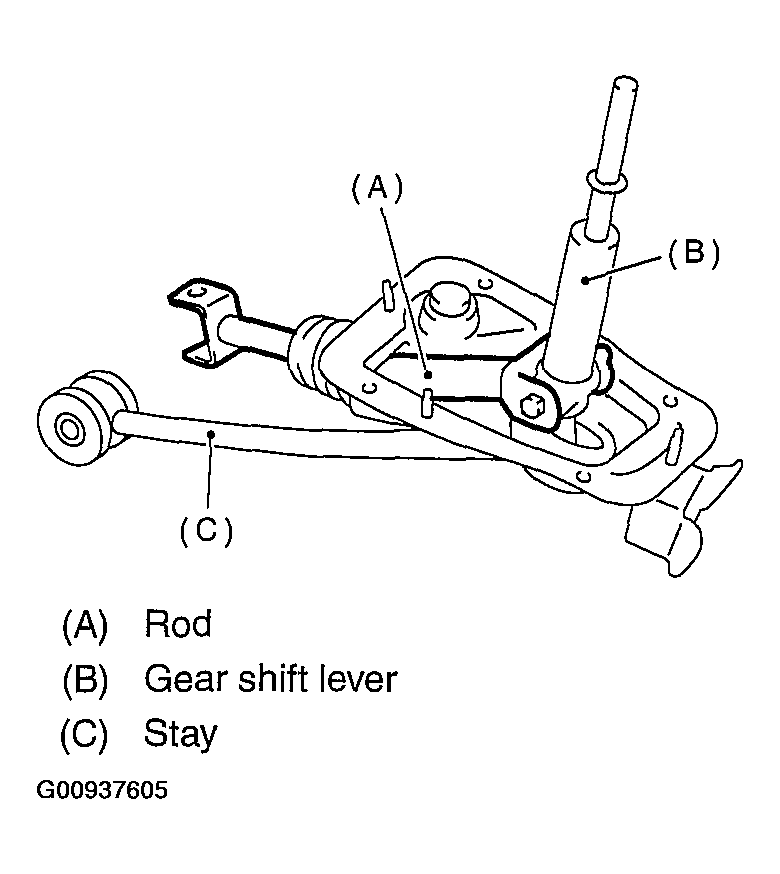

Fig 5: Connecting Rod To Gear Shift Lever
Courtesy of SUBARU OF AMERICA, INC.
Check the swing torque of the rod in relation to gear shift lever.
1. Swing torque: 3.7 N (0.38 kgf, 2.7 ft) or less
Check that there is no excessive play and that parts move smoothly.
