M/T Gear Shift Lever: Disassembly

Disassemble the lock wire.

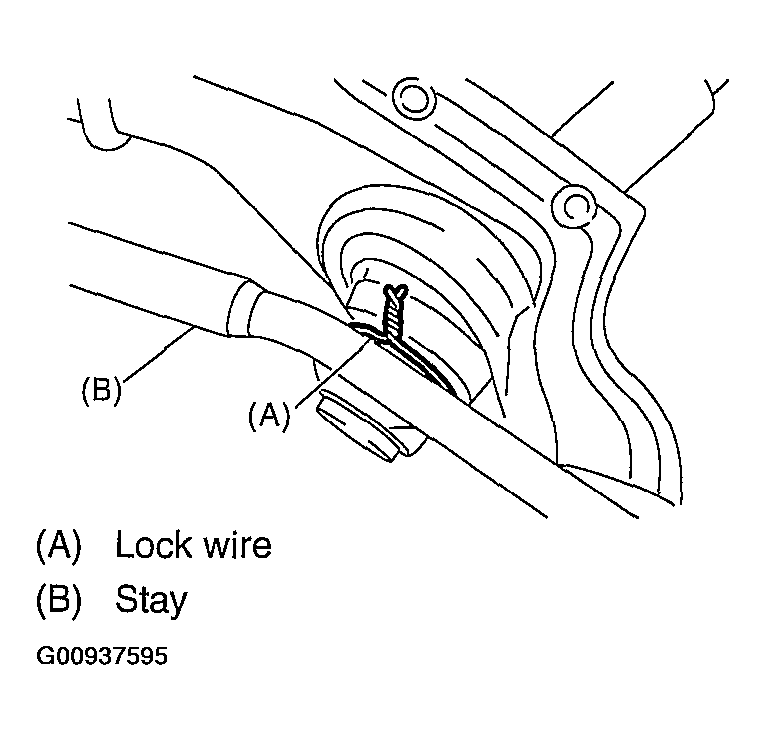

Fig 1: Disassembling Lock Wire
Courtesy of SUBARU OF AMERICA, INC.
Remove the rod from gear shift lever.

Fig 2: Identifying Rod
Courtesy of SUBARU OF AMERICA, INC.
Remove the snap ring from bushing B, and then disconnect the stay.

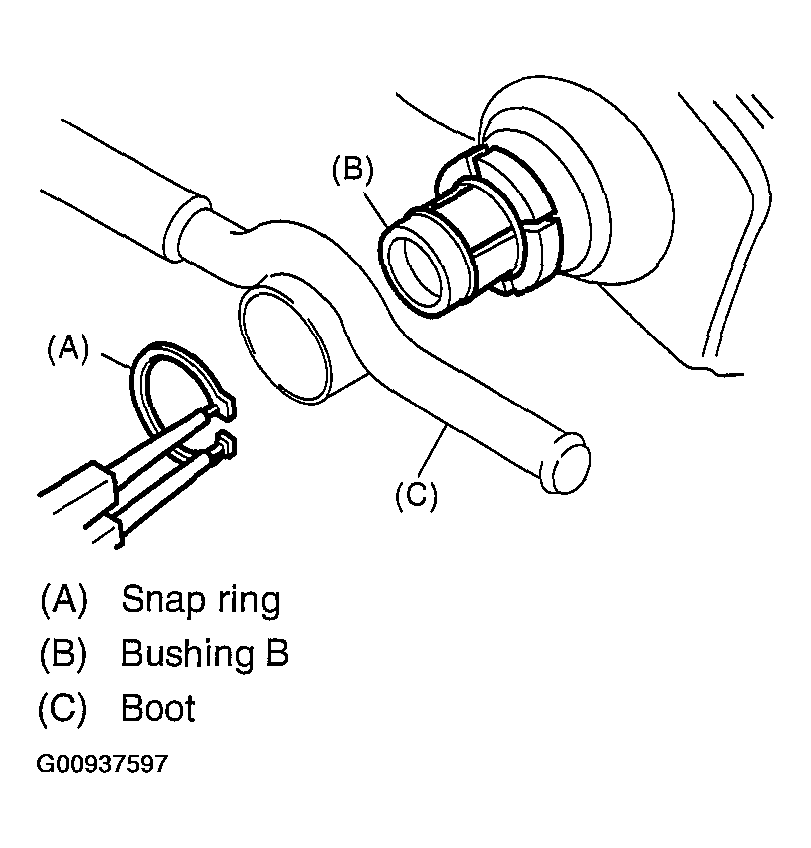

Fig 3: Identifying Snap Ring
Courtesy of SUBARU OF AMERICA, INC.
Remove the boot from gear shift lever.
Remove the bushing and cushion rubber from stay.

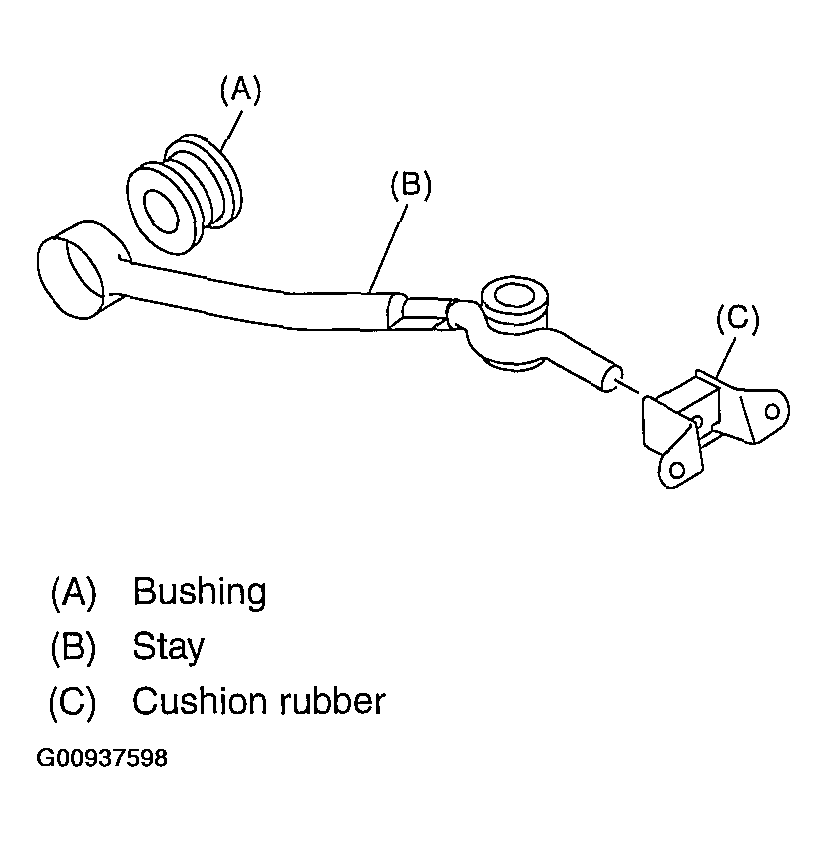

Fig 4: Identifying Bushing And Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Remove the O-ring, and then disconnect the bushing B.

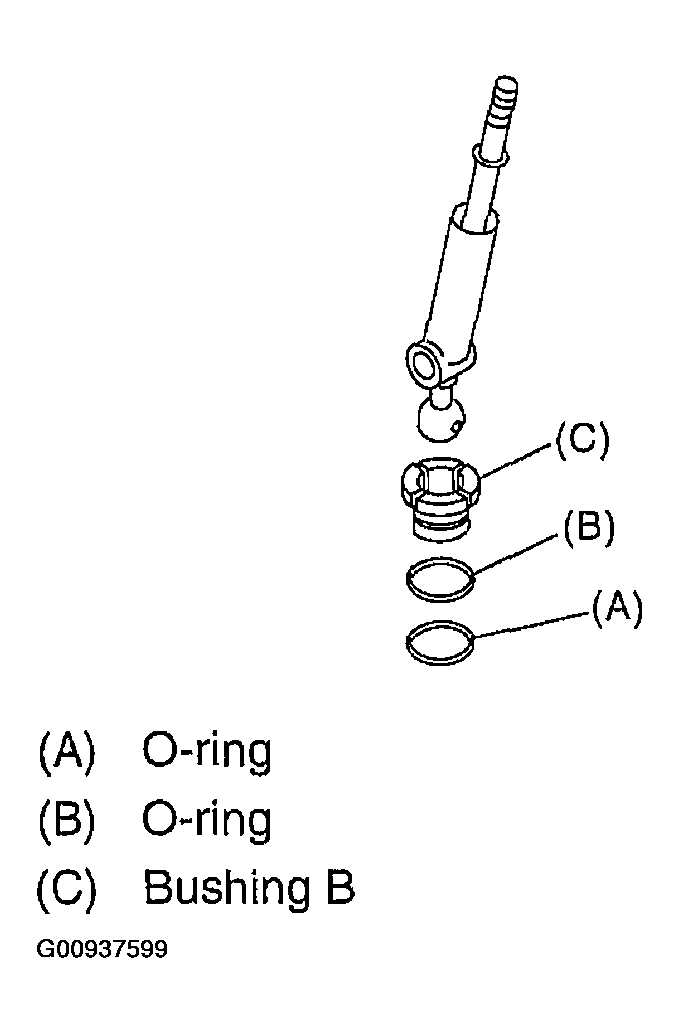

Fig 5: Identifying O-Ring & Bushing B
Courtesy of SUBARU OF AMERICA, INC.
Draw out the spring pin, and then remove the bushing A from gear shift lever.

Fig 6: Identifying Bushing A
Courtesy of SUBARU OF AMERICA, INC.
