M/T Gear Shift Lever: Installation

Install the joint to transmission and secure with the spring pin.

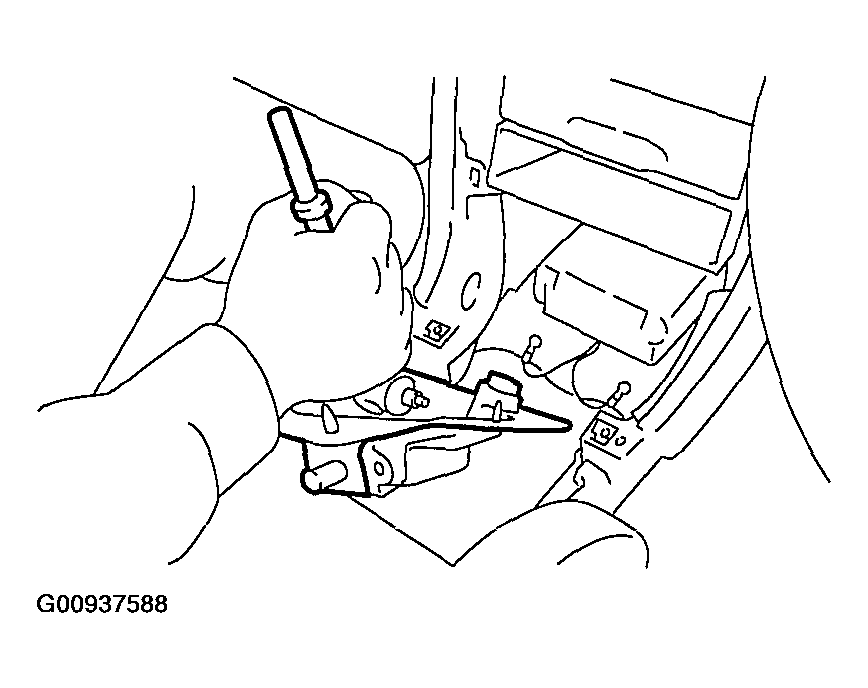

Insert the gear shift lever from room side.
NOTE: After inserting the rod and stay, temporarily put them onto transmission mount.

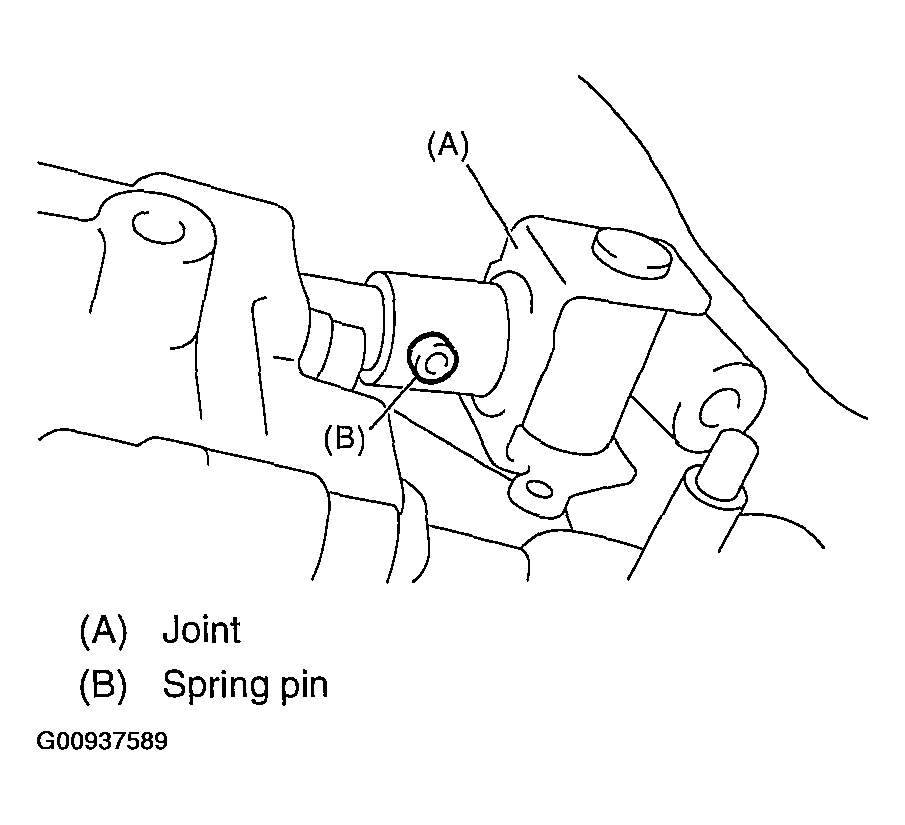

Fig 1: Identifying Joint & Shifter Arm
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the joint to shifter arm.
Insert the spring pin.

Fig 2: Inserting Spring Pin
Courtesy of SUBARU OF AMERICA, INC.
Mount the cushion rubber on the body.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

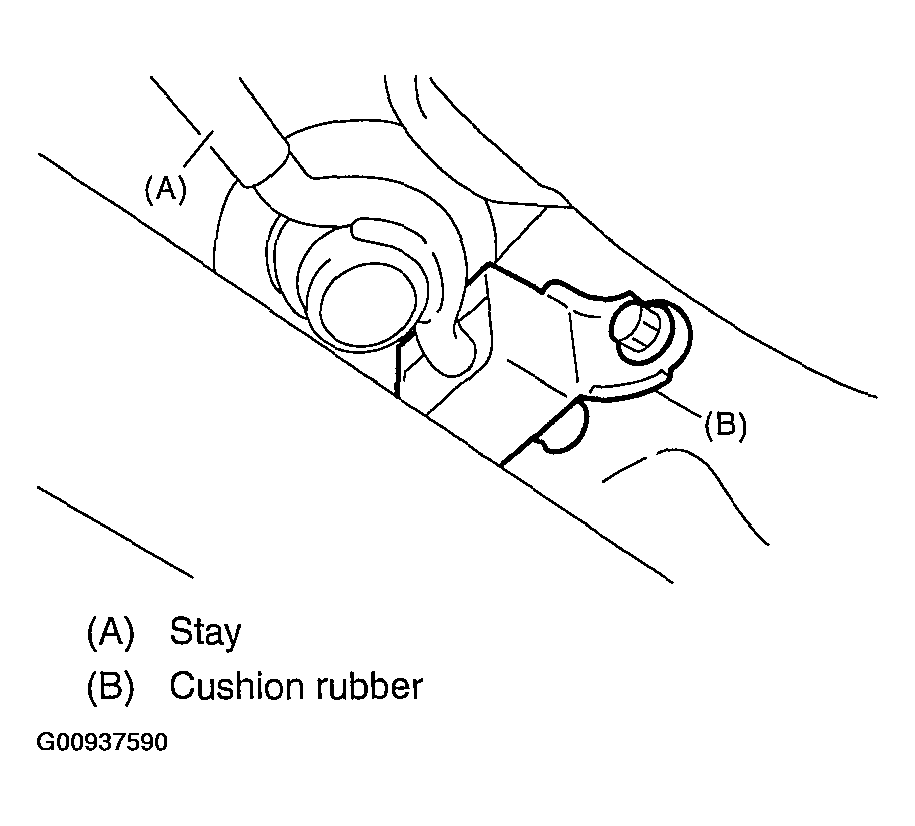

Fig 3: Identifying Cushion Rubber
Courtesy of SUBARU OF AMERICA, INC.
Connect the rod to the joint.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

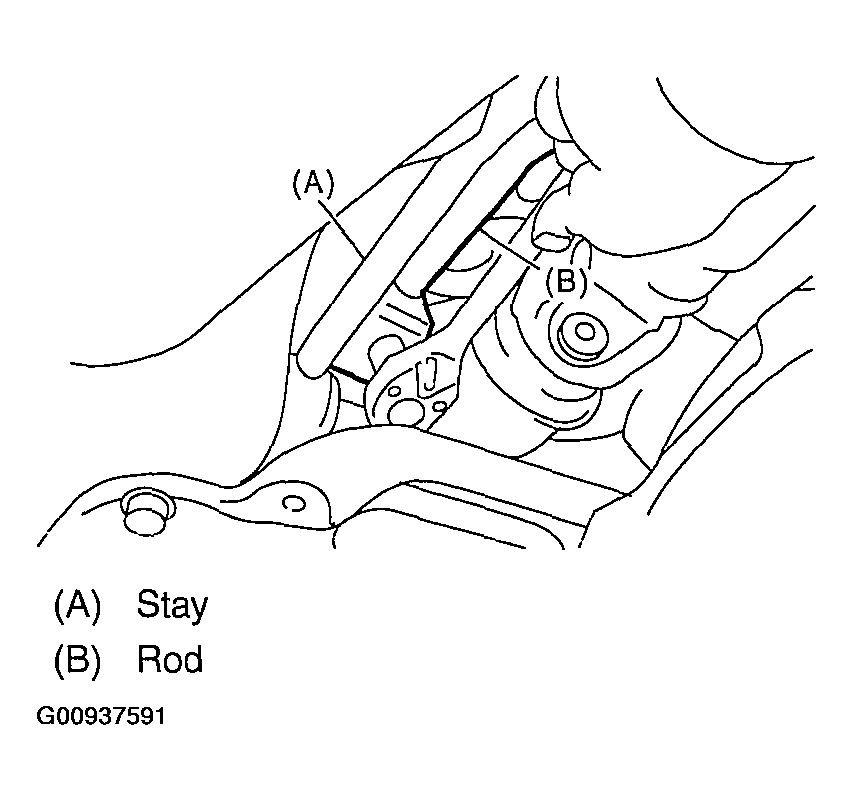

Fig 4: Connecting Rod & Joint
Courtesy of SUBARU OF AMERICA, INC.
Connect the stay to transmission bracket.
1. Tightening torque: 18 N.m (1.8 kgf-m, 13.0 ft-lb)

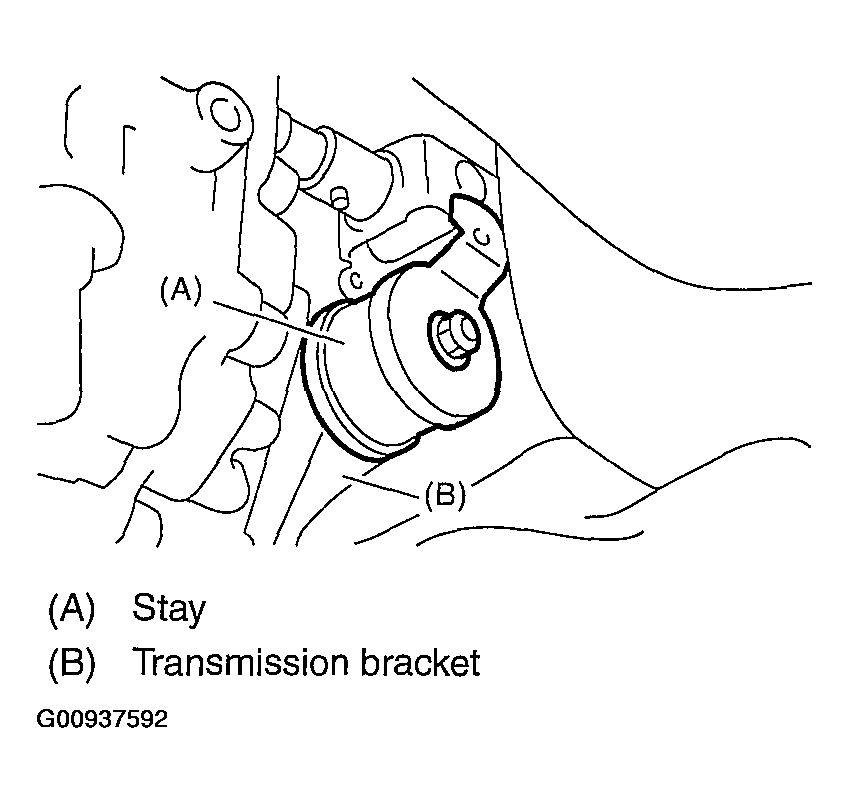

Fig 5: Connecting Stay To Transmission Bracket
Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover. (If equipped)
Install the rear exhaust pipe and muffler.
Non-turbo model

< Ref. to INSTALLATION , Rear Exhaust Pipe . > < Ref. to INSTALLATION , Muffler . >

Turbo model

< Ref. to INSTALLATION , Rear Exhaust Pipe . > < Ref. to INSTALLATION , Muffler . >
Lower the vehicle.
Install the plate assembly to body.
1. Tightening torque:7.5 N.m (0.76 kgf-m, 5.5 ft-lb)

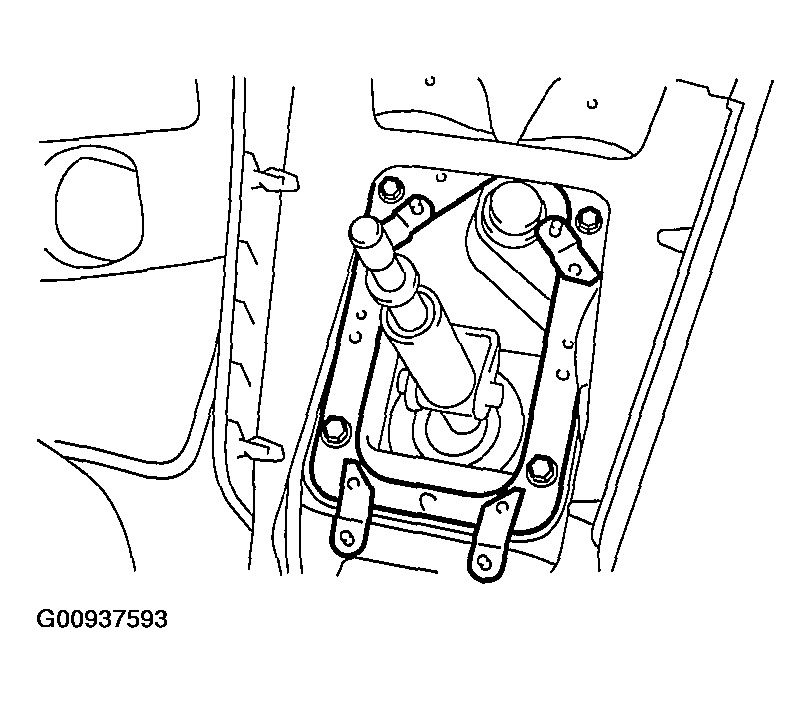

Fig 6: Identifying Plate Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the boot and insulator assembly to vehicle in proper direction.

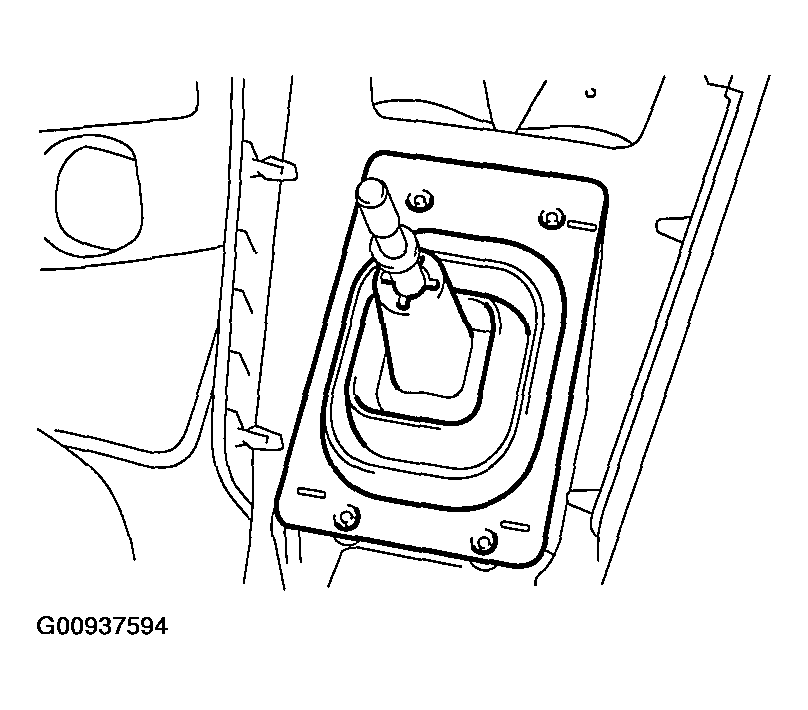

Fig 7: Identifying Boot And Insulator Assembly
Courtesy of SUBARU OF AMERICA, INC.
Install the clamp.
Install the console box. < Ref. to INSTALLATION , Console Box . >
